Classic Converted Clovelly class

  • $  512,147 inc Vat
  • 1 / 18

    Description

    An opportunity to acquire a substantial cruising ship which has been completely refurbished to a high standard.

    Suitable for long distance cruising in safety or an opportunity for Air B and B, vessel currently berthed near Old Trafford Football ground in Manchester


    General Information

    • Year Built: 1970
    • Location: United Kingdom
    • Name: CRICKLADE
    • Hull Material: Steel
    • Builder:
    • Designer:

    Measurements

    • Length: 24.08 m
    • Beam: 6.71 m
    • Max Draft: 2.13 m
    • Displacement: 0 kgs

    Engines

    • Number of Engines: 0
    • Drive Type:

    Tanks

    • Fuel Tankage:
    • Water Tankage:

    General particulars

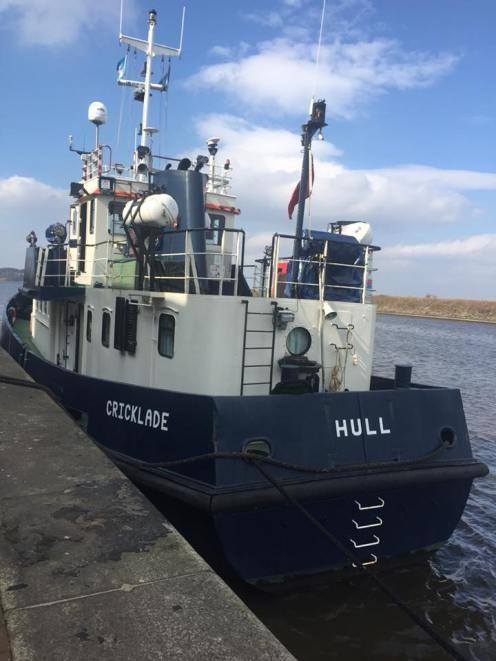

    Built Charles D Holmes of Hull 1970

    Steel construction – Rubber fendering fitted

    Single screw, Single rudder

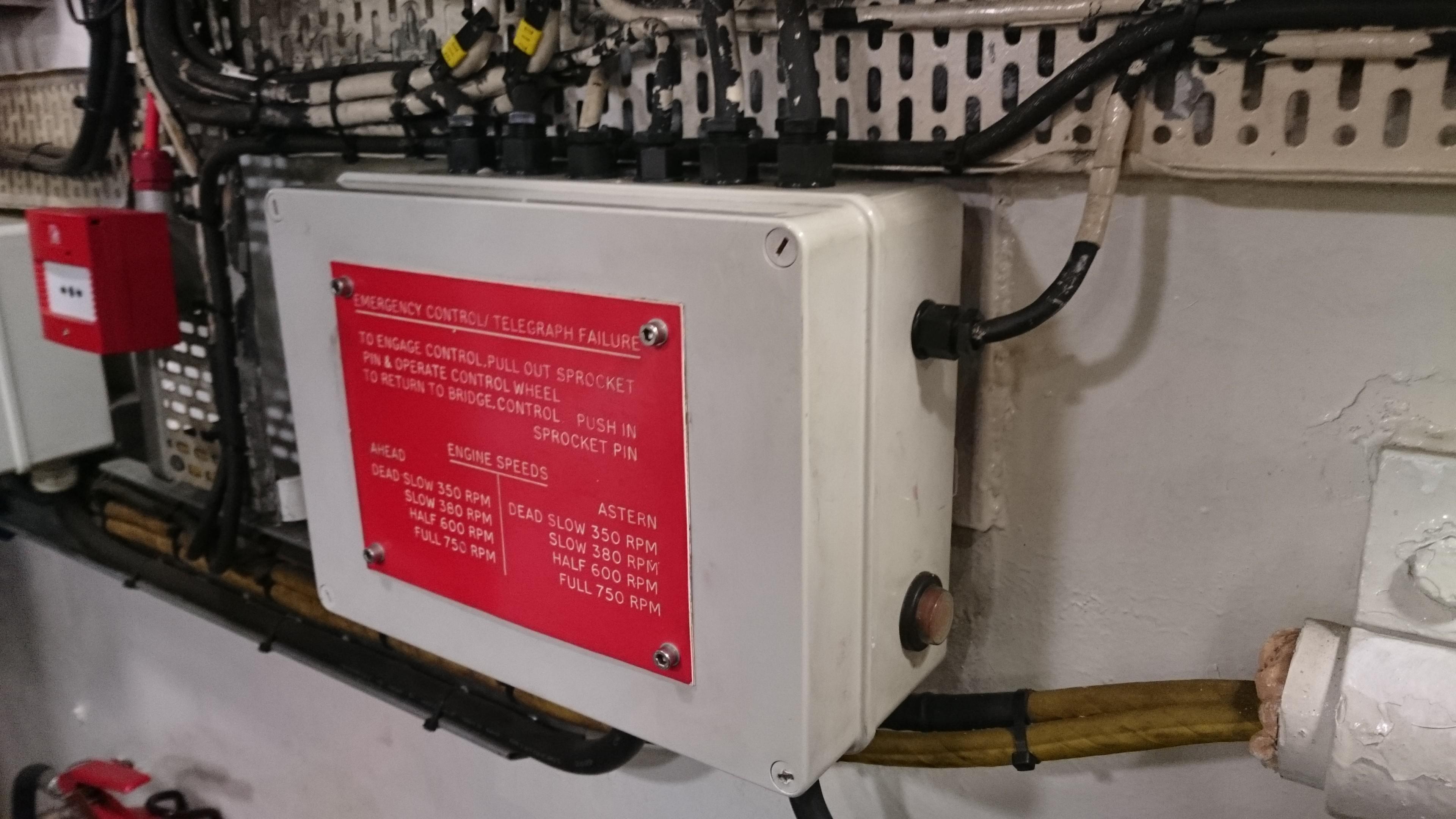

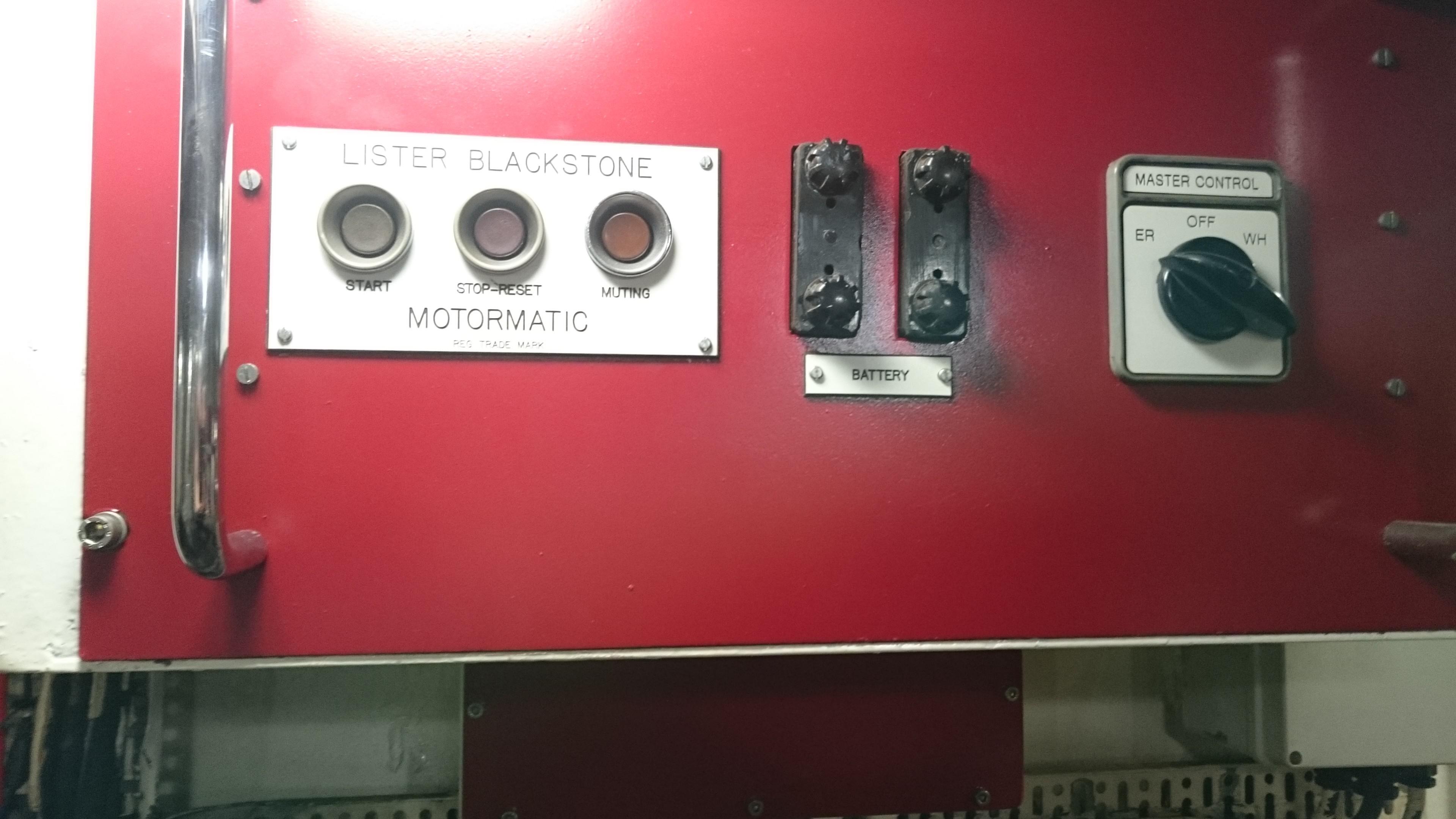

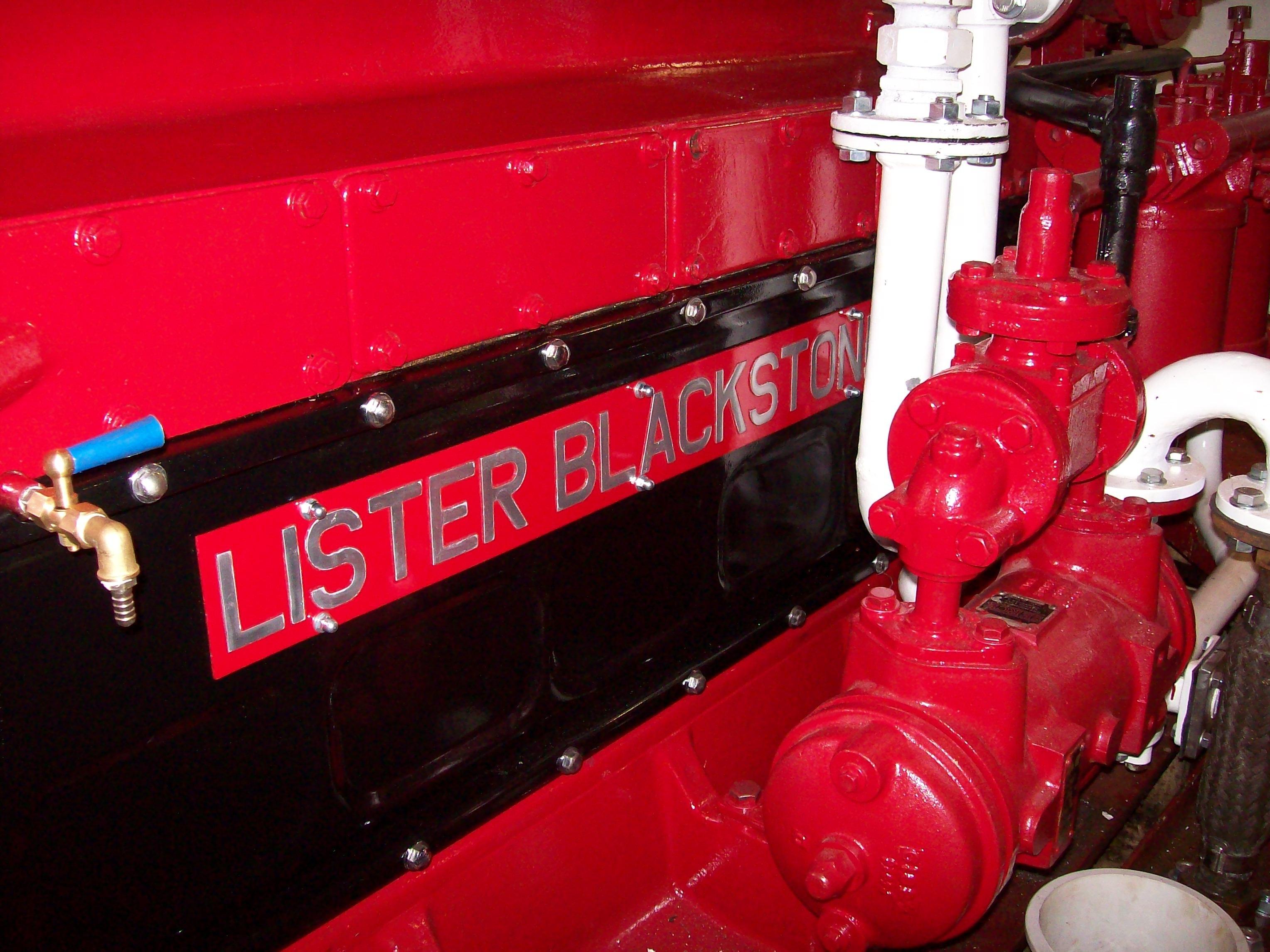

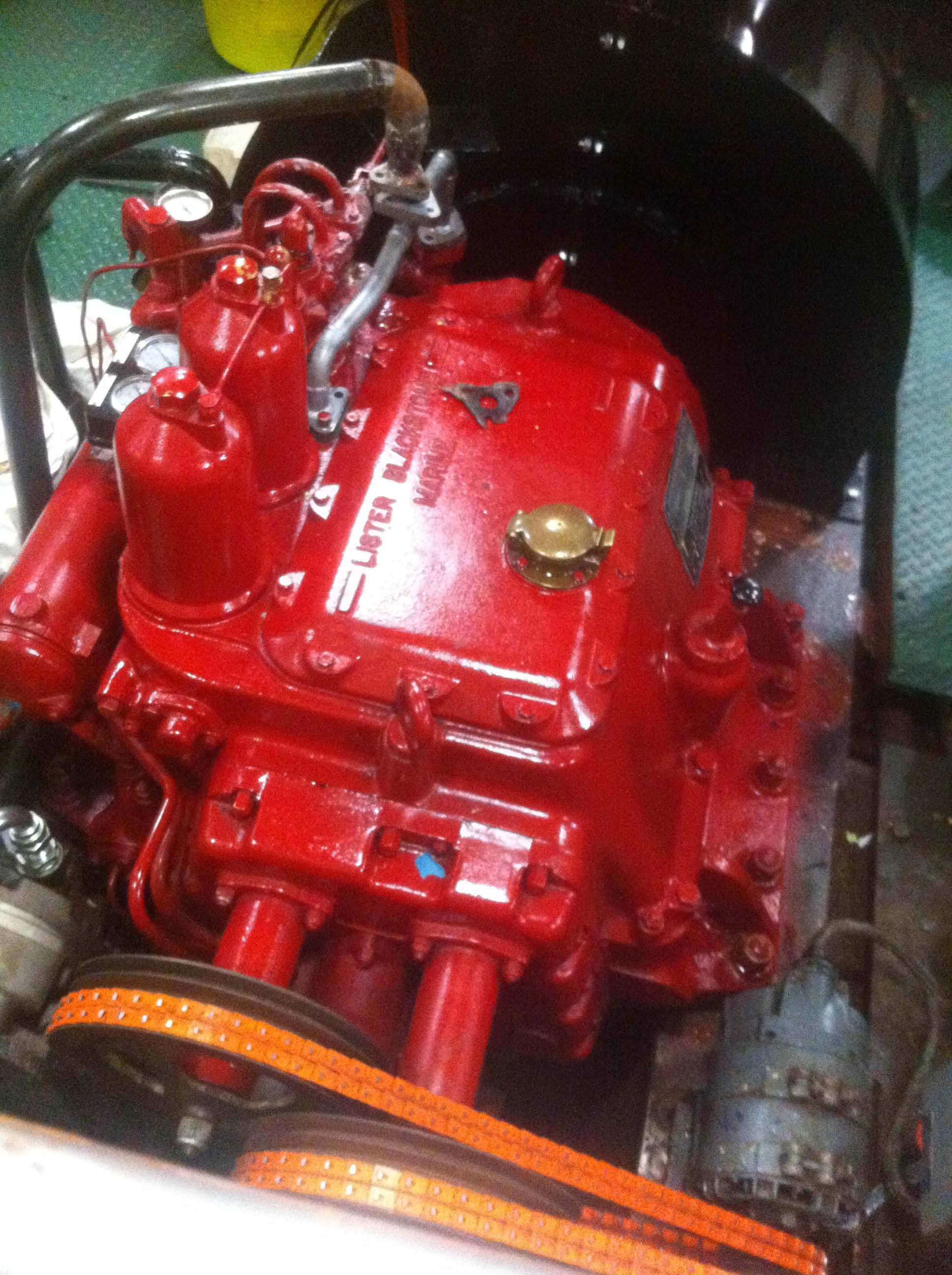

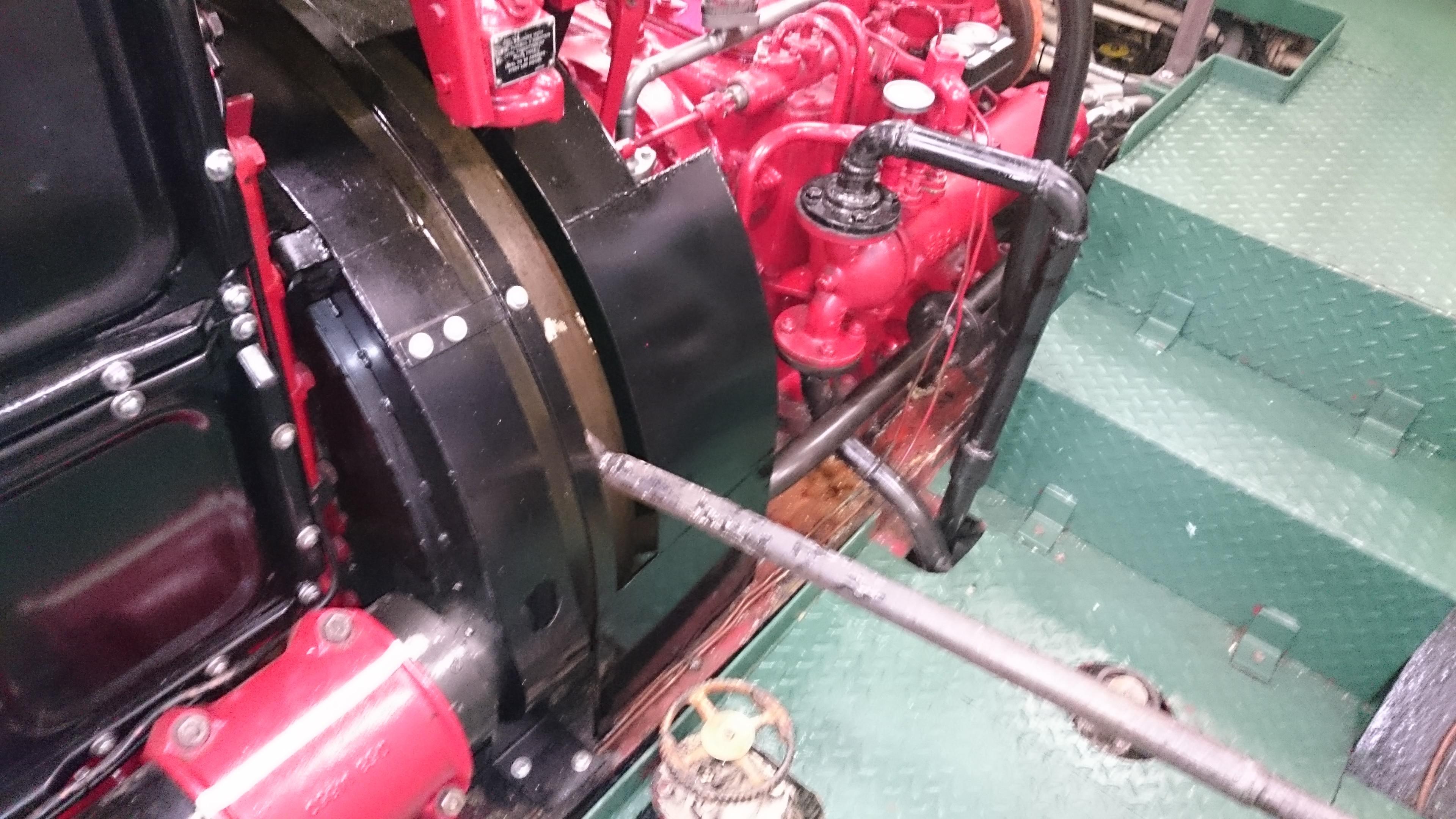

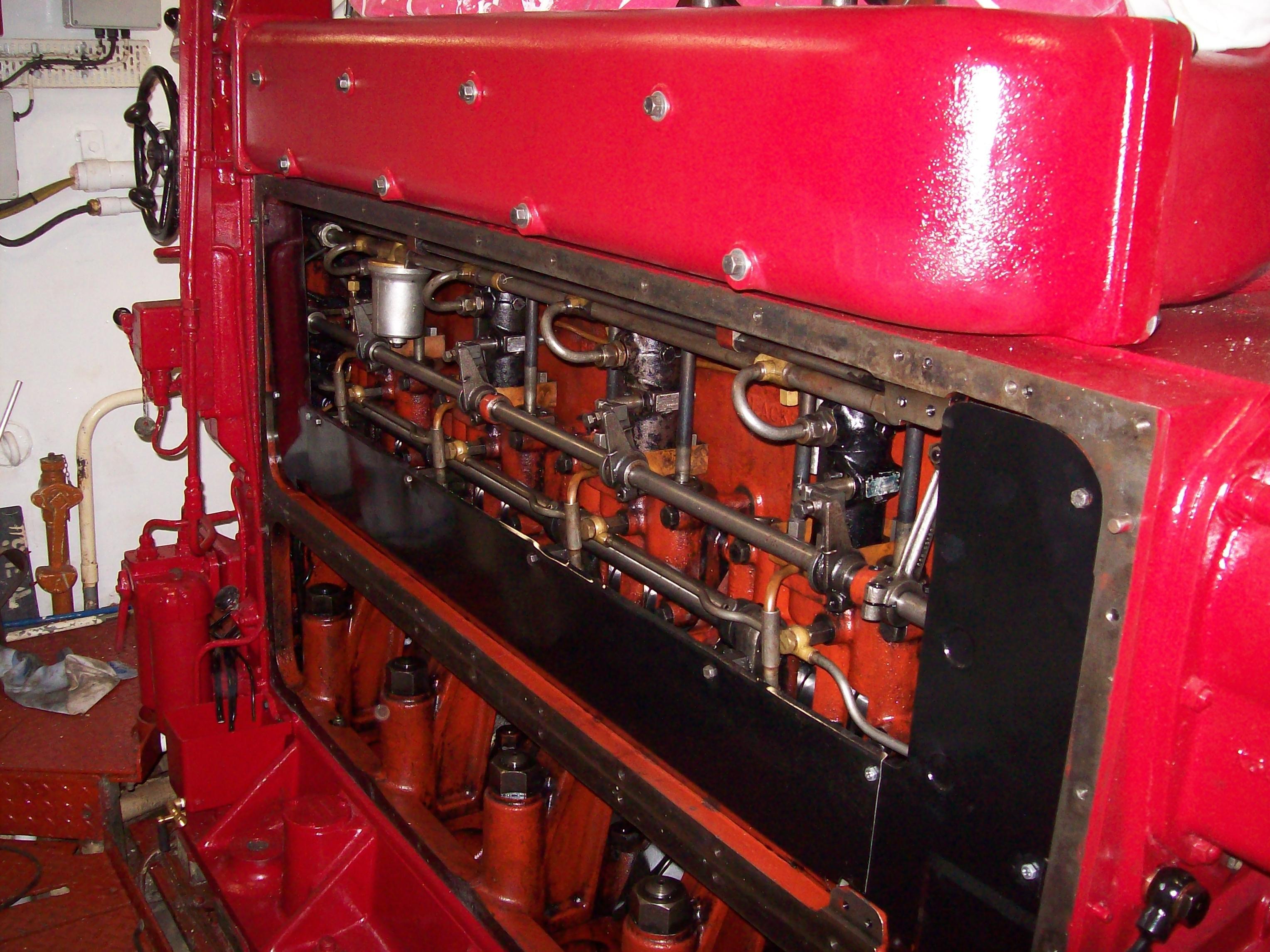

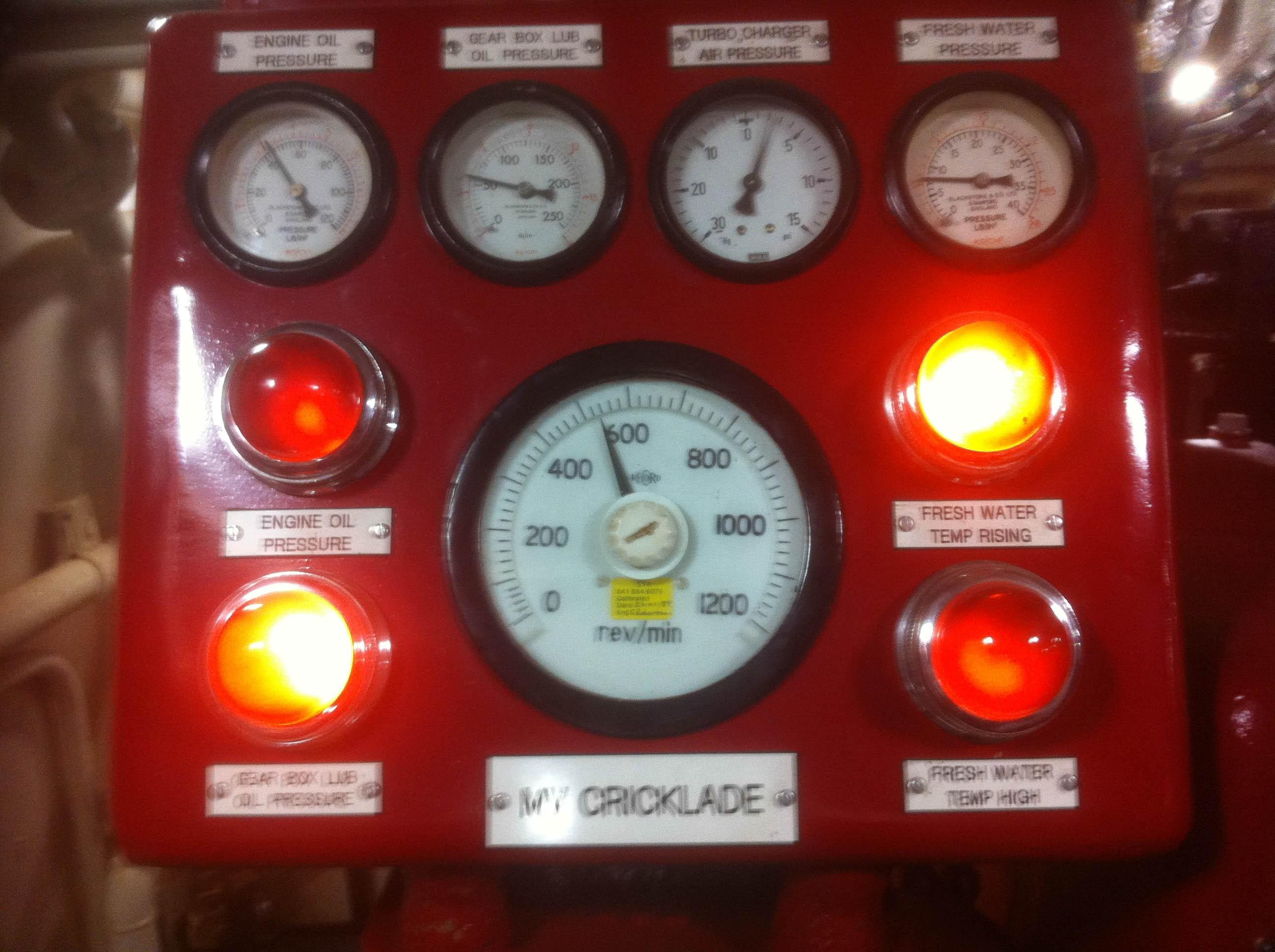

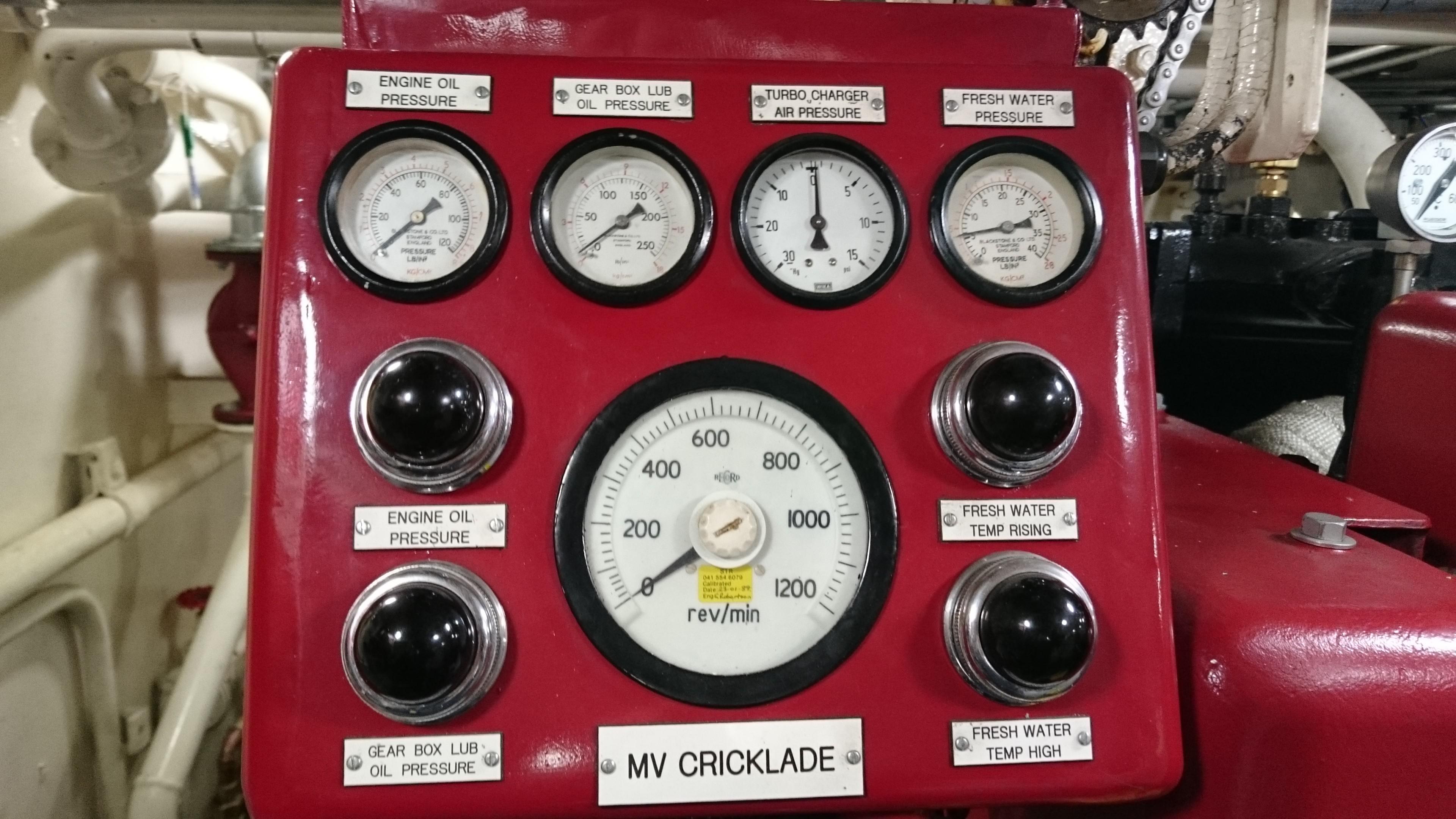

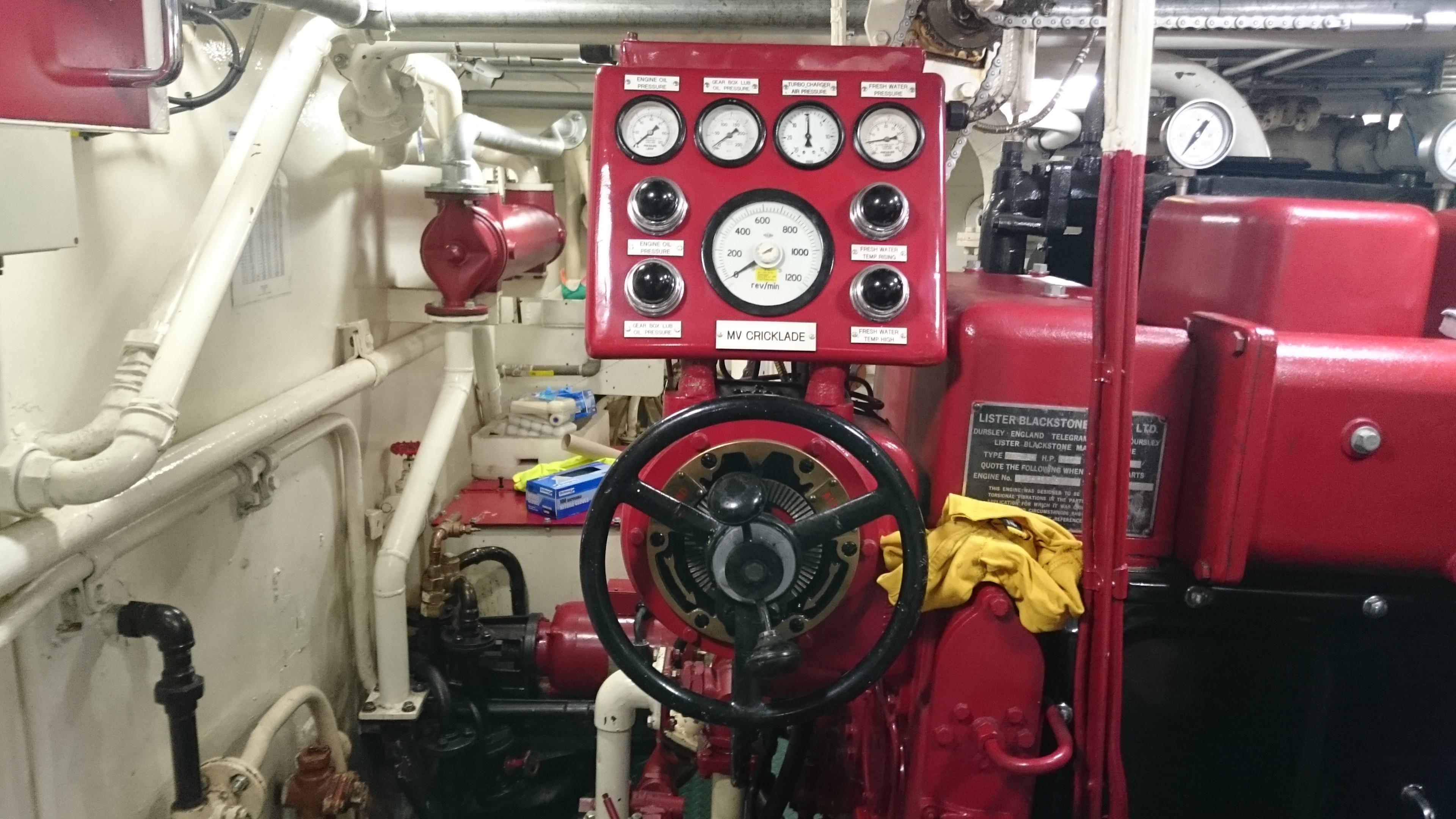

    Main propulsion machinery Lister Blackstone ERS4 MGR 4 cyl turbo 750 rpm

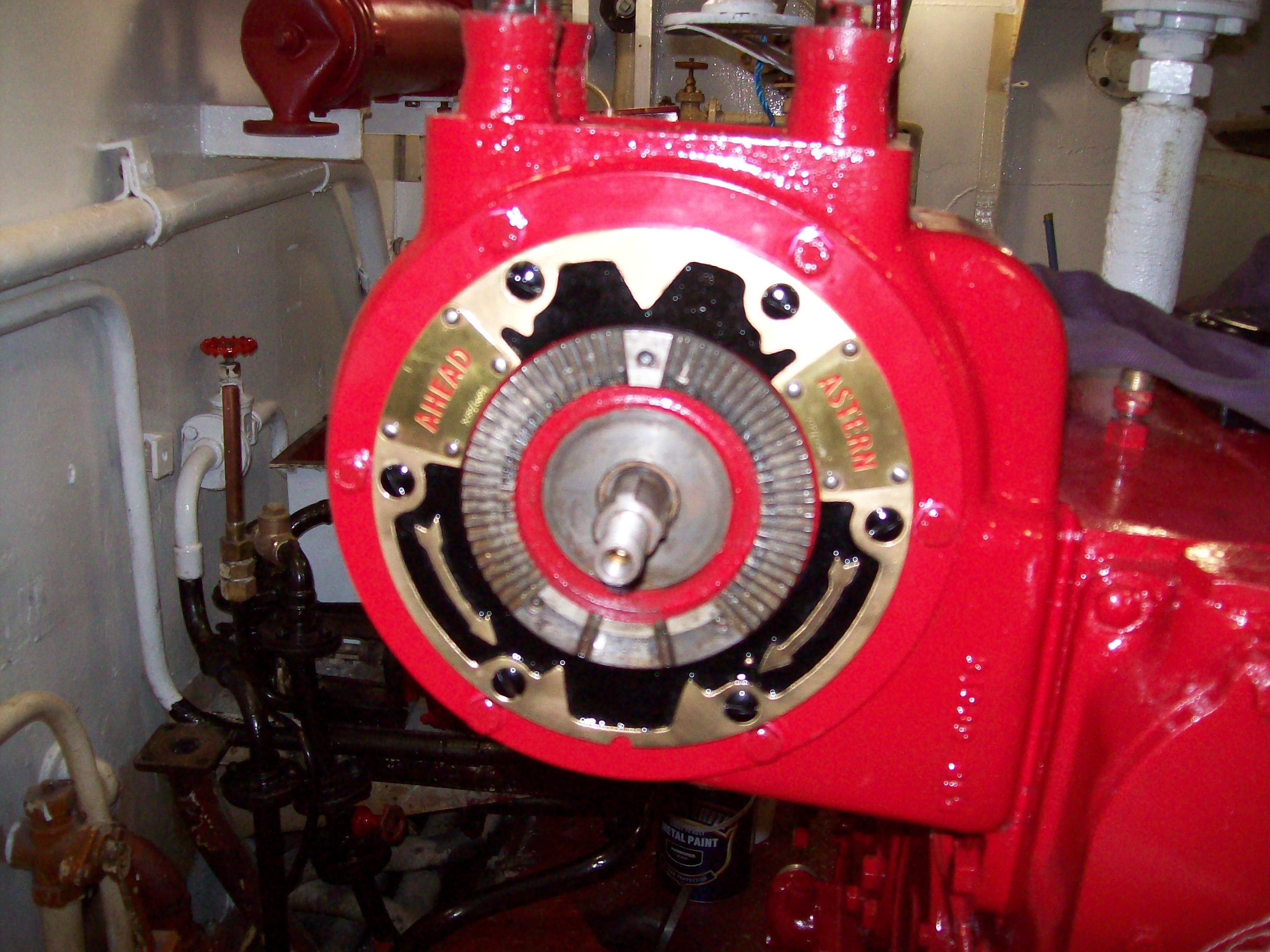

    Gearbox Blackstone IM2 2/1 reduction attached to Nodal Damper flywheel

    Propeller Harper Phillips 3 blade 59ins, 39.2ins pitch

    Donkin hand and powered hydraulic steering system

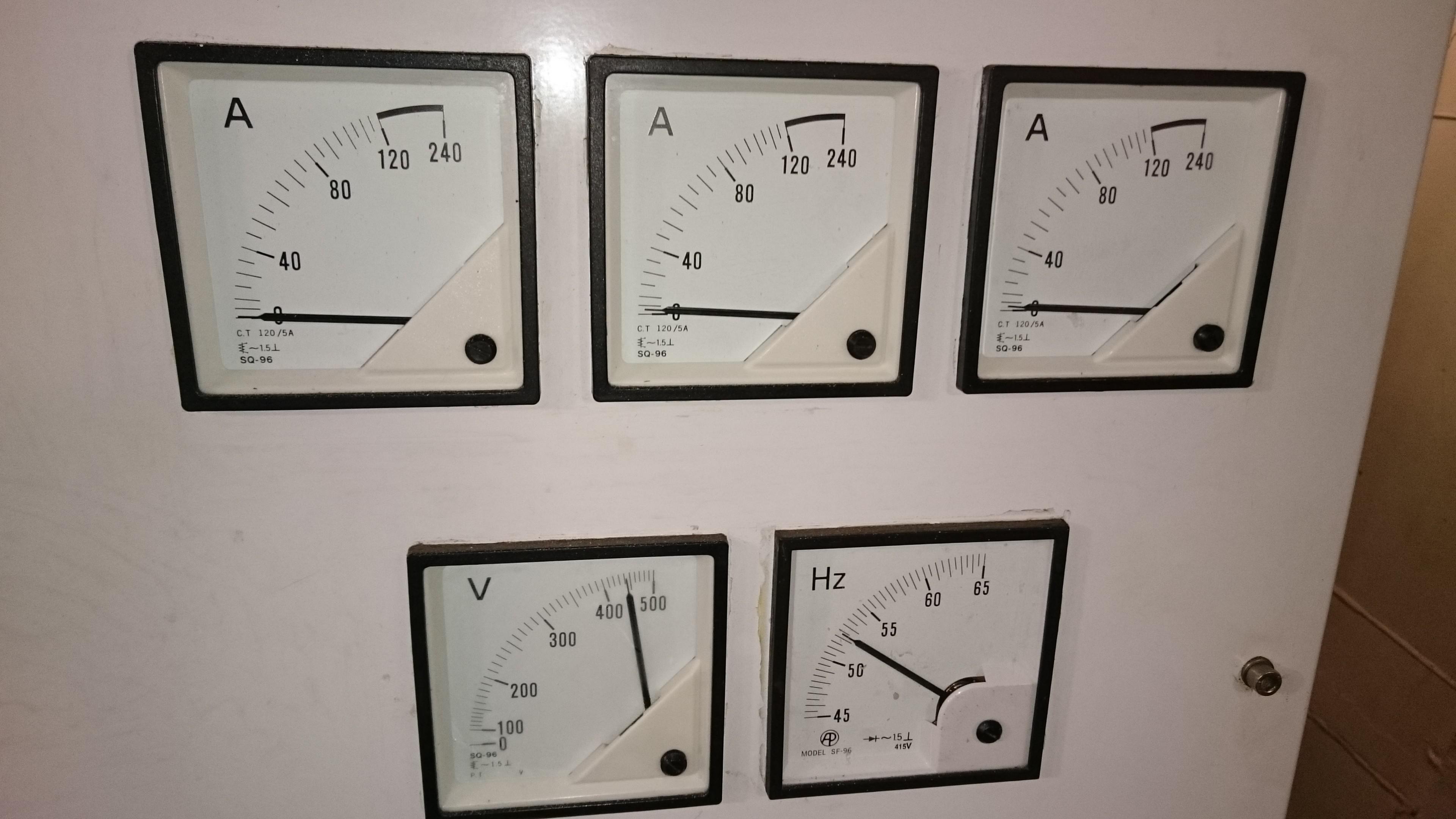

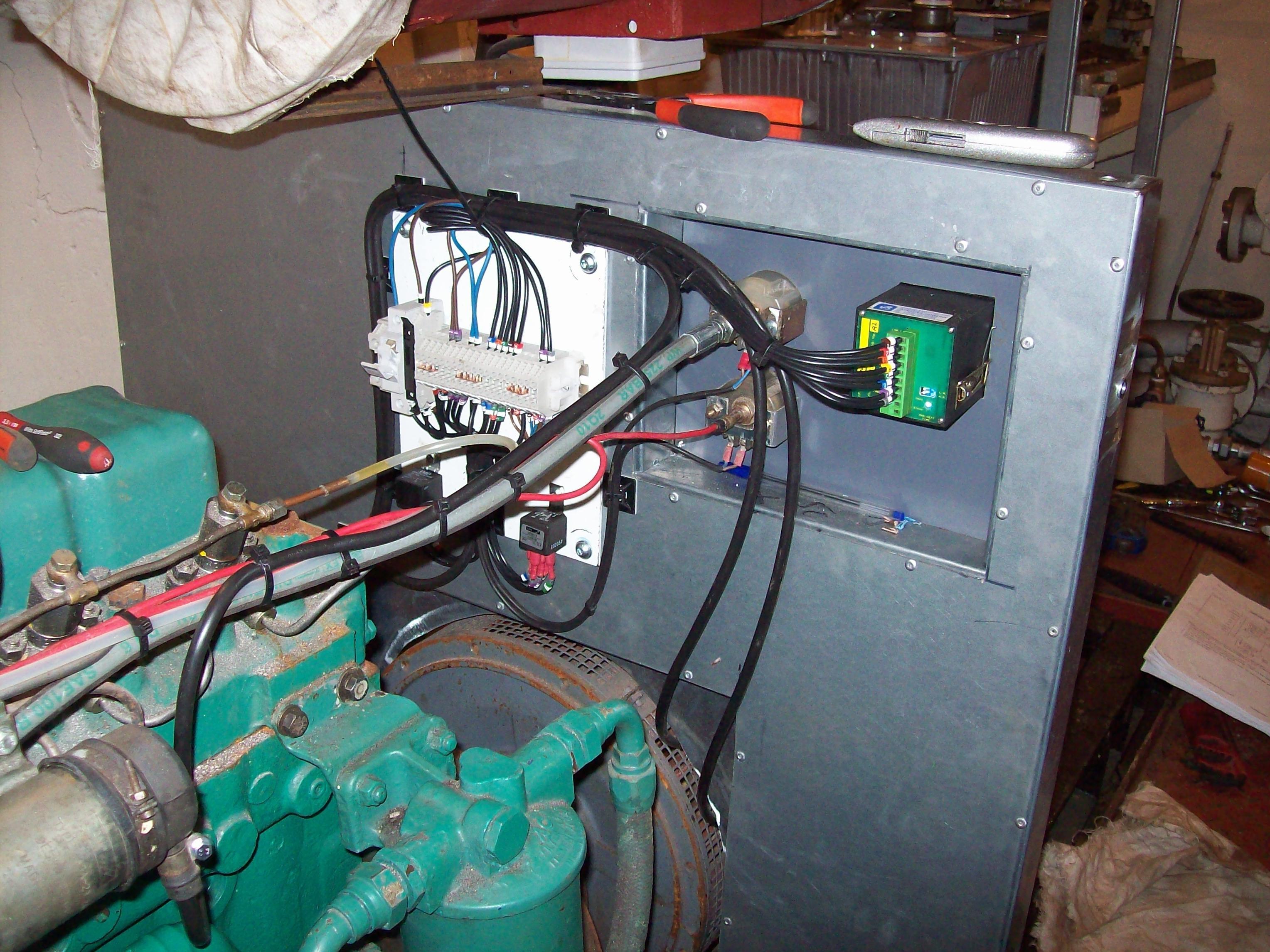

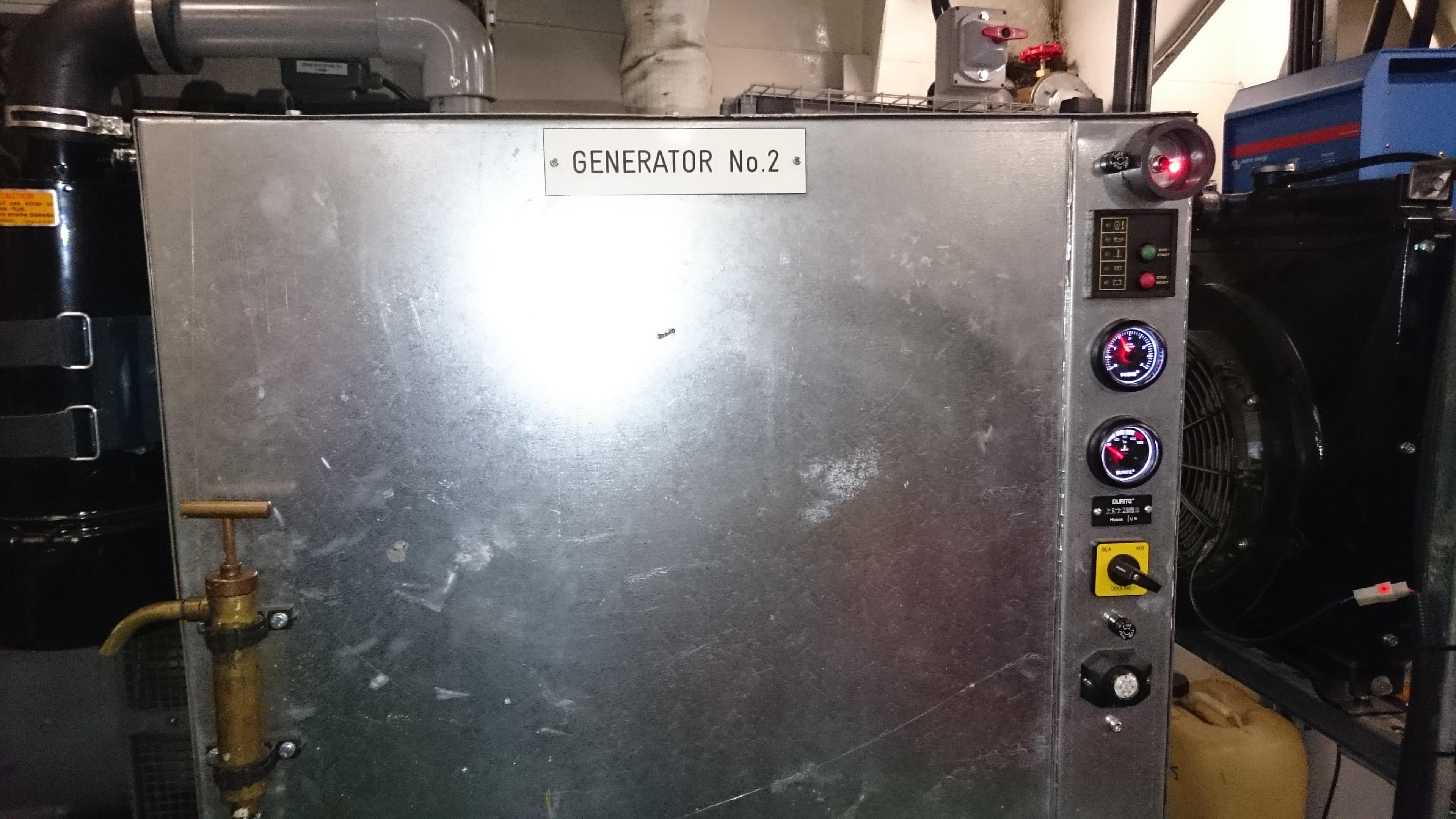

    Main generator Perkins 6354 with 70kw 3phase alternator

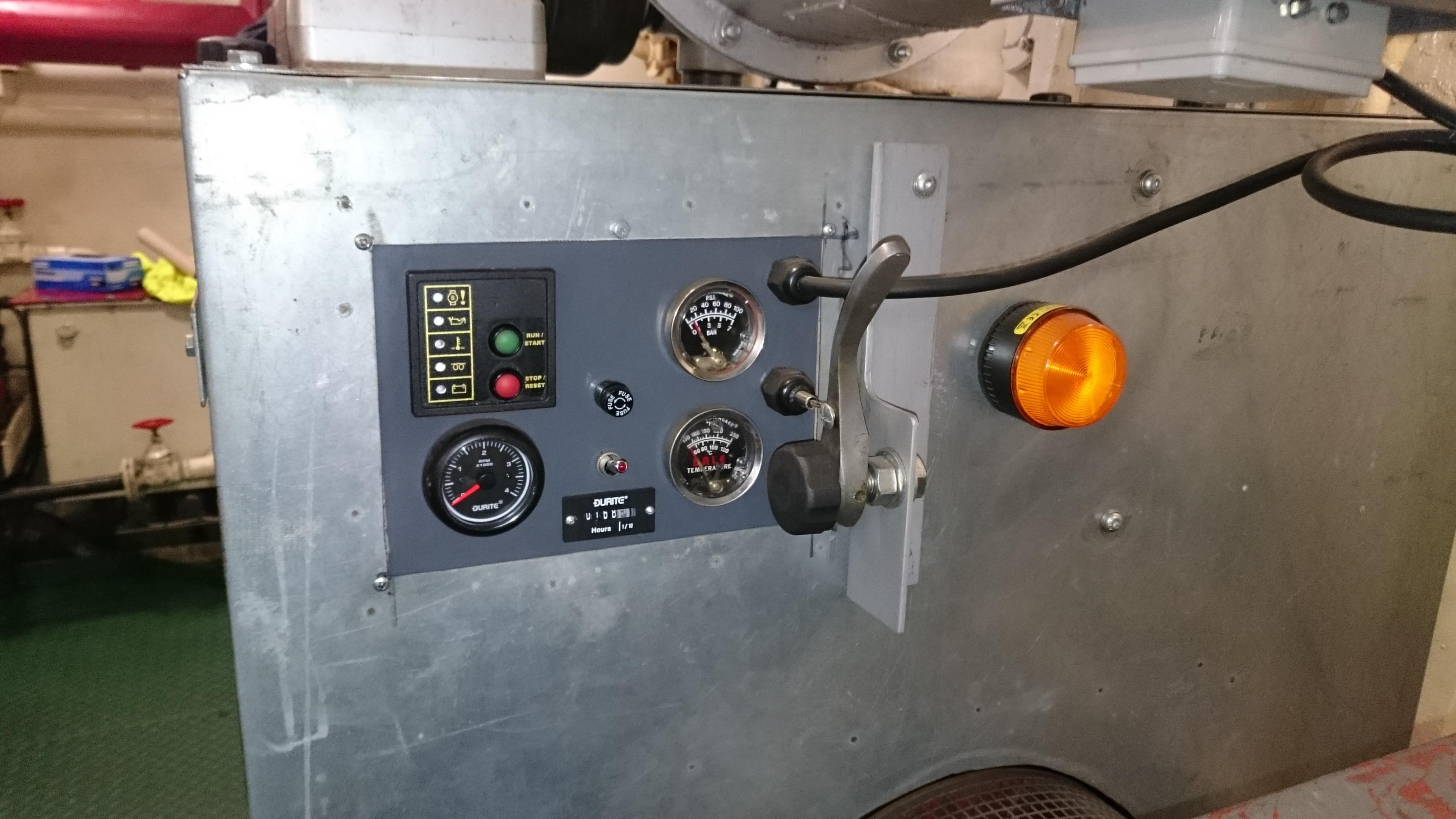

    Harbour generator Kubota 1903 with 25kw 3 phase alternator

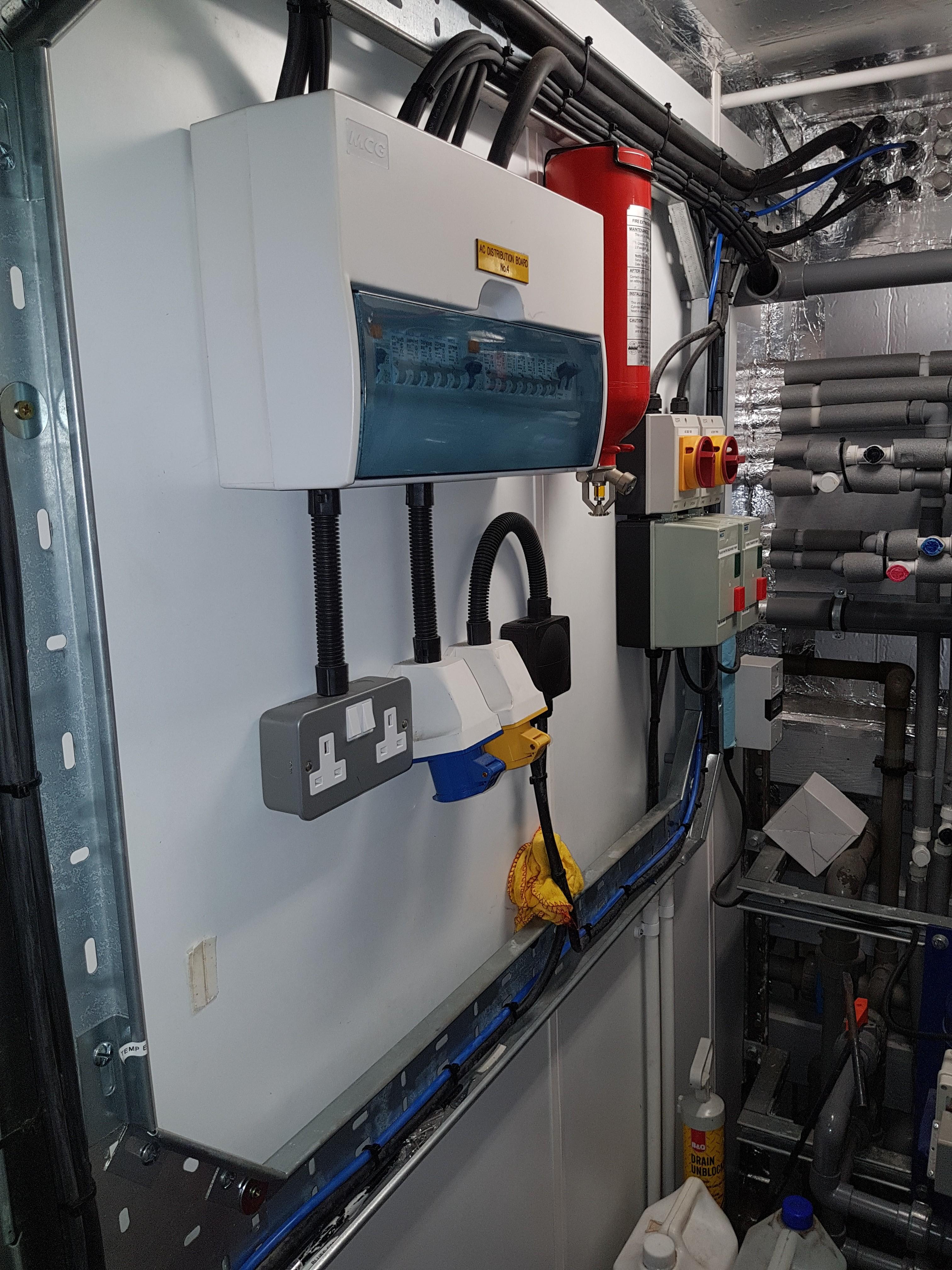

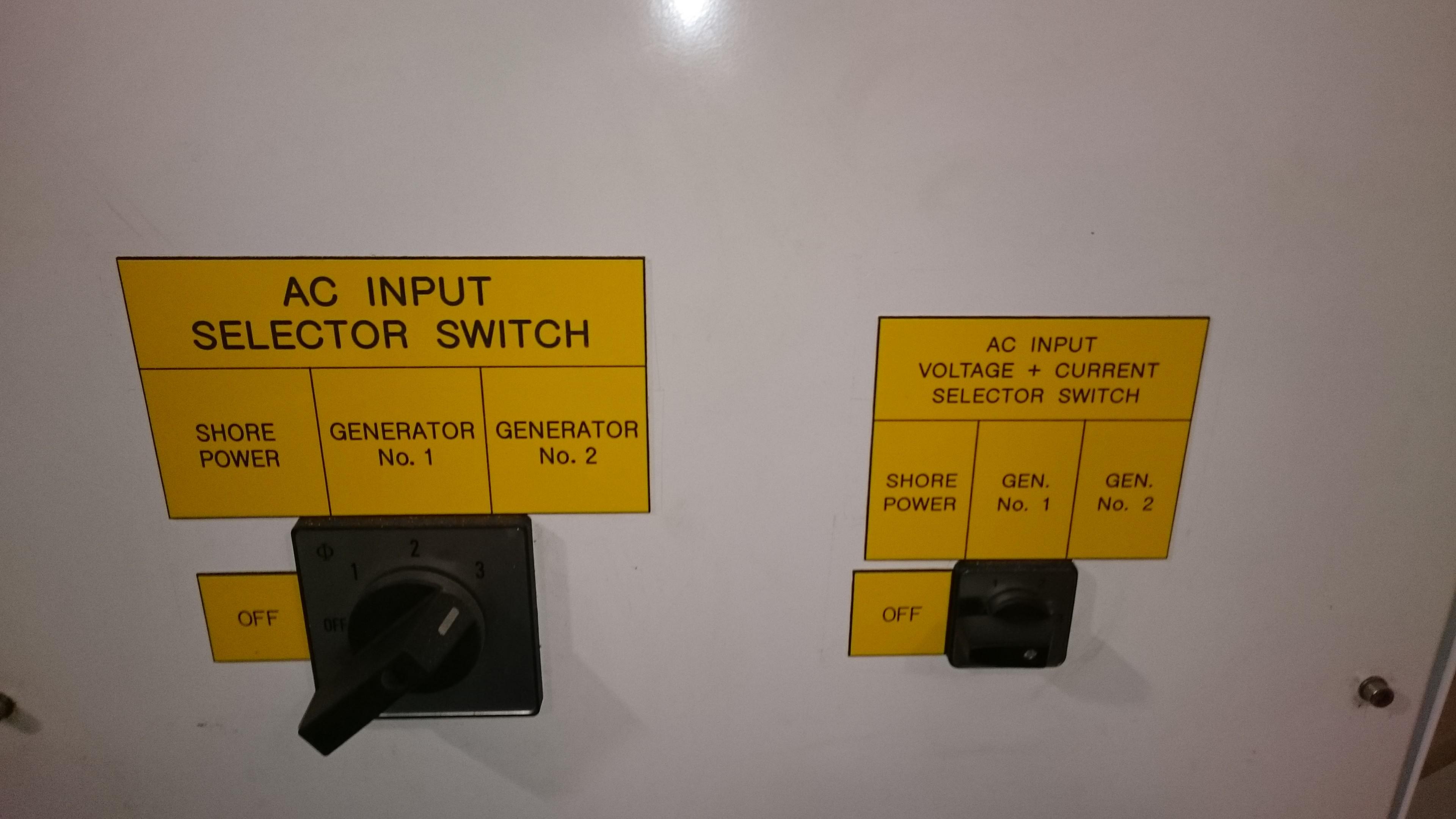

    Shore supply 240volt and 415volt

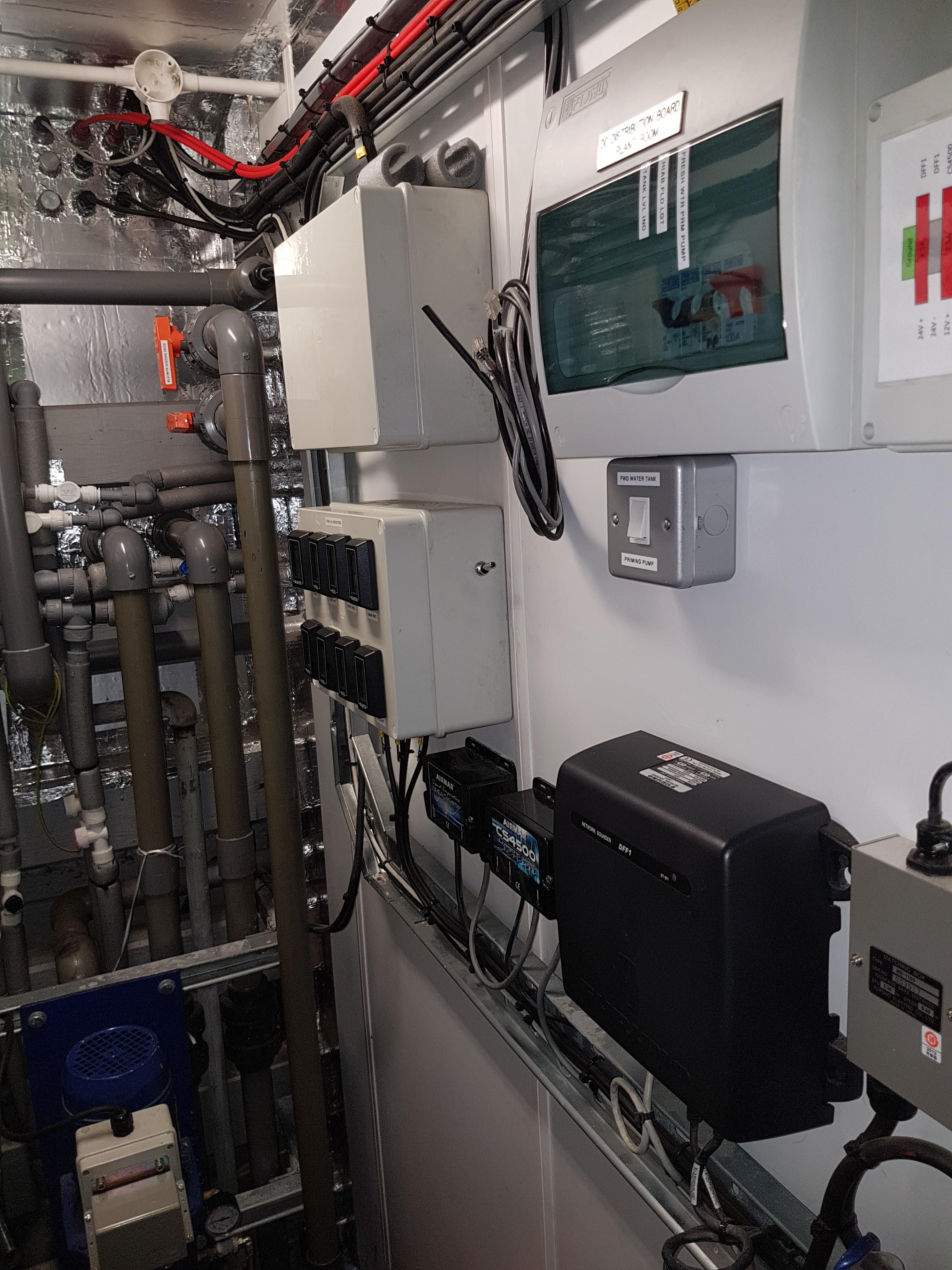

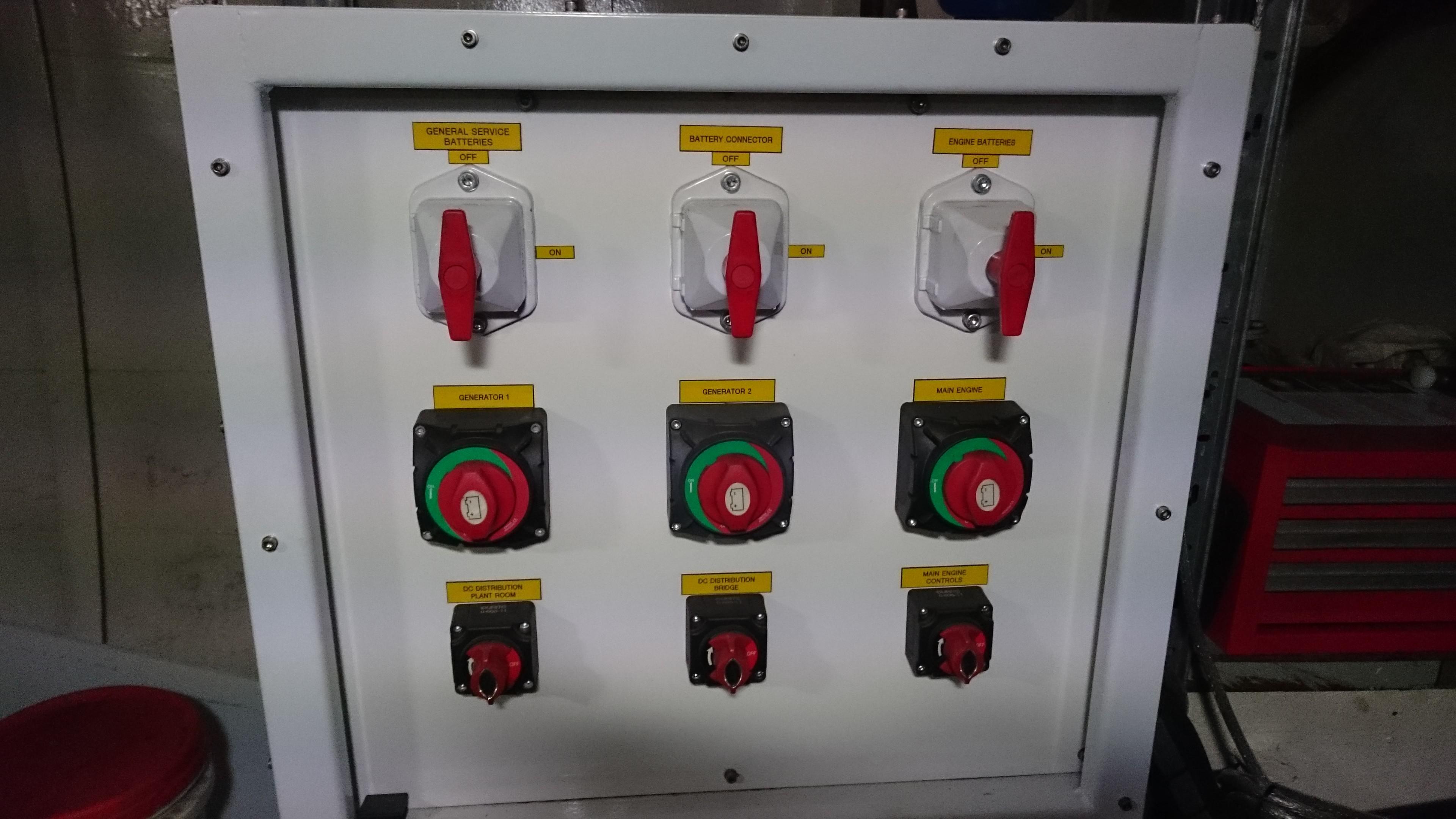

    240 volt system through Victron Quatro 5kva inverter and six 220ah dc gel batteries

    Length OA                               79 ft 11 ins

    Length BP                                75 ft

    Breadth (moulded)                 22 ft

    Draft FWD                               6 ft 6 ins

    Draft AFT                                 7 ft 2 ins

    Atlas 3 ton hydraulic deck crane

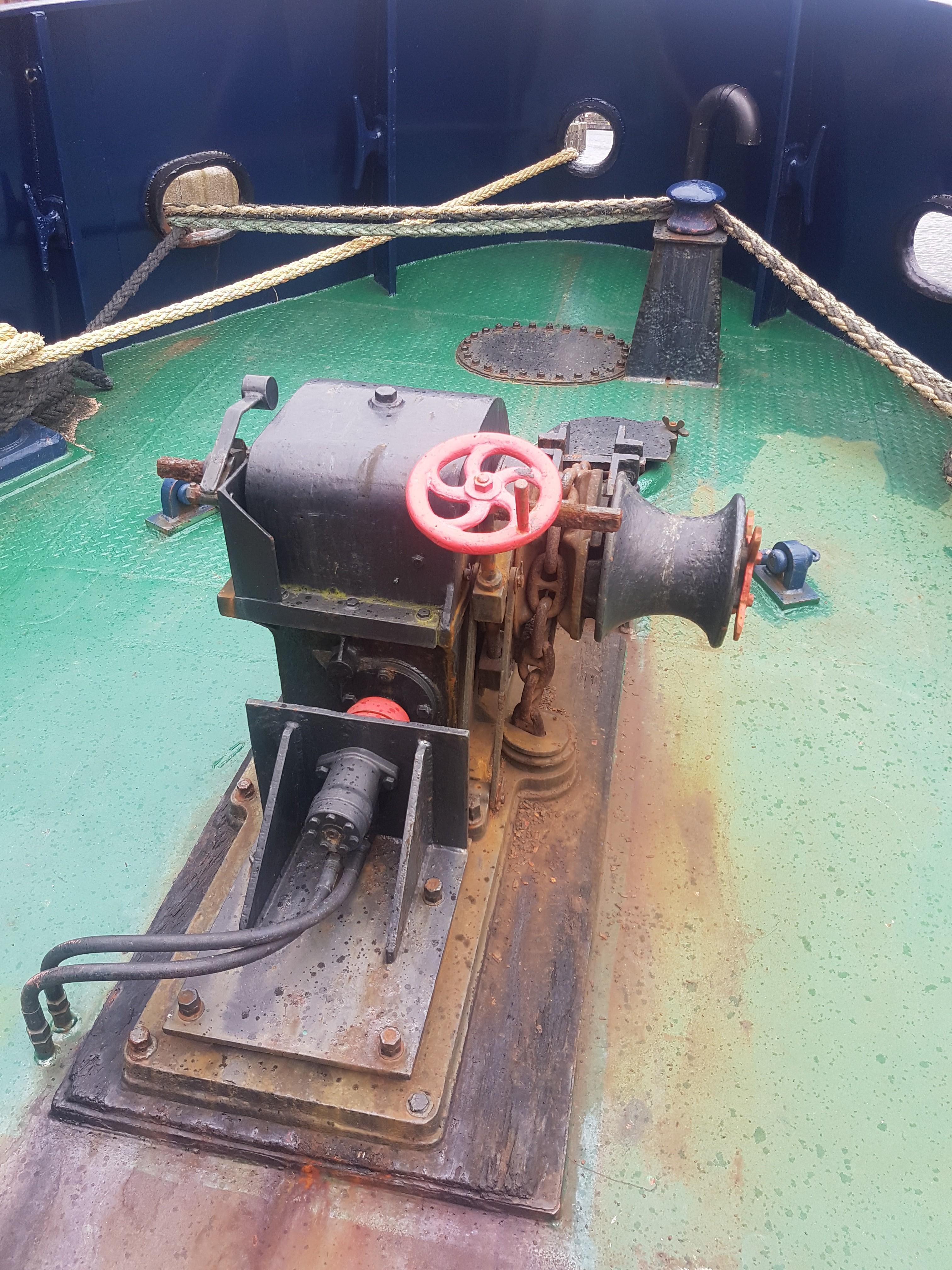

    Hydraulic anchor windlass

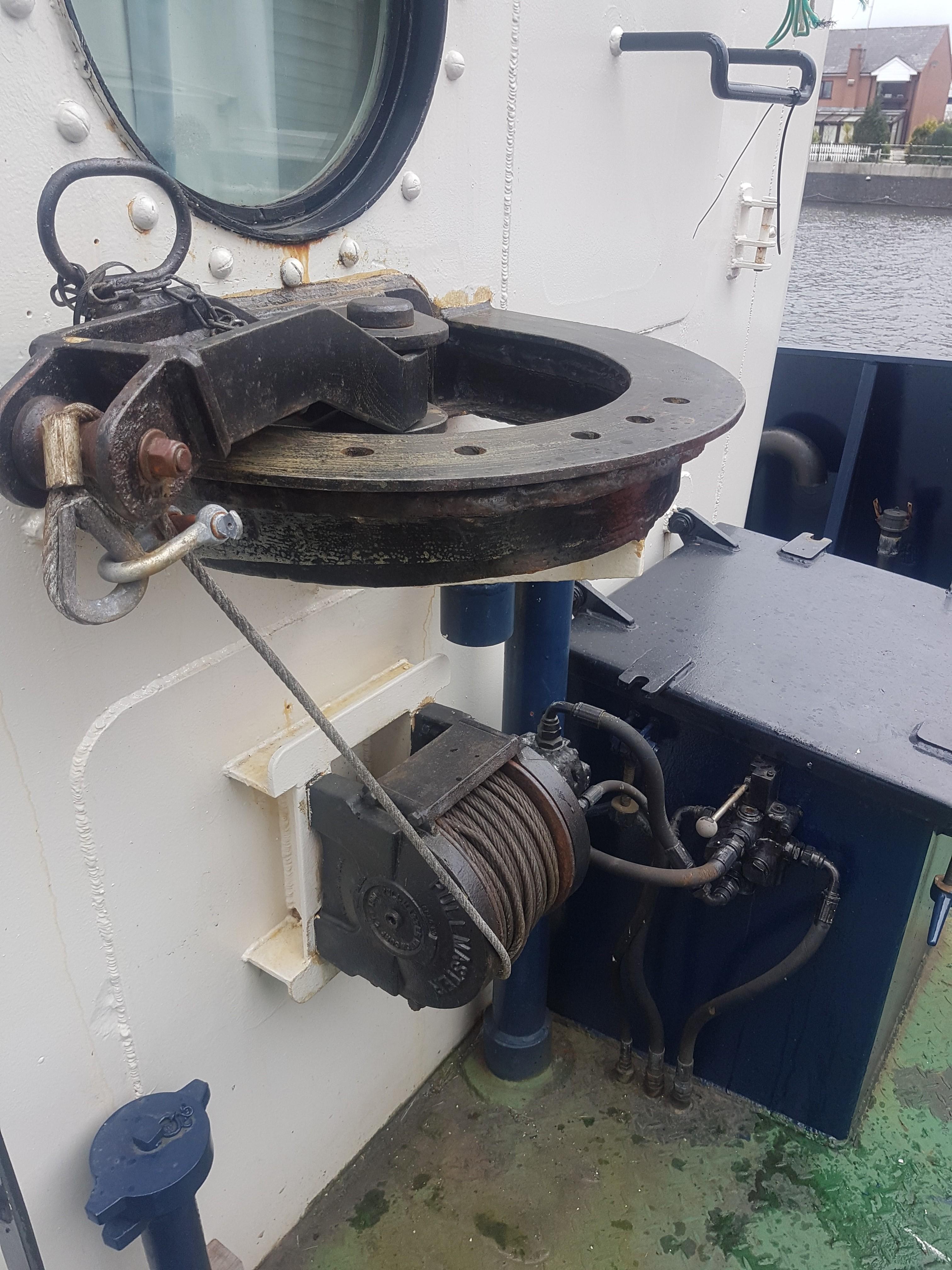

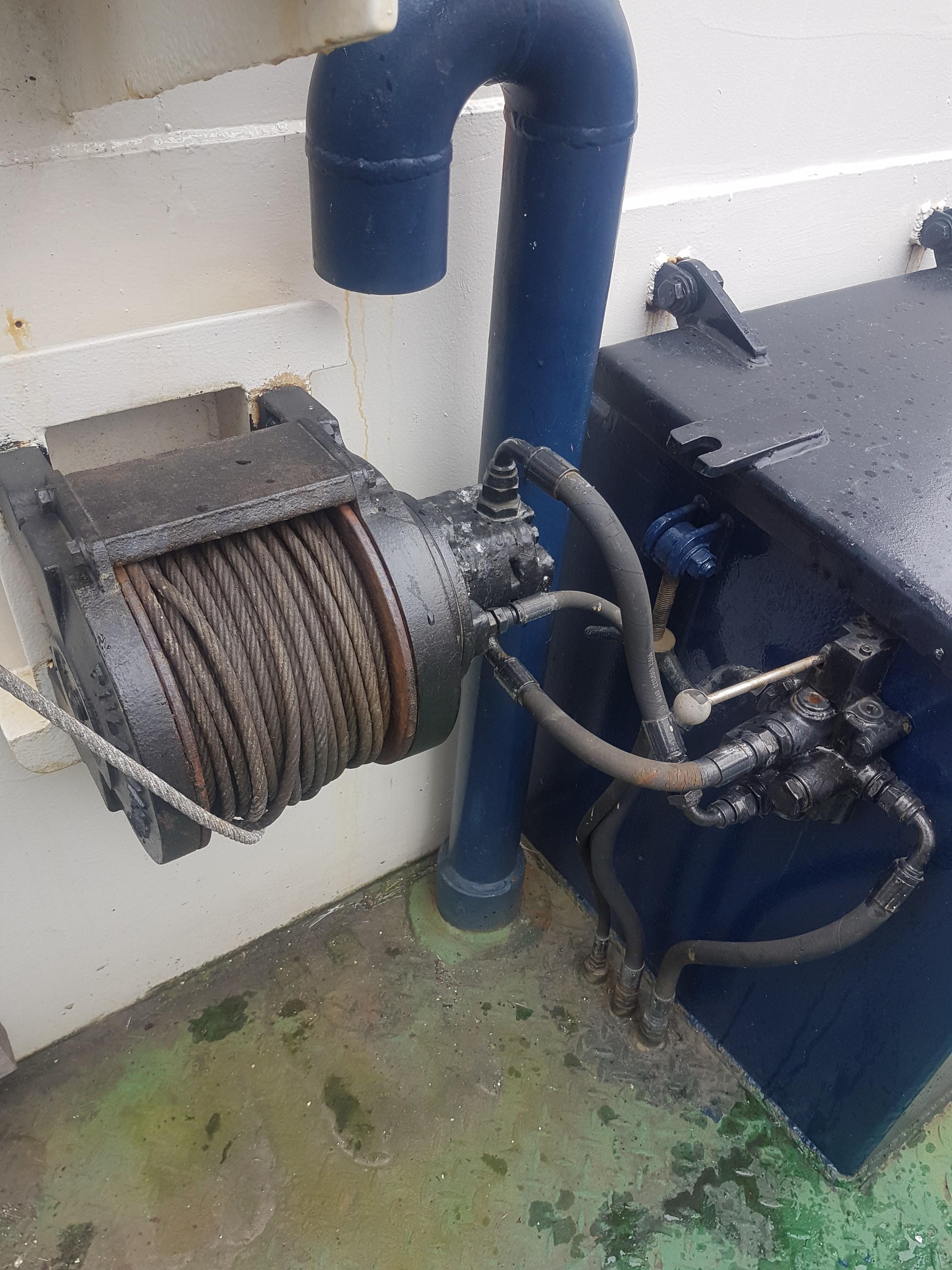

    Atlas hydraulic deck winch (fitted aft for docking and stern anchor)

    Vetus BOW550HM 45 hp hydraulic bow thruster

    Hydraulic chain drive to prop shaft for emergency get you home system

    Vetus HT1022SD 75 cc load sensing hydraulic pump (fitted to Perkins)

    Vetus HT1010 hydraulic tank and solenoid manifold for controlling the above

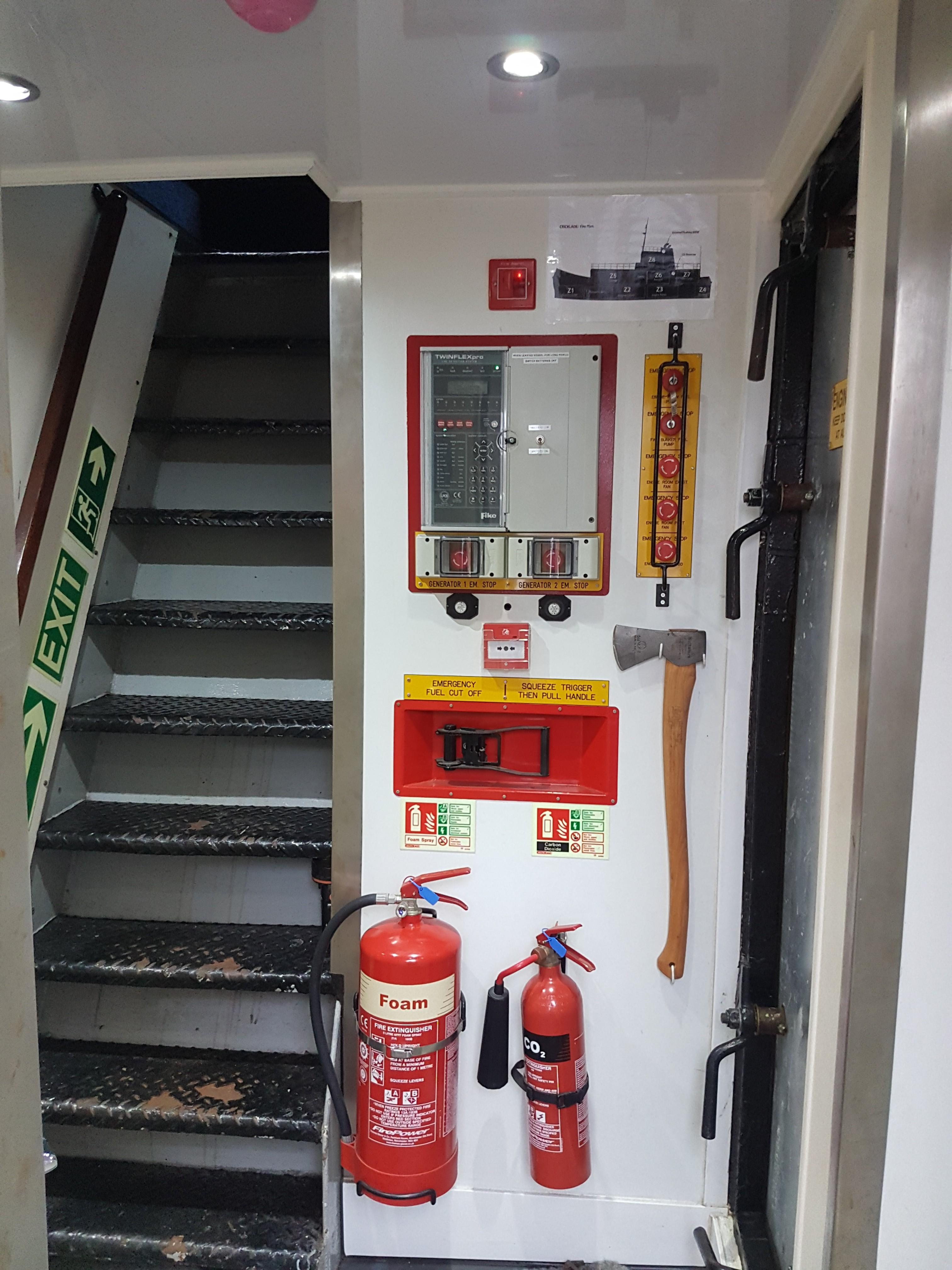

    Fike 8 zone self-monitoring fire alarm system

    E/R supply fans 2 off Woods 15in 3 phase

    E/R extract 1 off Woods 8in 3 phase

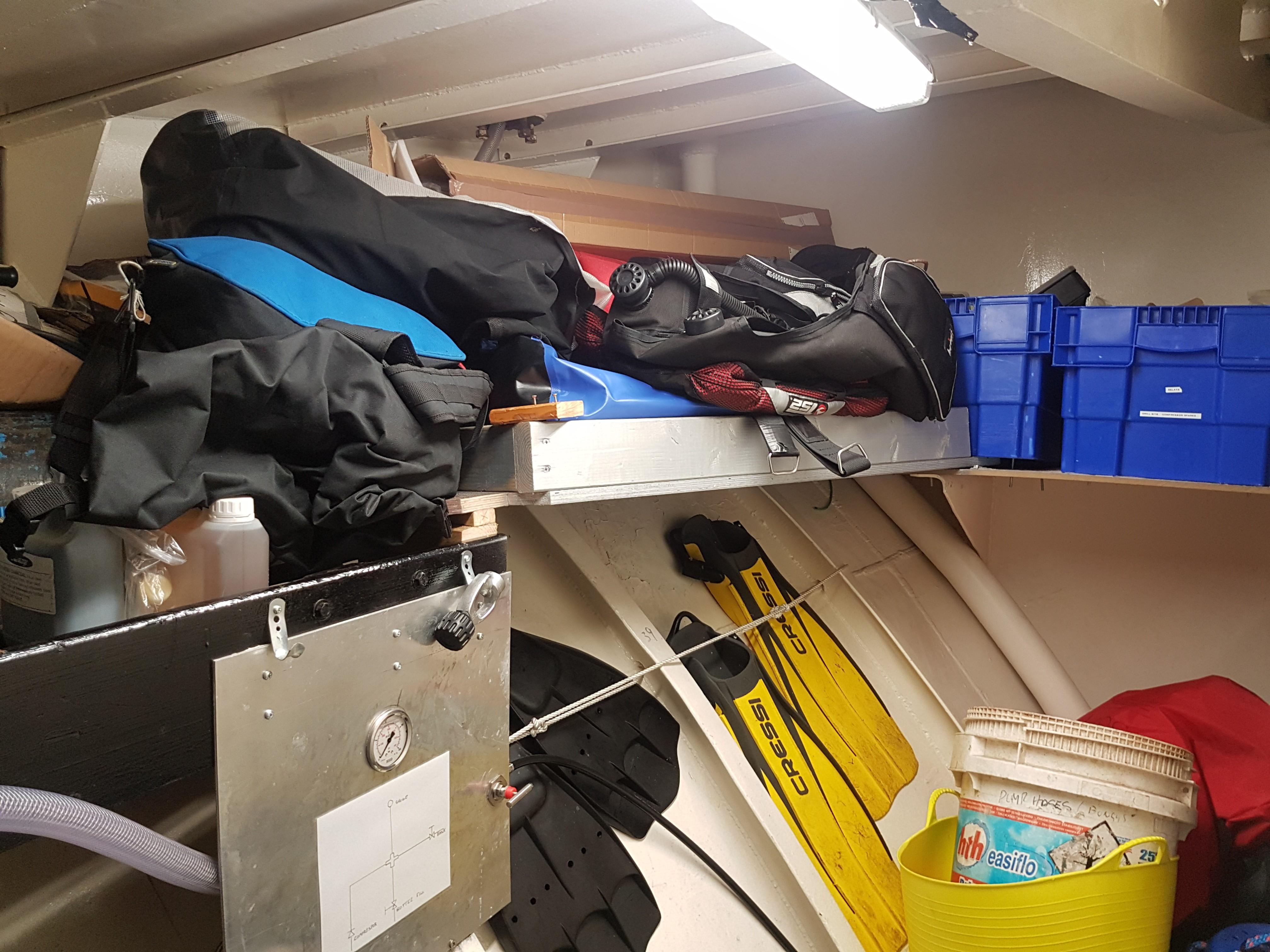

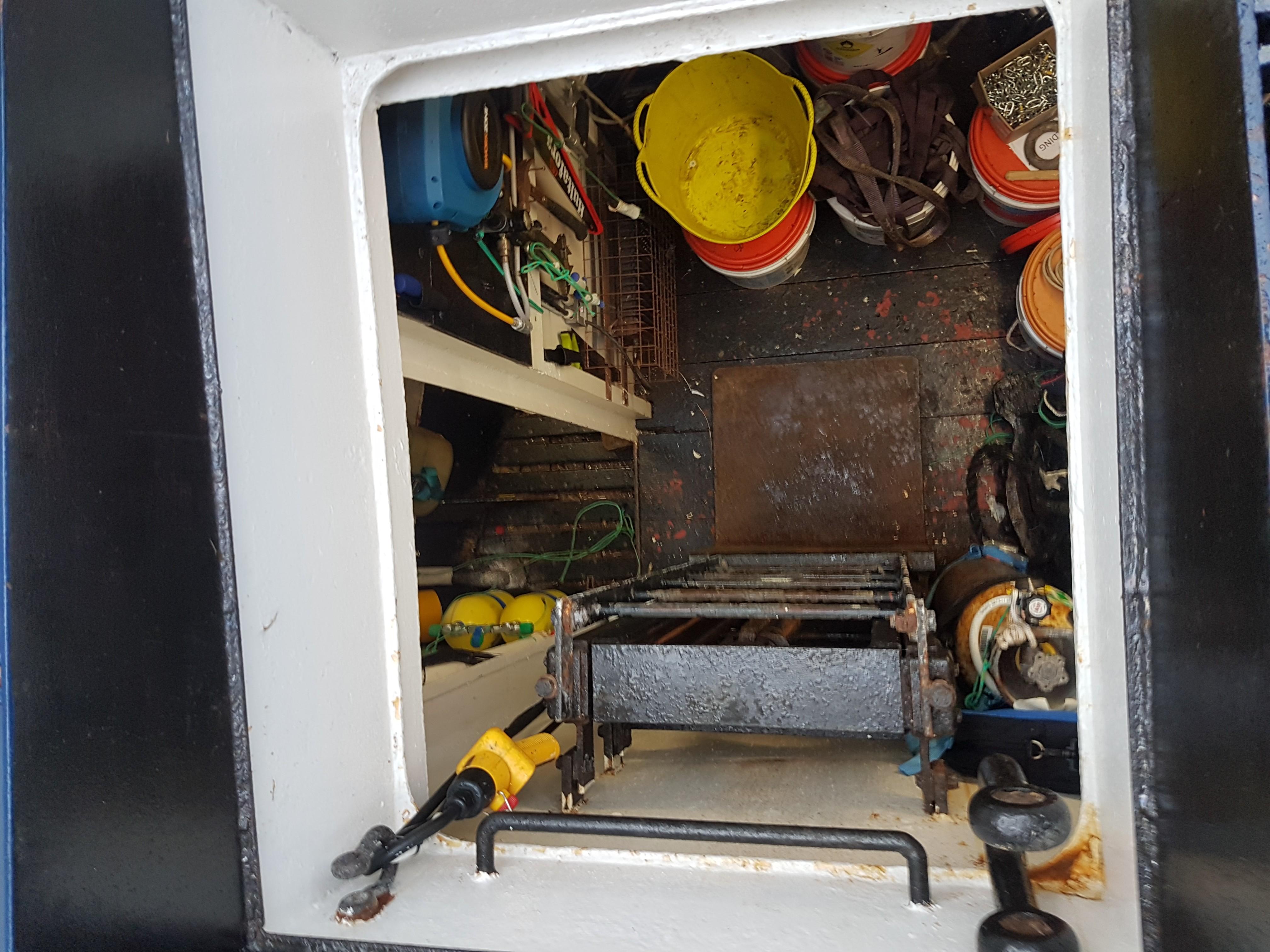

    Hydraulic lift down to boson’s locker for lifting heavy equipment/diving bottles

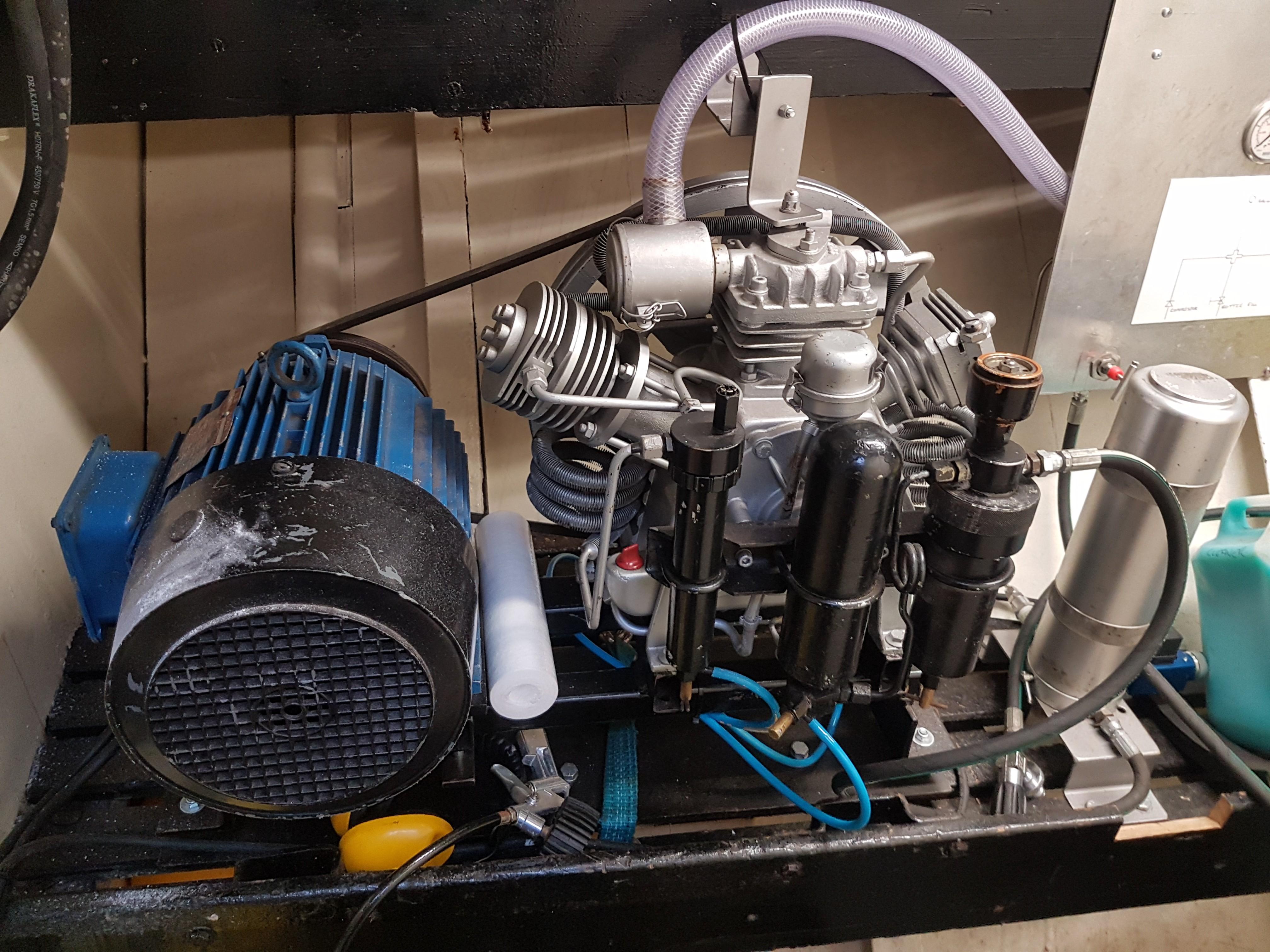

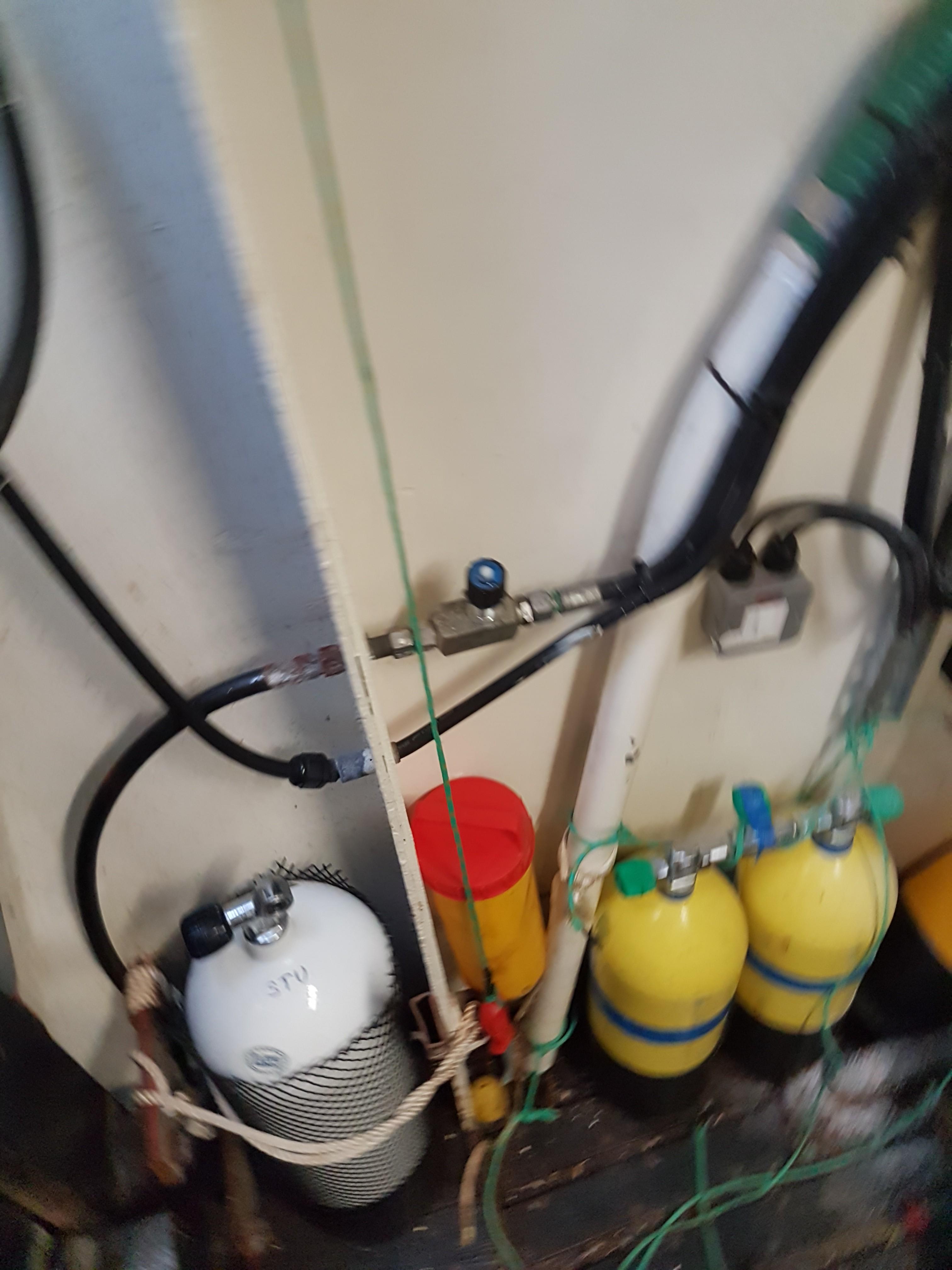

    Bauer Poseidon PE250TE 300 bar dive compressor (3 phase), bank and manifold

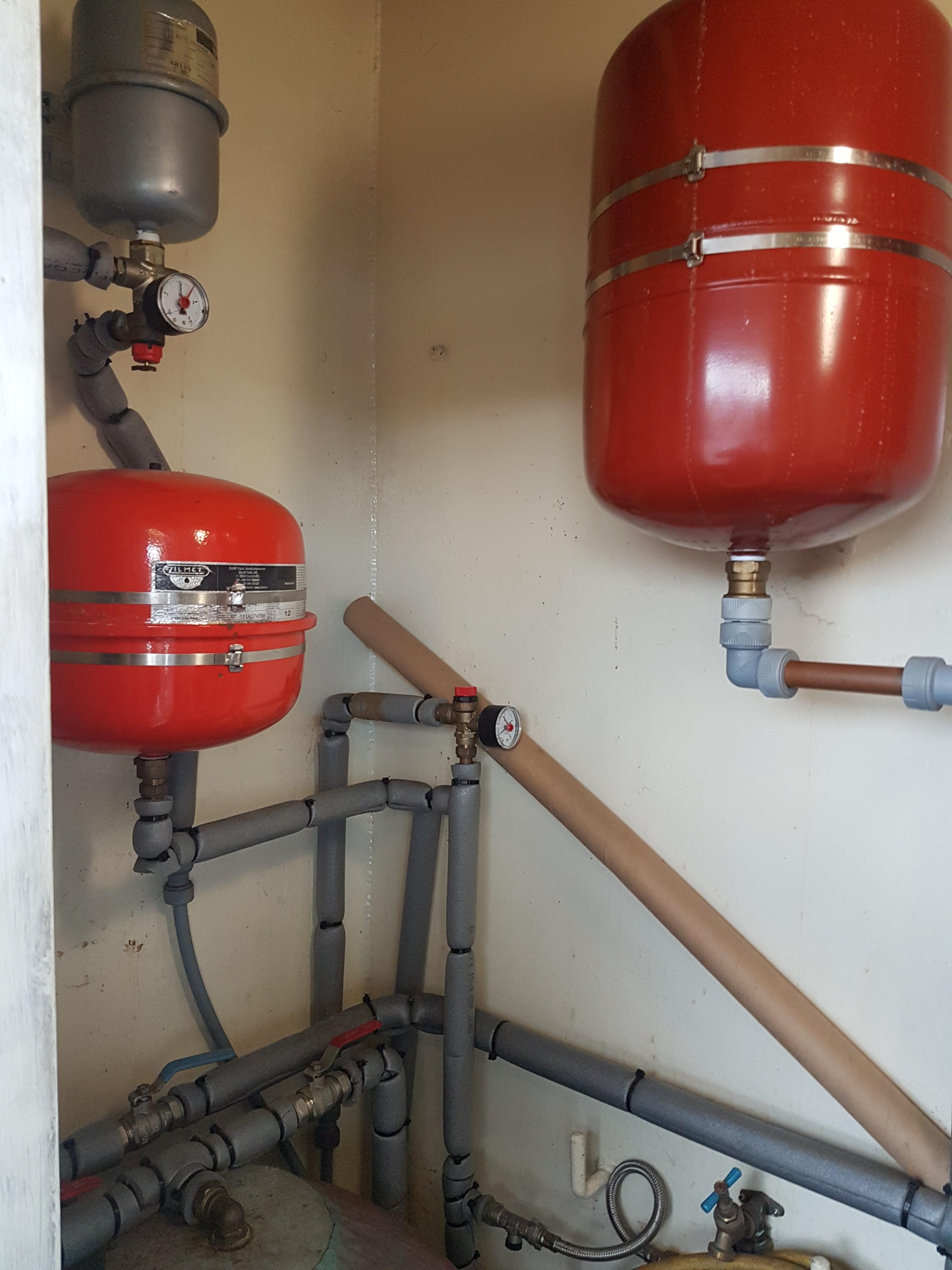

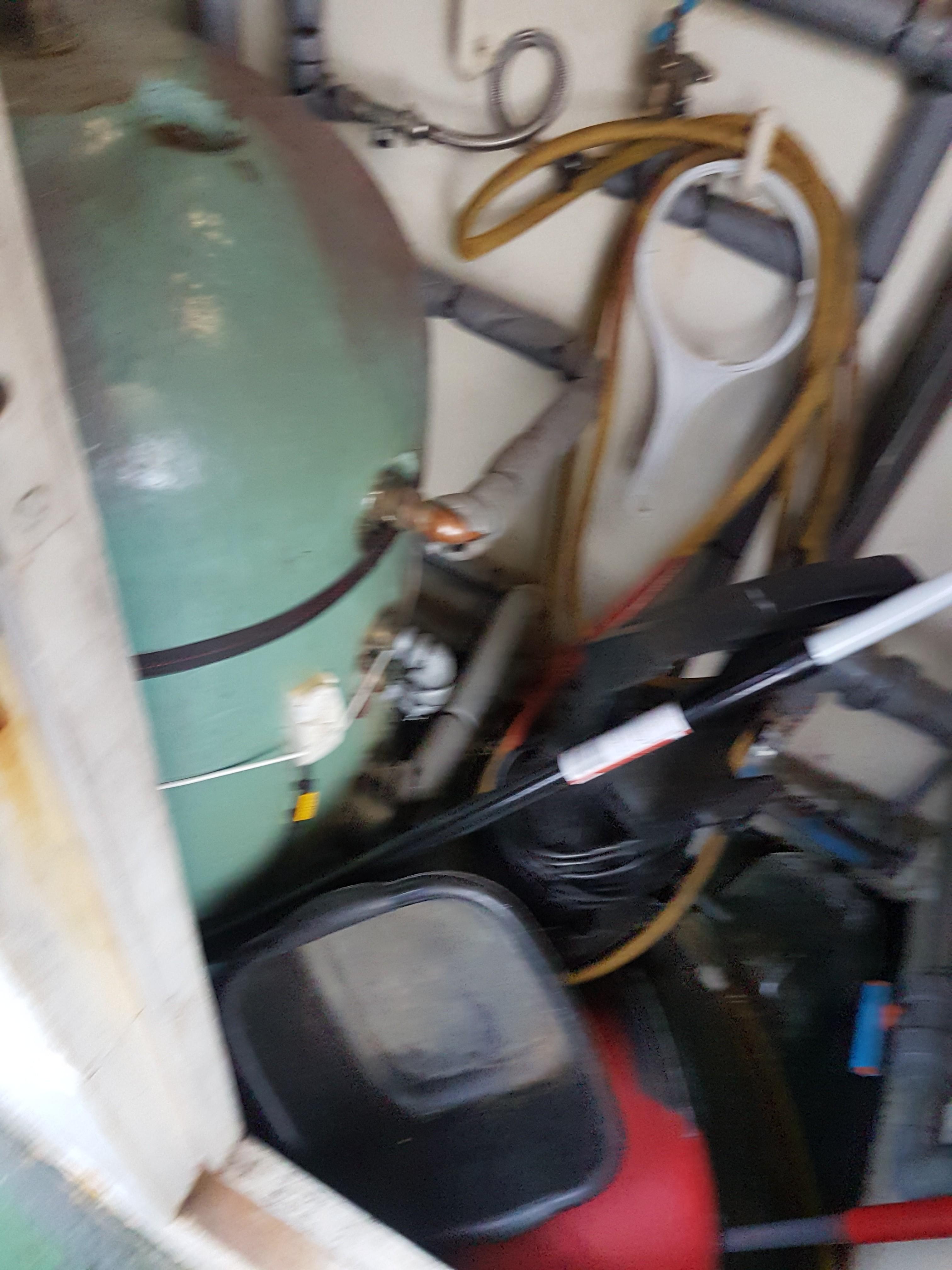

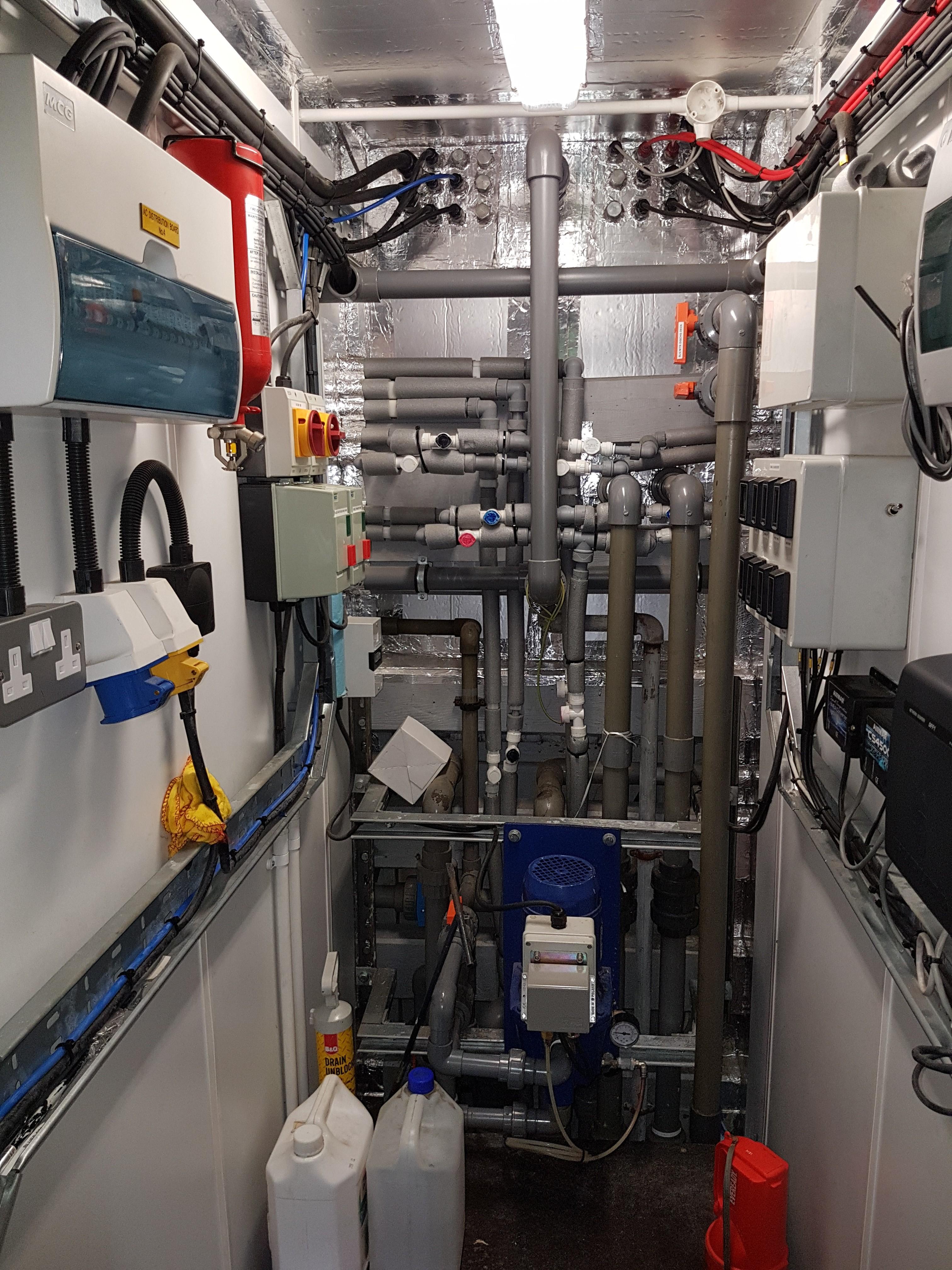

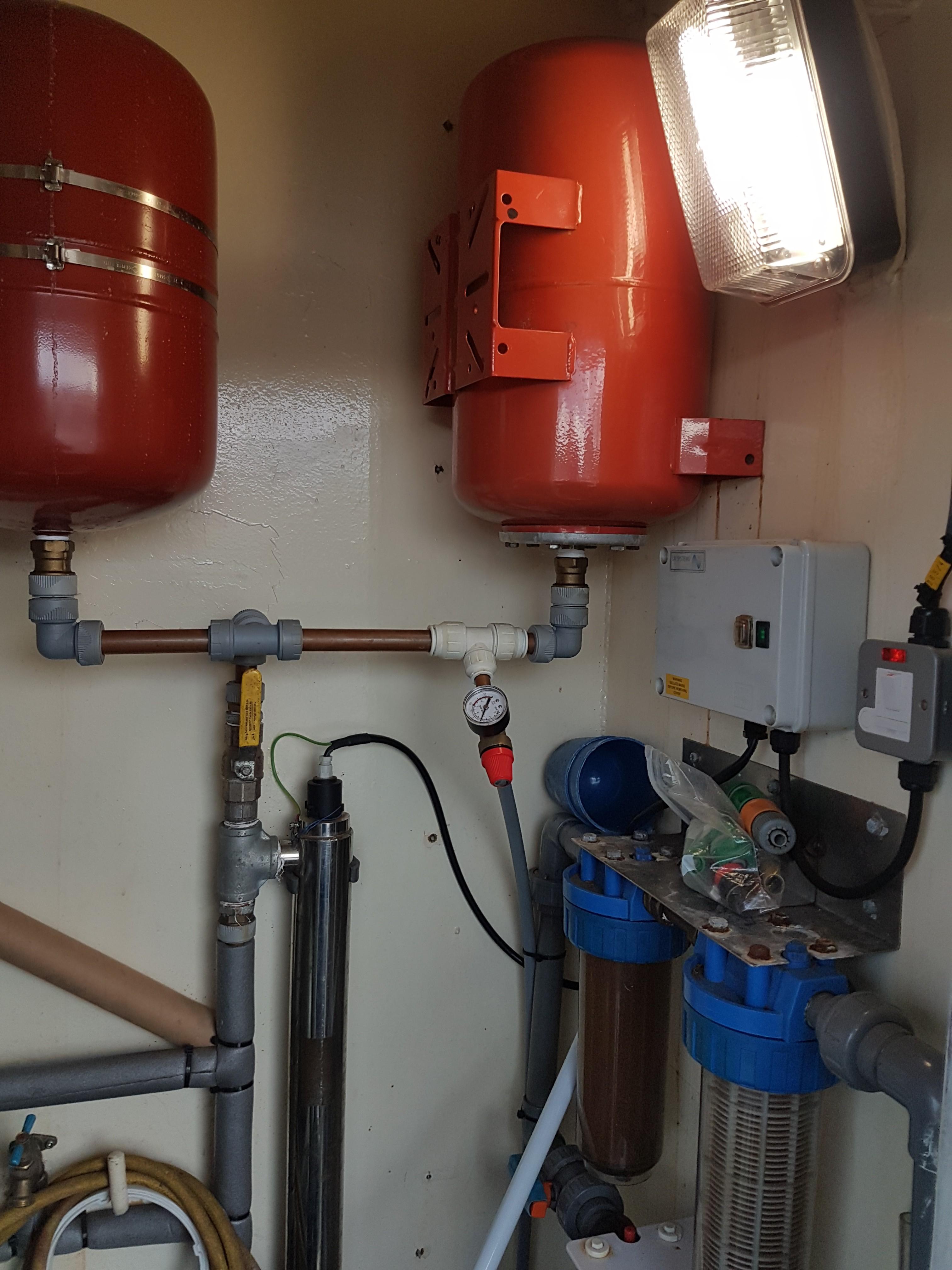

    Pressurised fresh water system with filters and UV purifier

    Kabola HR500 20kw diesel central heating boiler







    Tankage

    Tank Capacities

    Main fuel Port                                                   2800lts

    Main fuel  Stbd                                                 2800lts

    Extended cruising fuel 4 x                            1000lts

    Main Fresh water                                            3000lts

    Extended cruising water 1x                         1200lts

    Stern Port ballast                                             12500lts

    Stern Stbd ballast                                             12500lts

    Forepeak ballast                                               8000lts

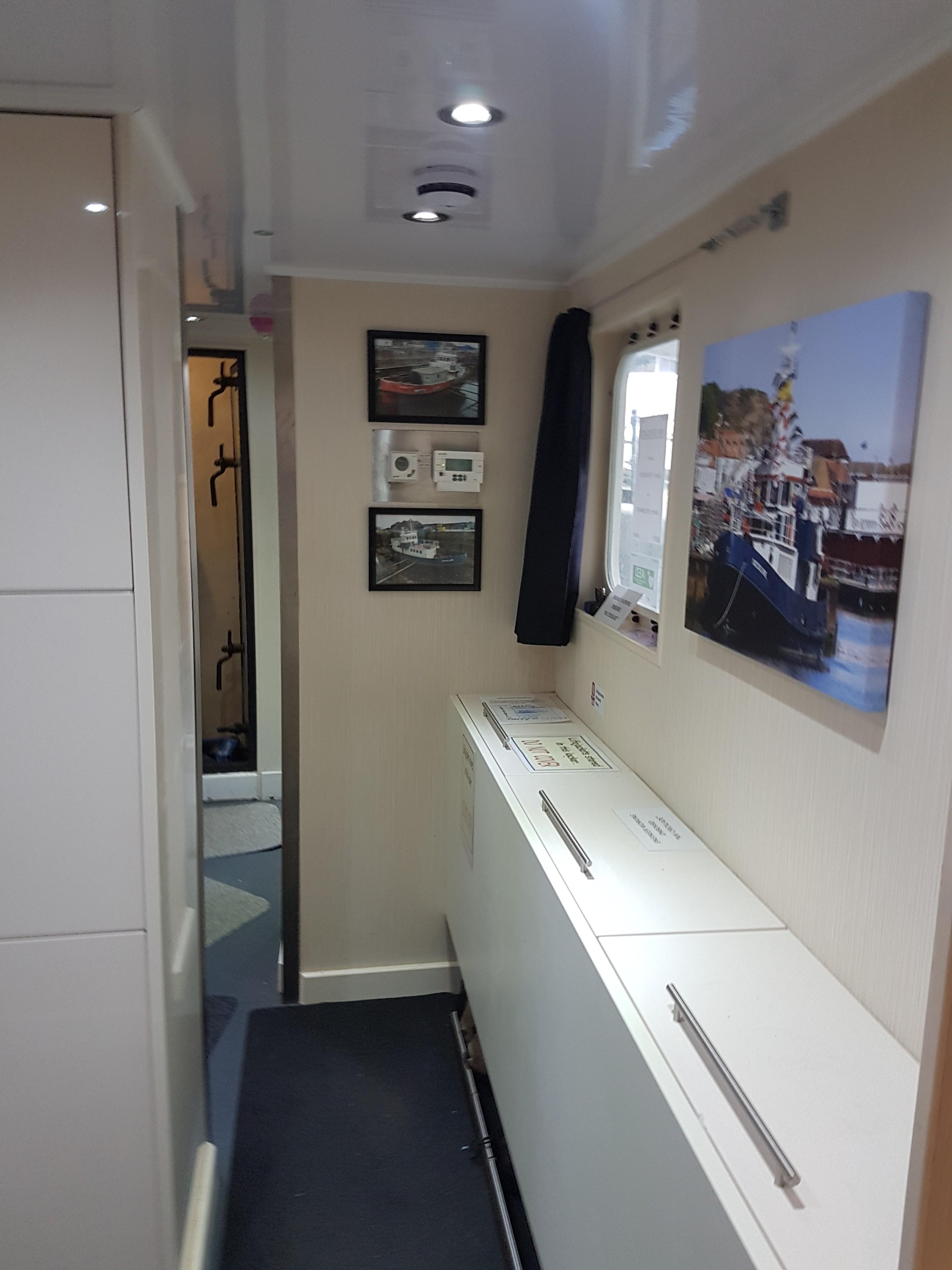

    Accomodation

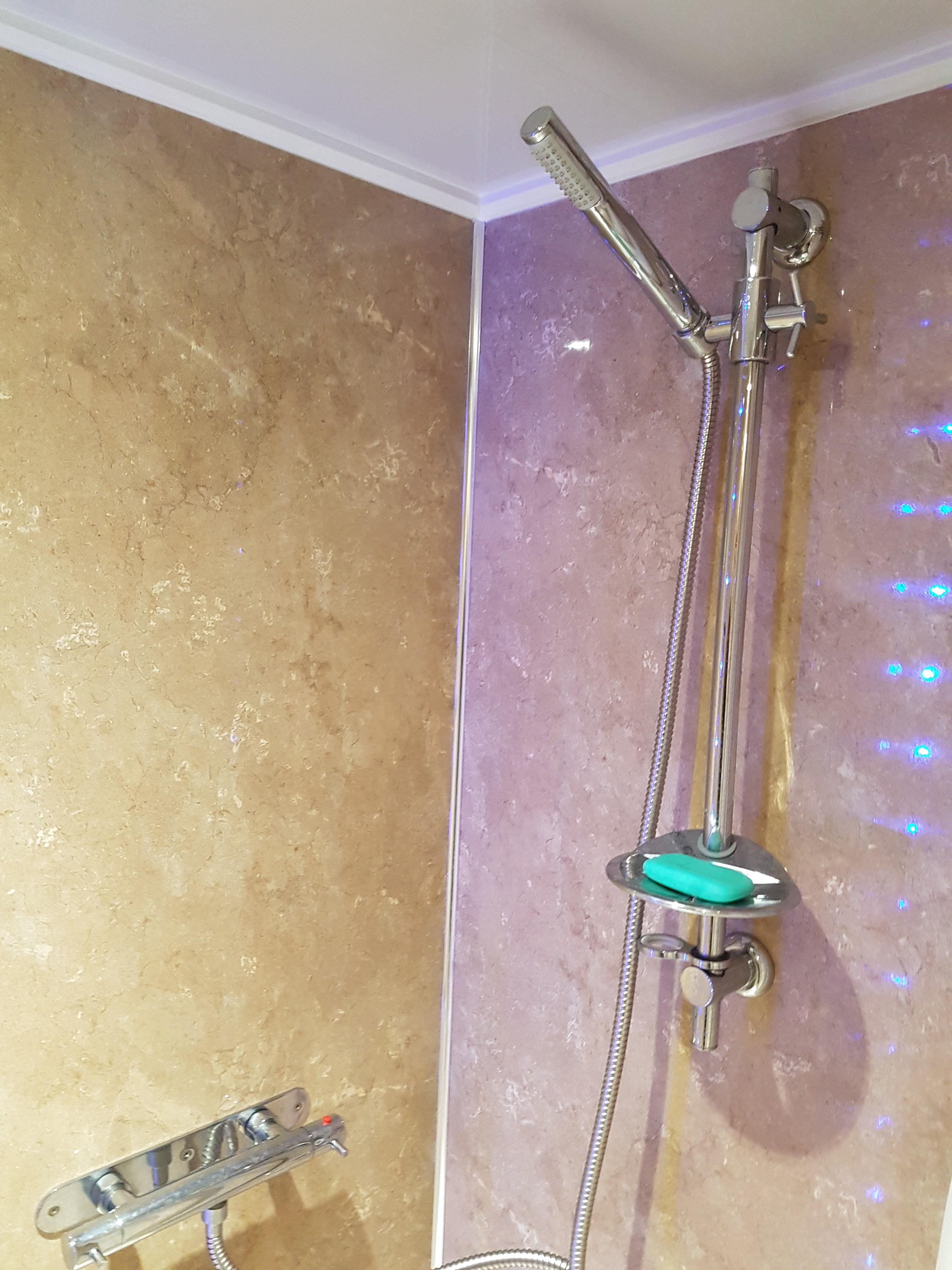

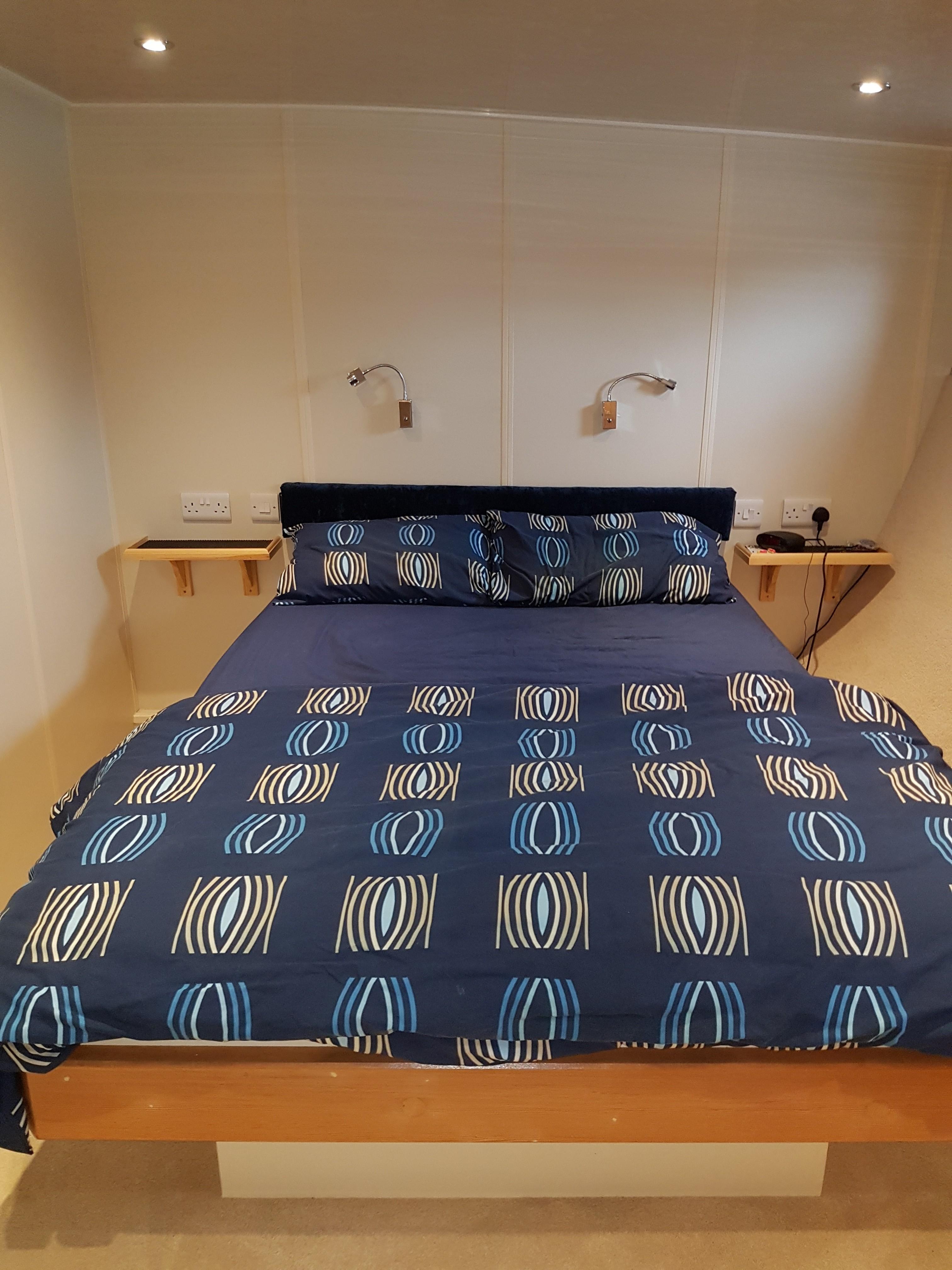

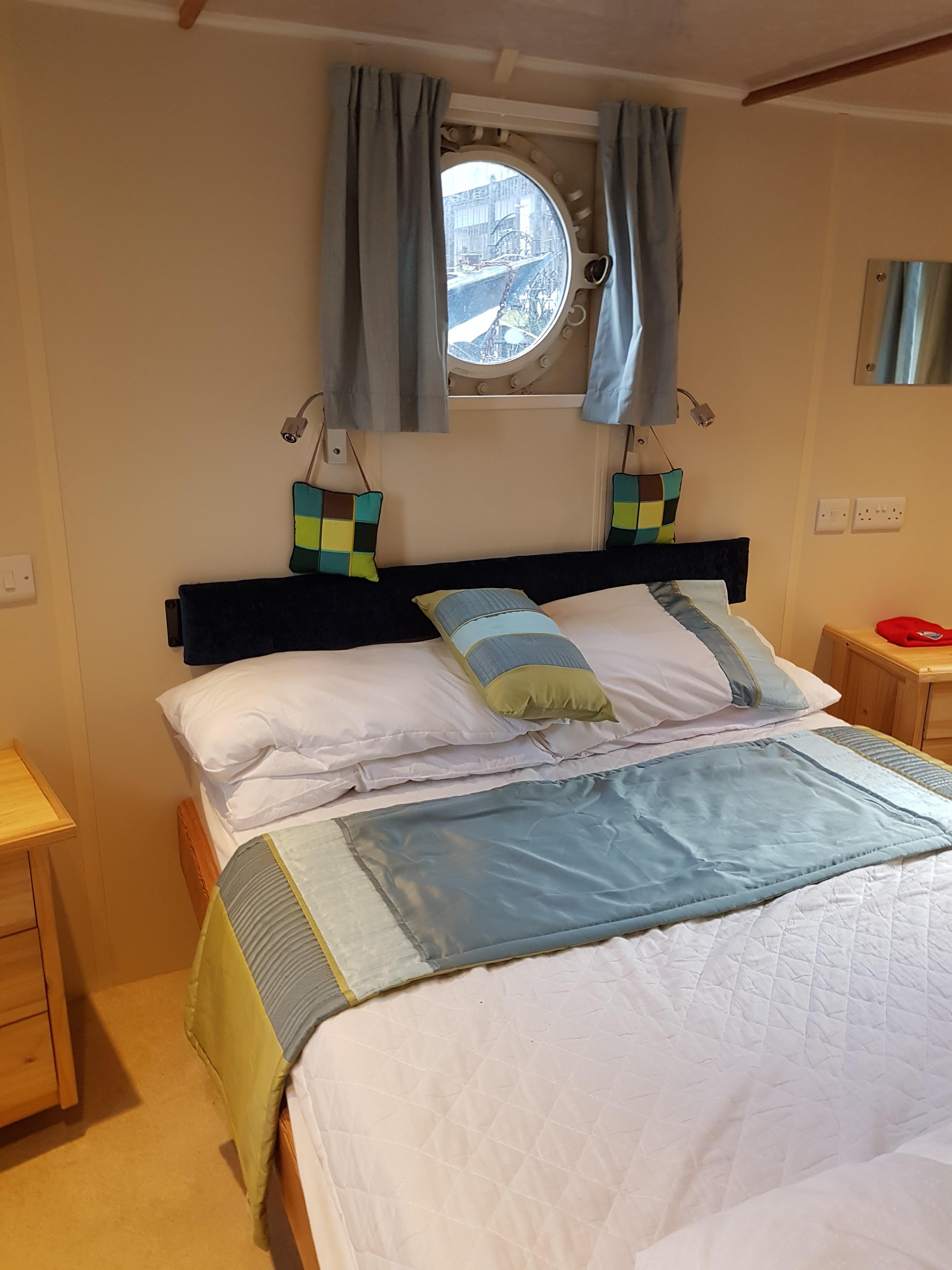

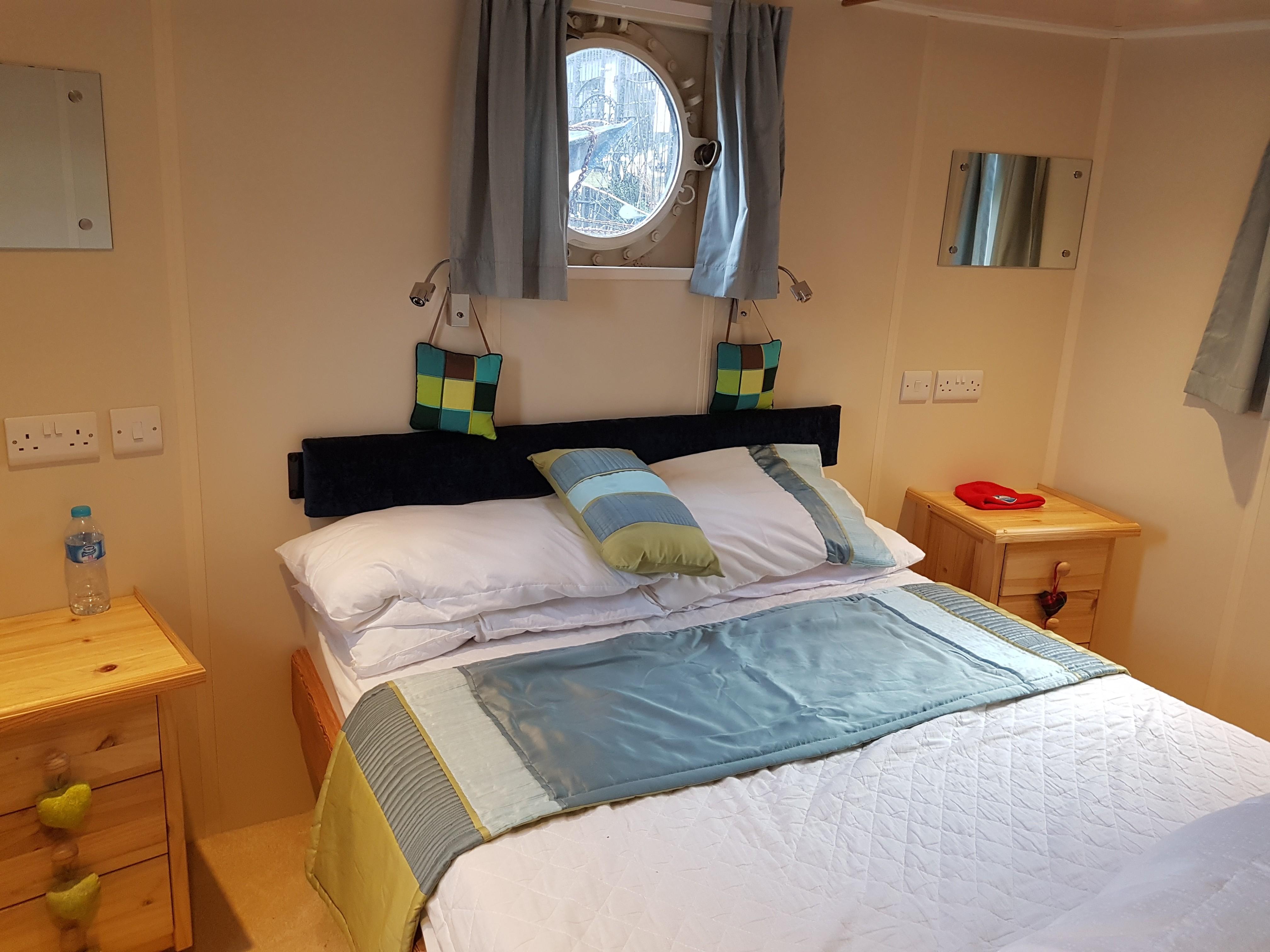

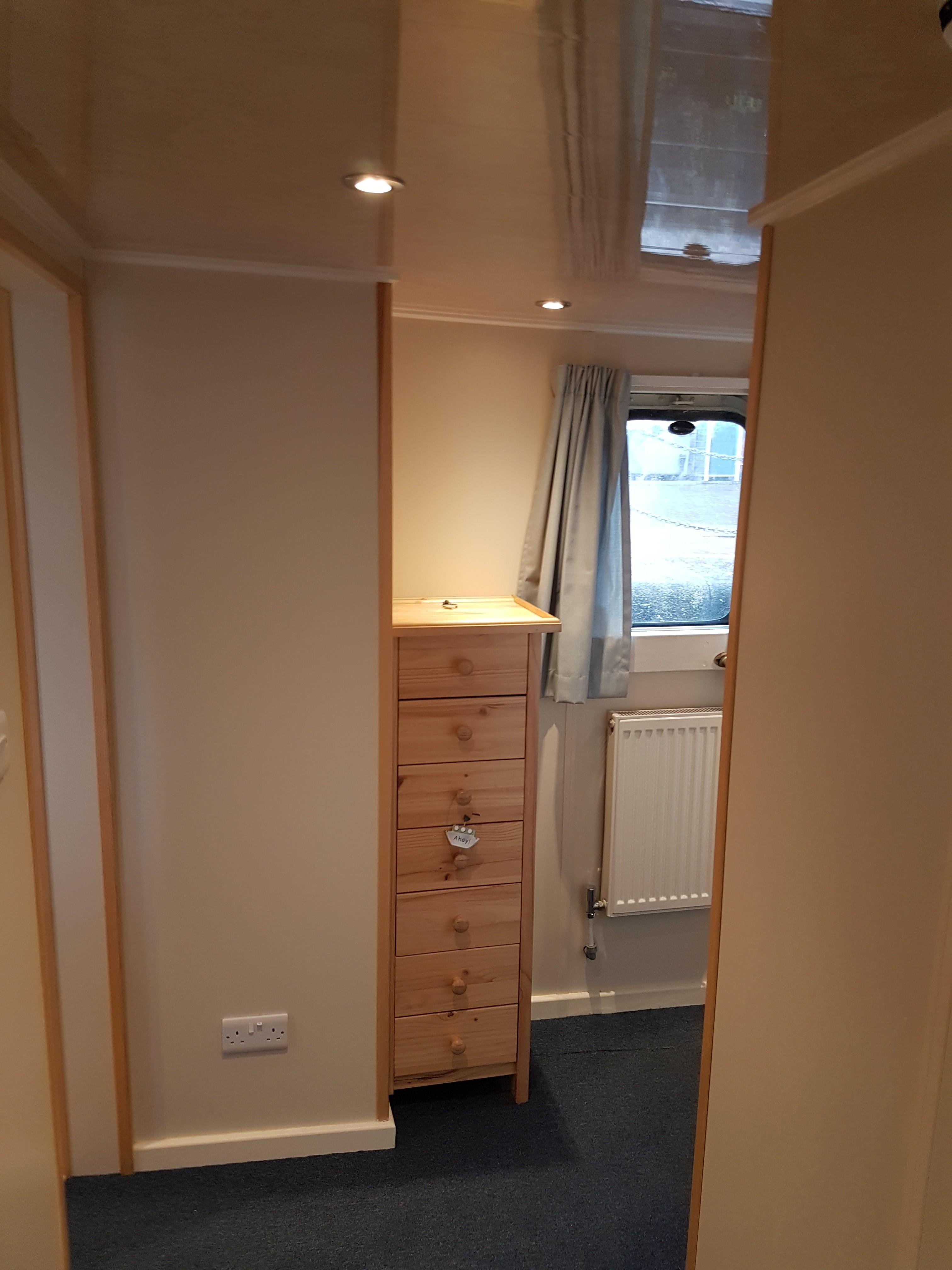

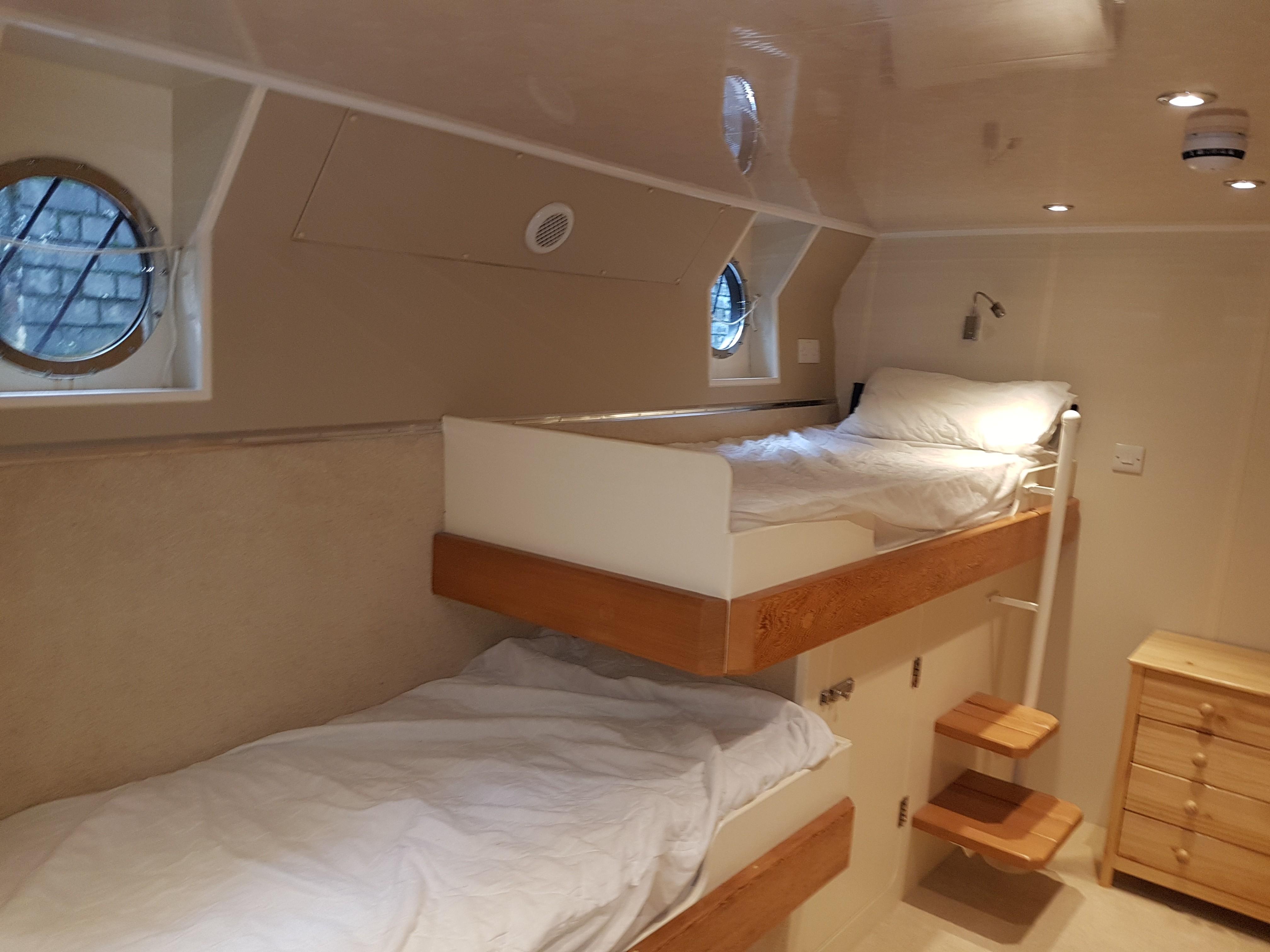

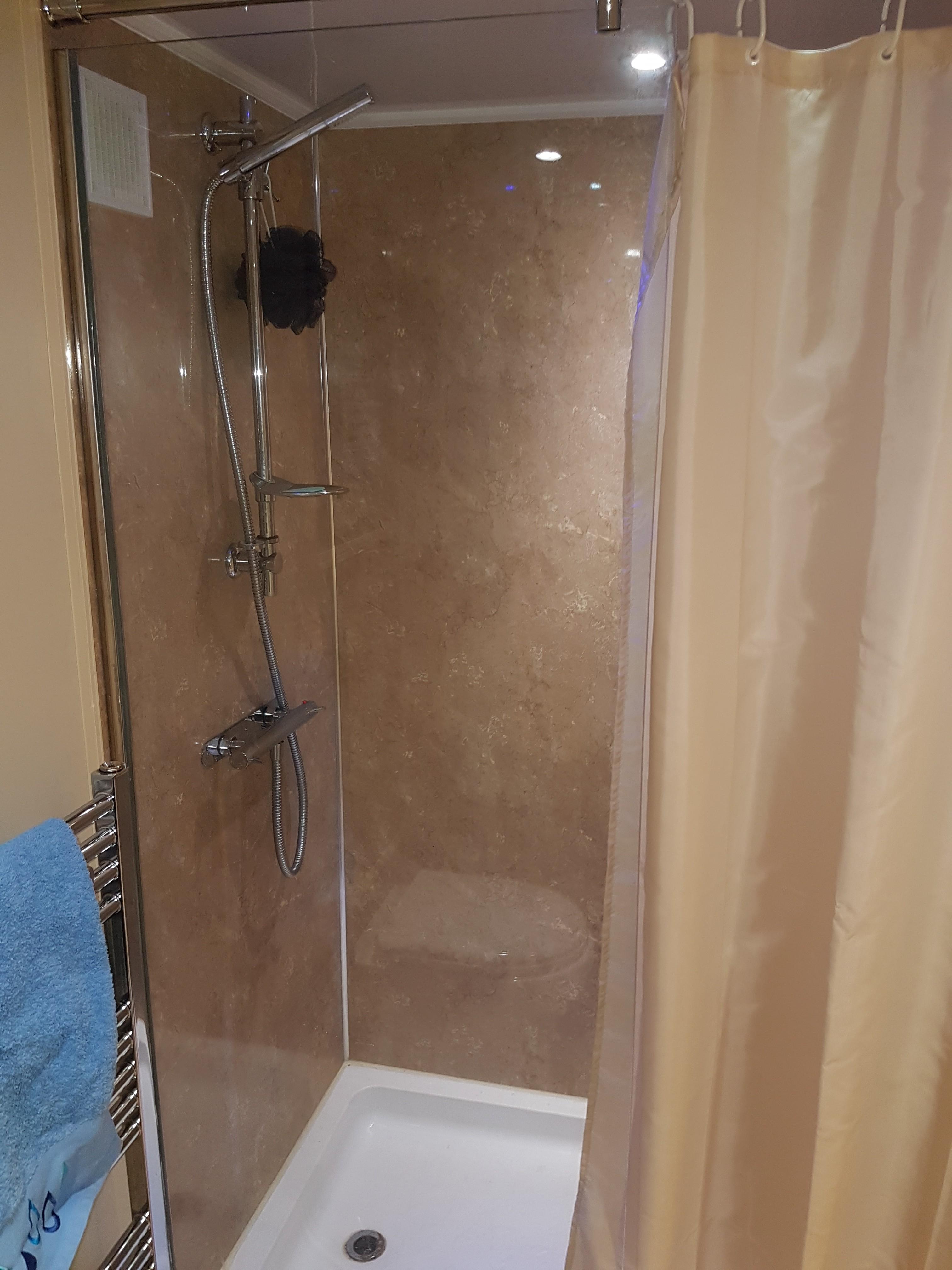

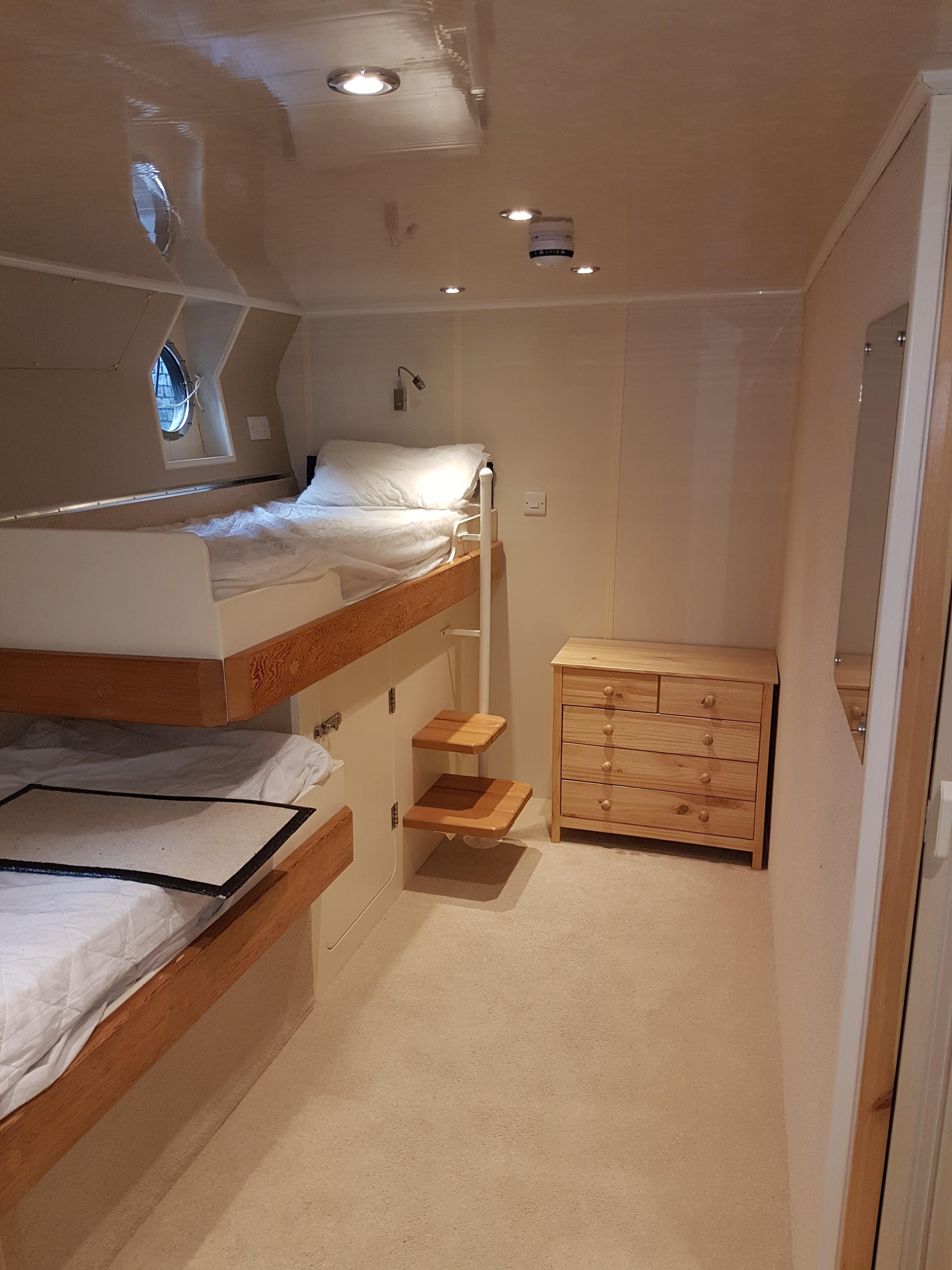

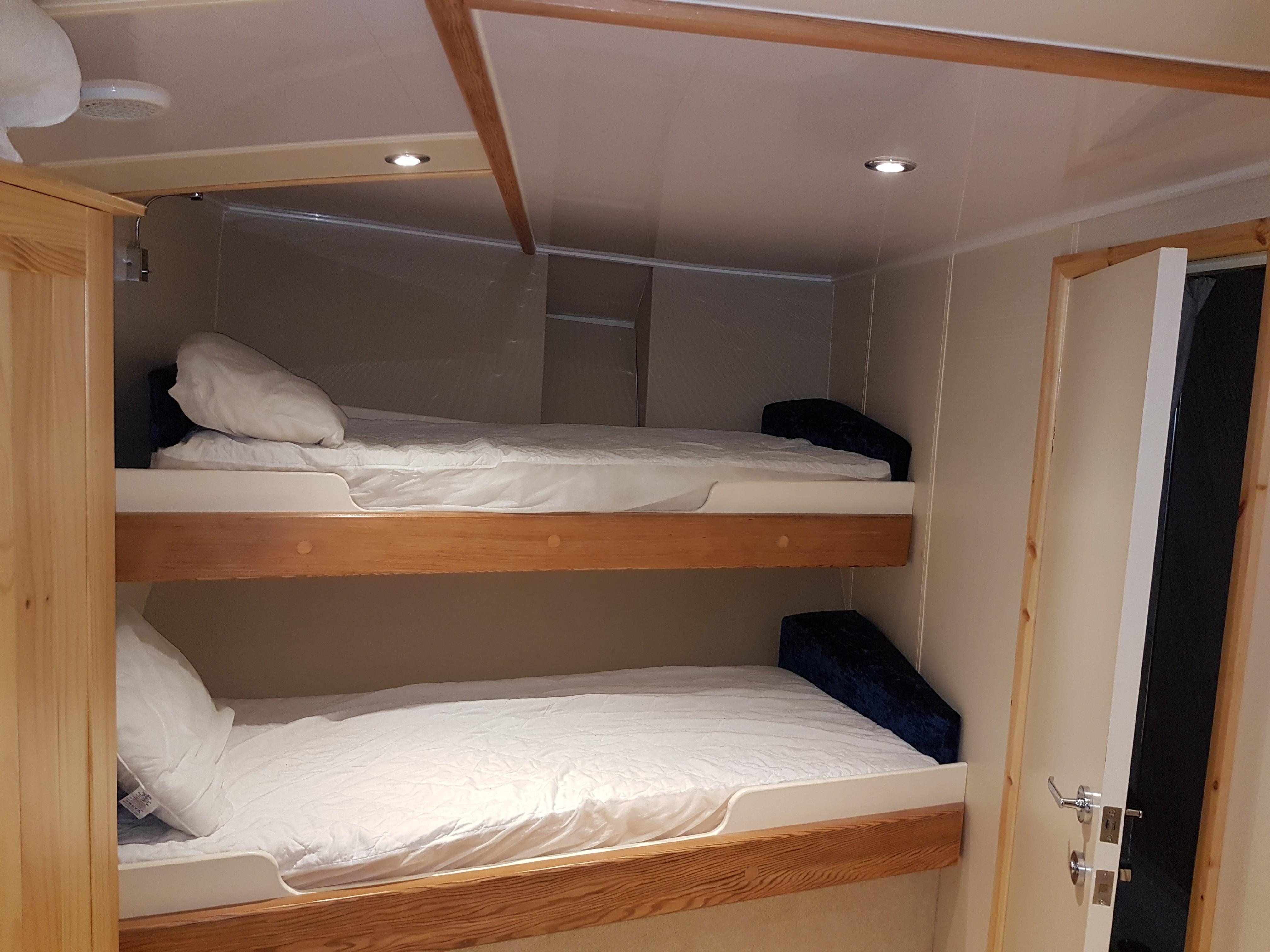

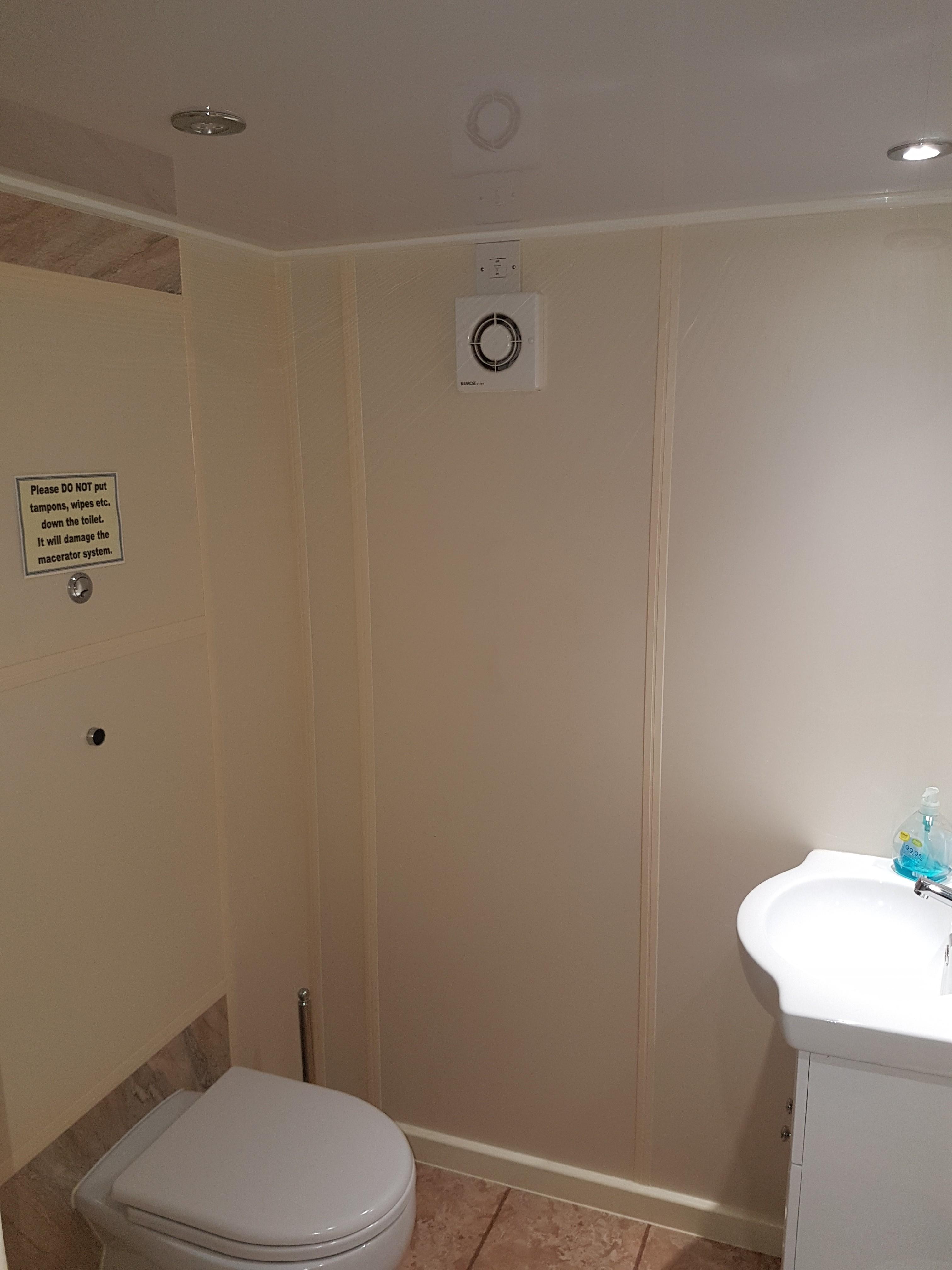

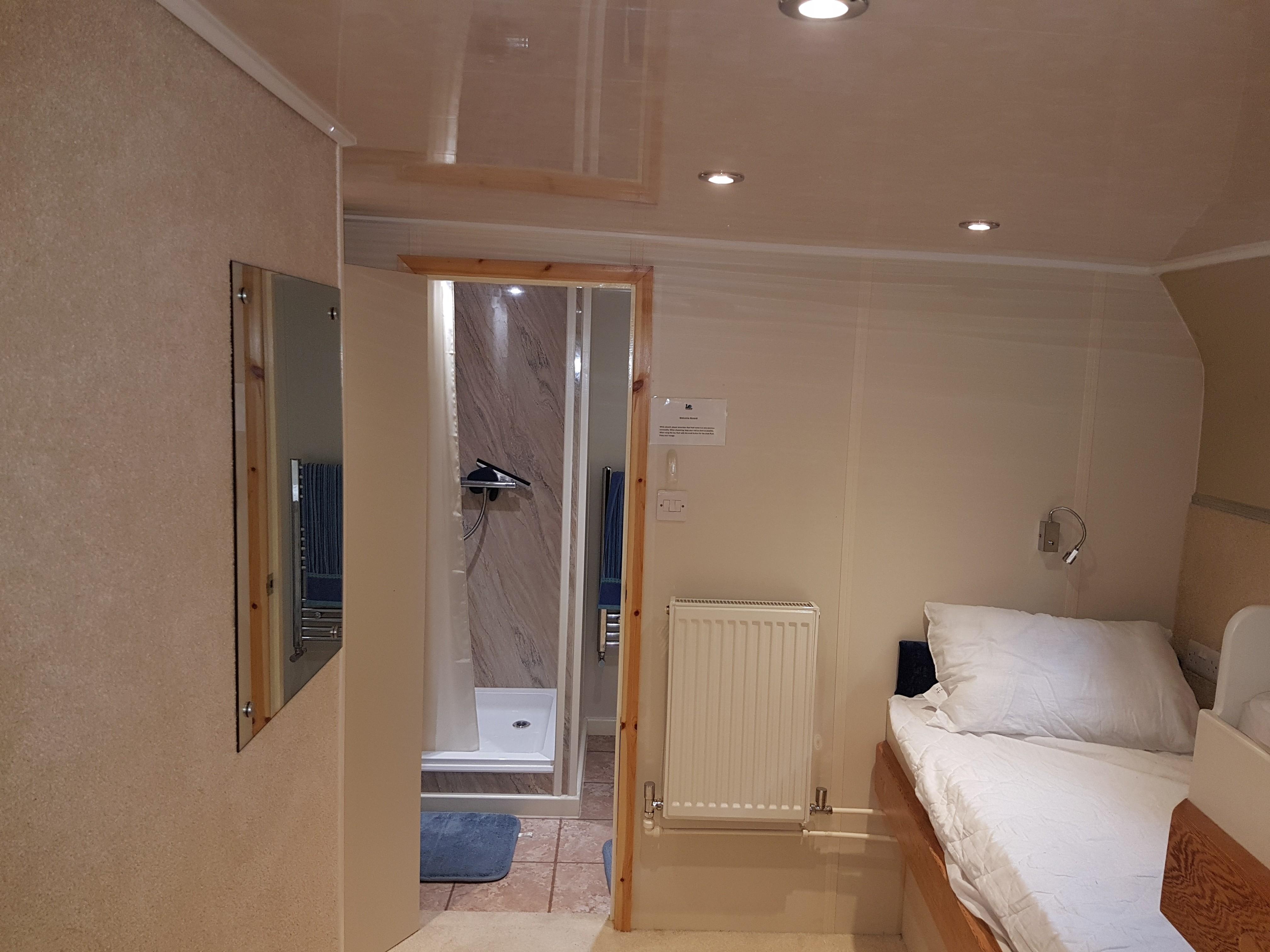

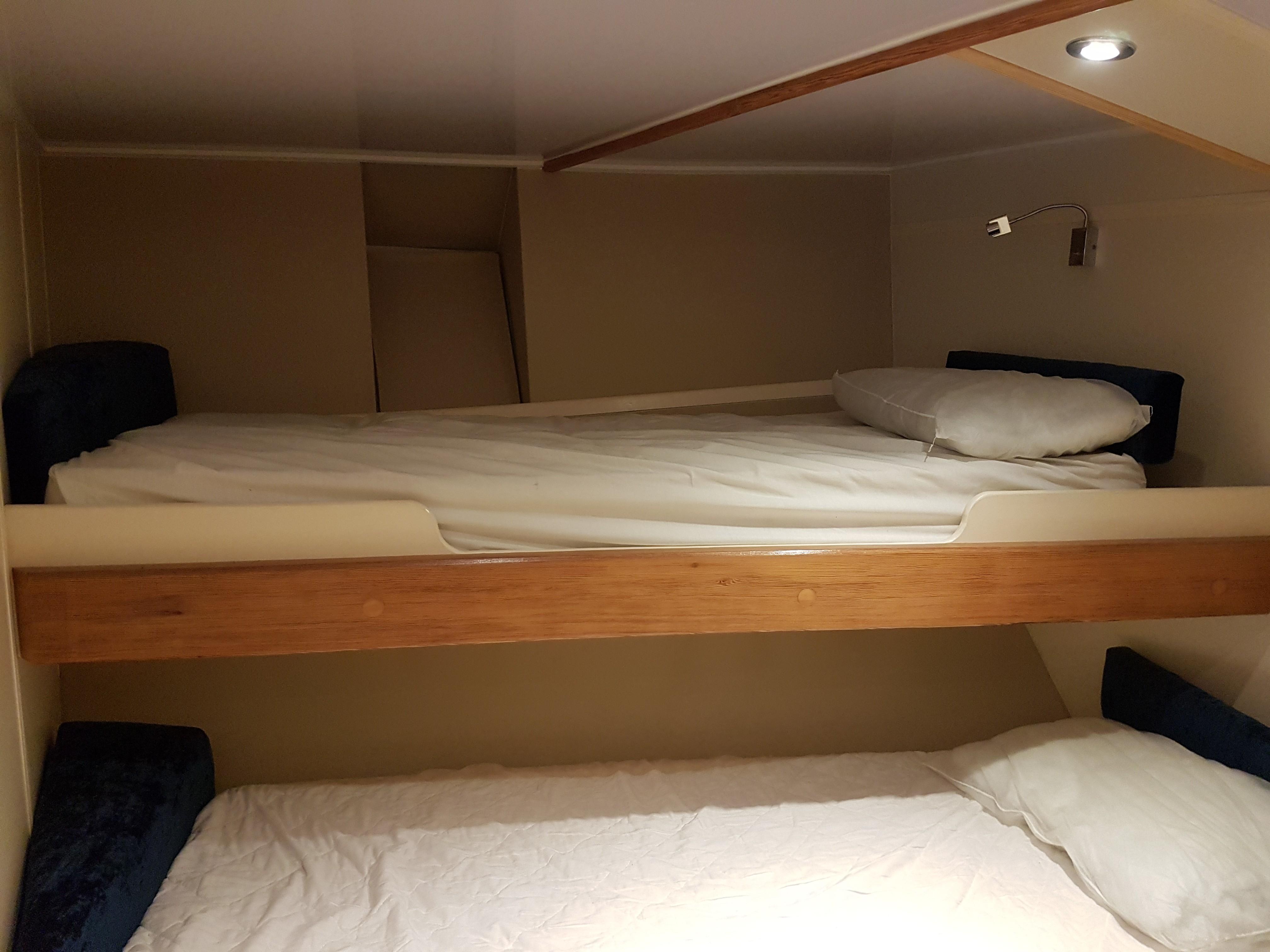

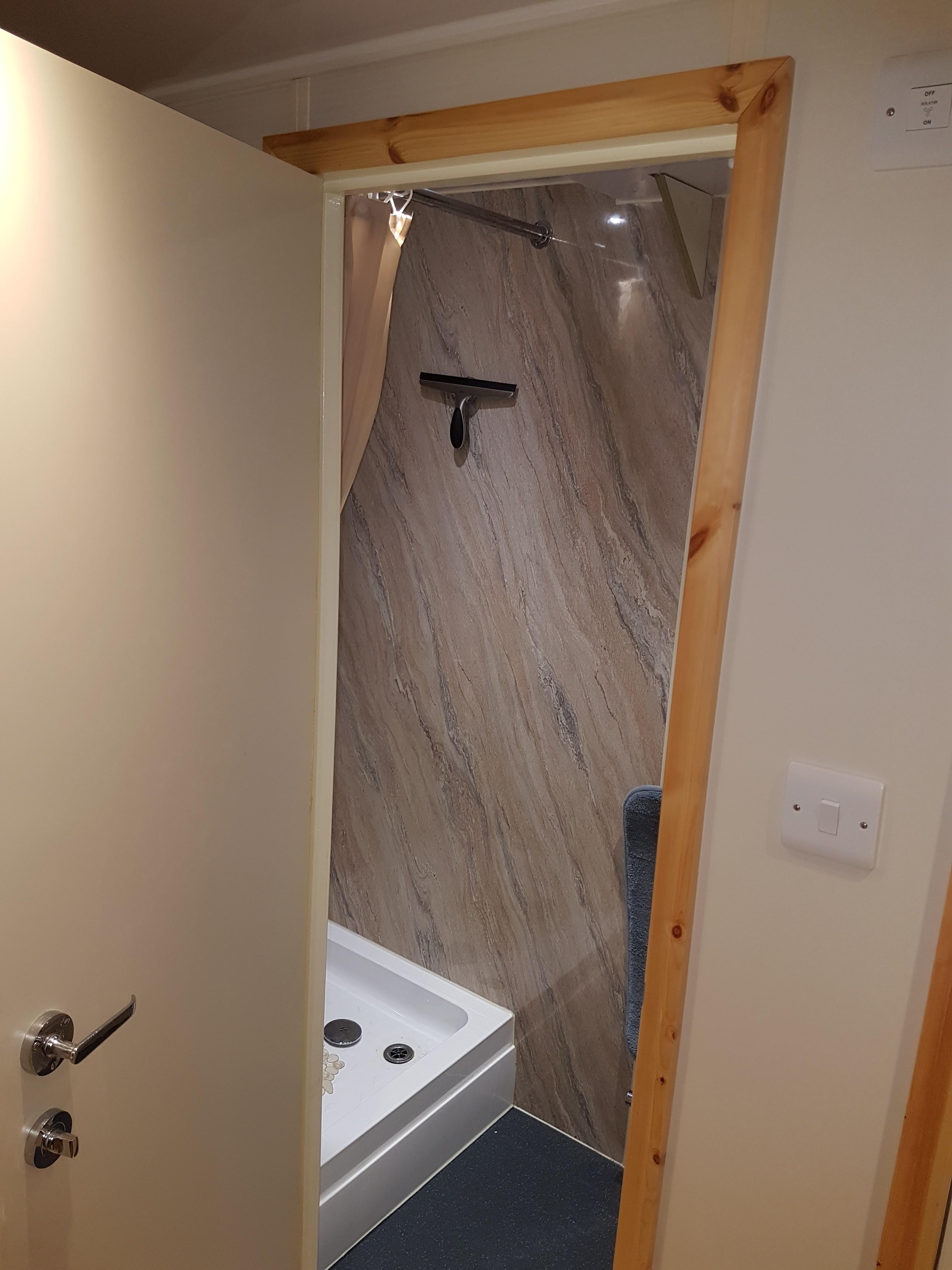

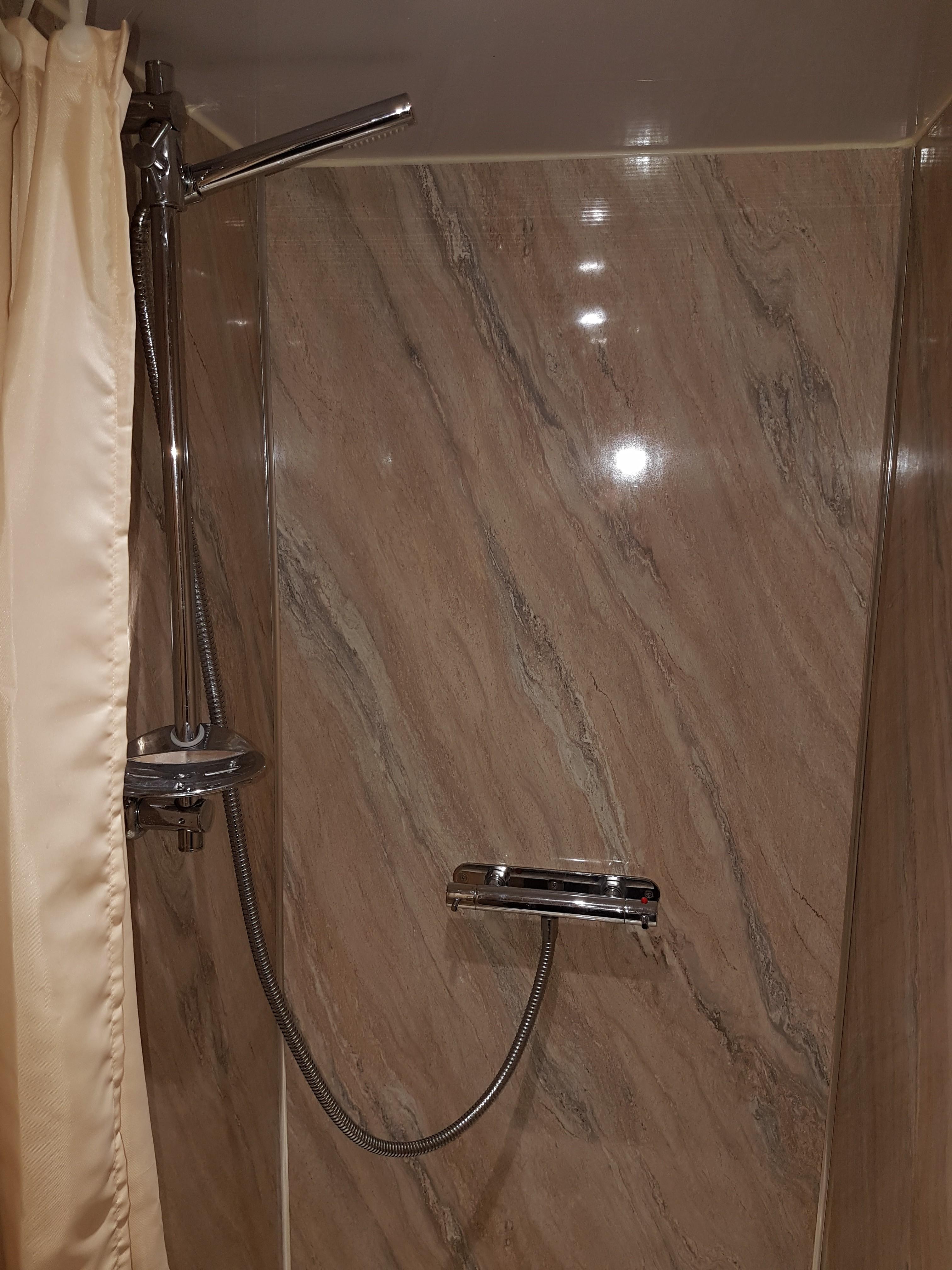

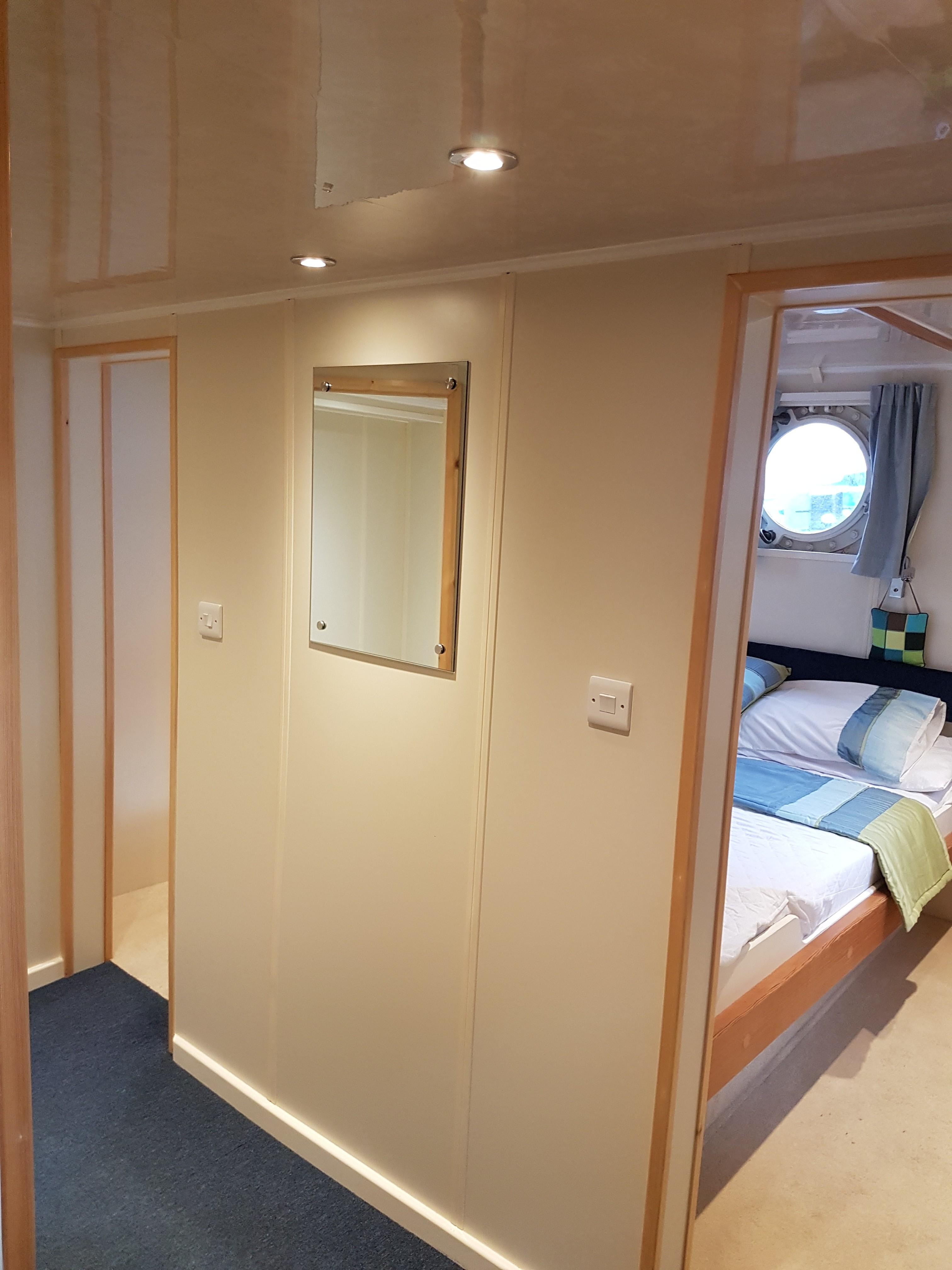

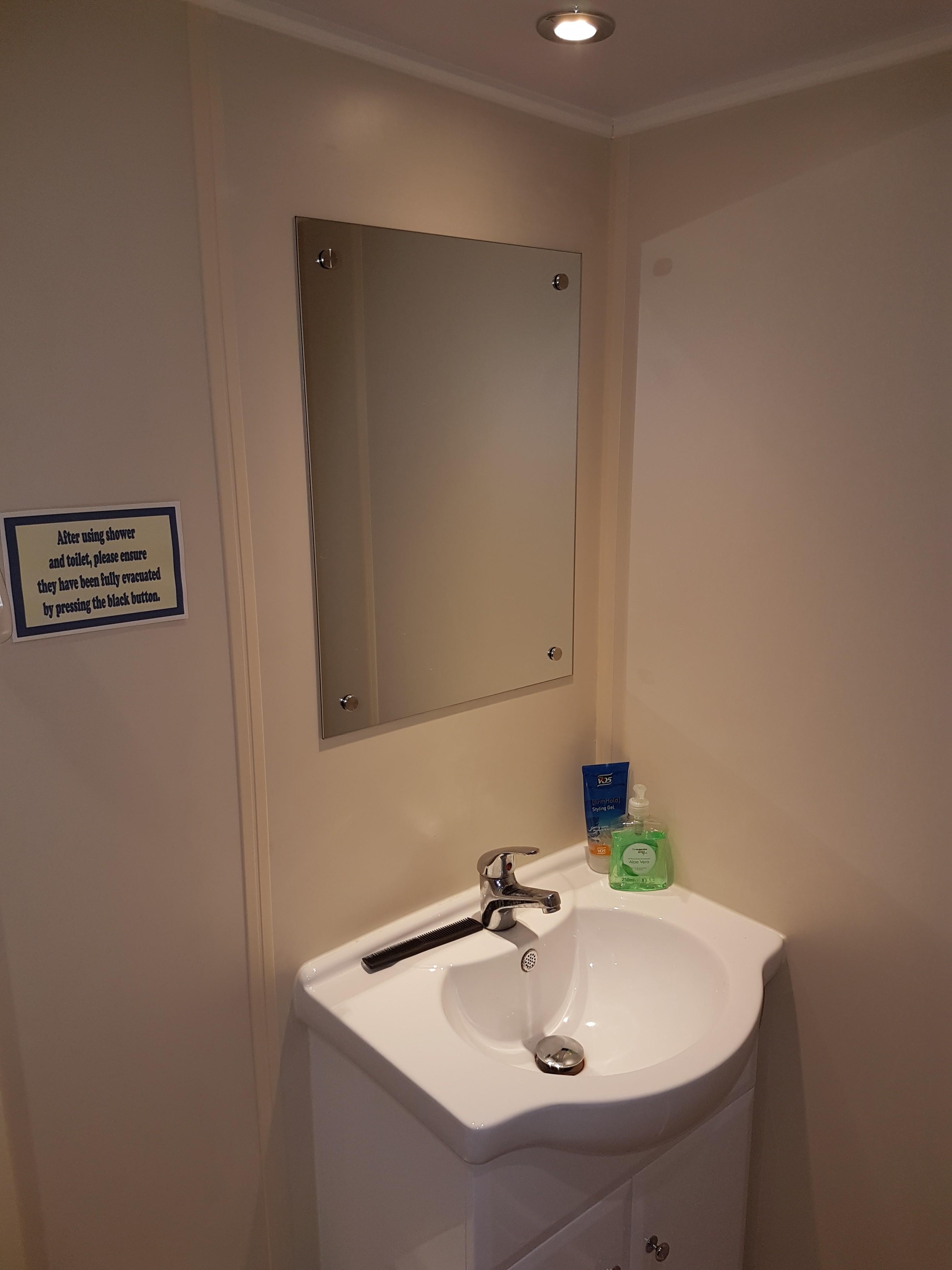

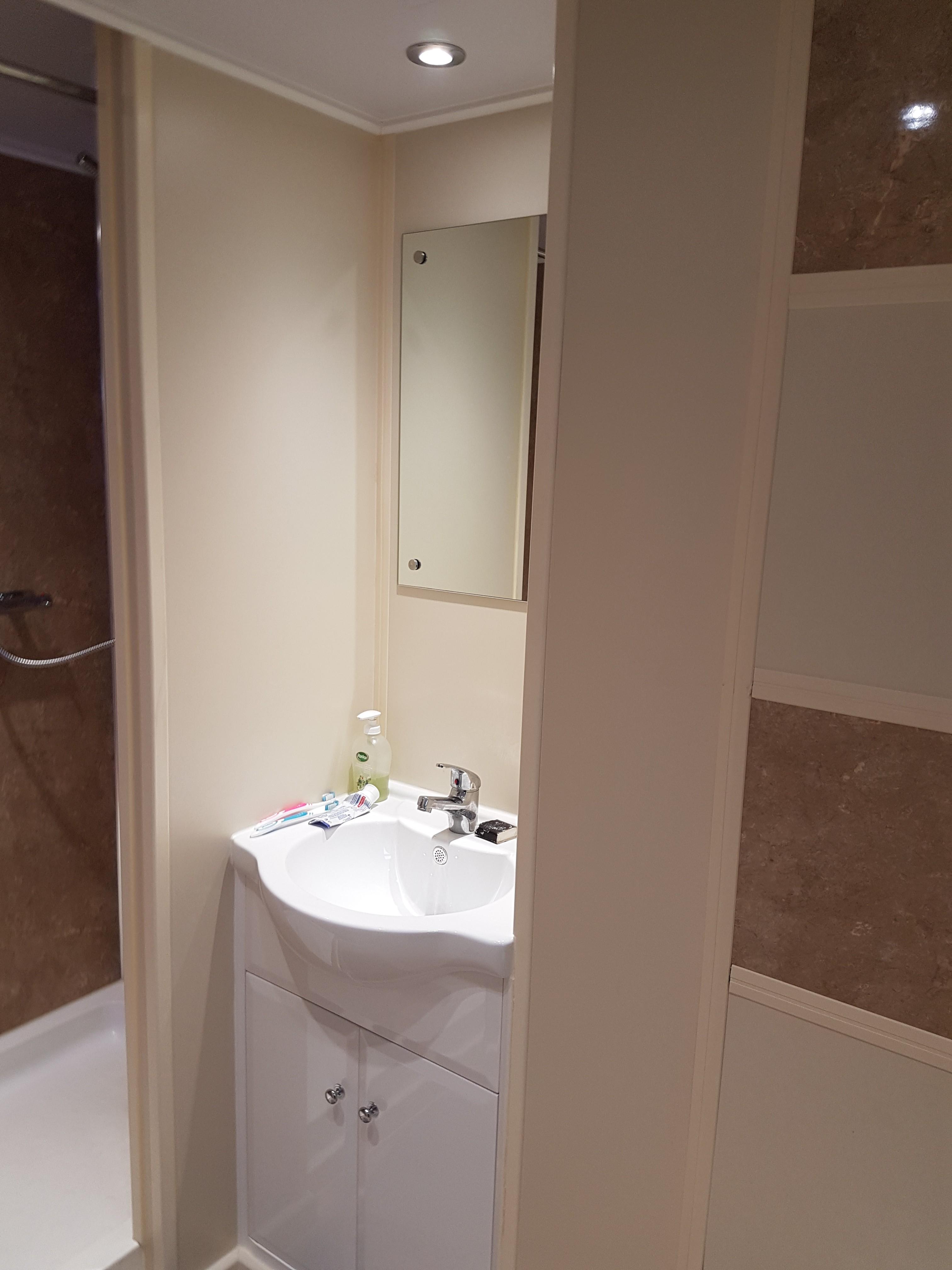

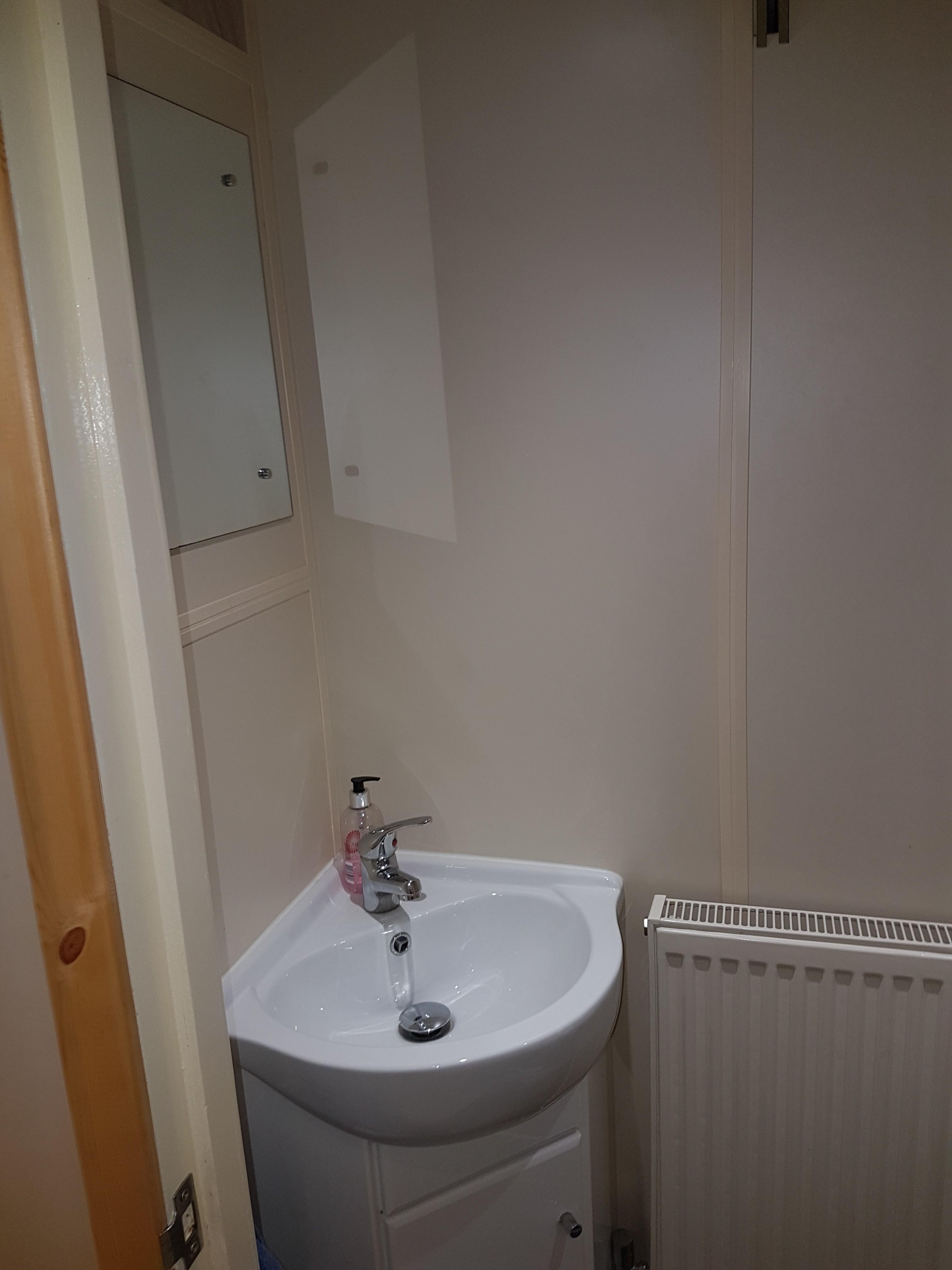

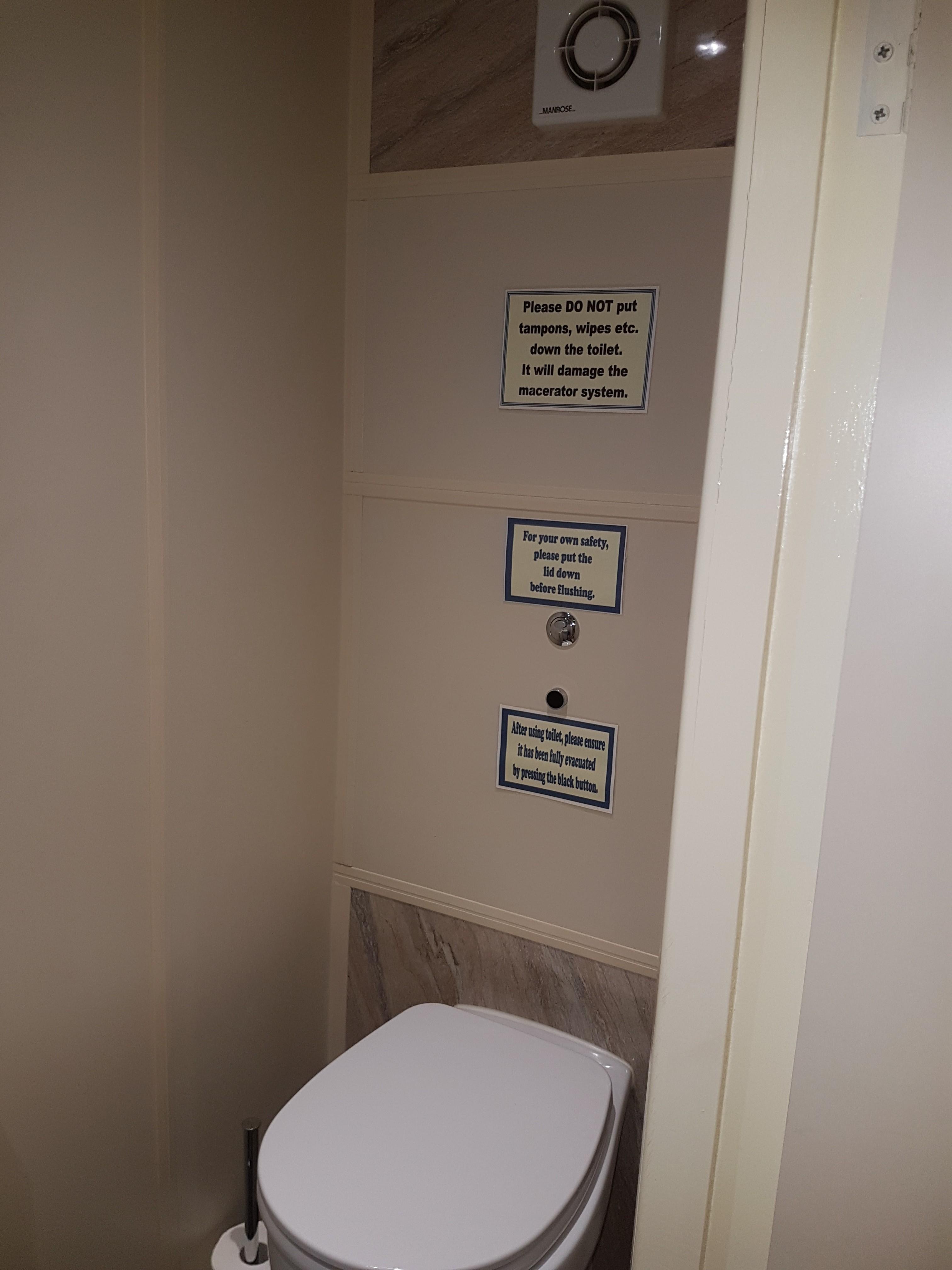

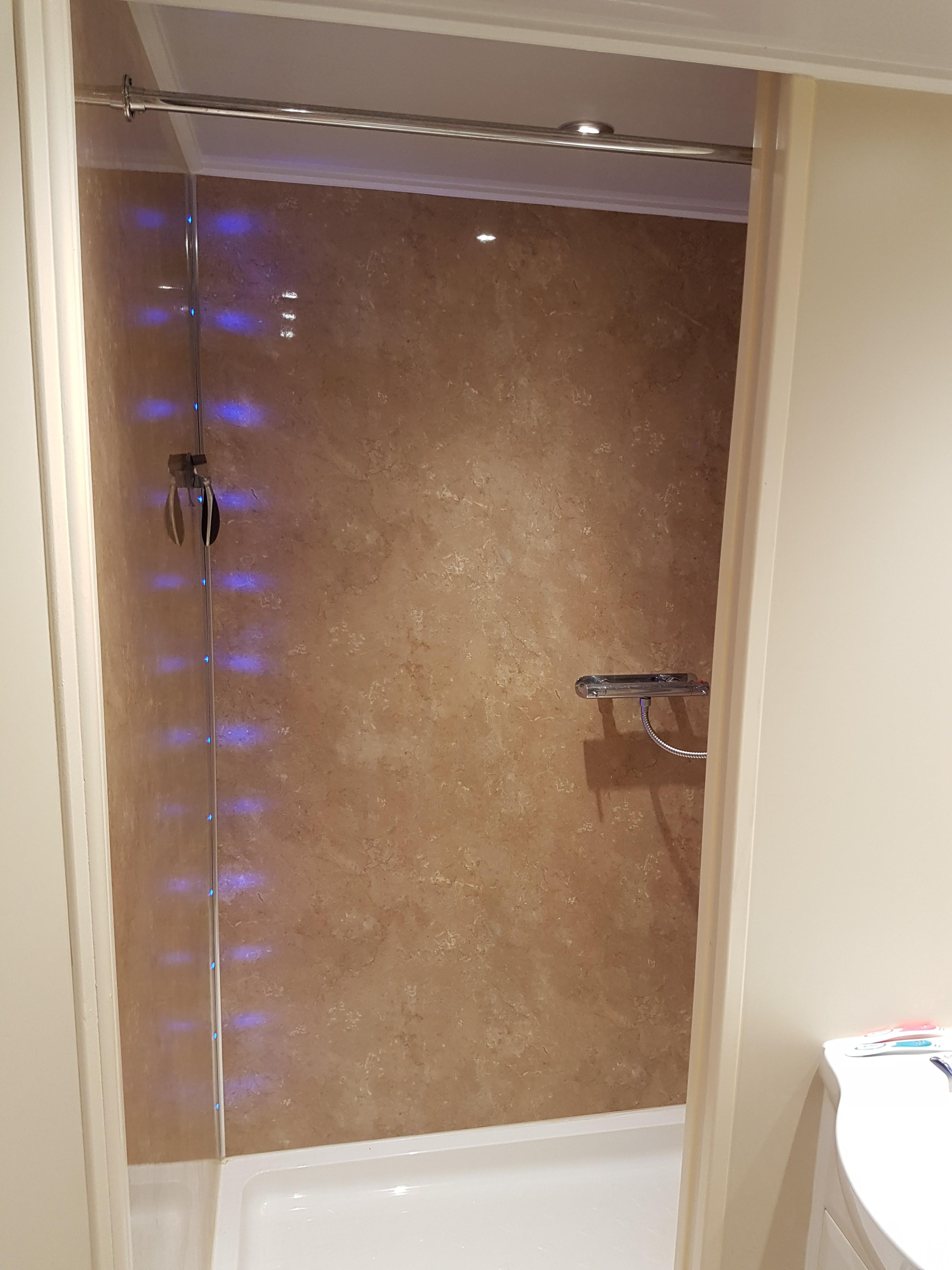

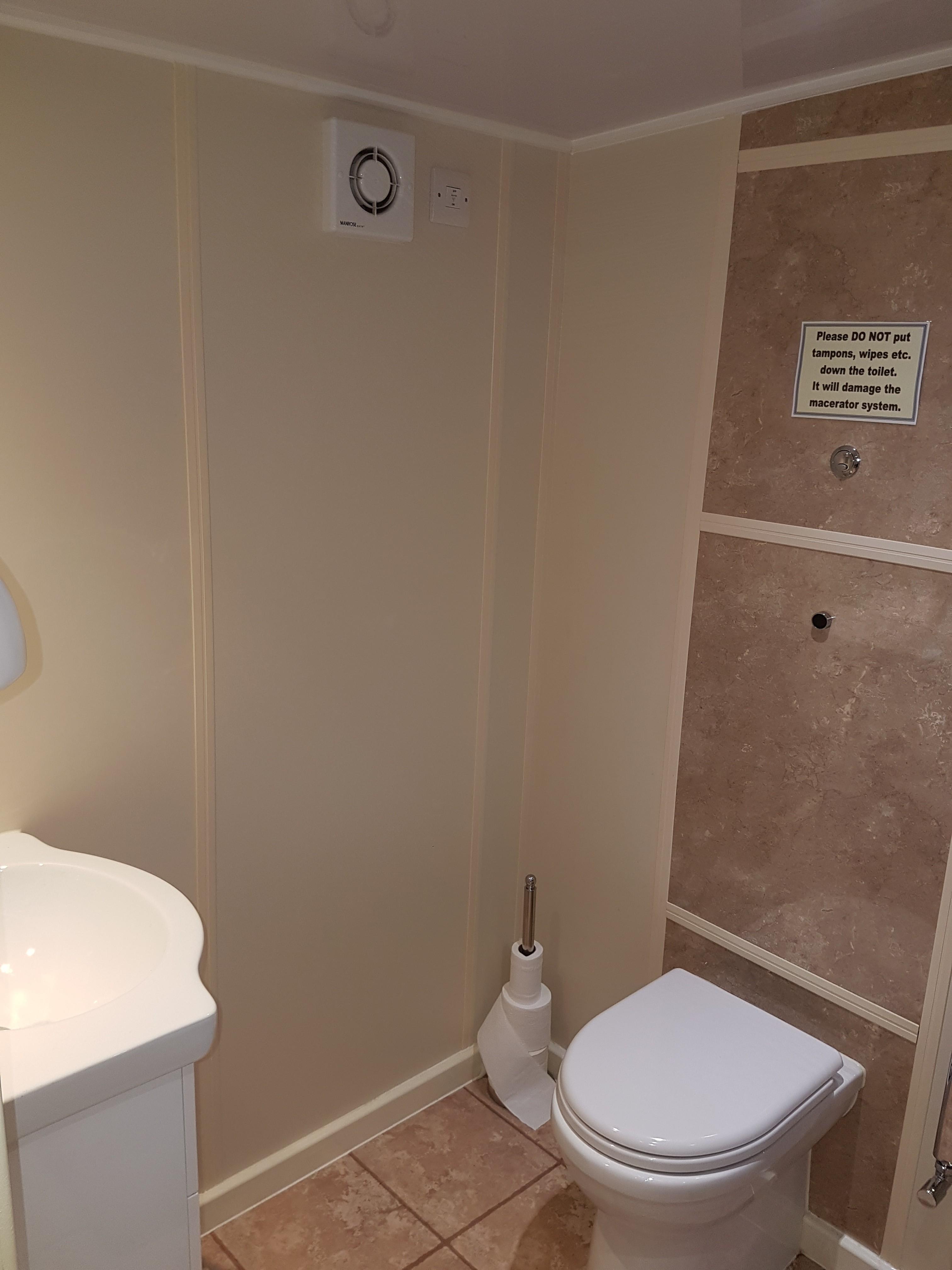

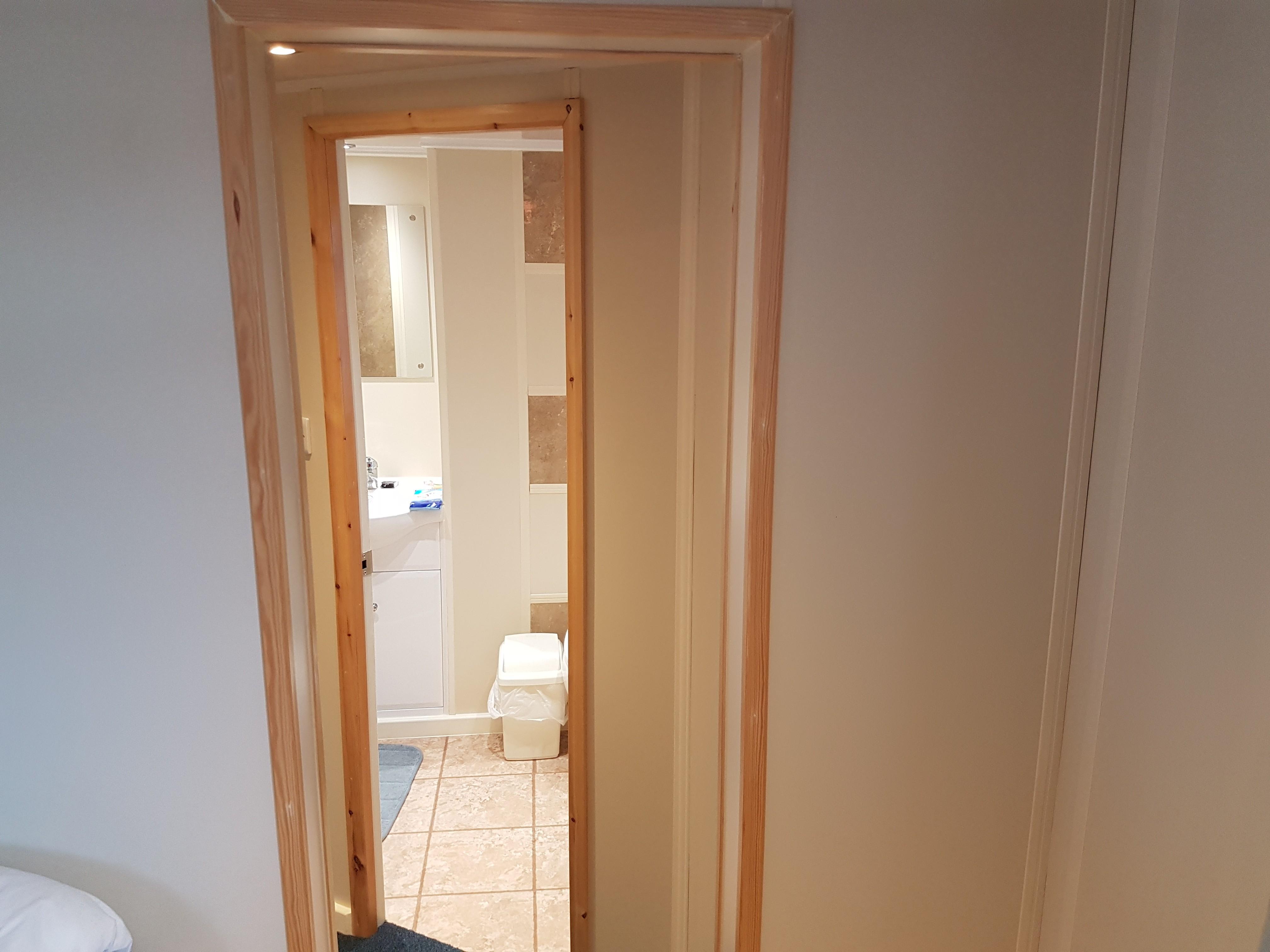

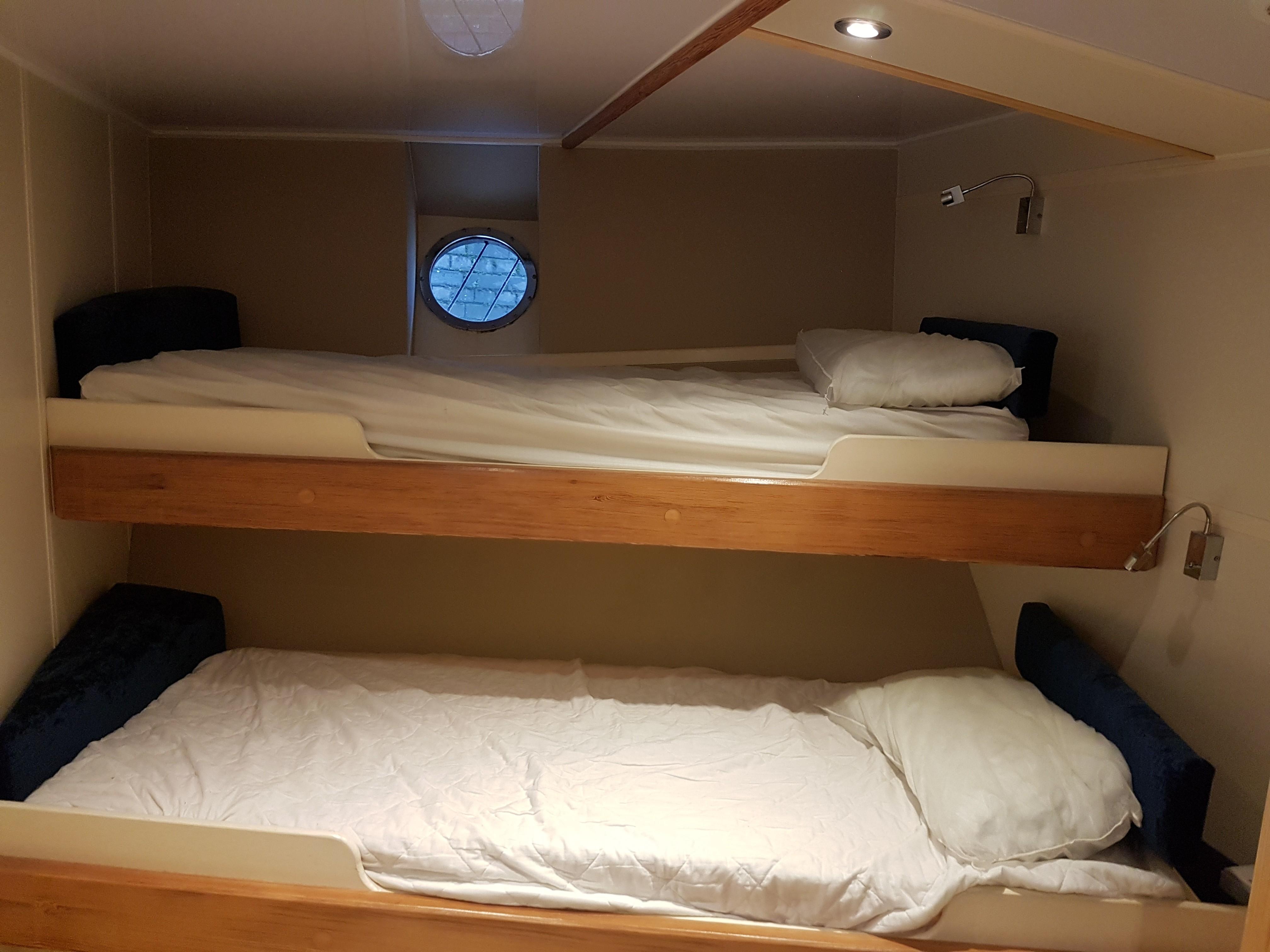

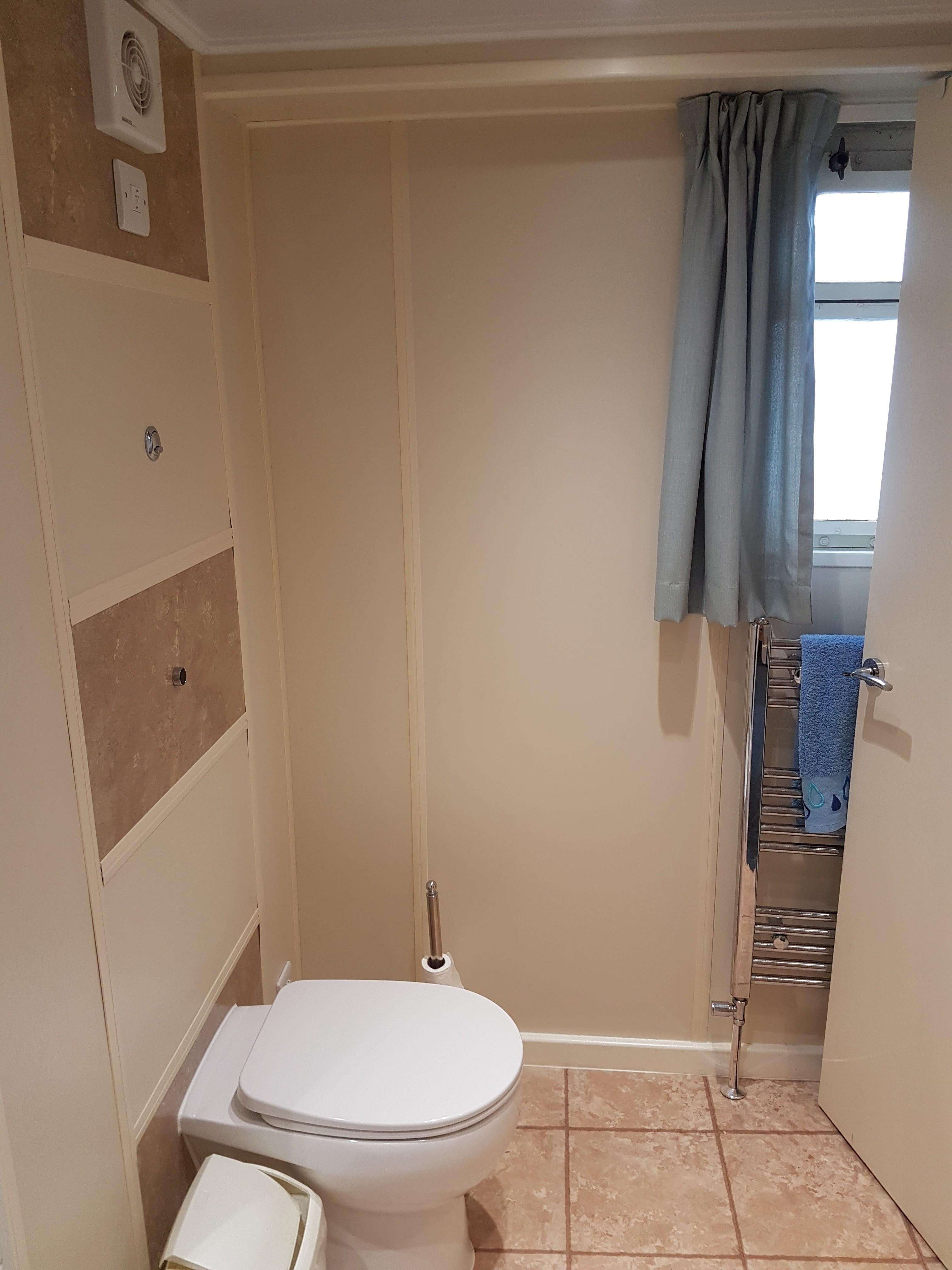

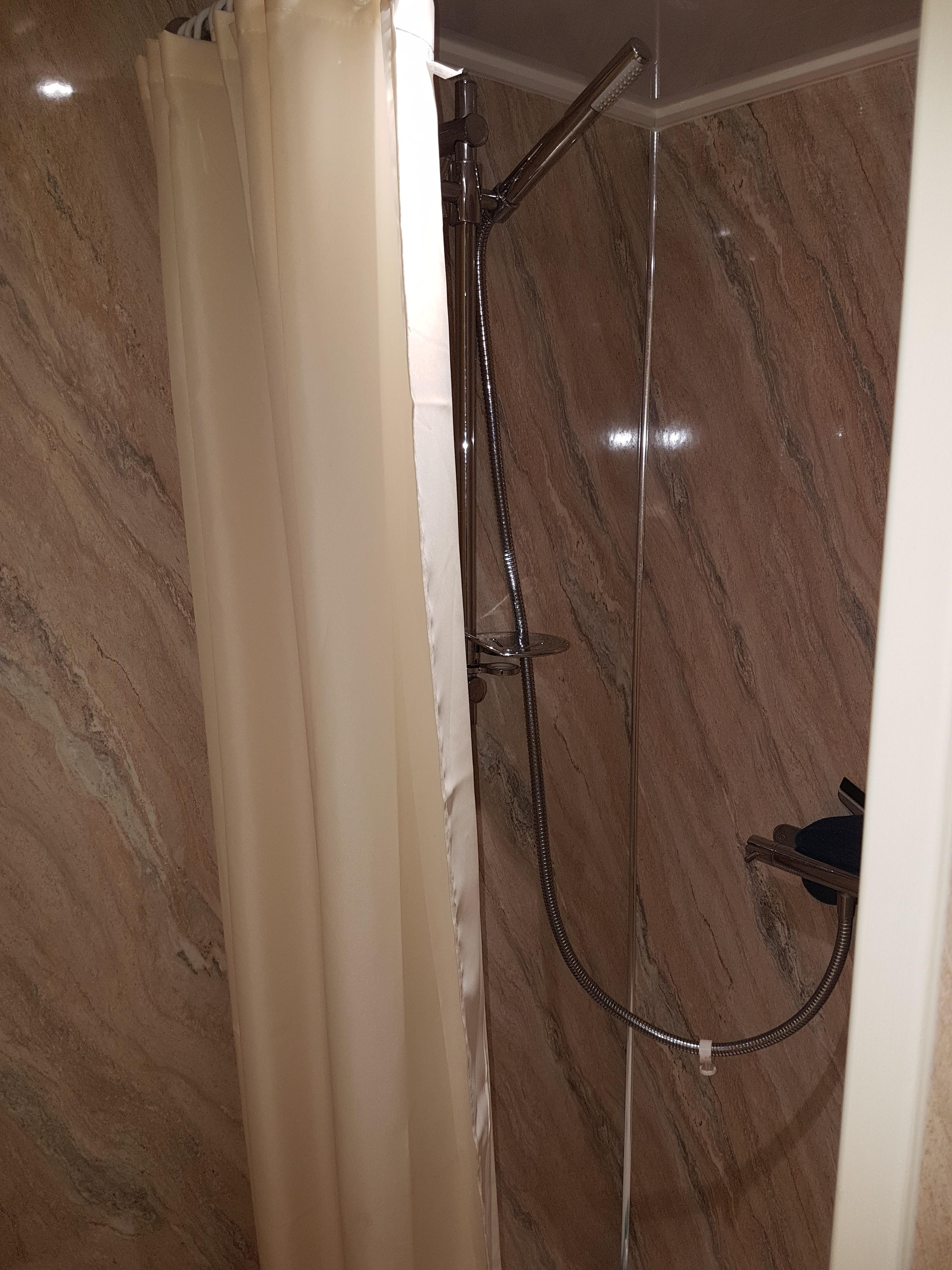

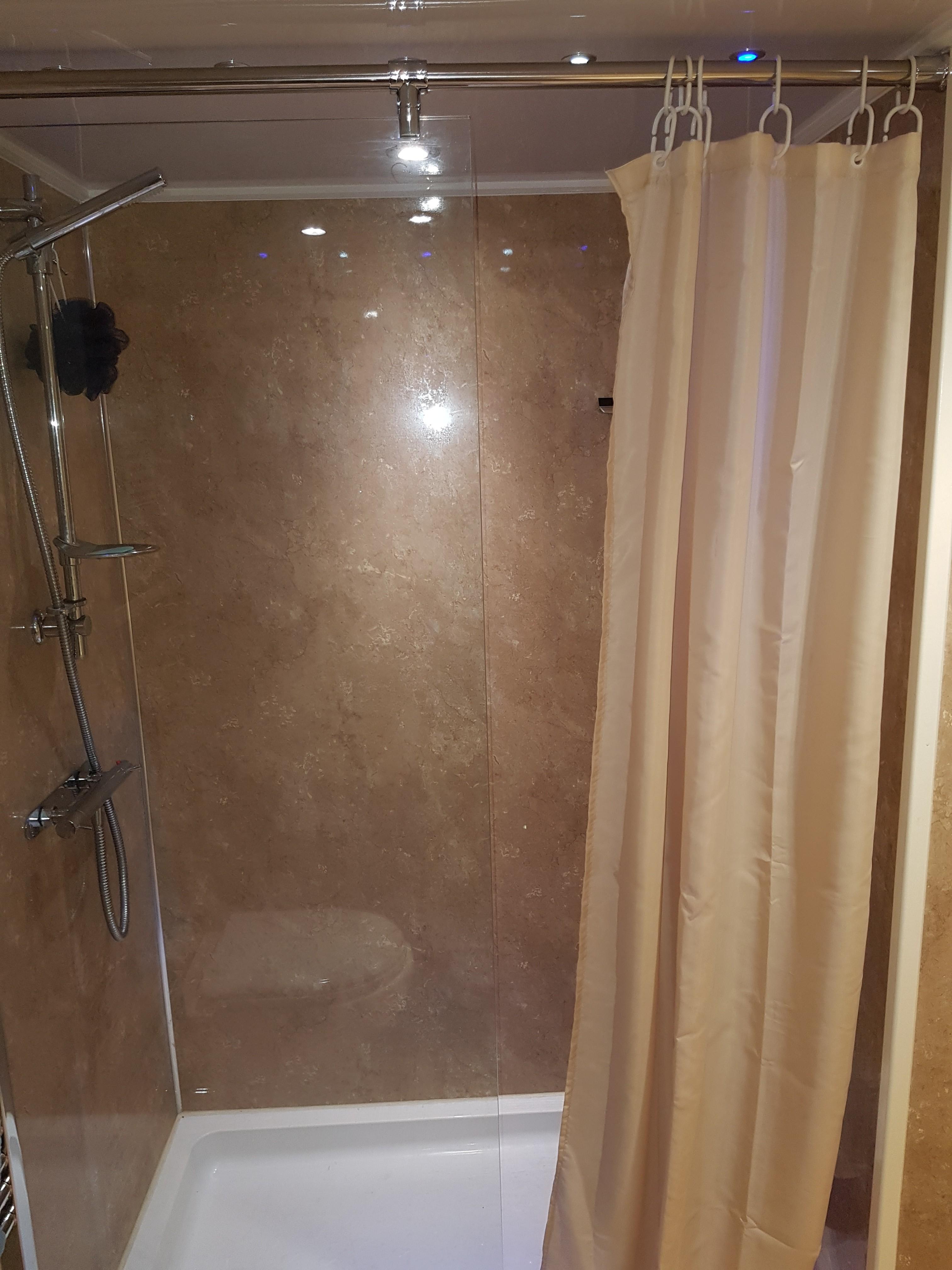

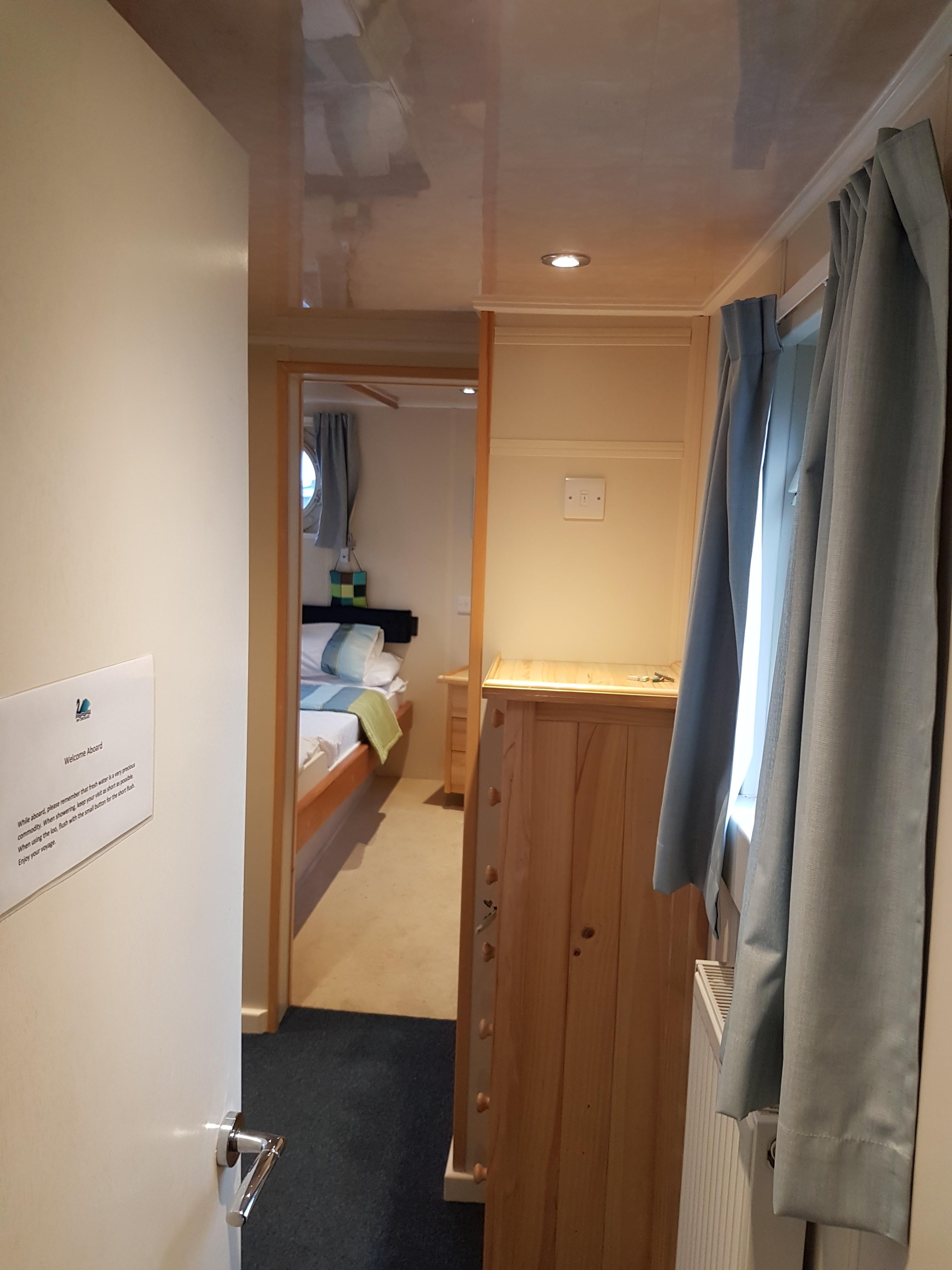

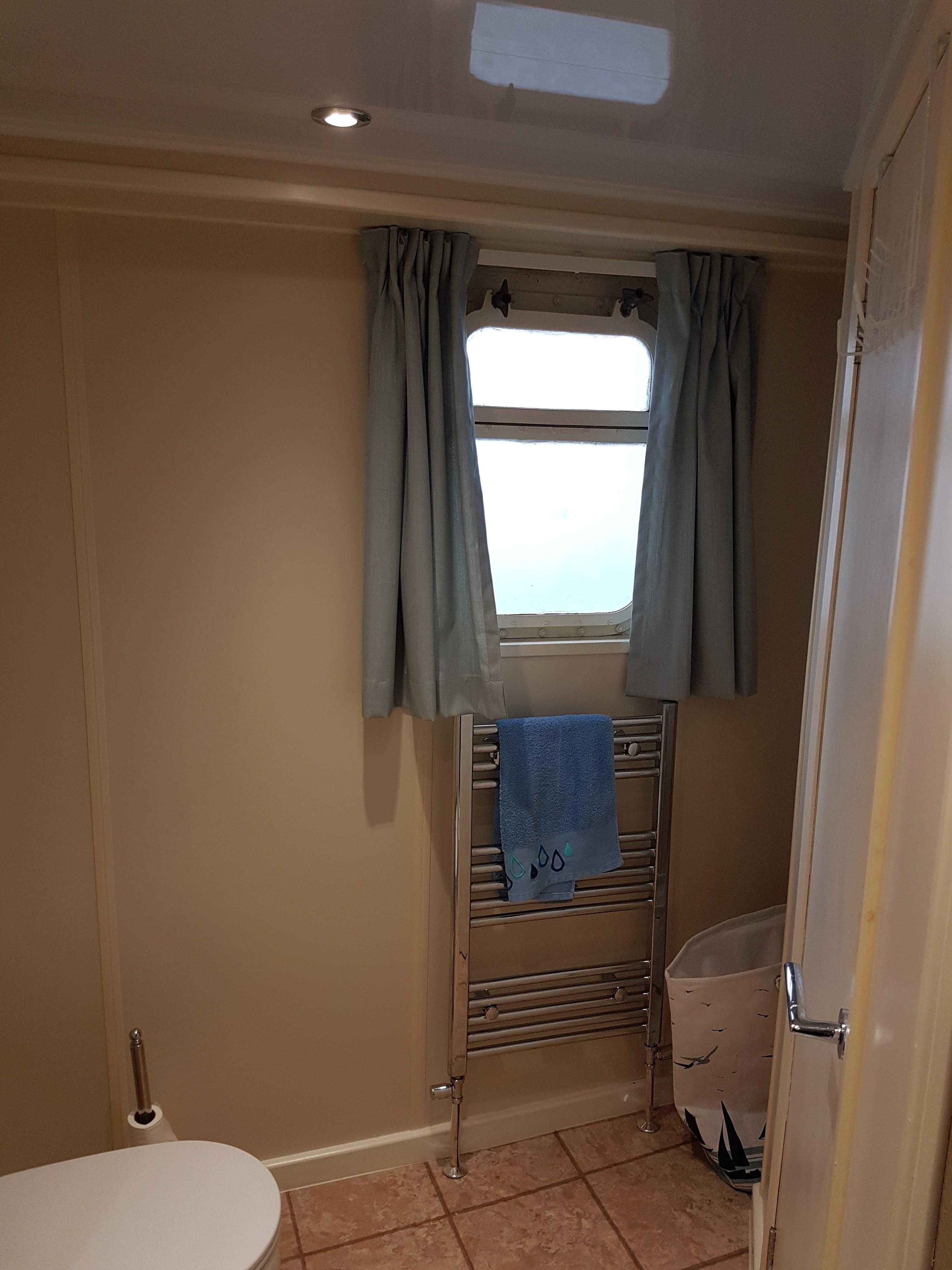

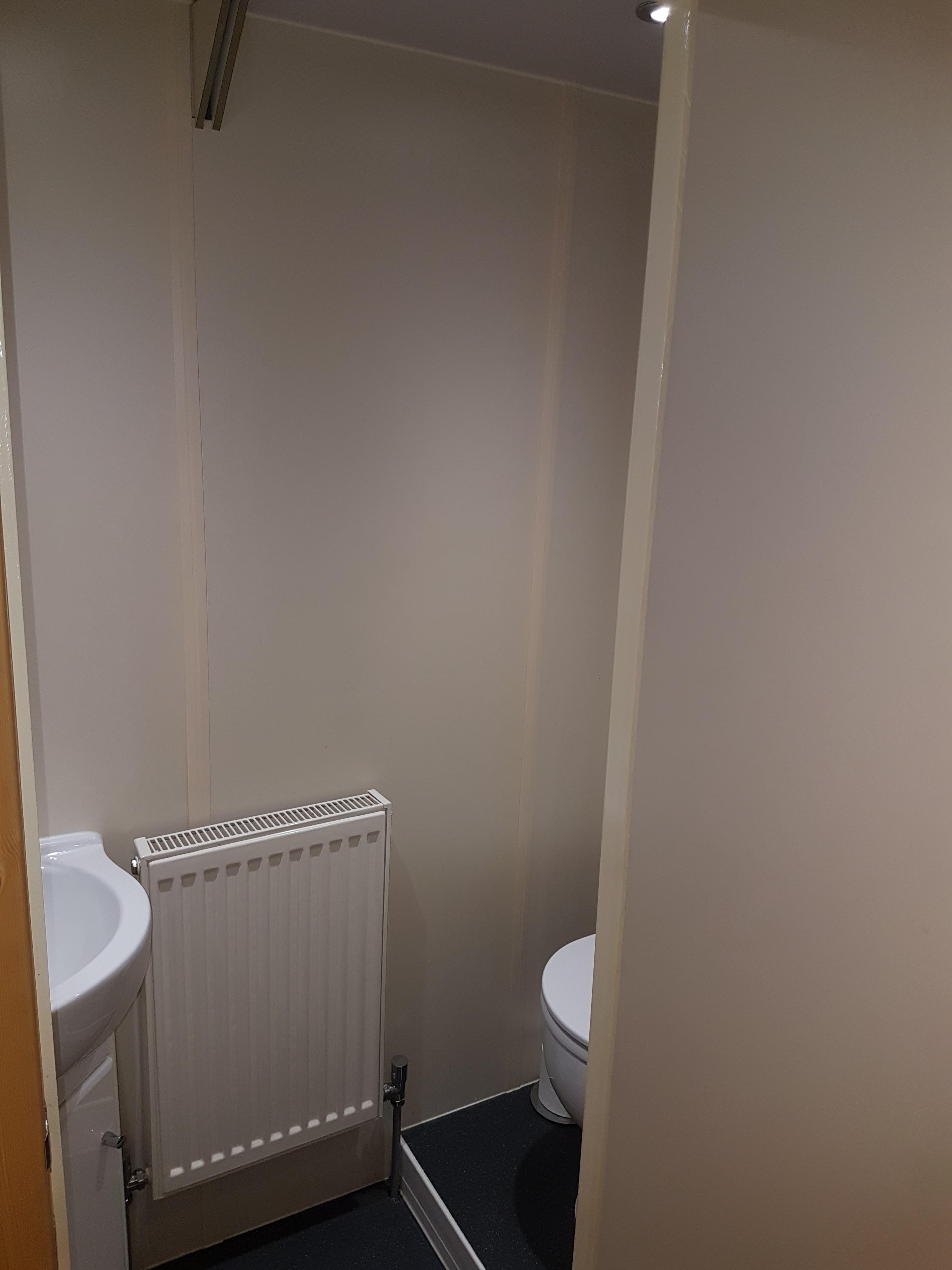

    2 x double en suite master suites with double showers and wc, 1 x twin en suite cabin with shower and wc, 1 x quad en suite cabin with shower and wc

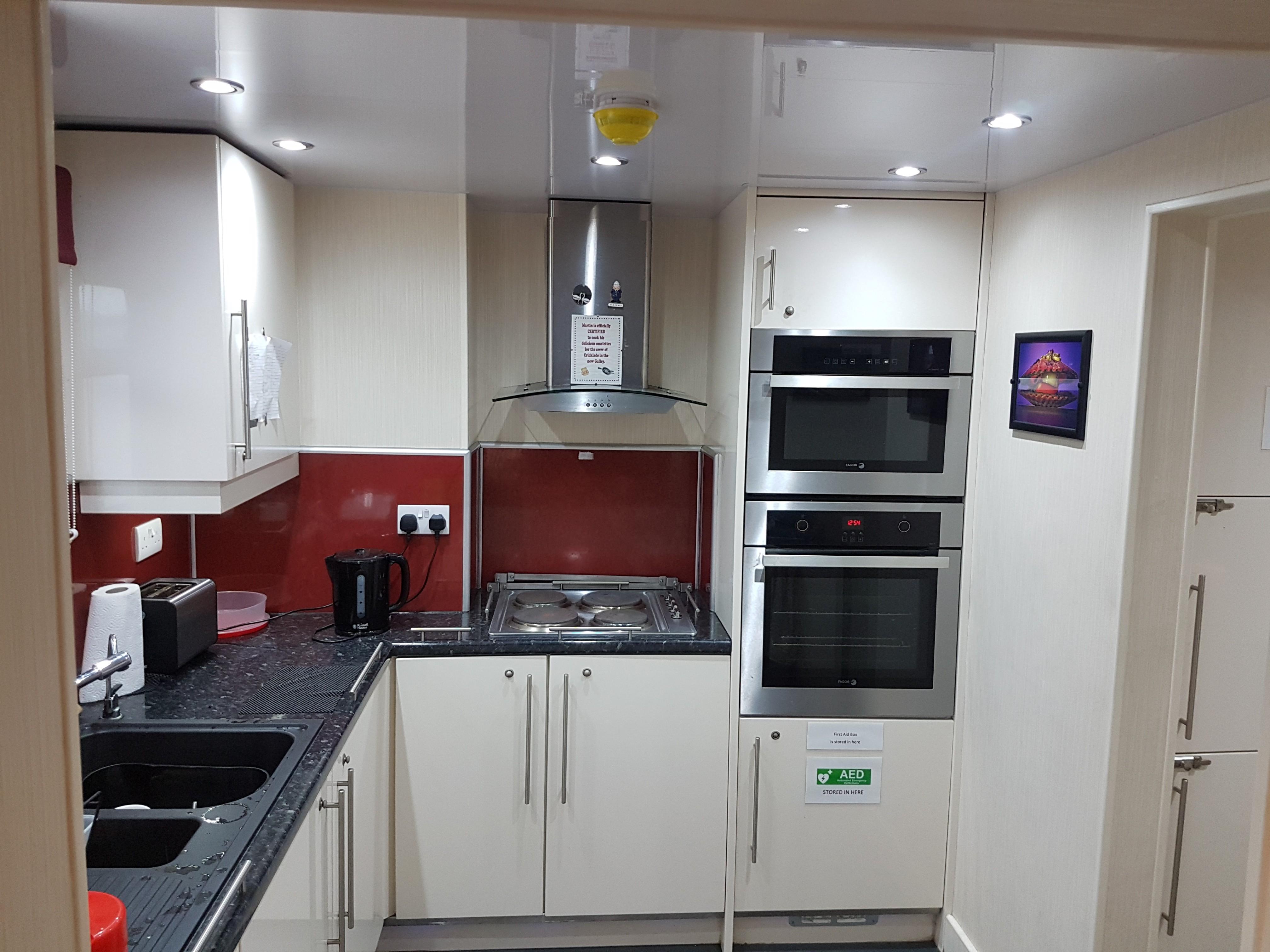

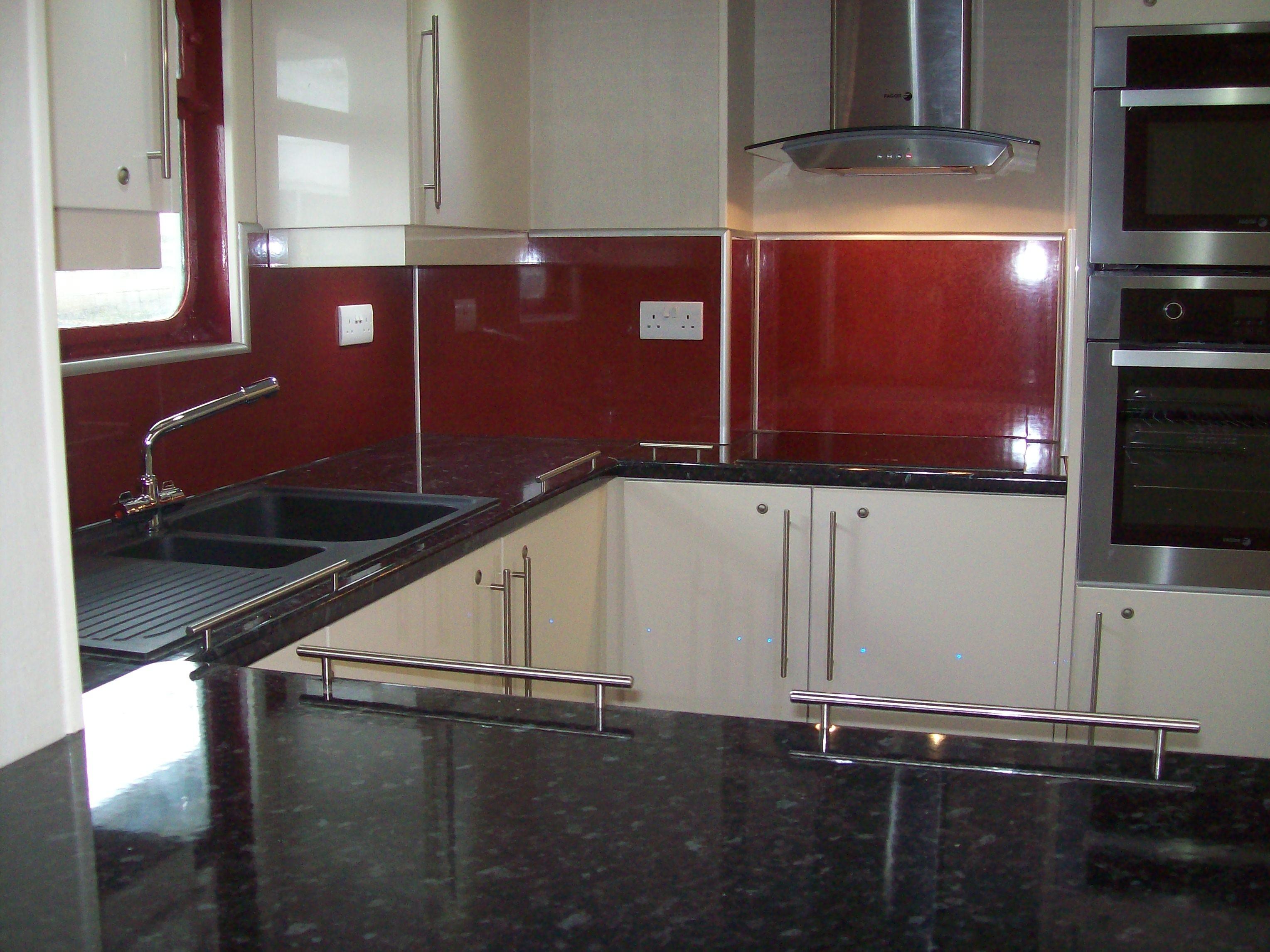

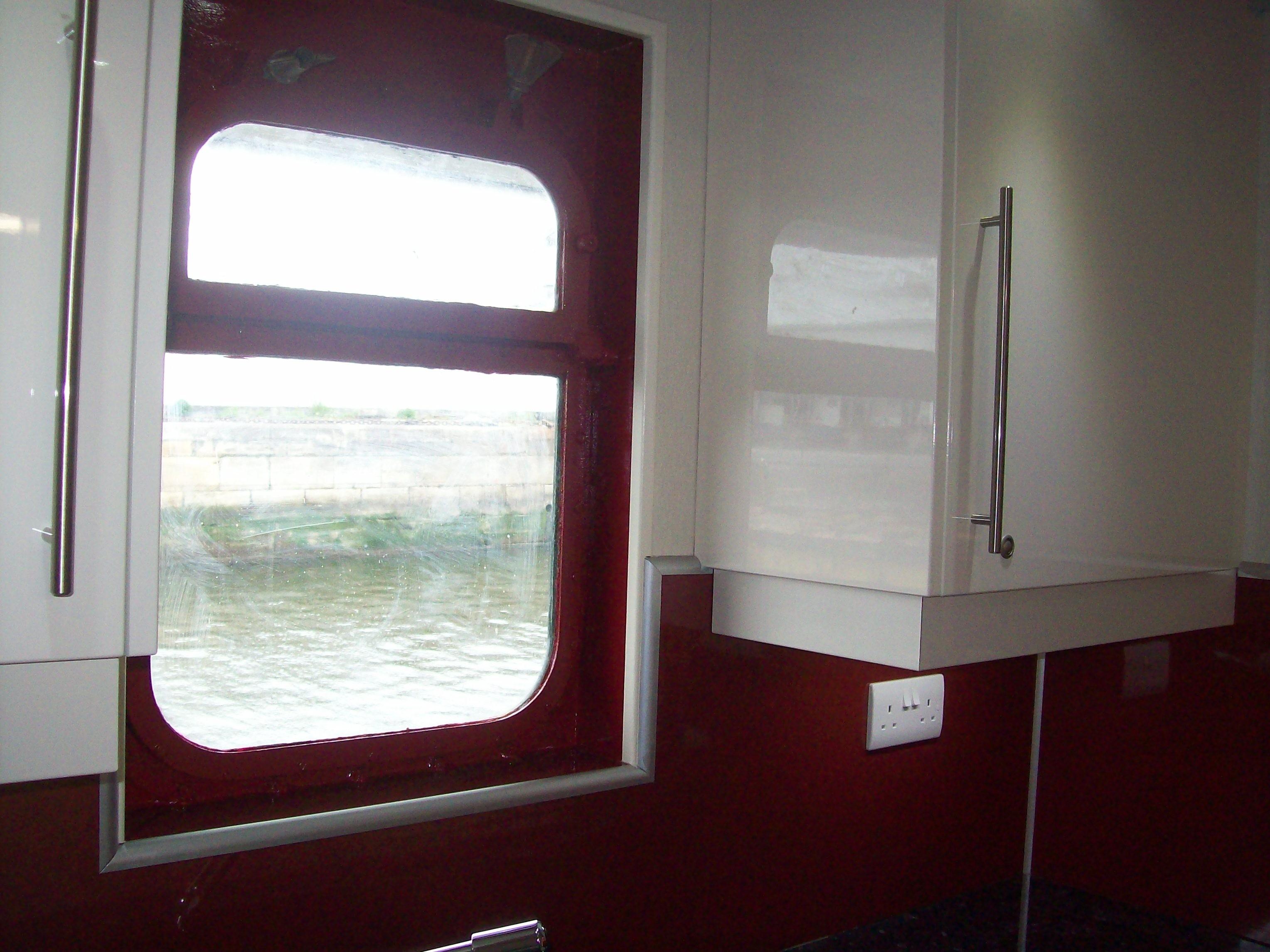

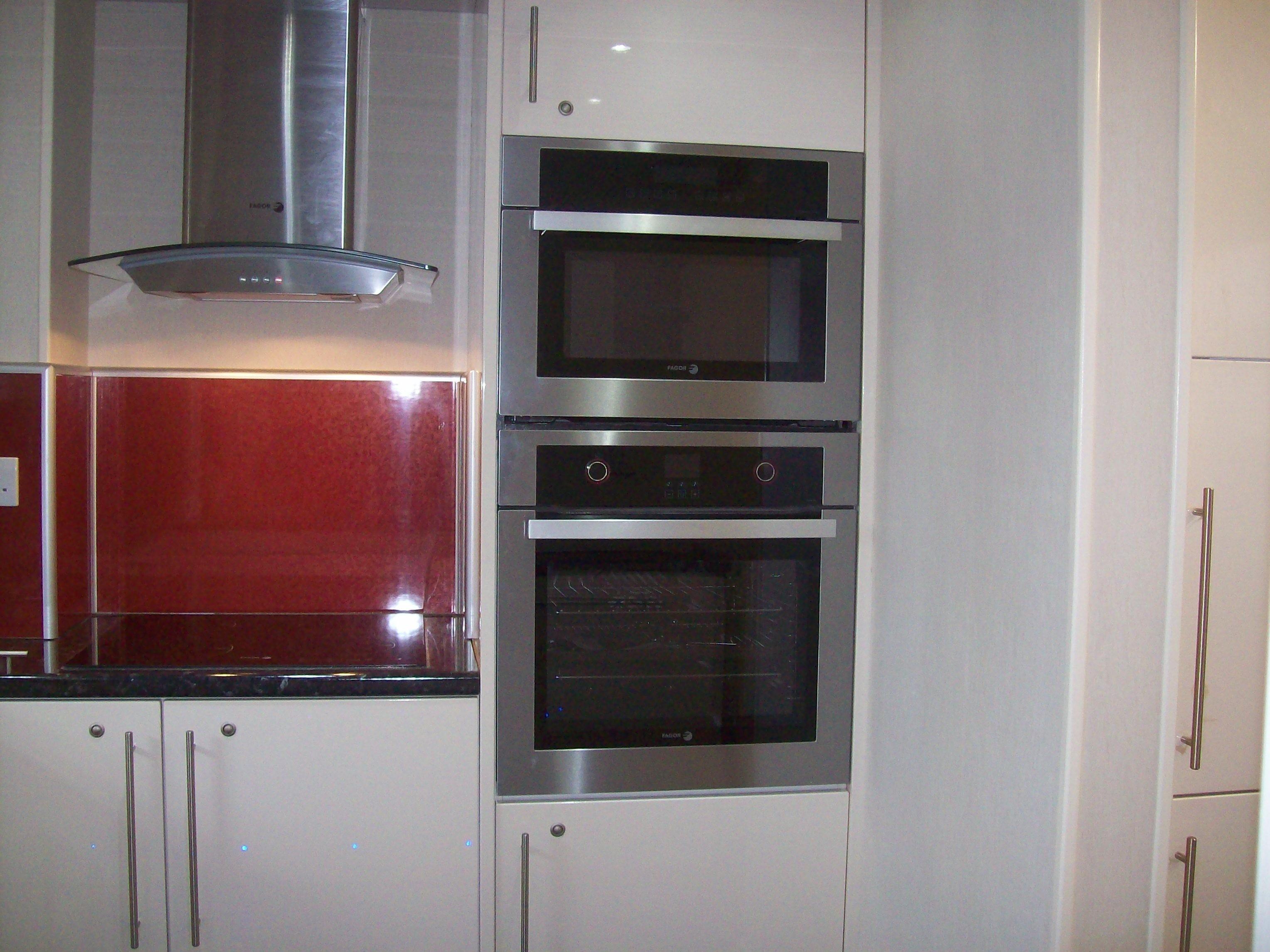

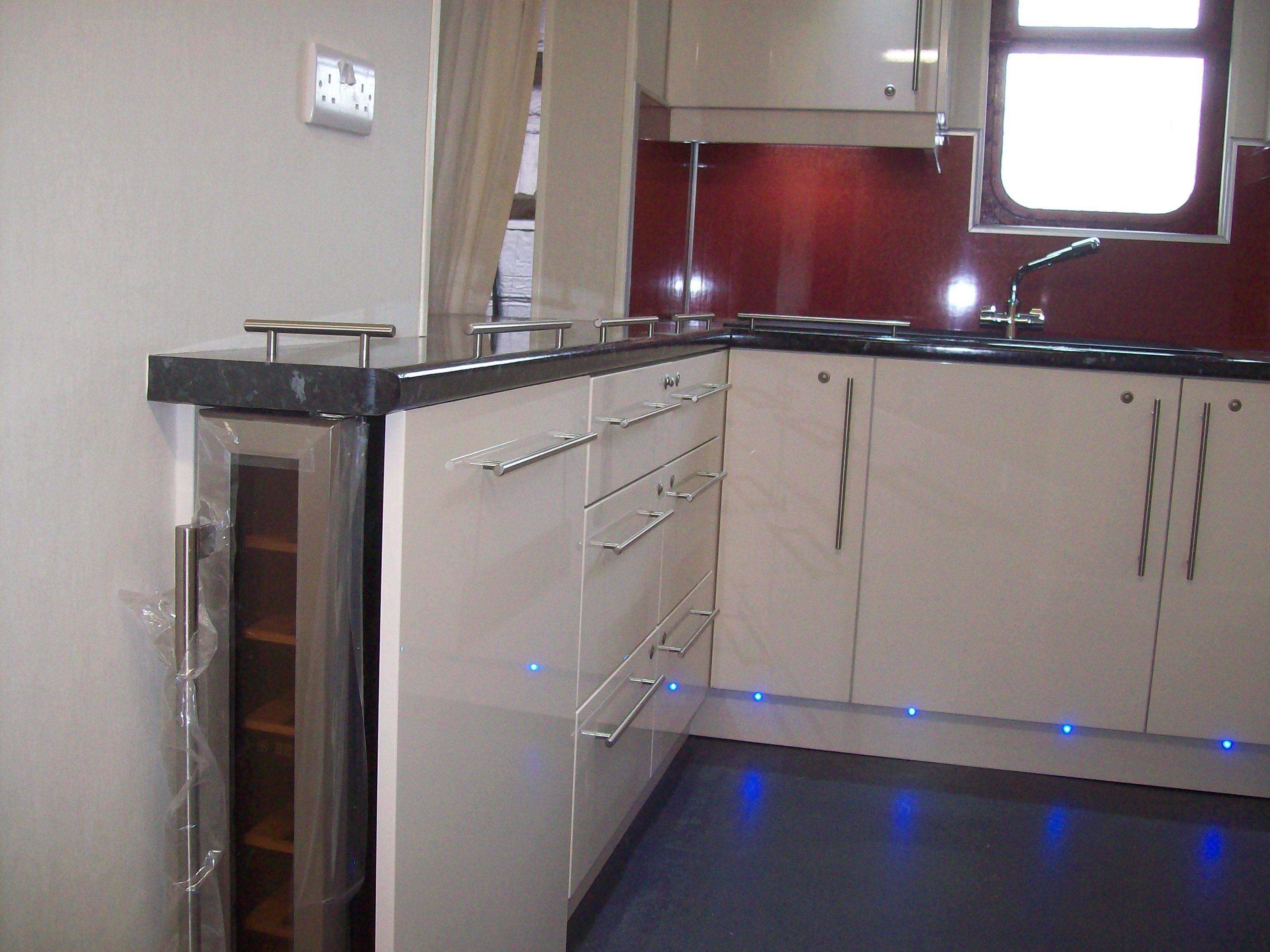

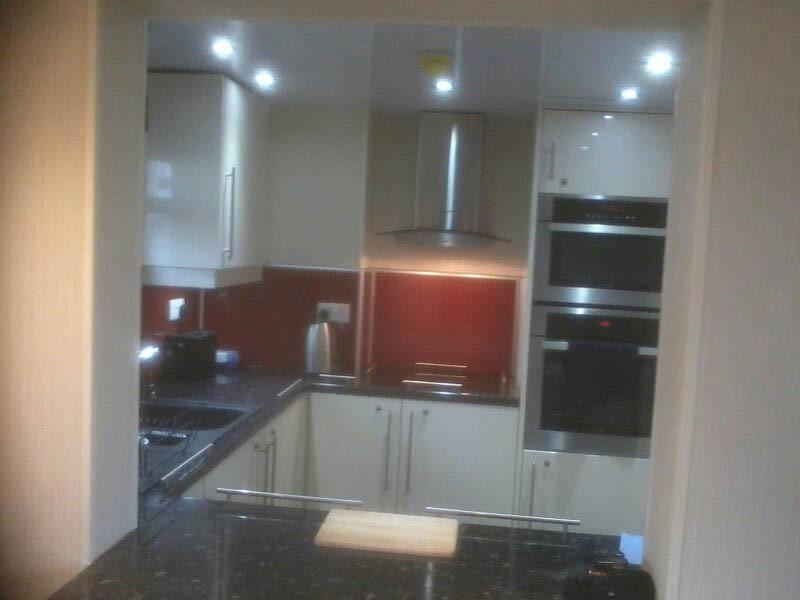

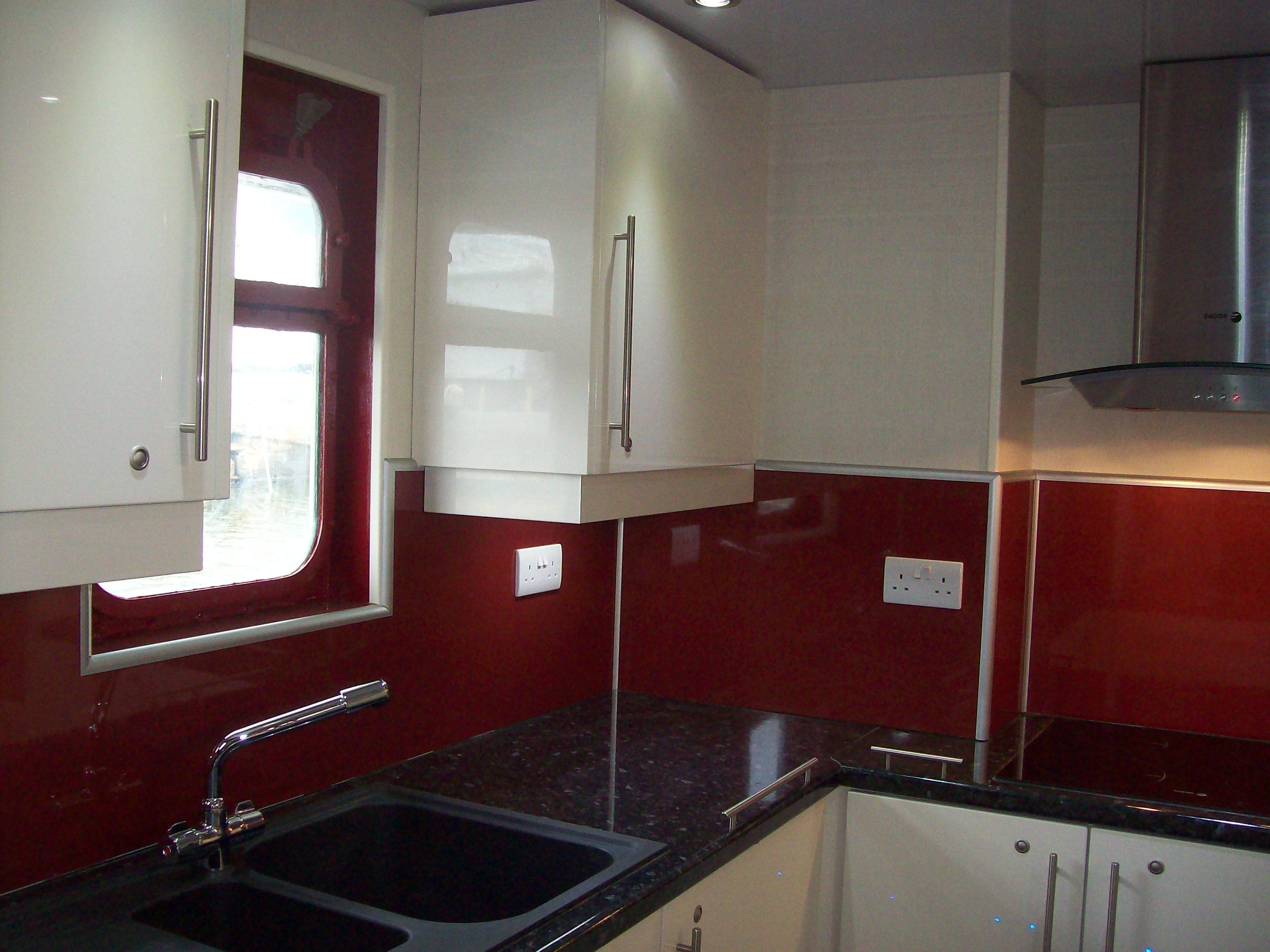

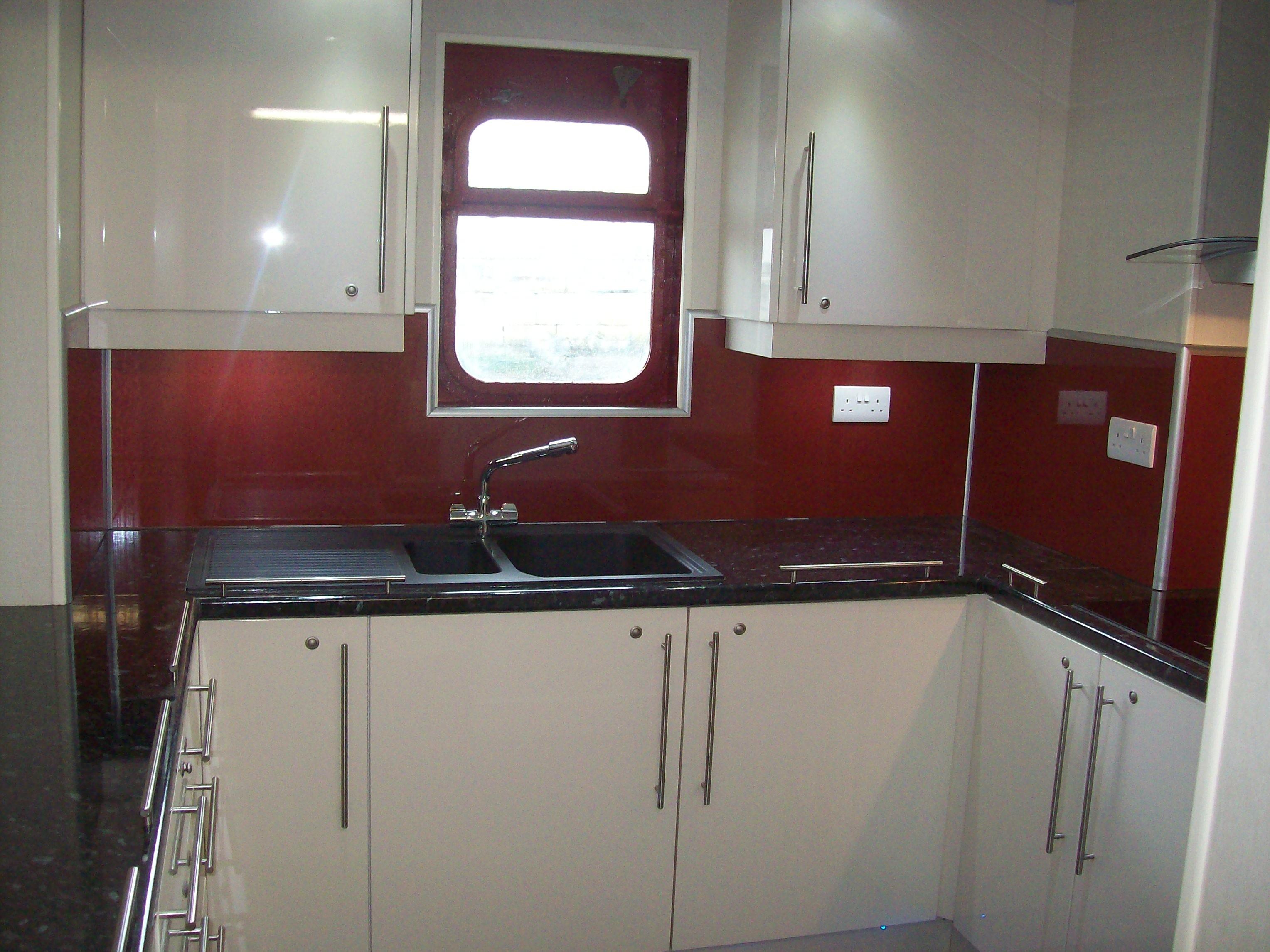

    Modern fitted Galley c/w cooker, combi microwave, 4 ring hob, fridge freezer, drinking water filter and cooler, wine cooler

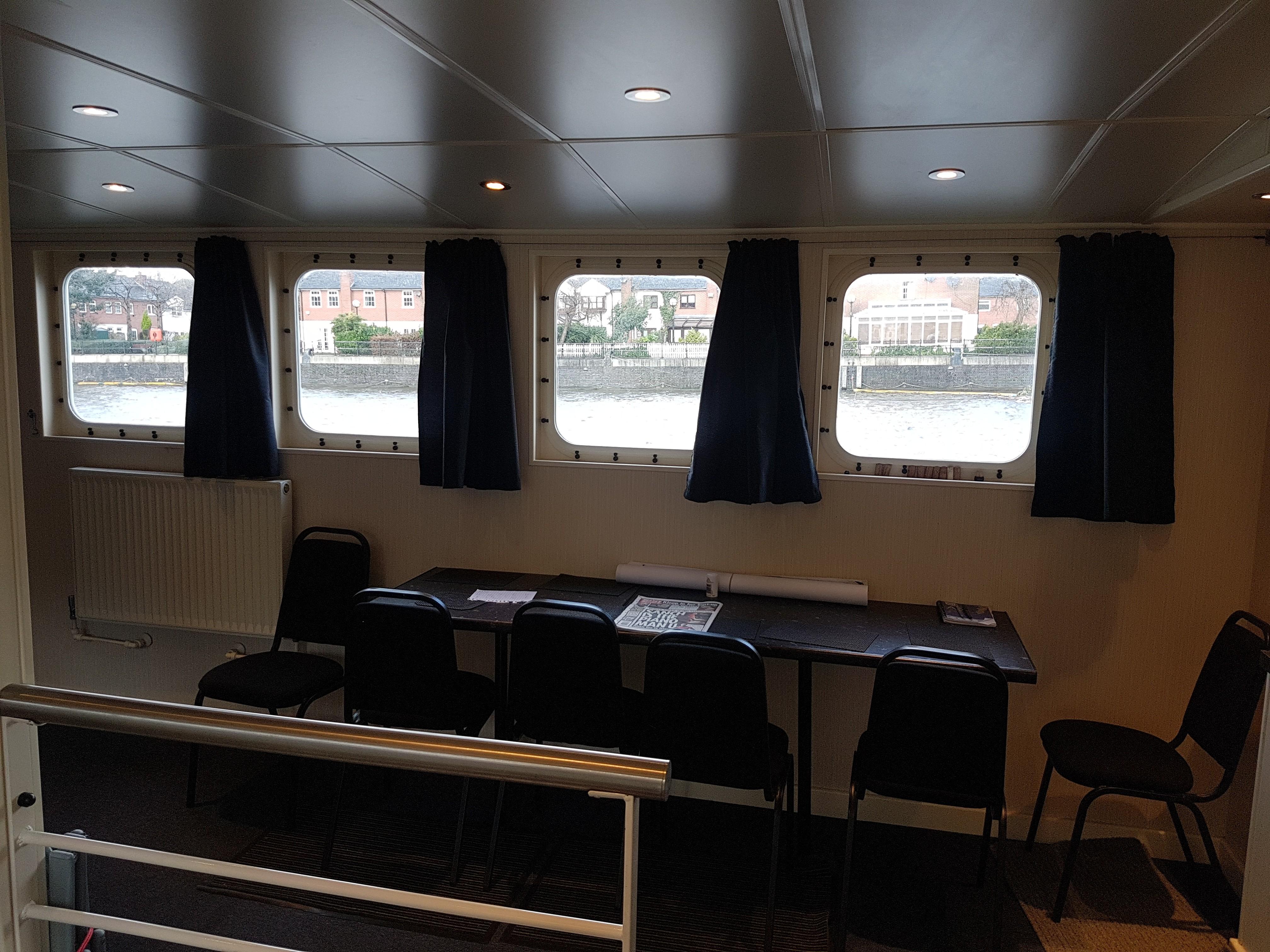

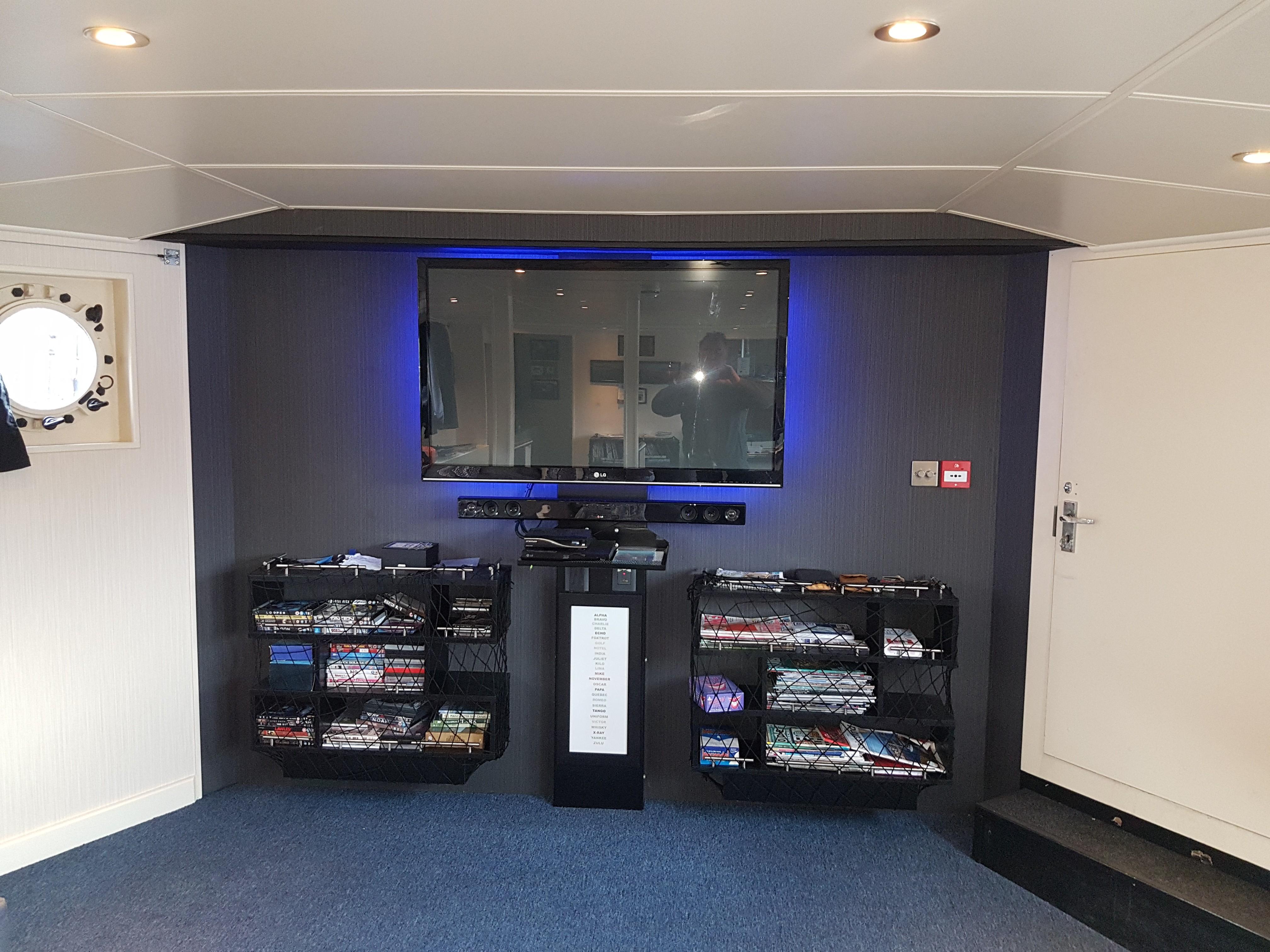

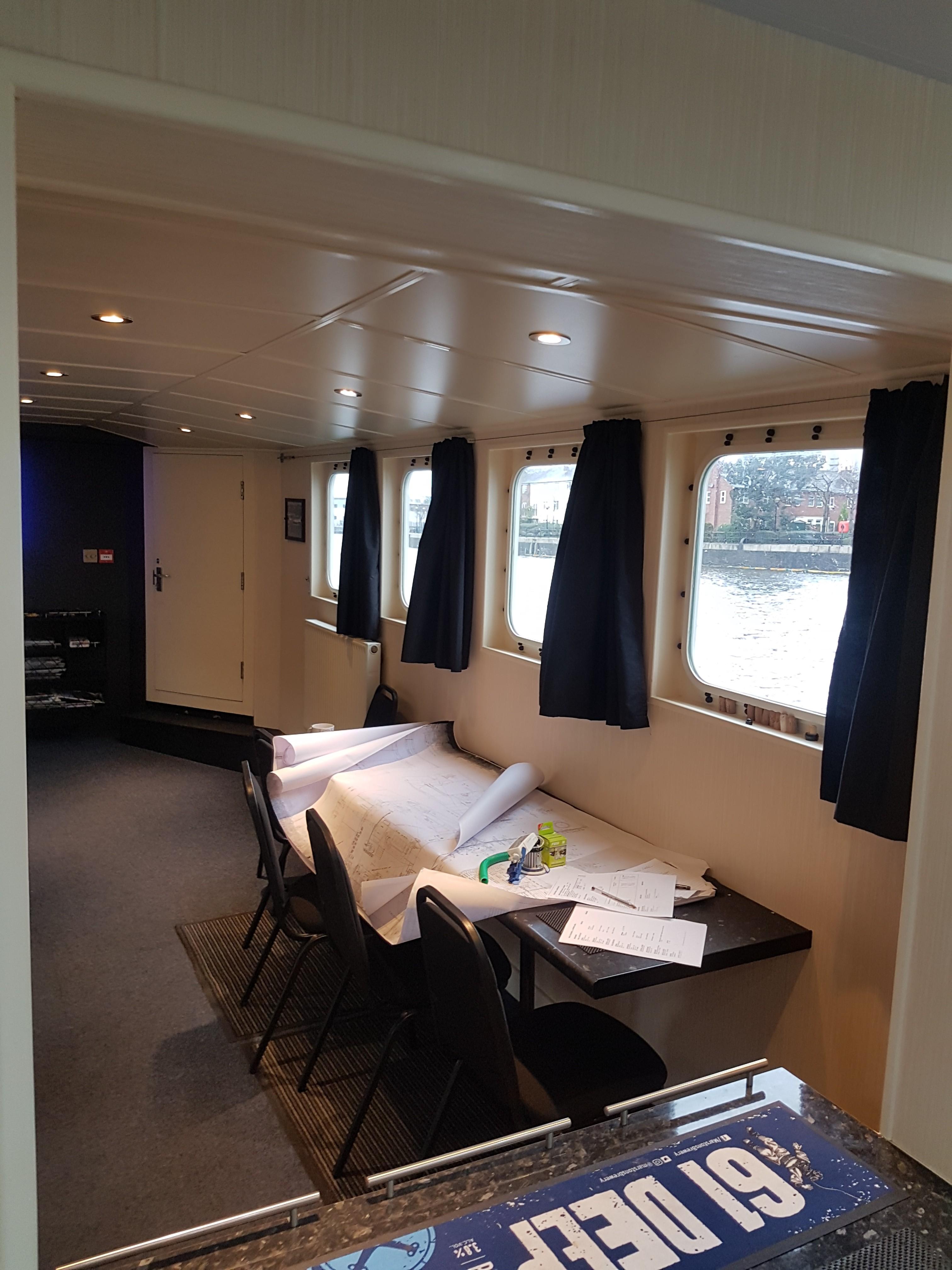

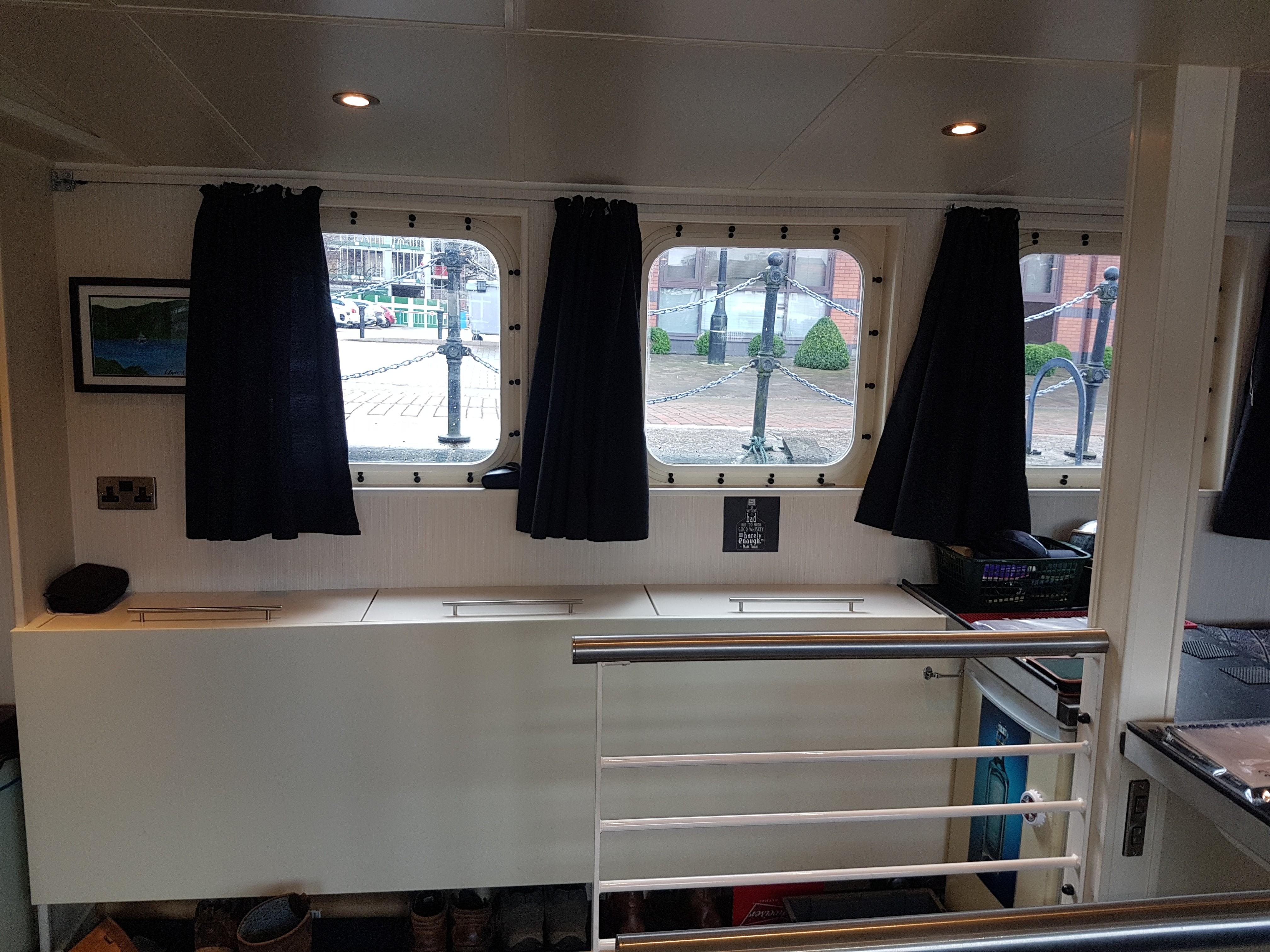

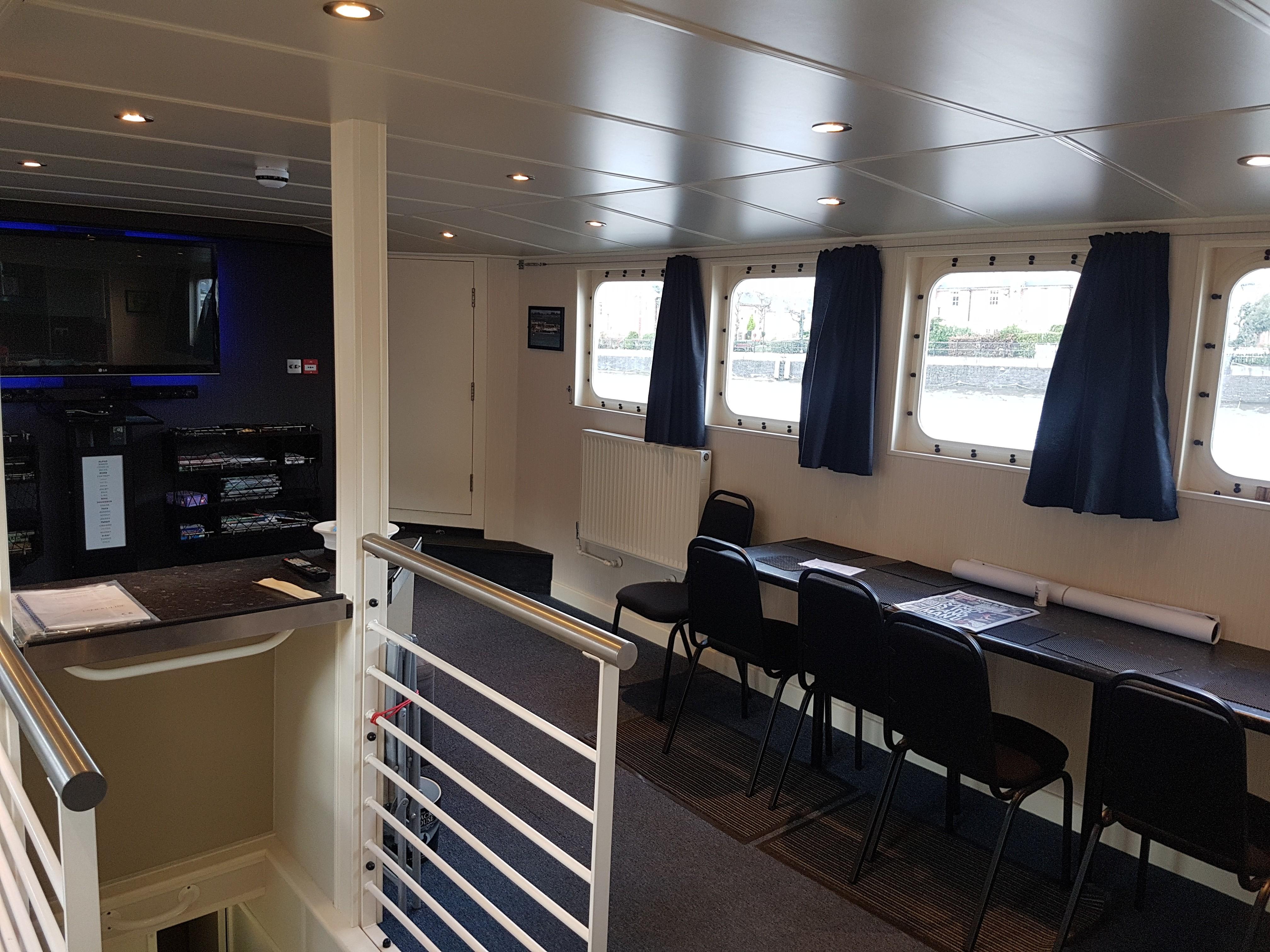

    Large saloon lounge with dining area and settees, 40” flat screen tv with digital and satellite antenna, drinks cooler and bar

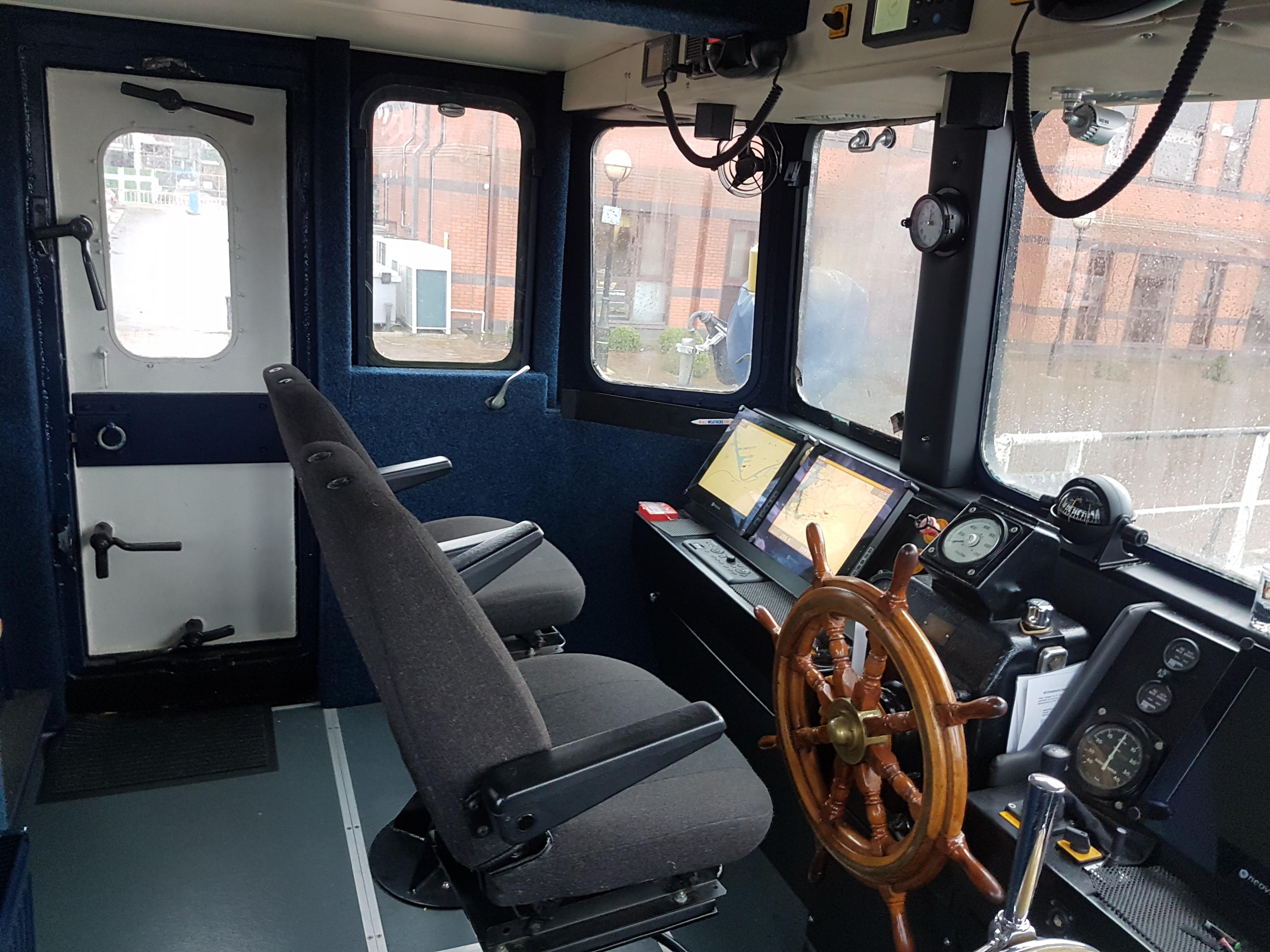

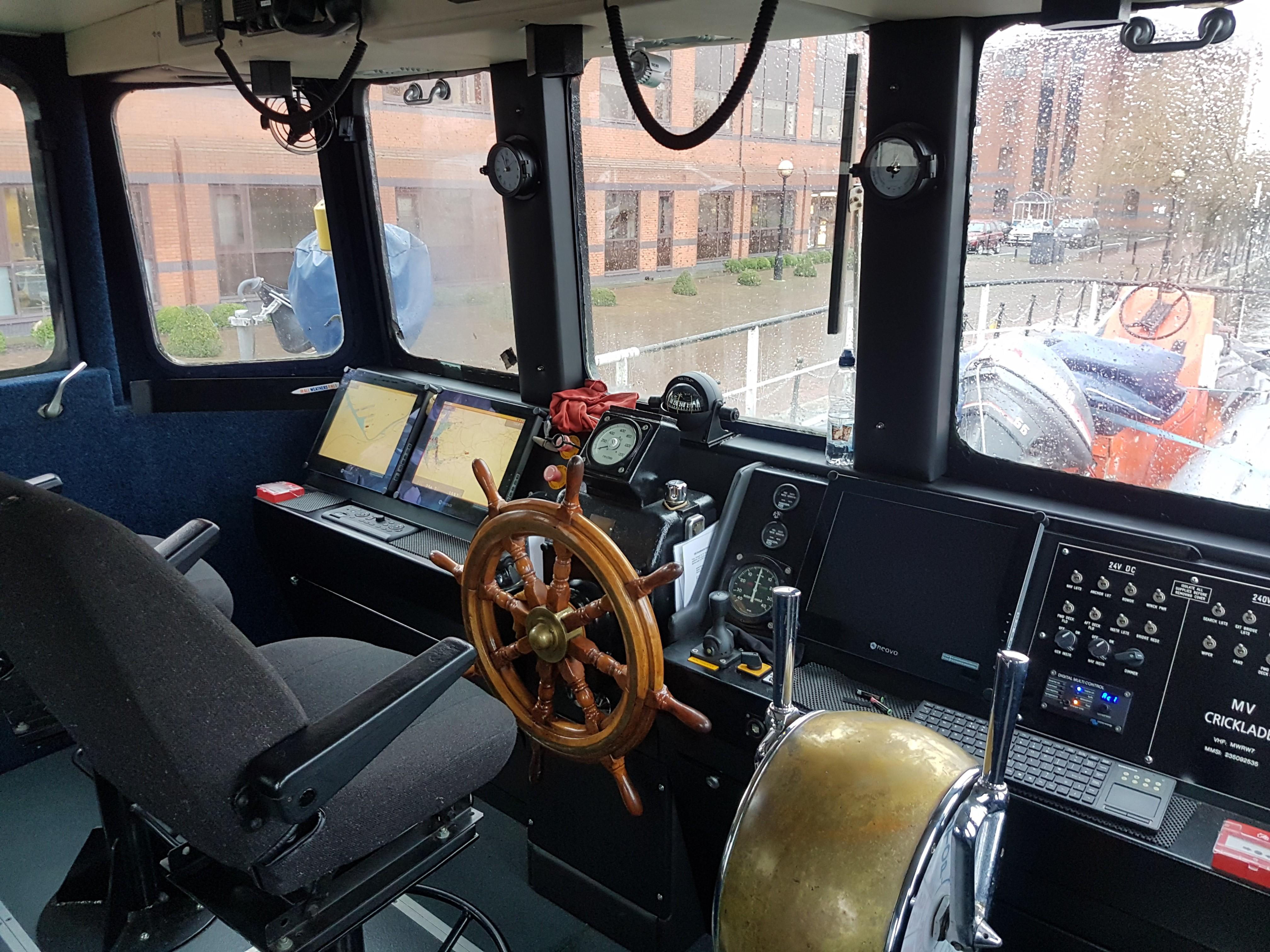

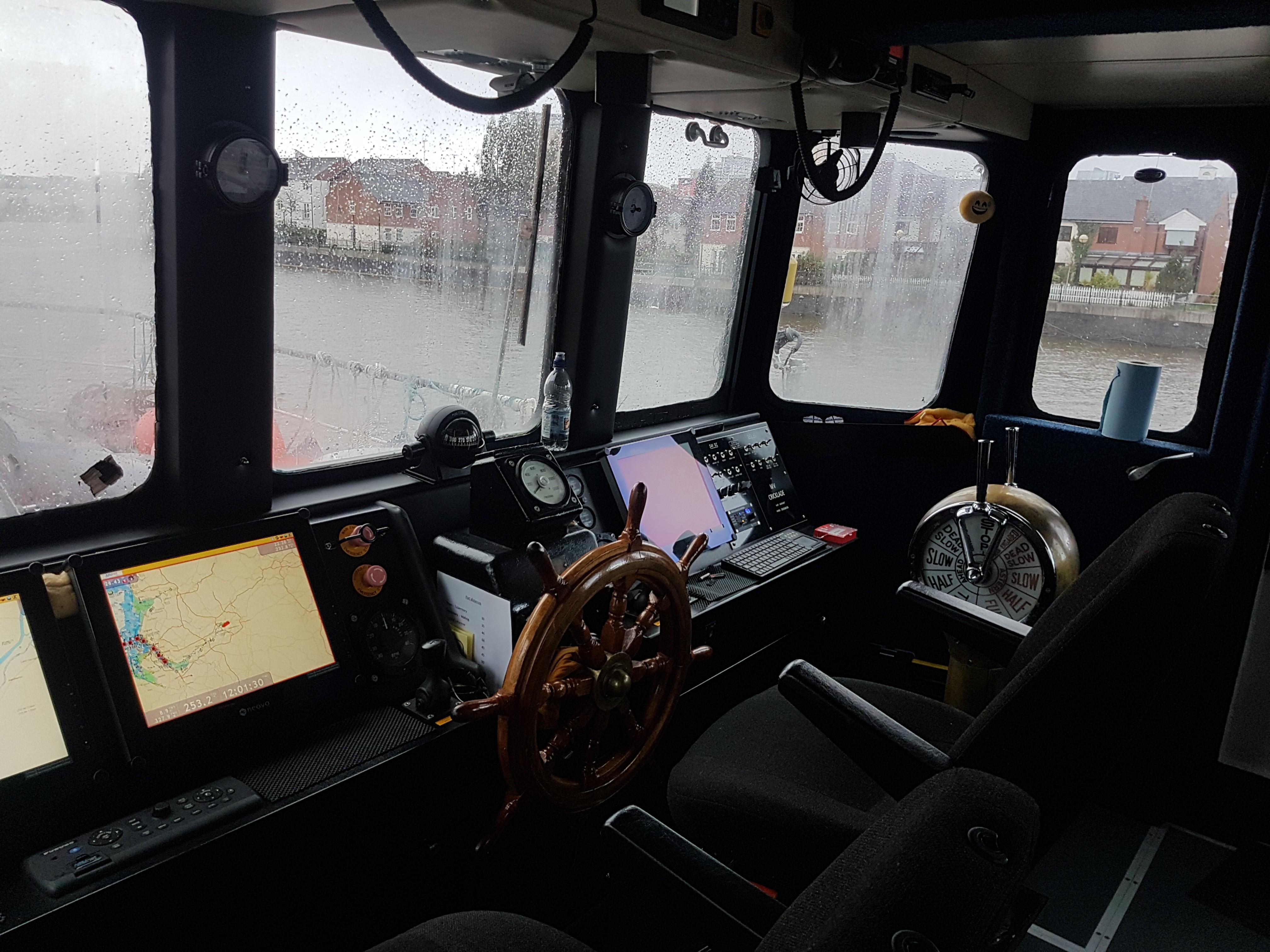

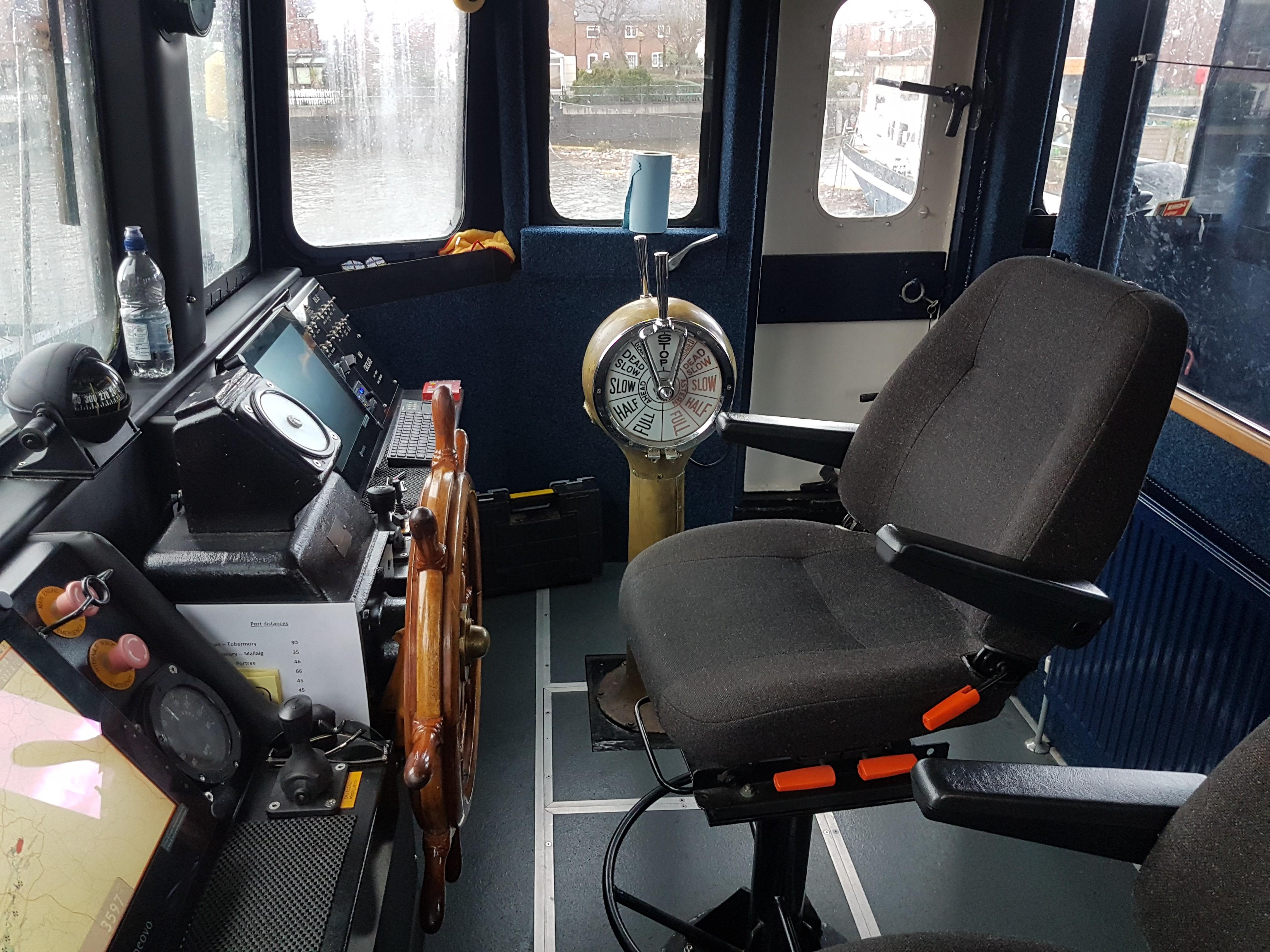

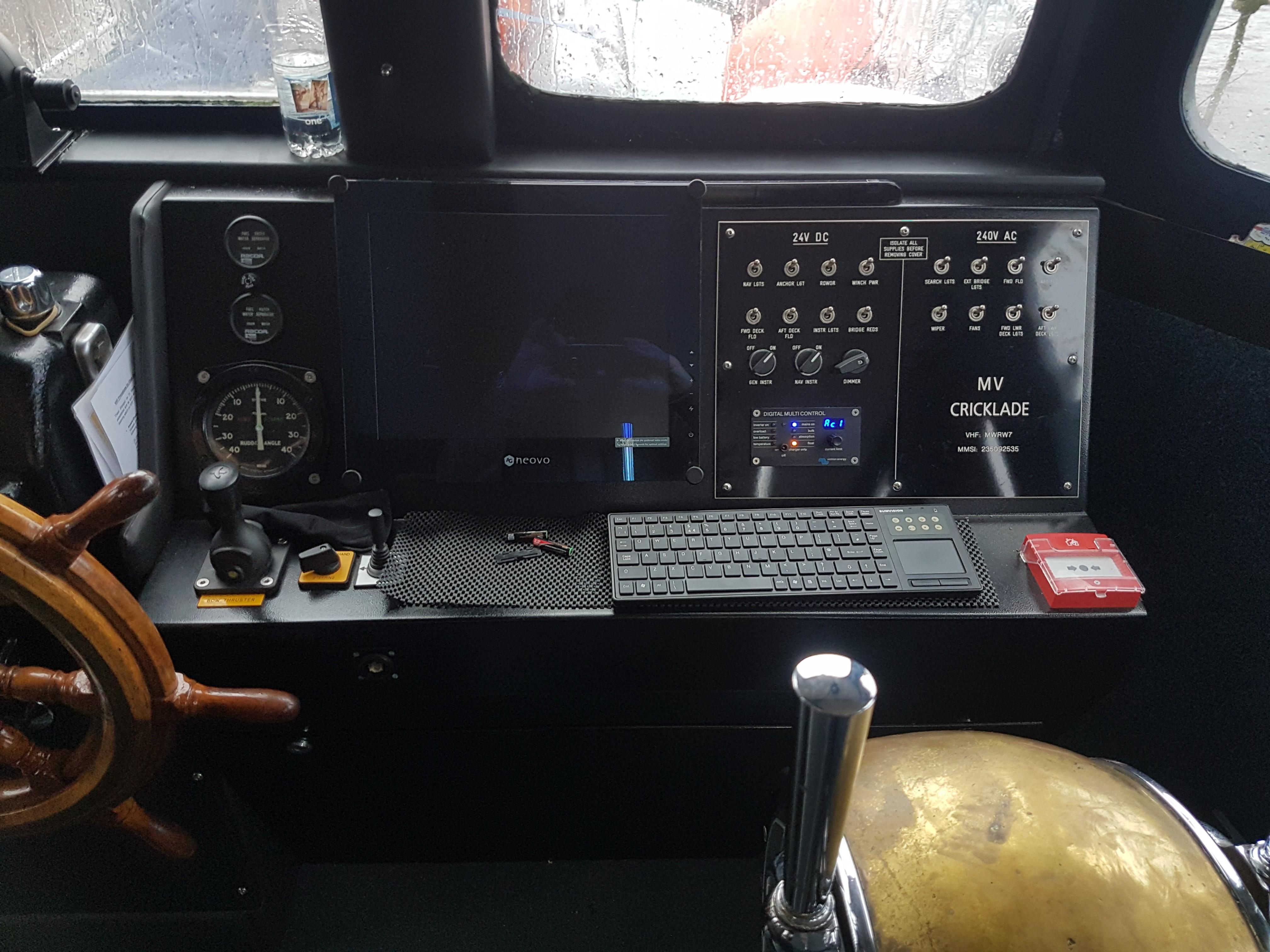

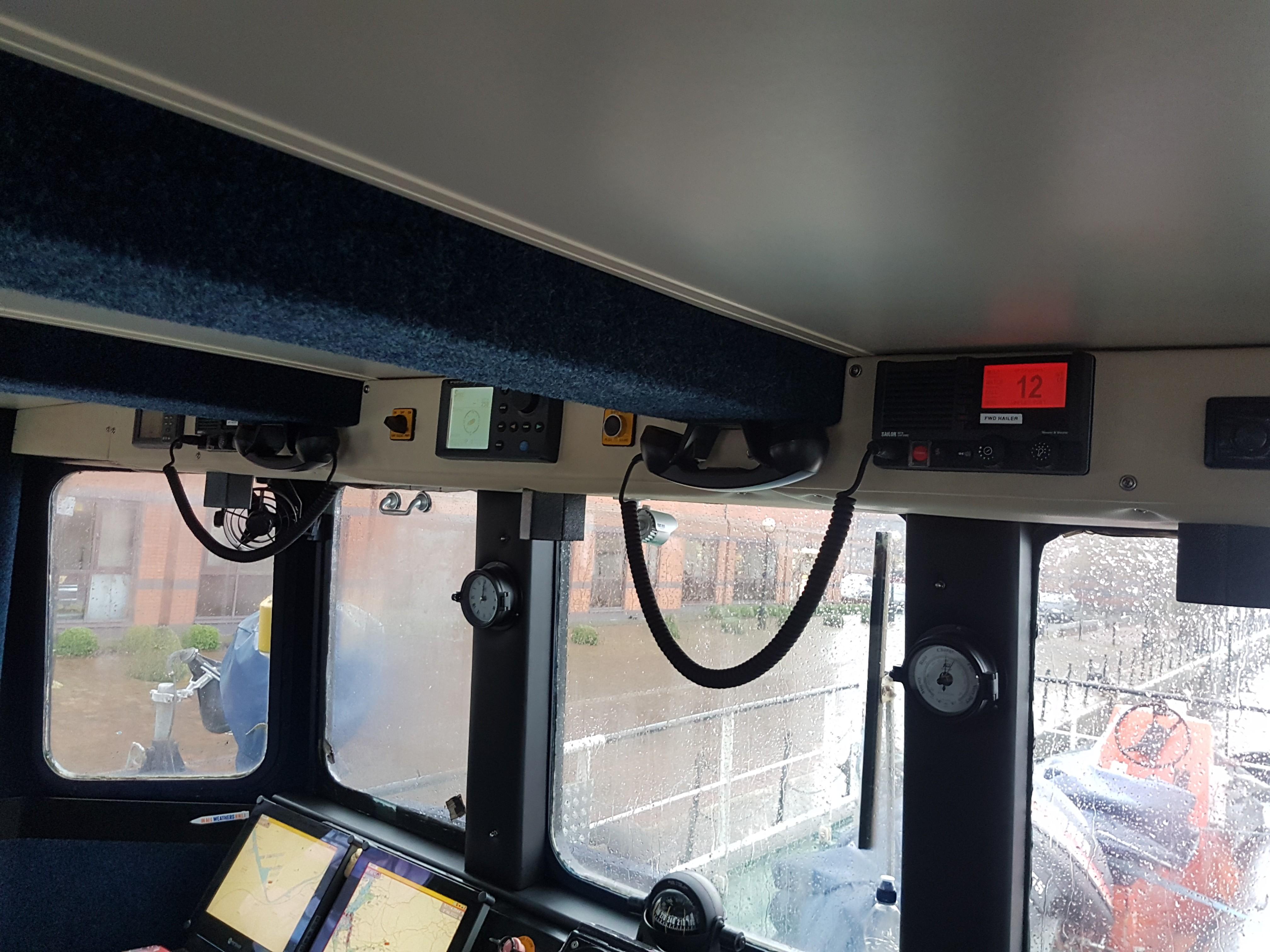

    Electronics and Navigation

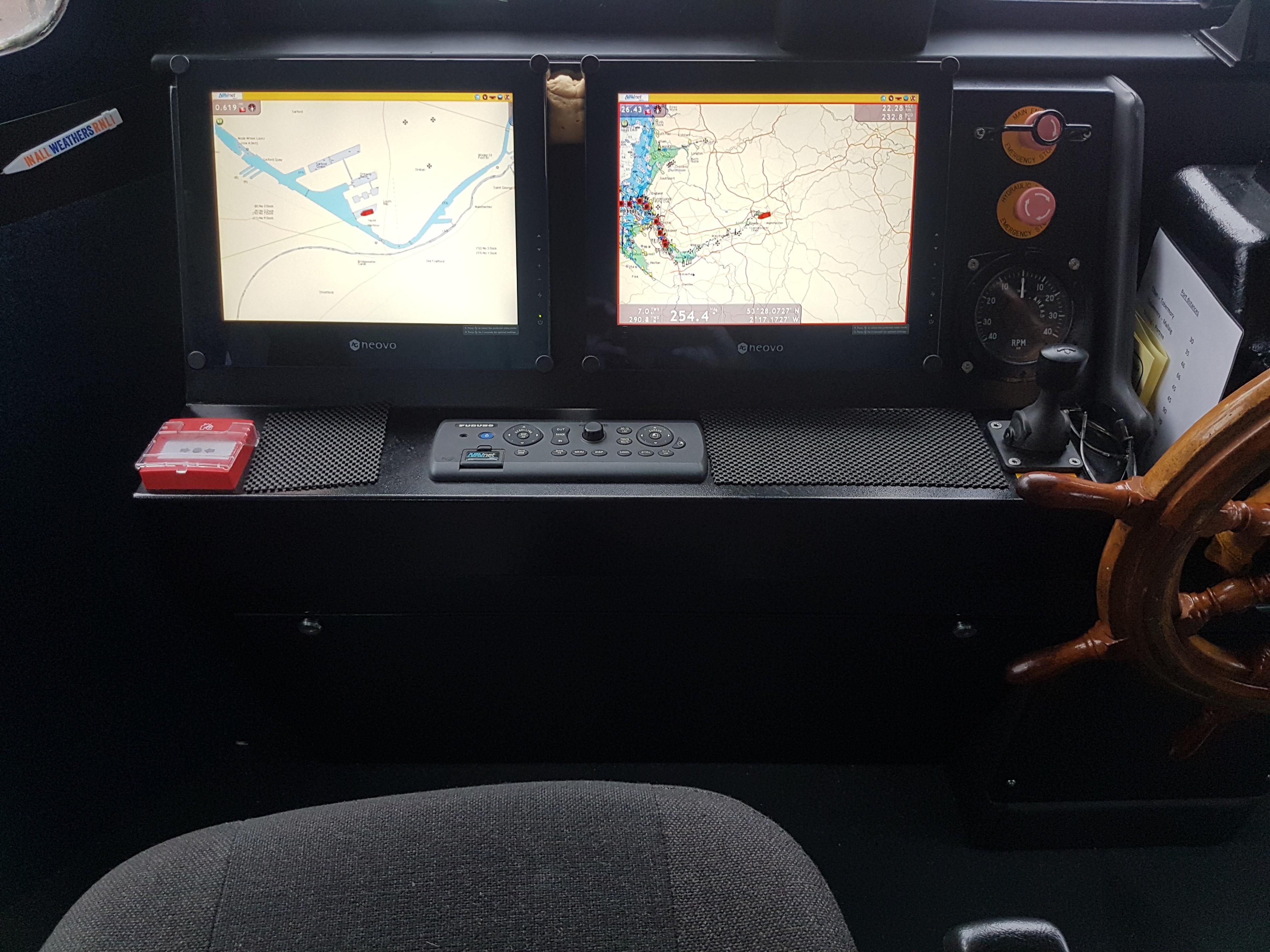

    Navnet 3D Radar & Plotter System

    MFDBB Processor and Keyboard, DRS6A 4’ Open Array Scanner, HUB101 Ethernet Hub, 2 Neovo 15” anti-reflective flat screens

    Satellite Giro Compass

    SC30 Satellite Giro Compass

    Autopilot System

    Navpilot 700, FAP7001 Control Head, FAP 7002 Processor, FAP6112 Rudder Ref unit

    Echo Sounder System

    DFF1 Digital Echo Sounder, 50/200 khz Digital Transducer

    AIS System Class B

    FA50 AIS Transceiver,   AV7M Antenna

    VHF with DSC Systems

    2 x Sailor 6125 c/w Telephone handsets, 2 x AV7M Antenna, Emergency Power c/o system

    Win Speed and Direction System

    WS200 Weather Station, RD33 remote Display Link, Neovo 15” non-reflective Flat Screen Display

    Features

    • Plotter
    • Washing machine
    • Navigation center
    • Battery charger
    • Autopilot
    • Heating
    • Oven
    • Depthsounder
    • Inverter
    • Cockpit speakers
    • Hot water
    • Gps
    • Marine head
    • Log speedometer
    • Manual bilge pump
    • Generator
    • Air compressor
    • Bow thruster
    • Radio
    • Compass
    • Vhf
    • Cd player
    • Radar detector
    • Radar
    • Deep freezer
    • Shore power inlet
    • Microwave oven
    • Tv set
    • Refrigerator
    • Electric bilge pump
