Eivind Amble 18m

  • $  561,805 exc Vat
  • 1 / 18

    Description

    This boat has been meticulously maintained and refurbished in recent years,she is a credit to the current owner,the varnished woodwork finish to the interior and exterior is superb.

    This boat wants for nothing apart from a new owner.

    Currently sloop rigged with available mizzen mast


    General Information

    • Year Built: 1980
    • Location: Ireland
    • Name: Golden Apple
    • Hull Material: Wood
    • Builder:
    • Designer: Eivind Amble Denmark

    Measurements

    • Length: 17.68 m
    • Beam: 0
    • Max Draft: 0 m
    • Displacement: 0 kgs

    Engines

    • Number of Engines: 0
    • Drive Type:

    Tanks

    • Fuel Tankage:
    • Water Tankage:

    Rig

    At the moment she is set up as a Bermudan sloop, to give more flexibility and room in the cockpit. She can easily be converted back if required.
    Sparlight masts in white
     Selden booms painted white
    Standing Rigging and
    Running rigging in good condition
    Hydraulic Furlex Furling for the Genoa
     Carbon Spinnaker pole
    1 x Jockey pole

    Sails

     McWilliam Mainsail 11.9oz. Dacron with 2 slab reefs in excellent condition
     Lazy jacks & lazy bag
     McWilliam Mizzen 9.3oz. Dacron with 1 slab reef in excellent condition with Lazy jacks & lazy bag
     McWilliam Furling Genoa 8.3oz. Dacron with white "Sunbrella" UV Strip in excellent condition
     McWilliam Furling Genoa 8.3oz. Dacron with a lower clew (slighter larger) in excellent condition
     McWilliam Working Jib hanks on to inner forestay in good condition
     McWilliam Cruising chute with snuffer in excellent condition
     McWilliam Spinnaker in good condition

    Engines

    Main engine is a  Perkins sabre 185hp inboard diesel with hydraulic drive impeccably serviced and maintained with Max [prop 35" feathering brass prop



    Fischer panda 800 generator fully serviced and maintained

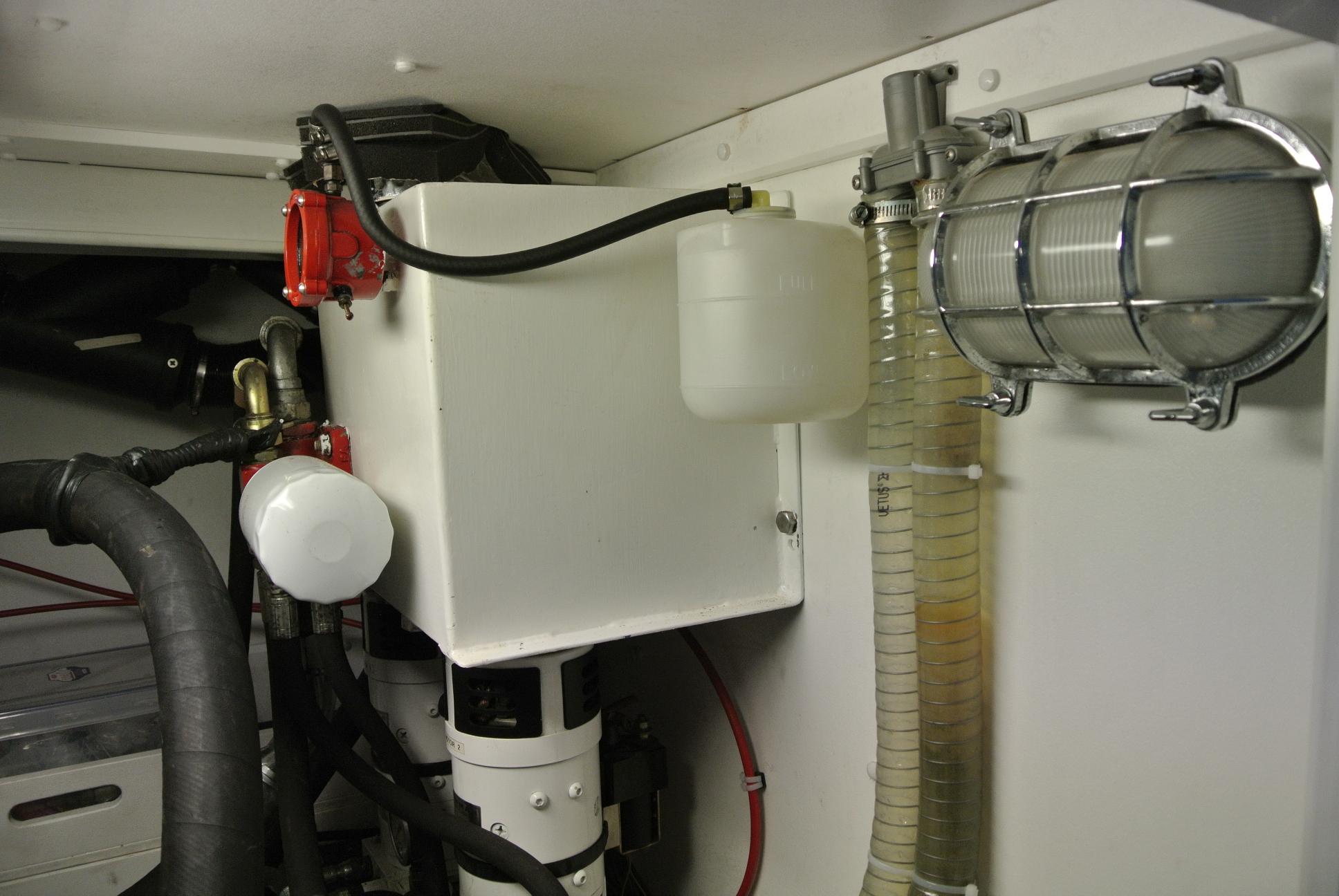

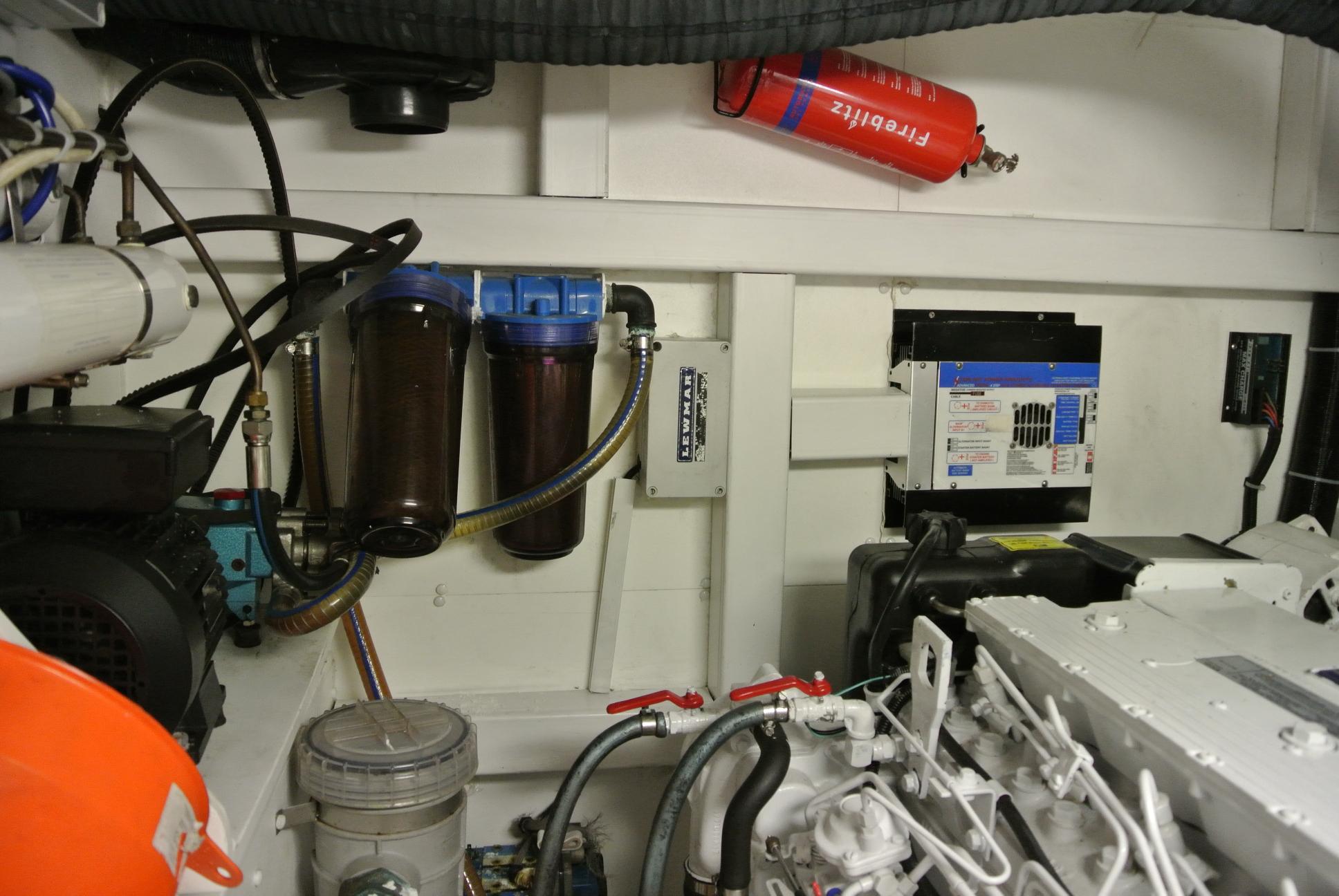

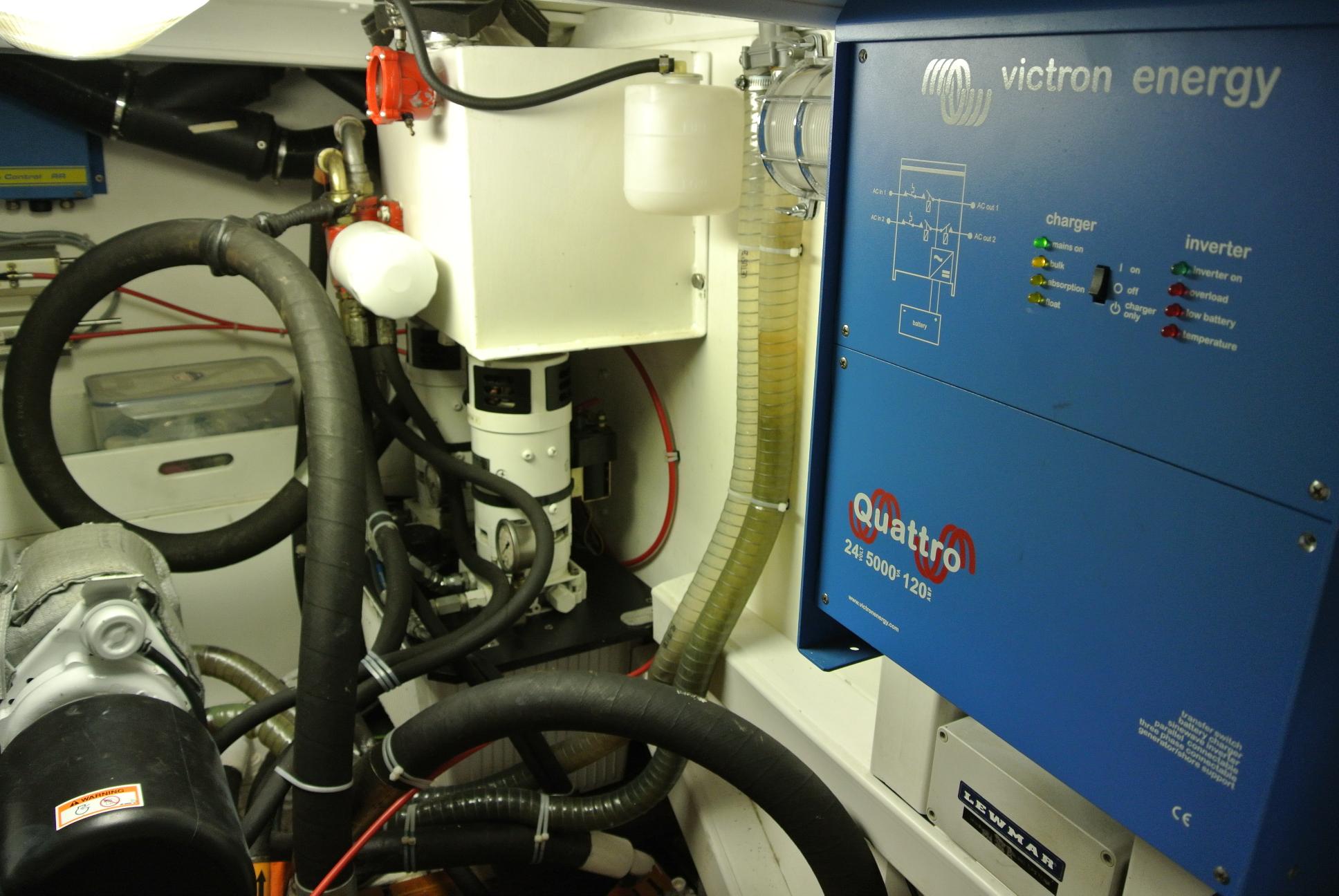

    Engine room equipment

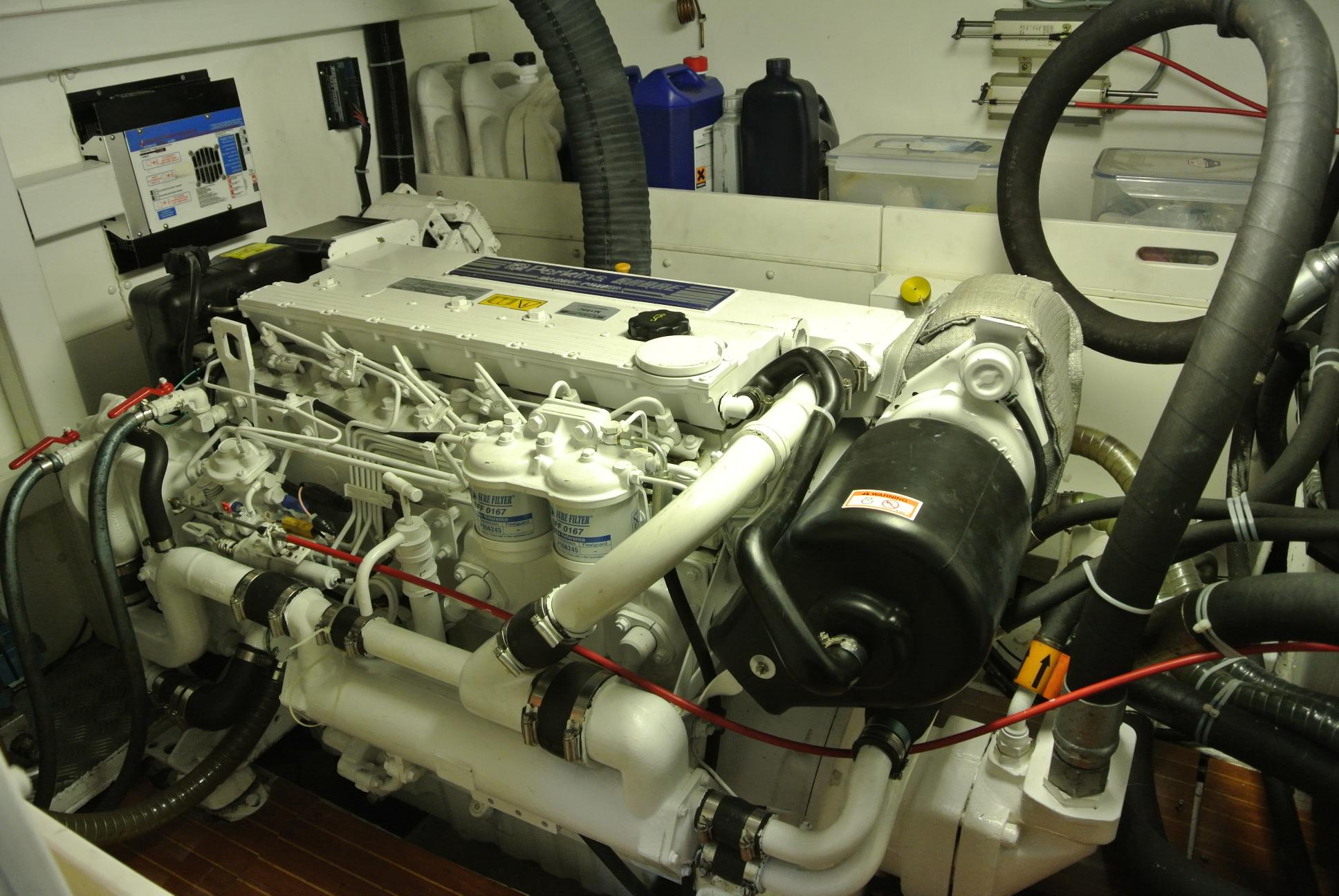

    The Perkins Sabre M185C (185HP) diesel engine is fitted with a volvo hydraulic drive
    The engine room was fully insulated in 2009.
    2010 Auto Fire Extinguisher System
    Victron Energy 24 Volt. 5000VA-120Amp Battery Charger/Inverter
    "Seafresh" Water Maker (Model No. H206A-220V. AC)
    Eberspacher Hot Air Heating Unit Model D5 (3 outlet)
    2009 Seatorque" (engine shaft and seal combined)
    Lewmar Commander 400 (2 motors 24V. DC and 3KW Power Unit) supplies all the hydraulic systems (winches, windlass & furling fore stay)

    Navigation and Electronics

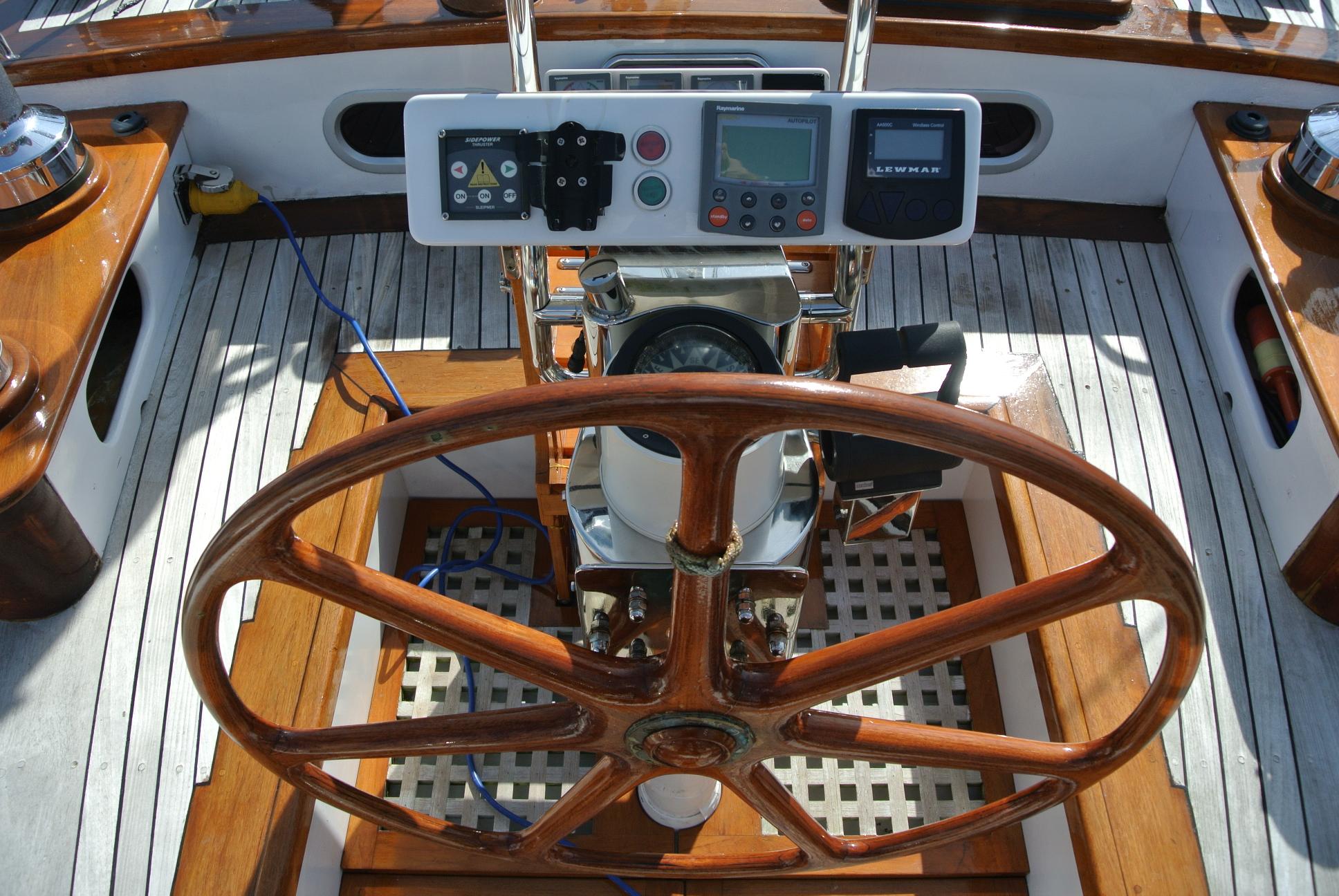

    Below fitted in aft cockpit position

    Compass
    Raymarine ST60 Wind Speed/Angle
    Raymarine ST60 Tridata (log, speed & depth)
    Raymarine ST60 Rudder Angle
    Raymarine ST6001+ Autopilot Control Unit
    Simrad VHF Speaker
    Sidepower Bow Thruster Control Unit
    Windlass Control Unit with Chain Counter
    Control switches for the Hydraulic Genoa Sheet Winches

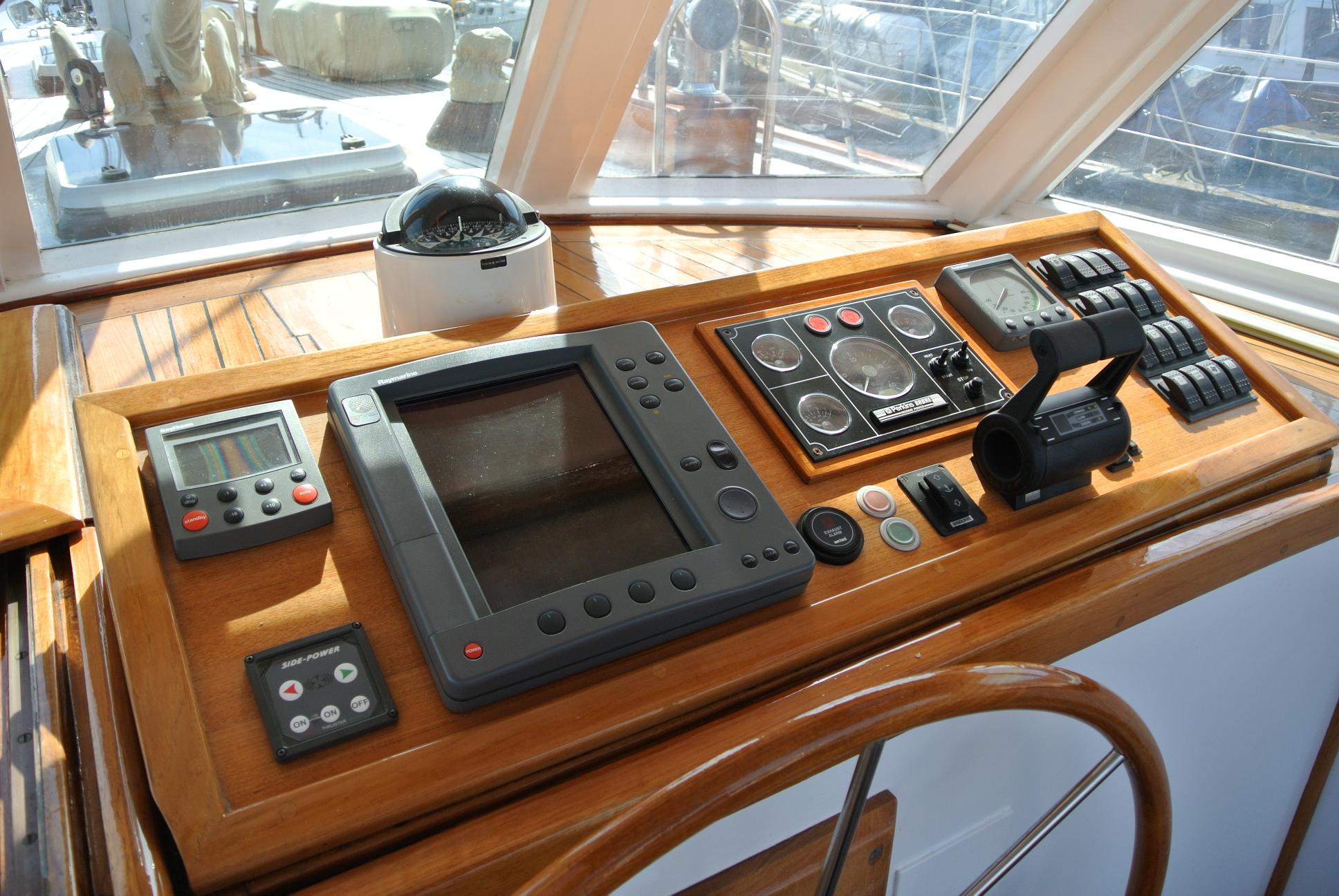

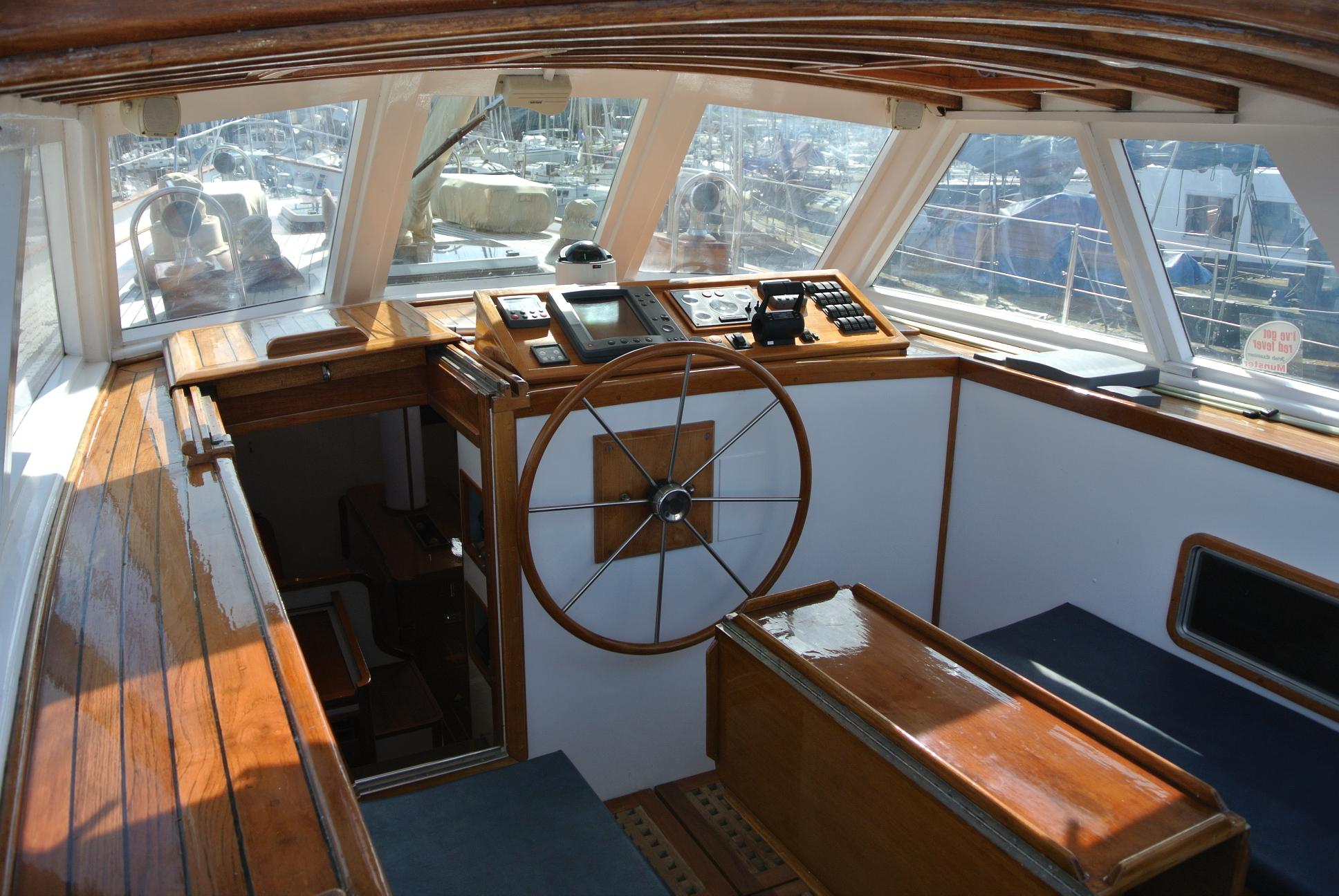

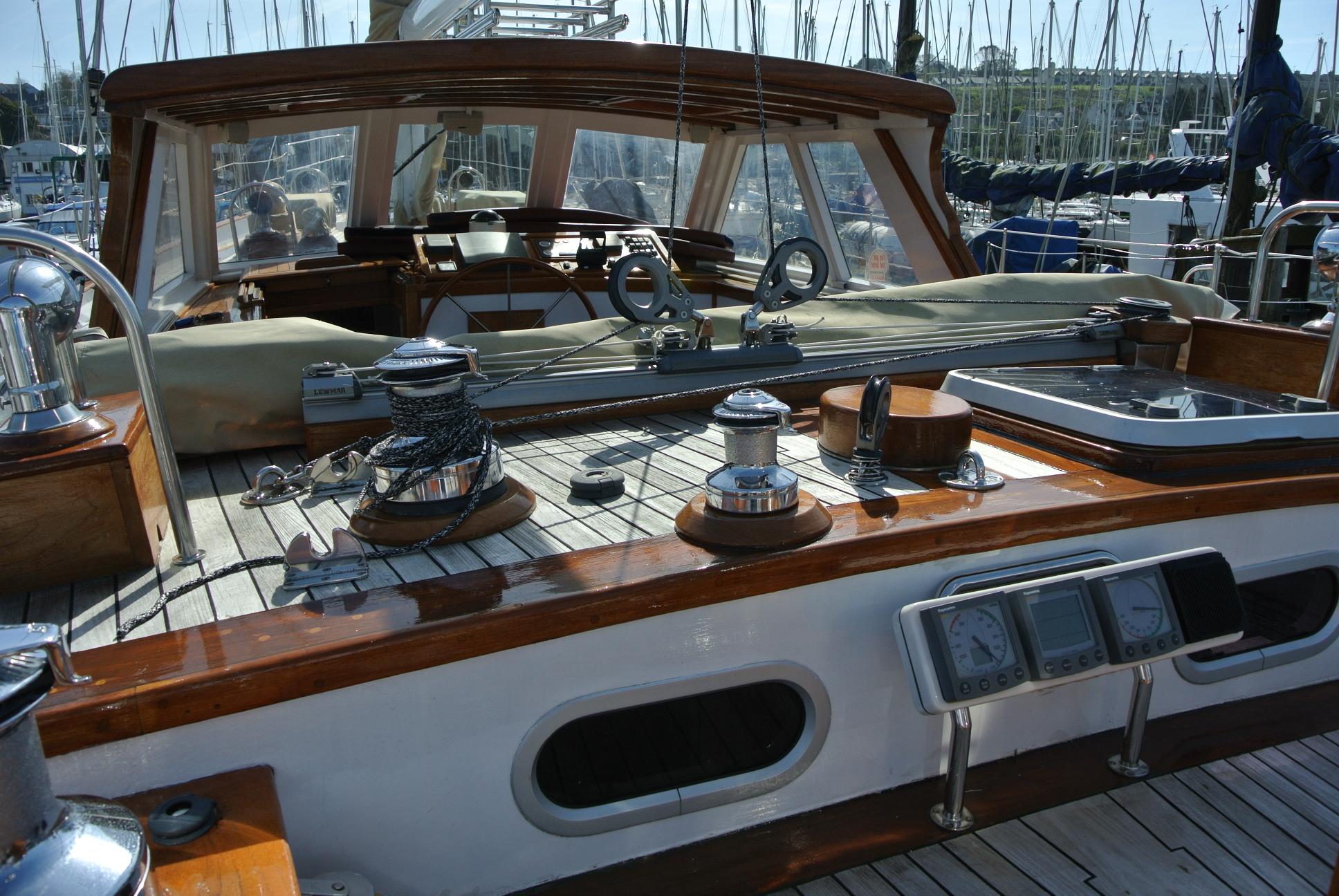

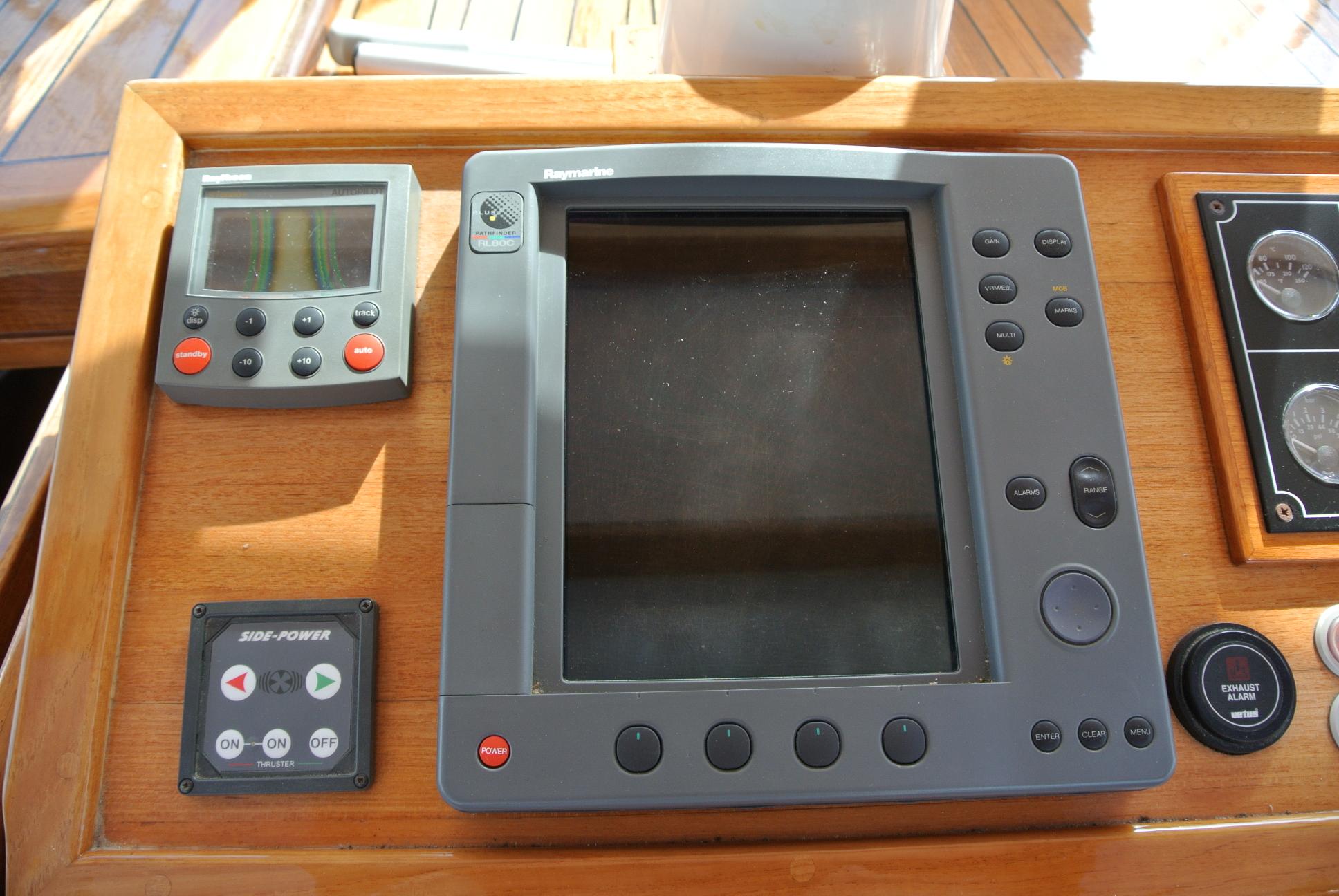

    Below fitted in centre cockpit

    Compass
    Raymarine RL80C Plotter/Radar
    Raymarine ST6001+ Autopilot Control Unit
    Raymarine ST60 Rudder Angle
    Icom VHF M503 Command Handset
    Furling Genoa "In & Out" (hydraulic) control switches
    Sidepower Bow Thruster Control Unit
    Windlass Control Unit
    Vetus Electric Engine Control Unit

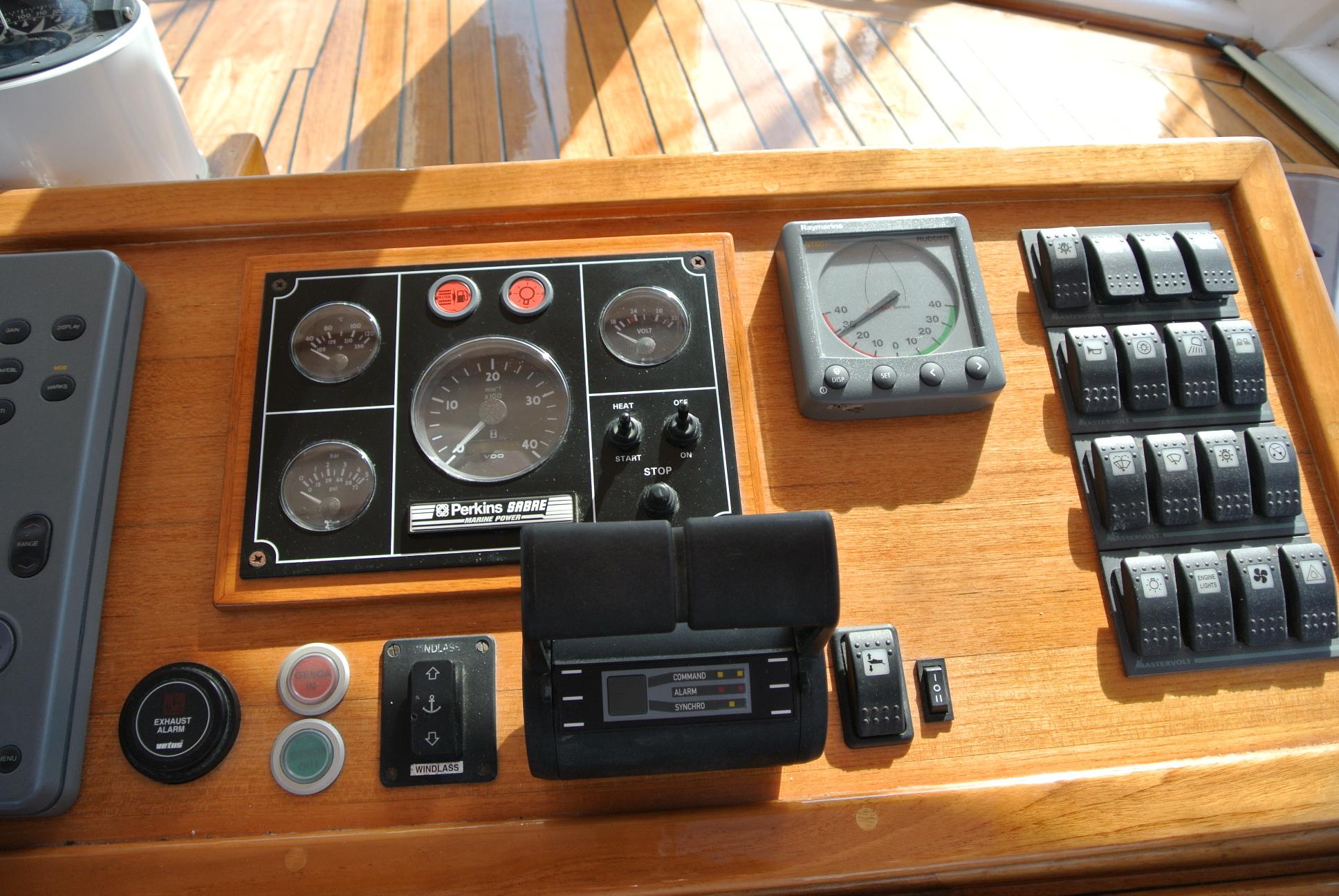

    Engine Data Panel
    On/Off switch for Davits

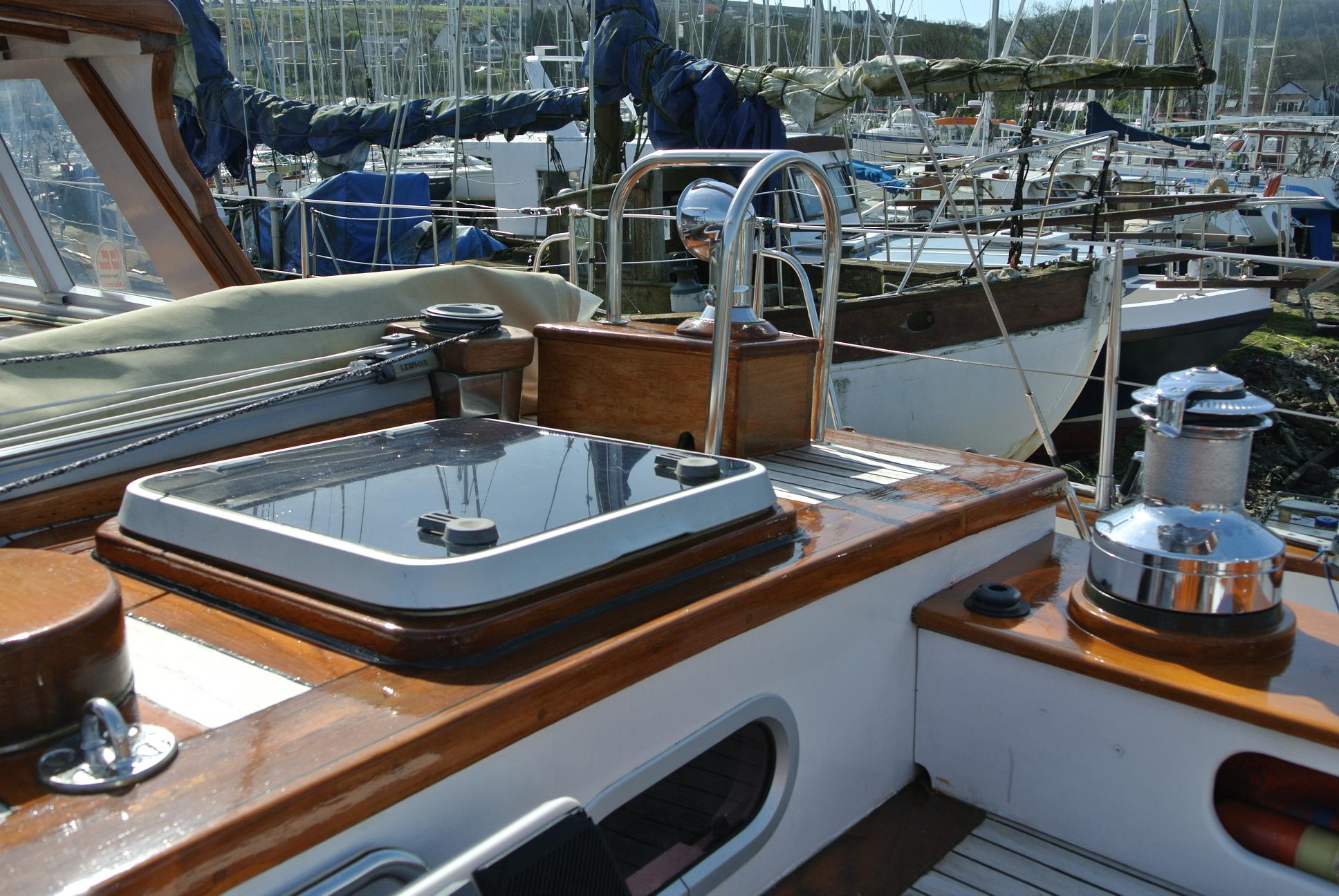

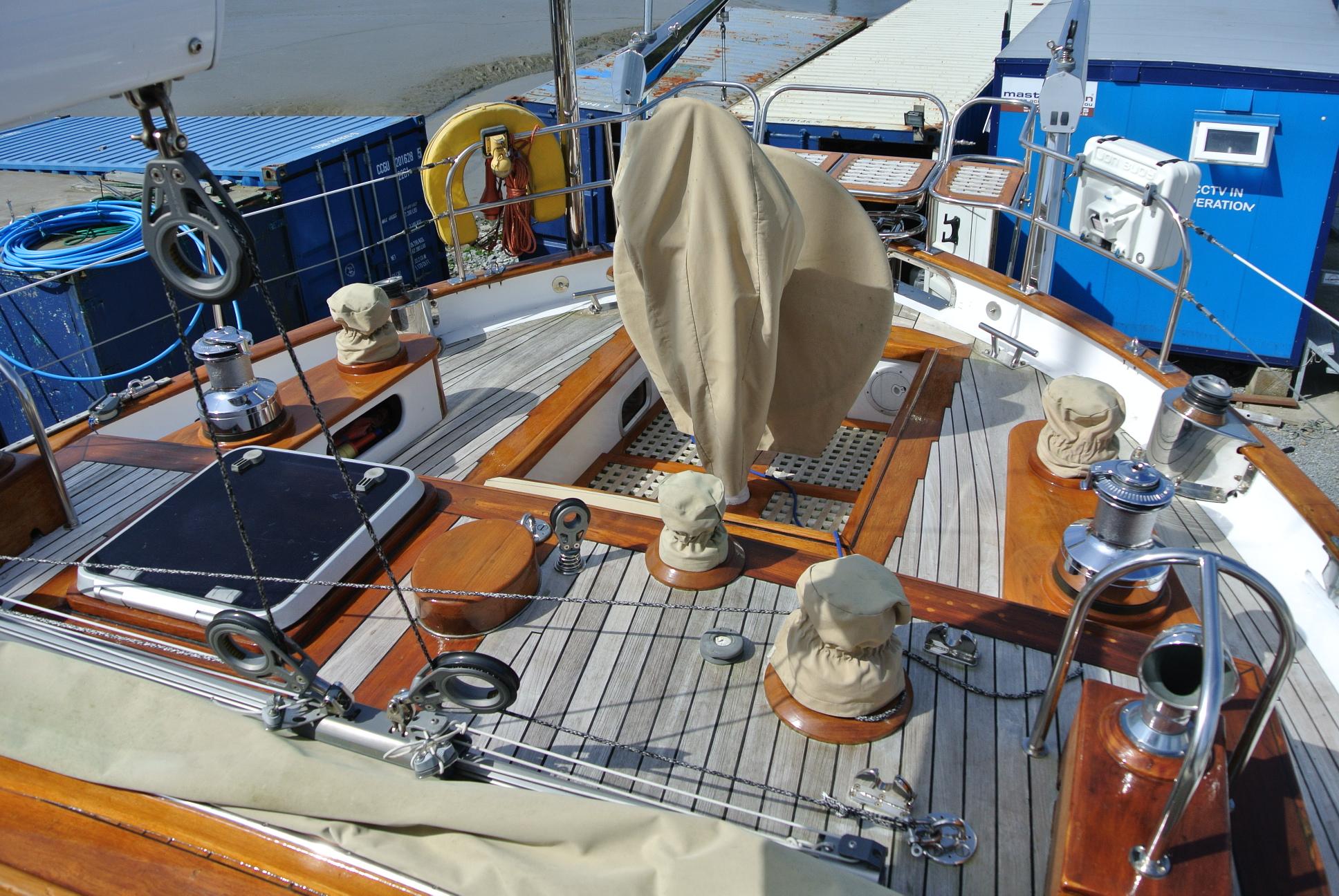

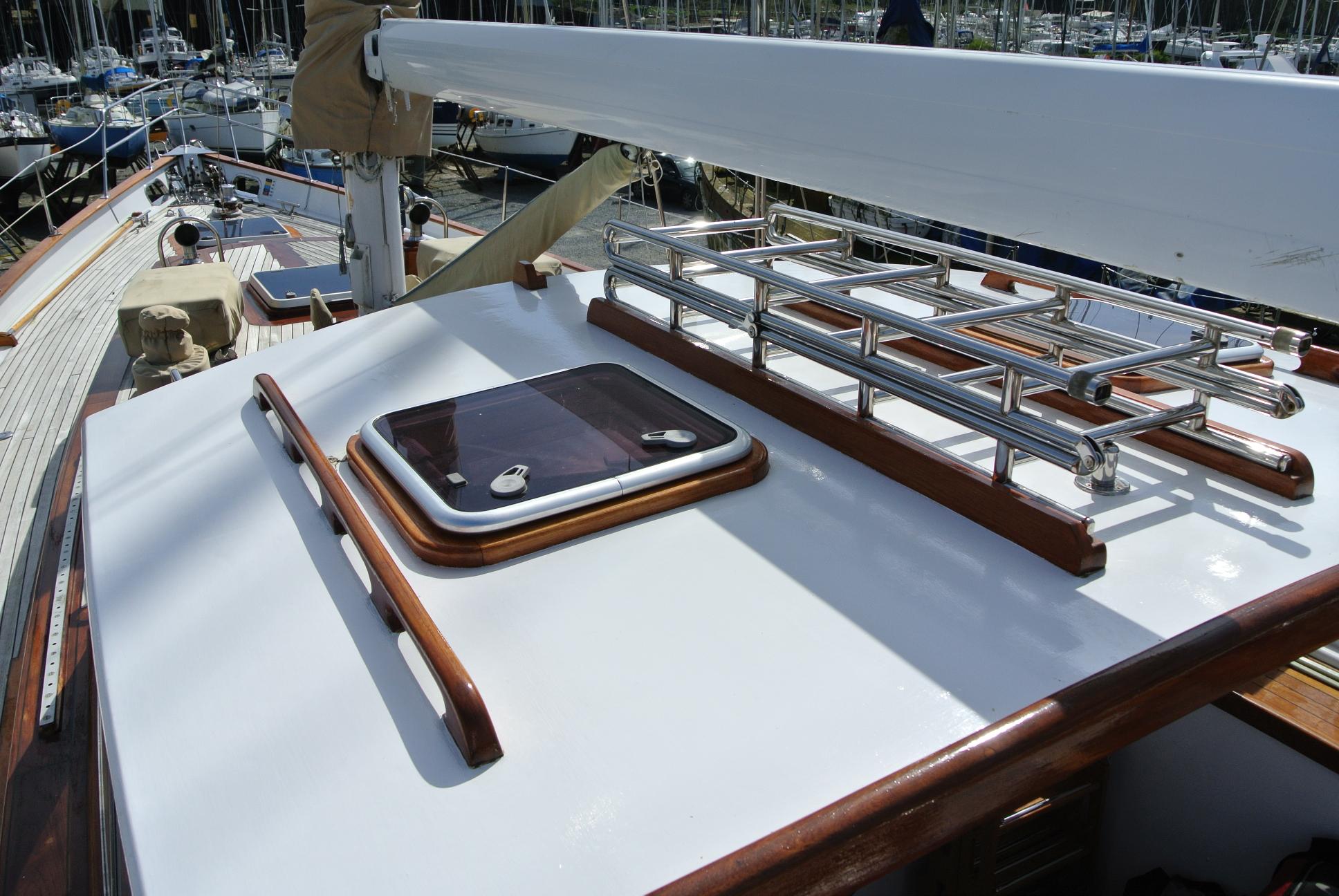

    Deck equipment

     Stainless steel pulpit, stanchions, guardrails with opening gates and removable boarding ladder for side gates.

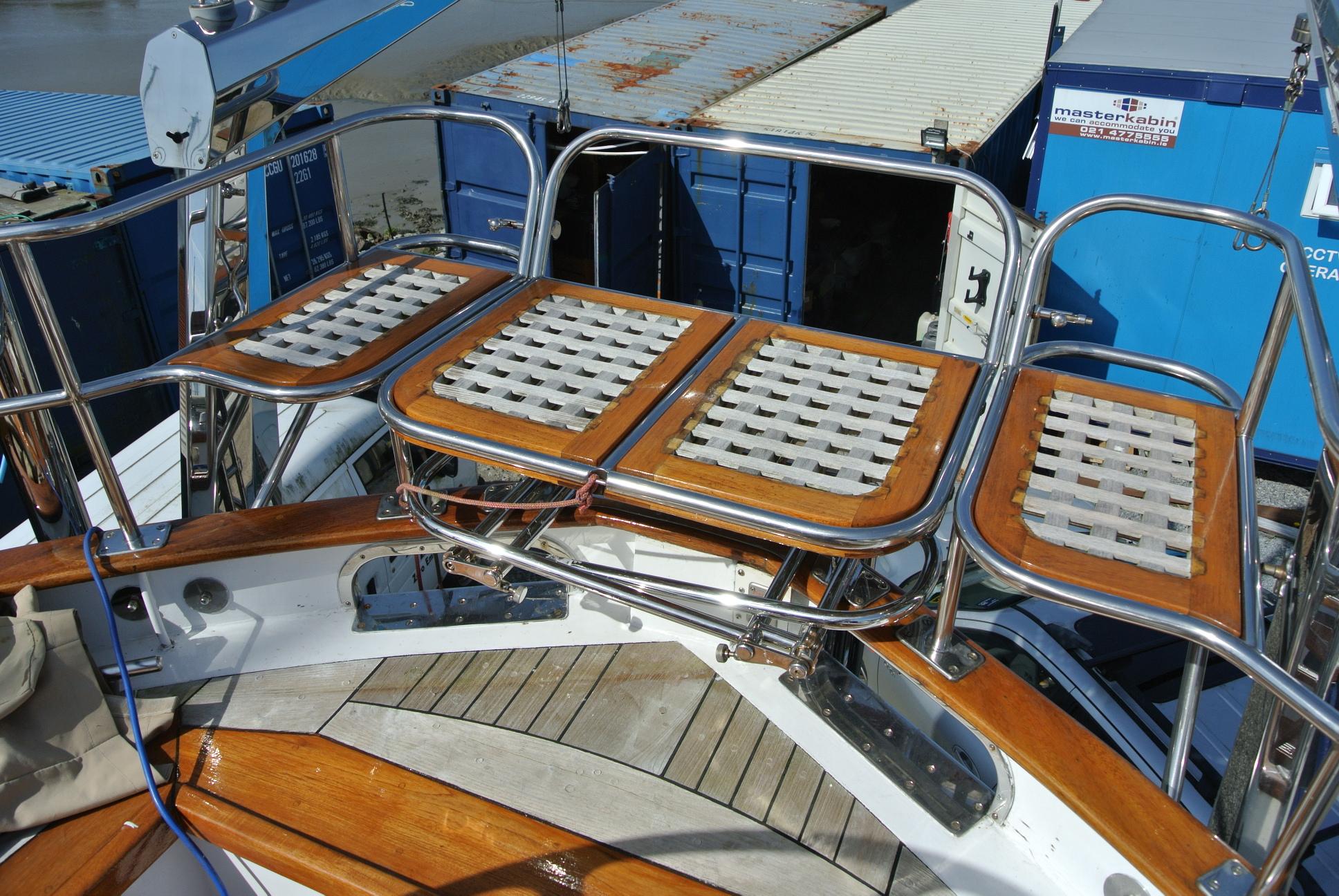

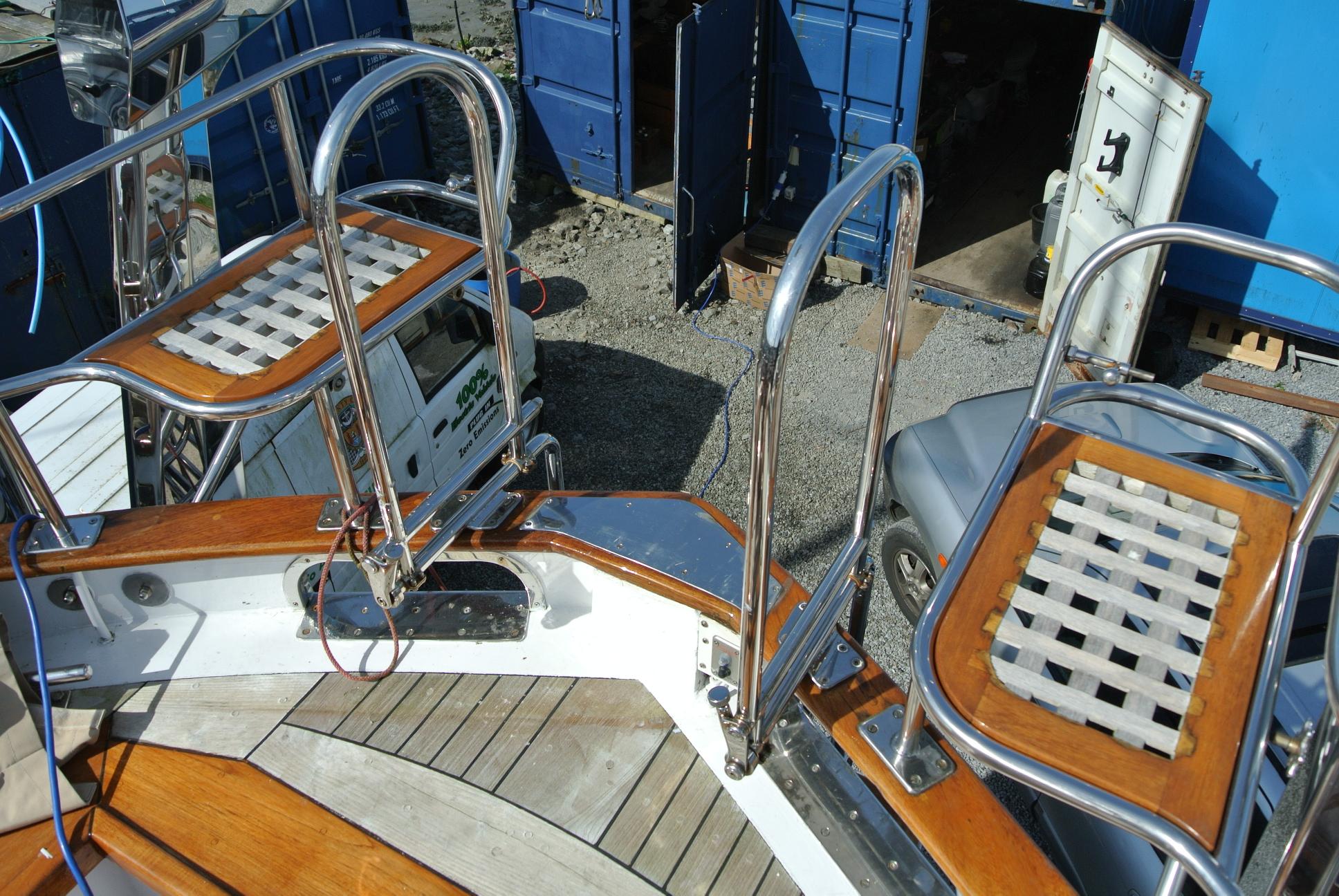

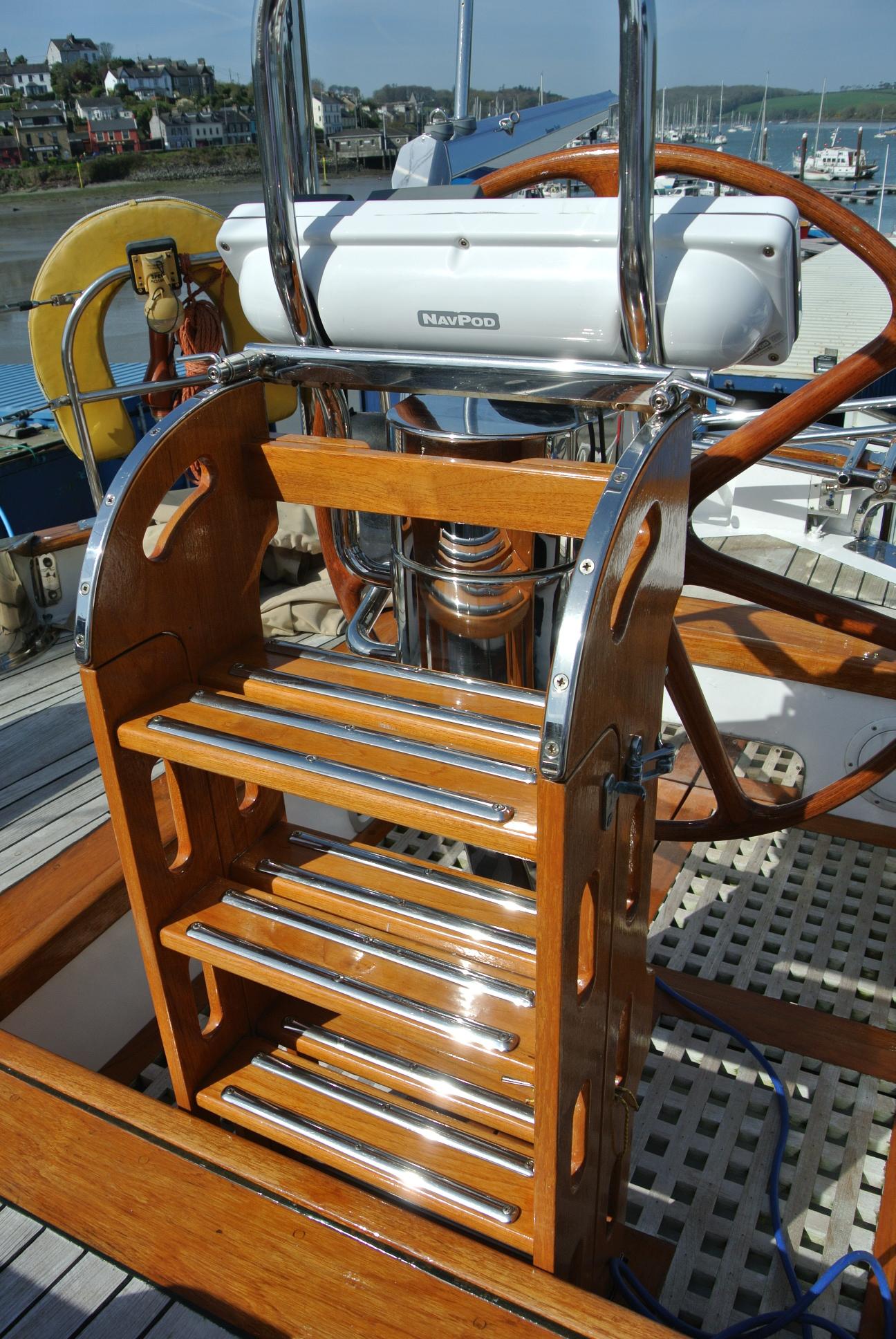

     Stainless steel push-pit with bench seat that can fold down to transform in to a bathing platform, with swim ladder and boarding ladder.

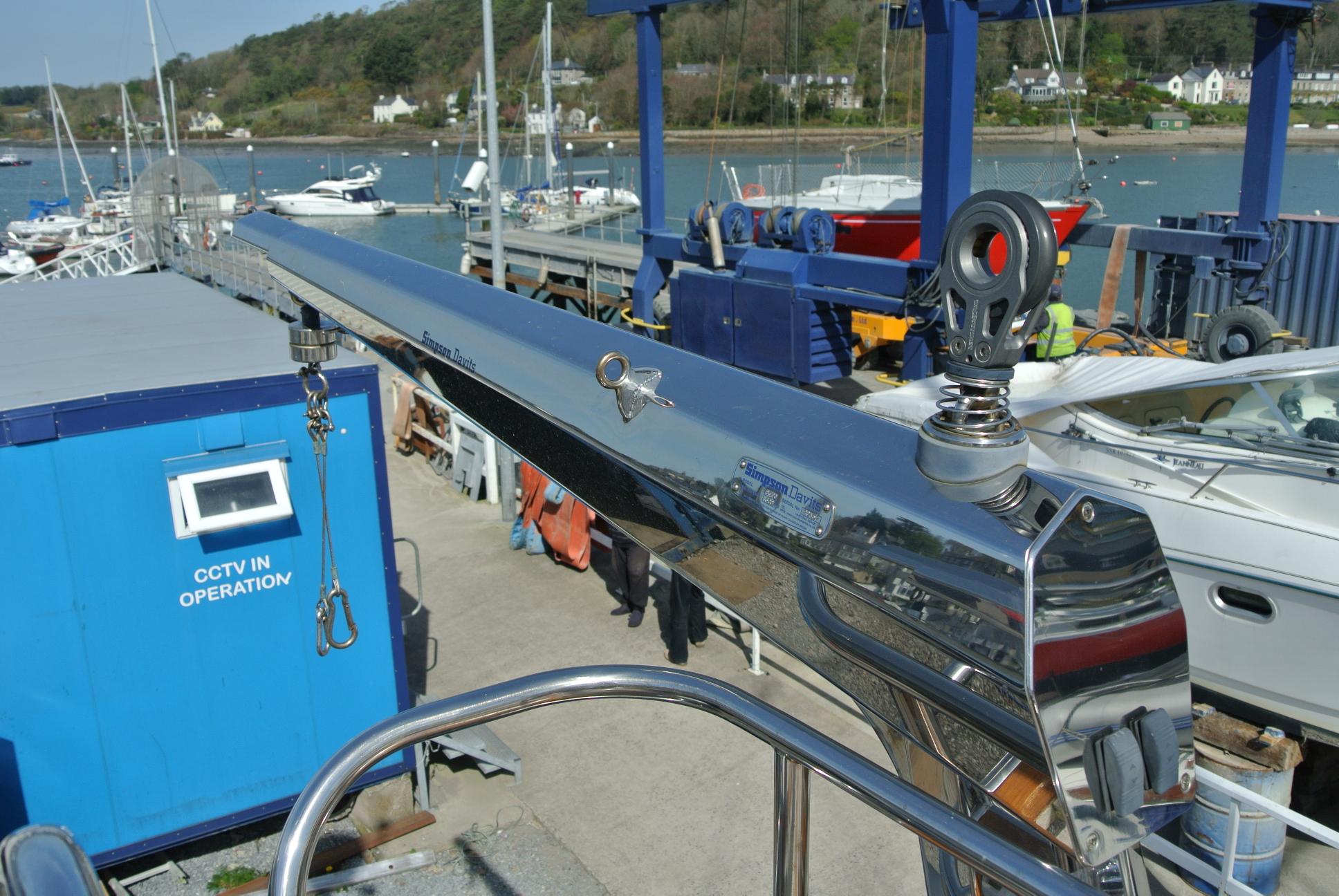

    Simpson Electric Stainless Steel Davits, with separate battery charger and a handheld remote control
     Avon 3.40 RIB & 25HP Honda (4 stroke) outboard engine
     Lewmar "Ocean Gypsy" Hydraulic anchor windlass
    S.S. 35KG Delta Anchor & 60m. of Galv. chain
    Spare 35KG CQR Anchor with chain & warp
    Numerous mooring lines and fenders
    All the portholes have been replaced
    All the stainless steel deck fittings i.e. cleats, fair-leads, stem-head fittings etc. were replaced .

    All deck gear (Lewmar) i.e. deck organisers, clutch jammers main sheet track, blocks etc. were replaced .

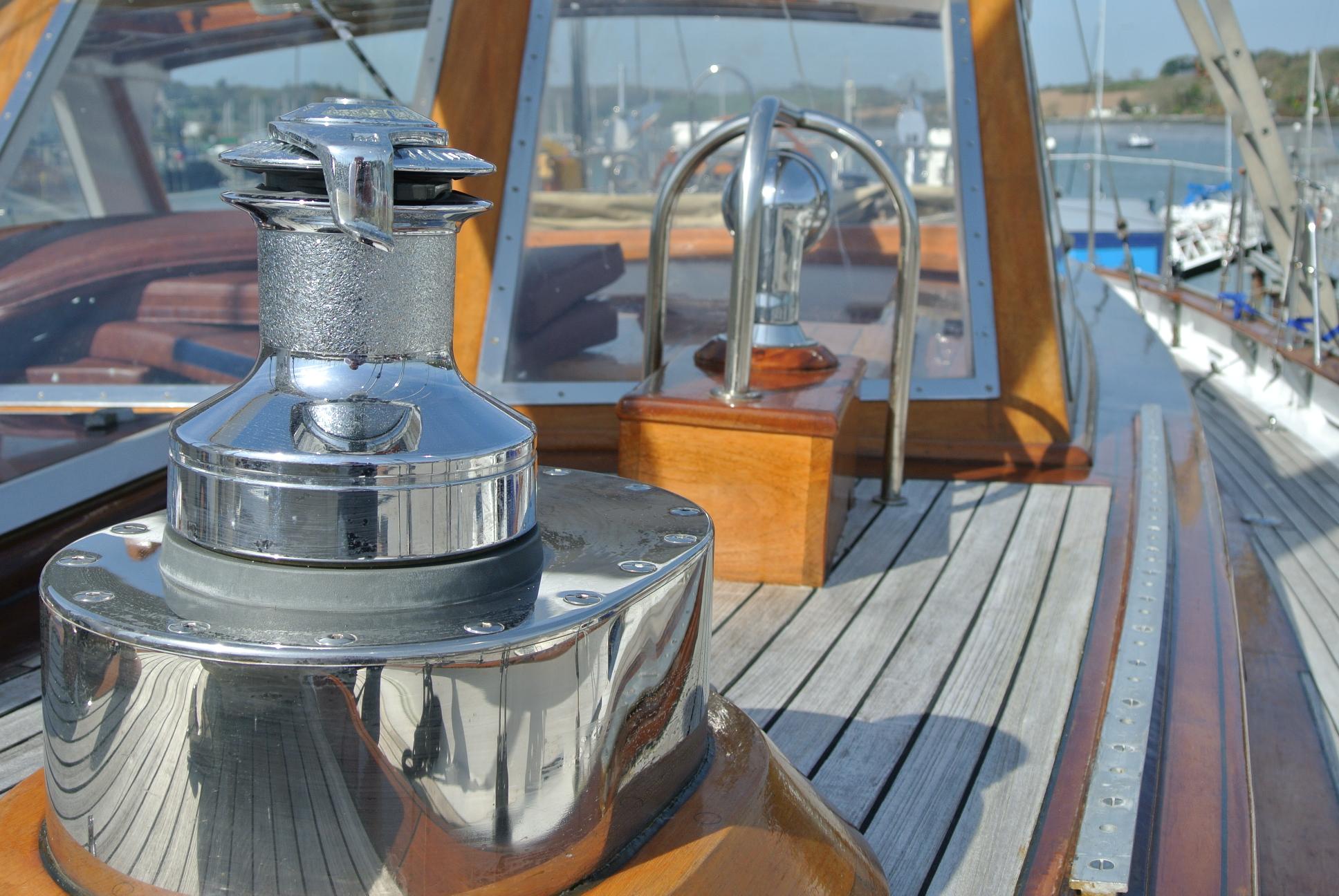

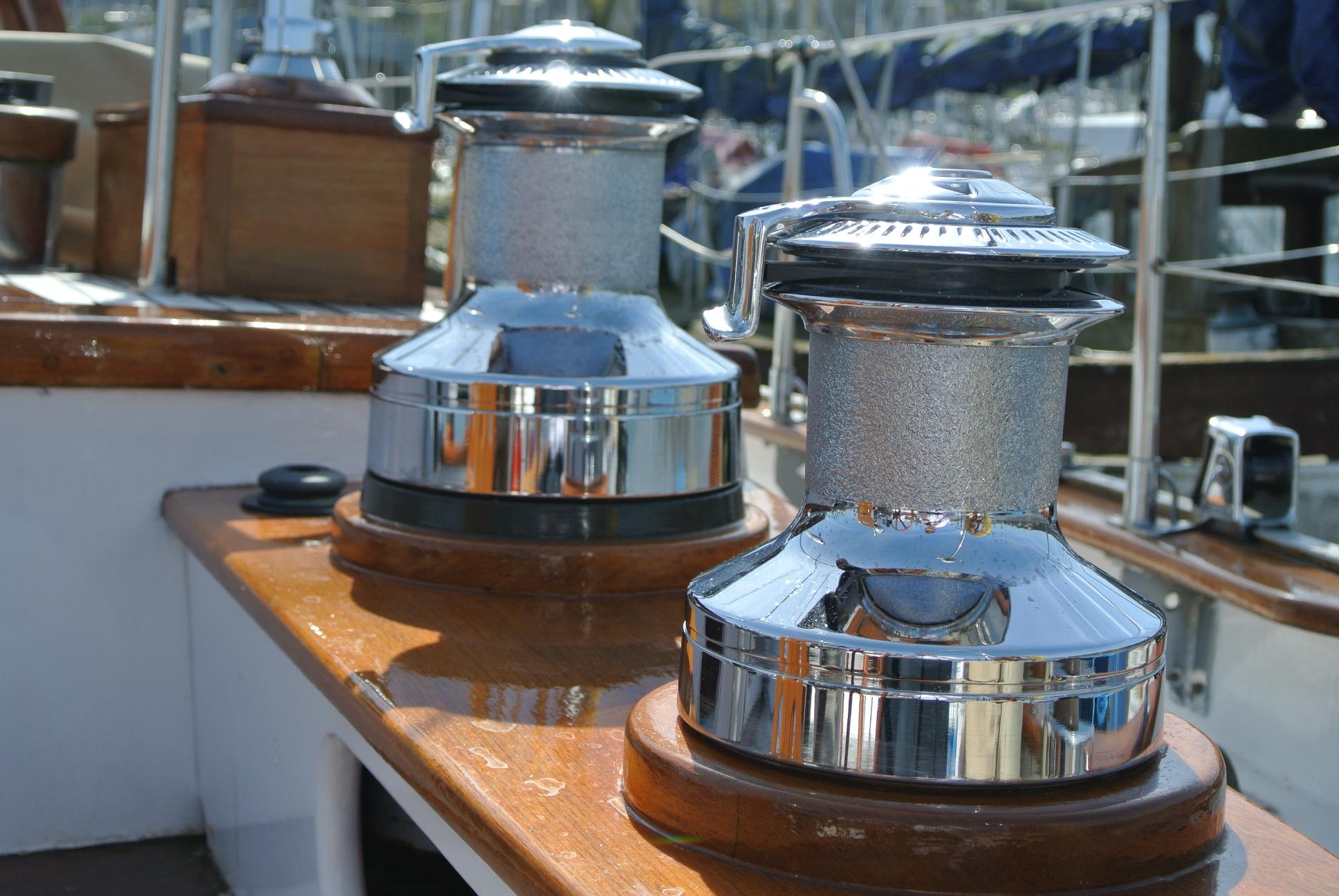

    All the "CHROMED" winches were replaced and come with individual covers.

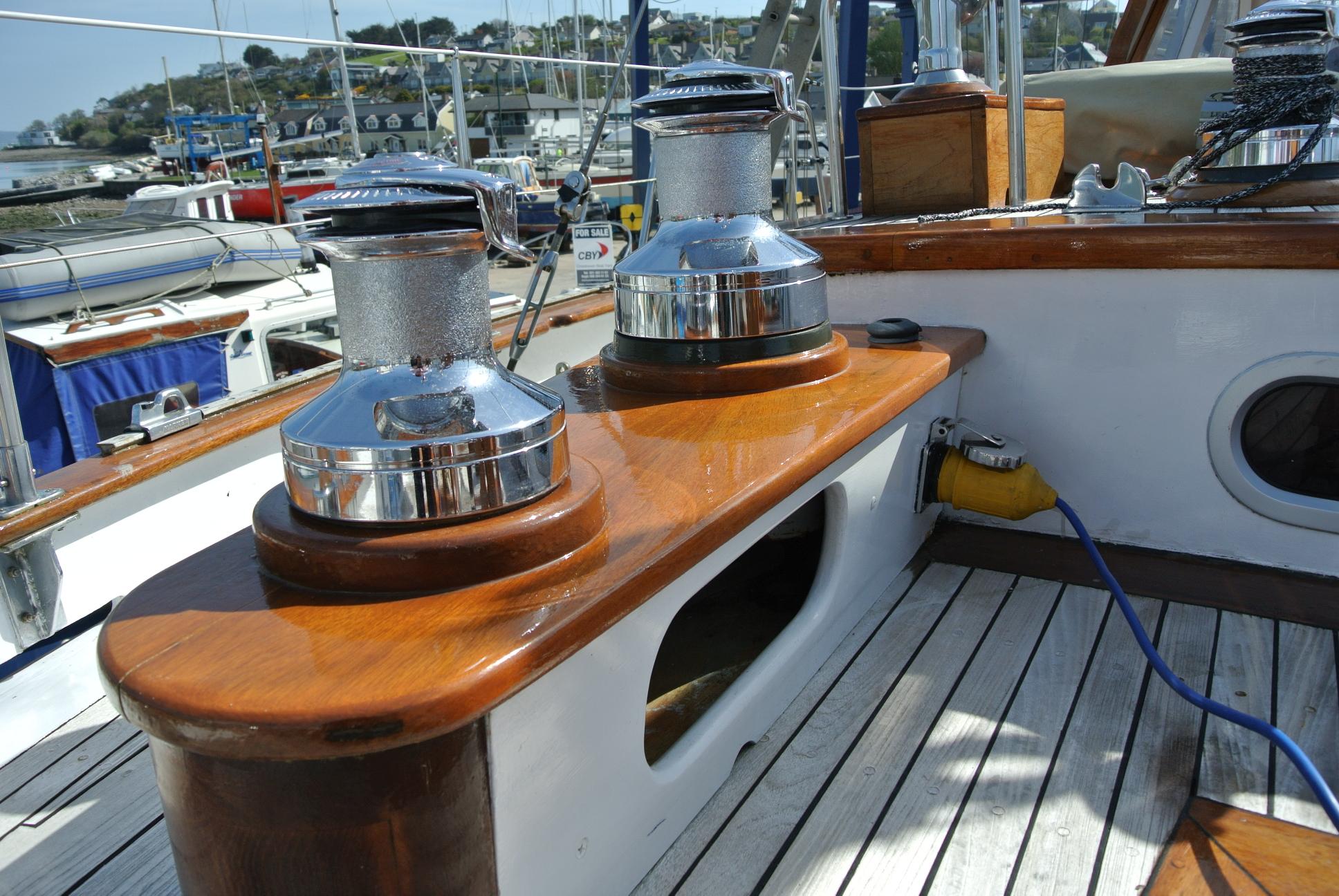

    2 x Lewmar 64 Hydraulic Self Tailing Genoa Sheet Winches
    2 x Lewmar 48 Manual Self Tailing Spinnaker Sheet Winches
    1 x Lewmar 48 Hydraulic Self Tailing Main Sheet Winch
    2 x Lewmar 30 Manual Self Tailing Mainsail Reefing Winches
    1 x Lewmar 16 Manual Self Tailing Mizzen Sheet Winch
    Lewmar Winch Handles
    Lewmar Main sheet Traveller (Size 3 Ocean)
    Harken Genoa Sheet Cars with stops
    Numerous spare deck blocks



    Tender  Avon 3.4 with 25 hp Honda four stroke outboard
    Cockpit cushions
    Davits
    Liferaft
    Outboard engine brackets
    Swimming ladder

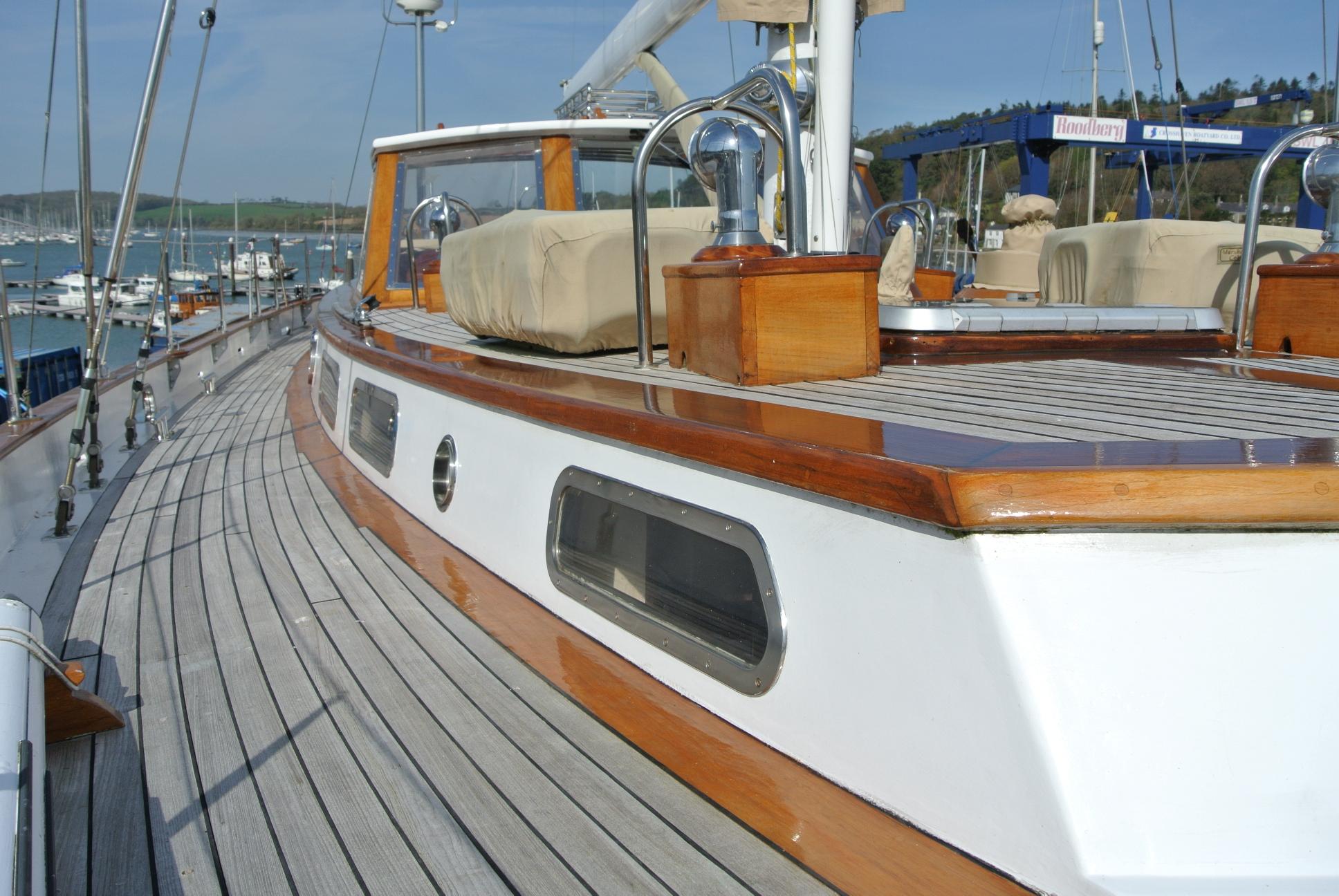

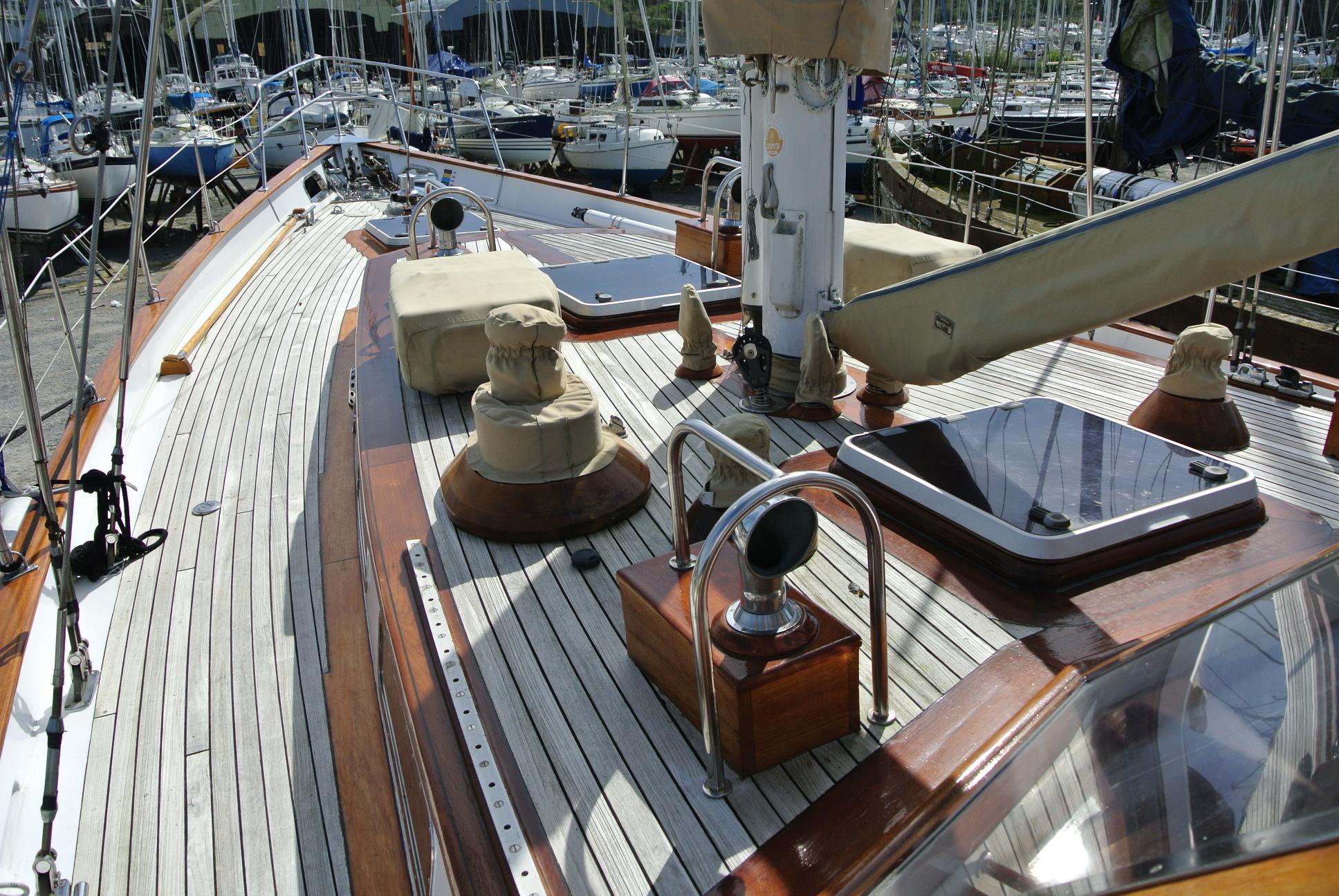

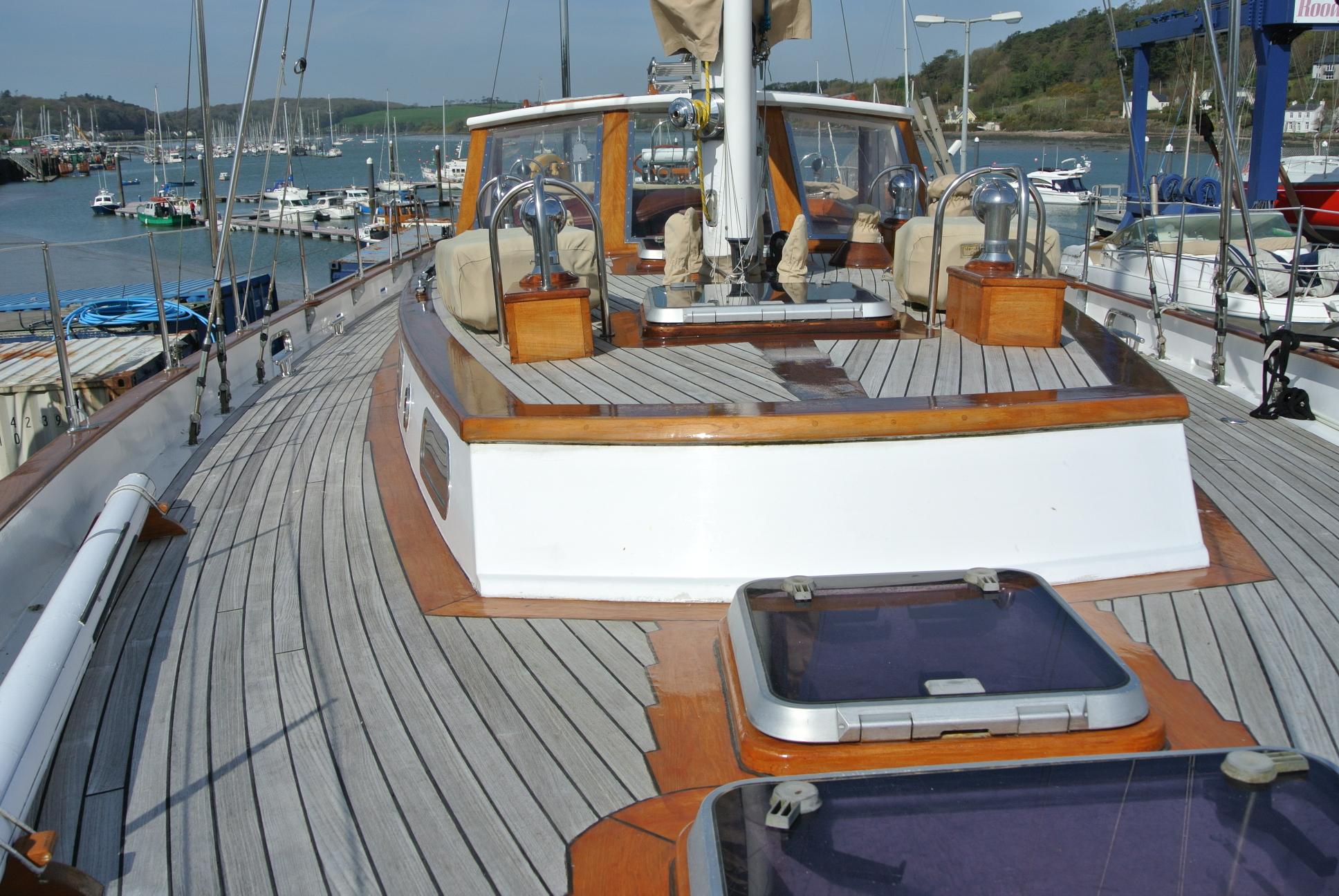

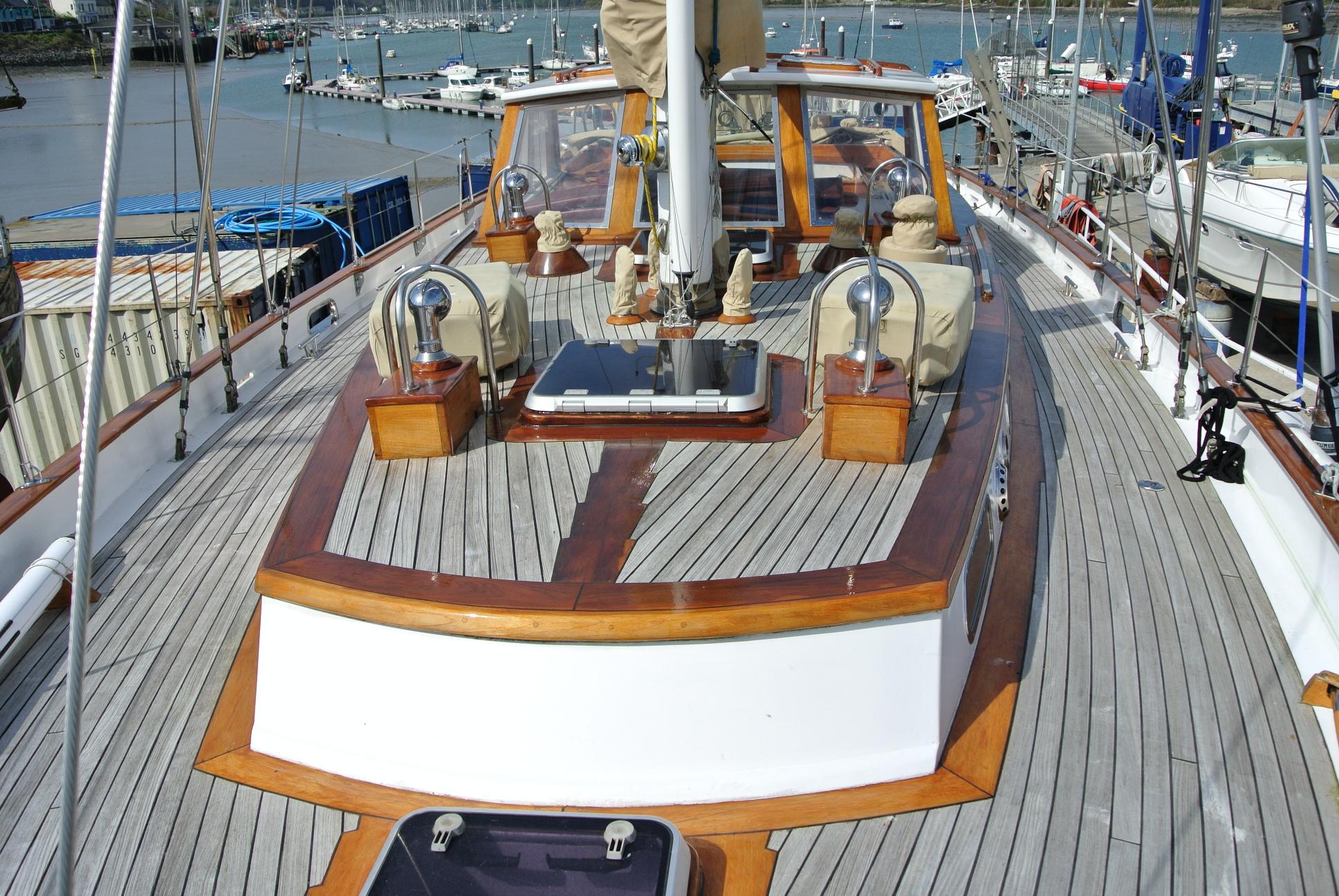

    Teak sidedecks
    Cockpit table

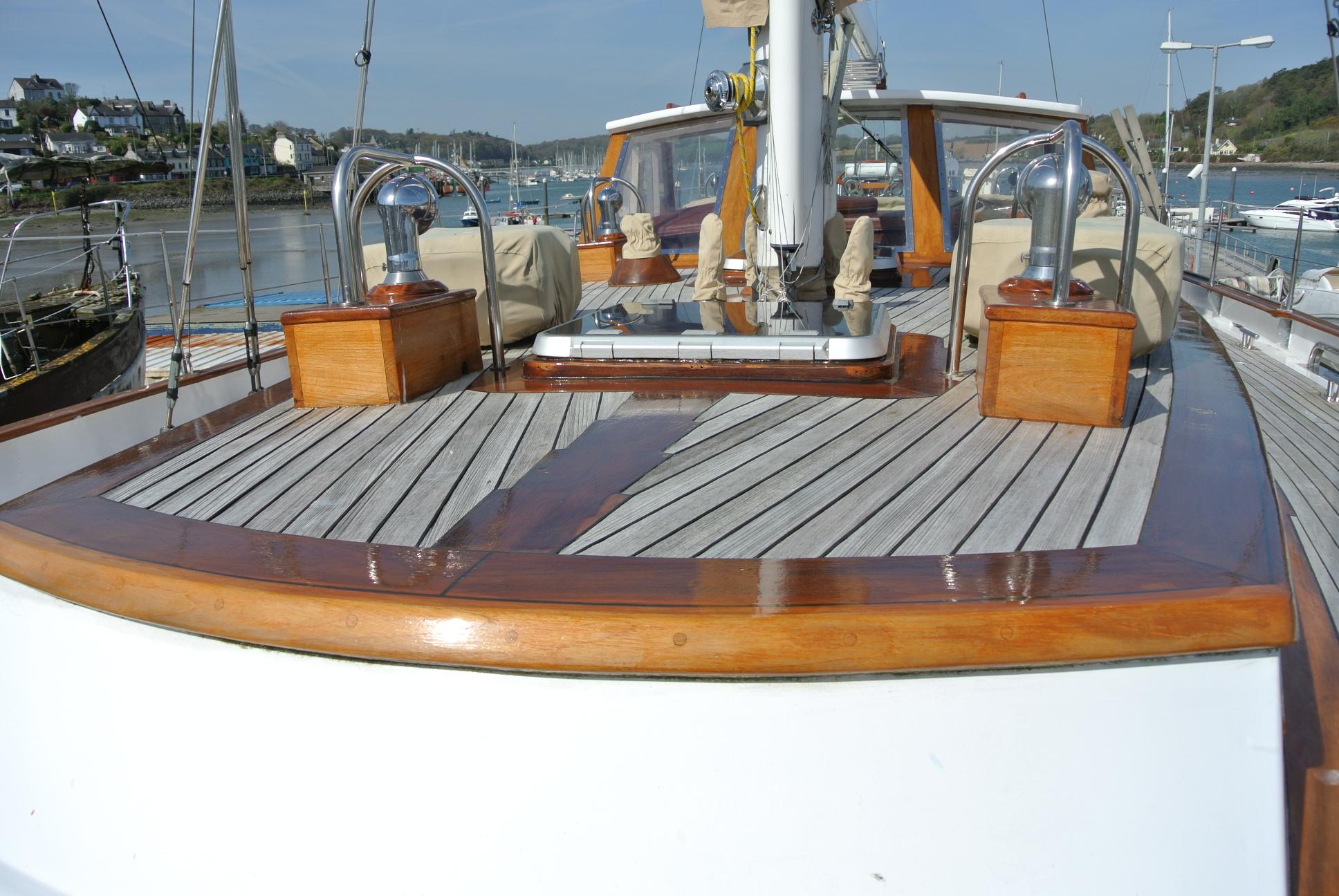

    Teak cockpit

    Build details

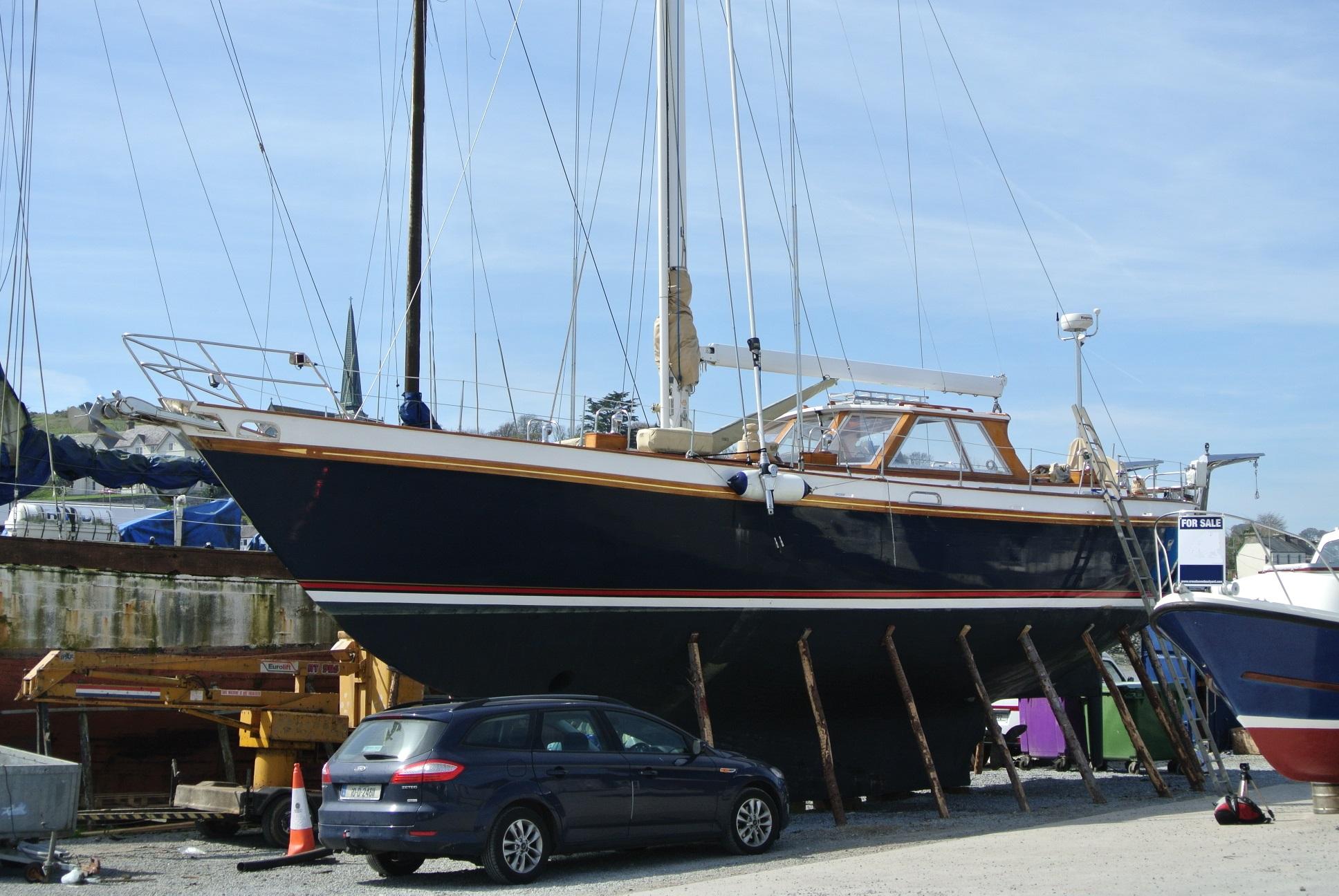

    This double ender  has a carvel hull (30mm iroko teak) on laminated white oak frames.
    Solid Iroko keel with externally bolted lead ballast using manganese bronze keel bolts.
    The deck was totally renewed in 1994, 18mm teak decks on 14mm epoxied marine plywood fastened to the laminated white oak frames

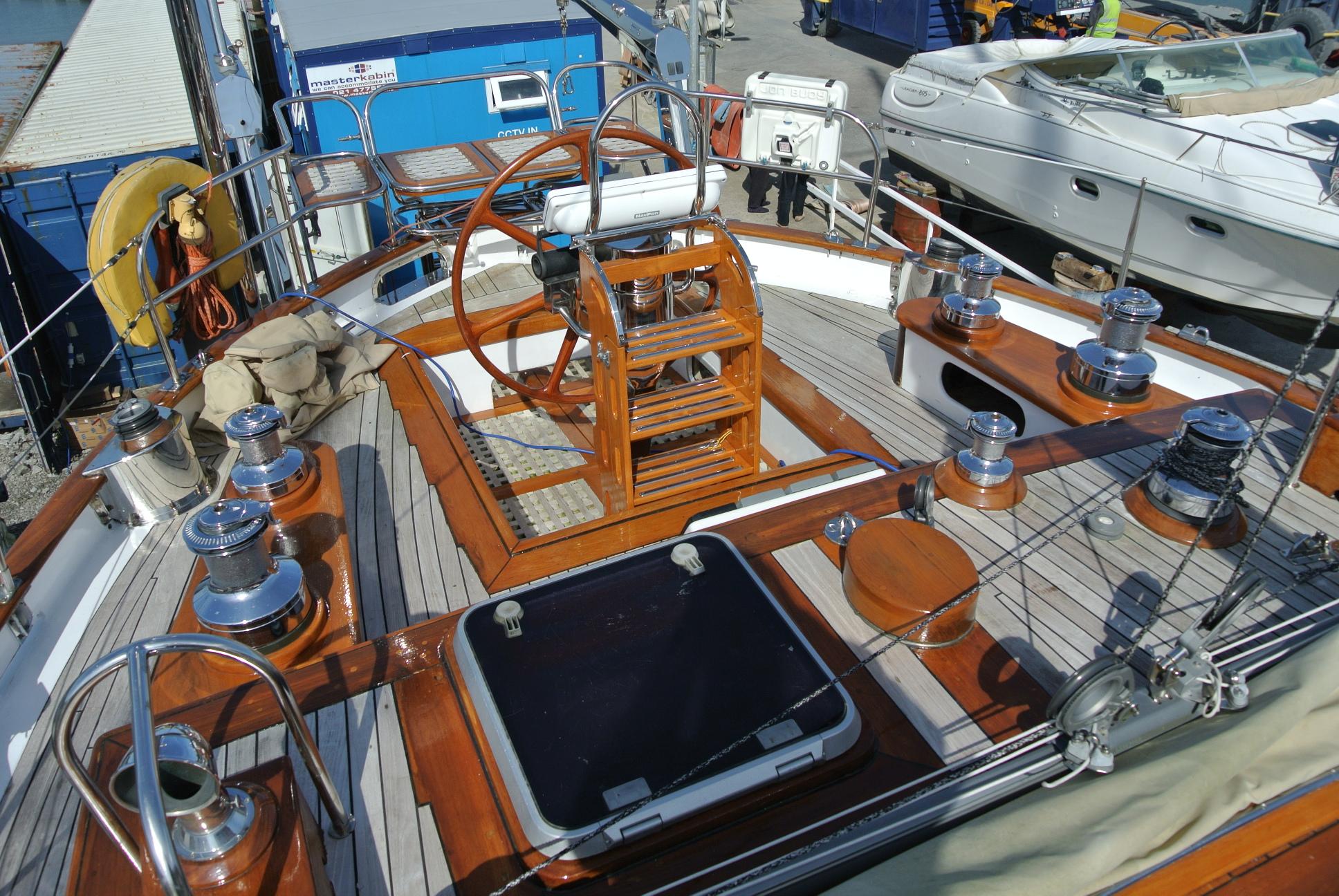

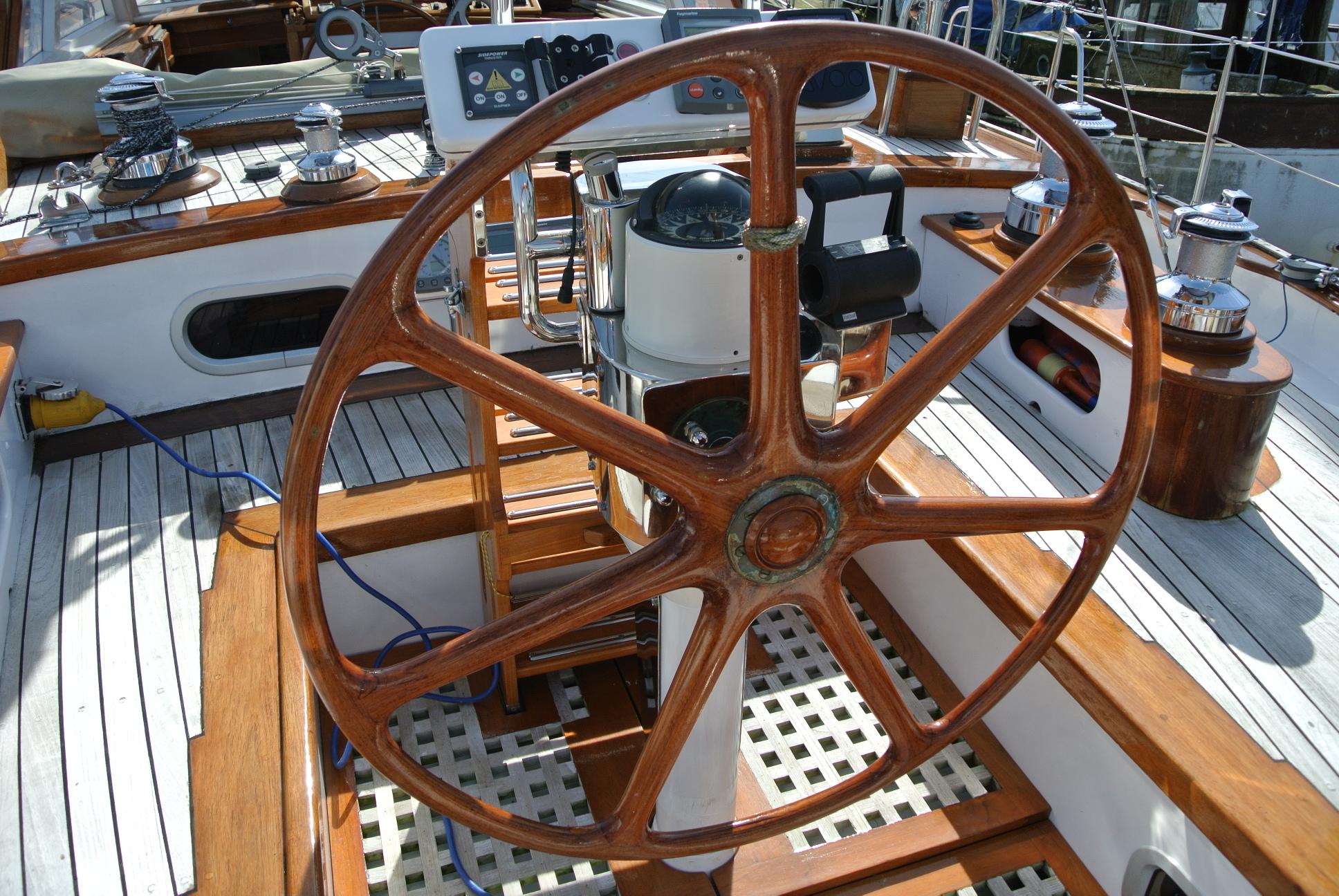

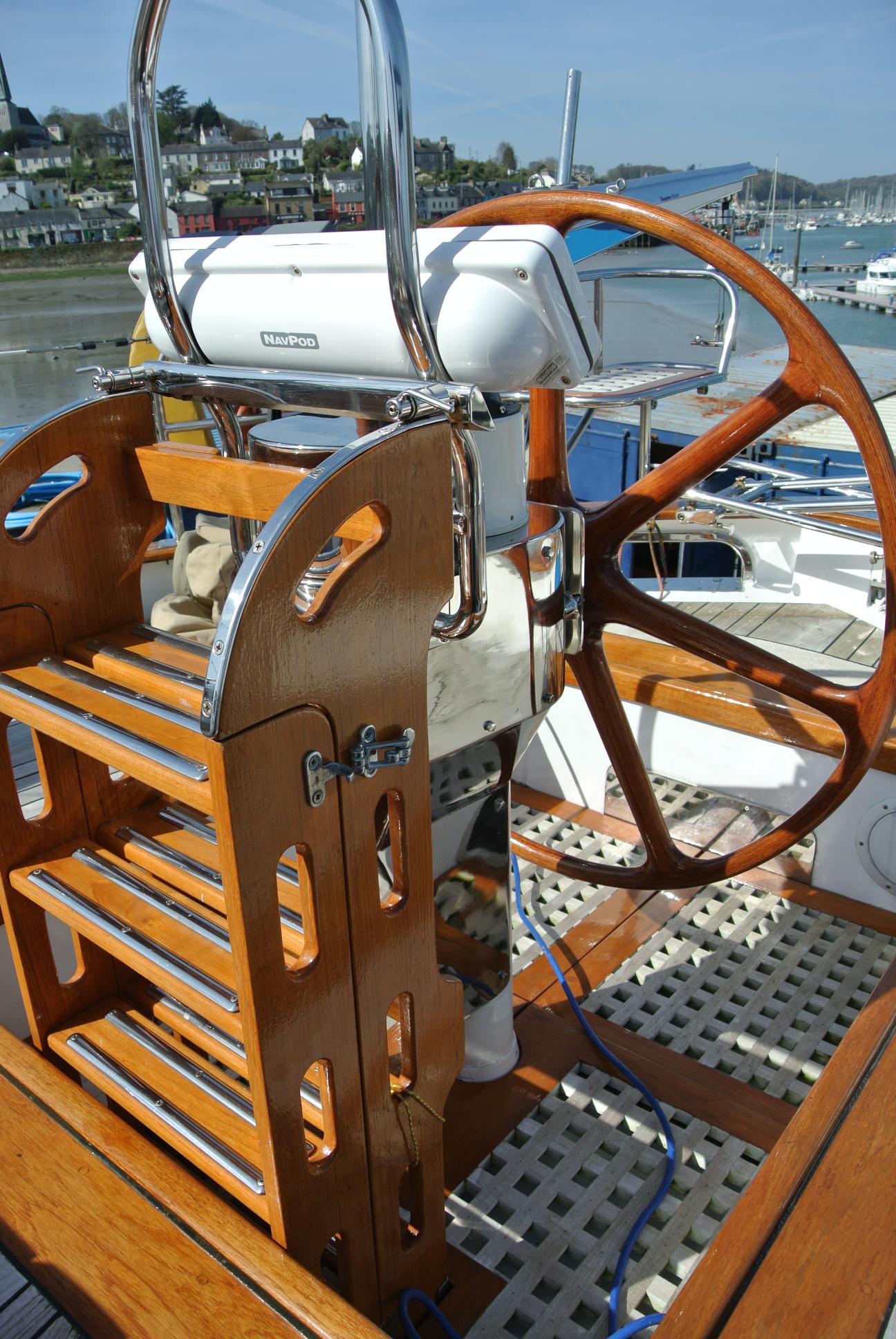

    Semi balanced rudder hung on a skeg. Dual hydraulic steering i.e. wheel in aft cockpit and wheel at the semi-enclosed centre cockpit.

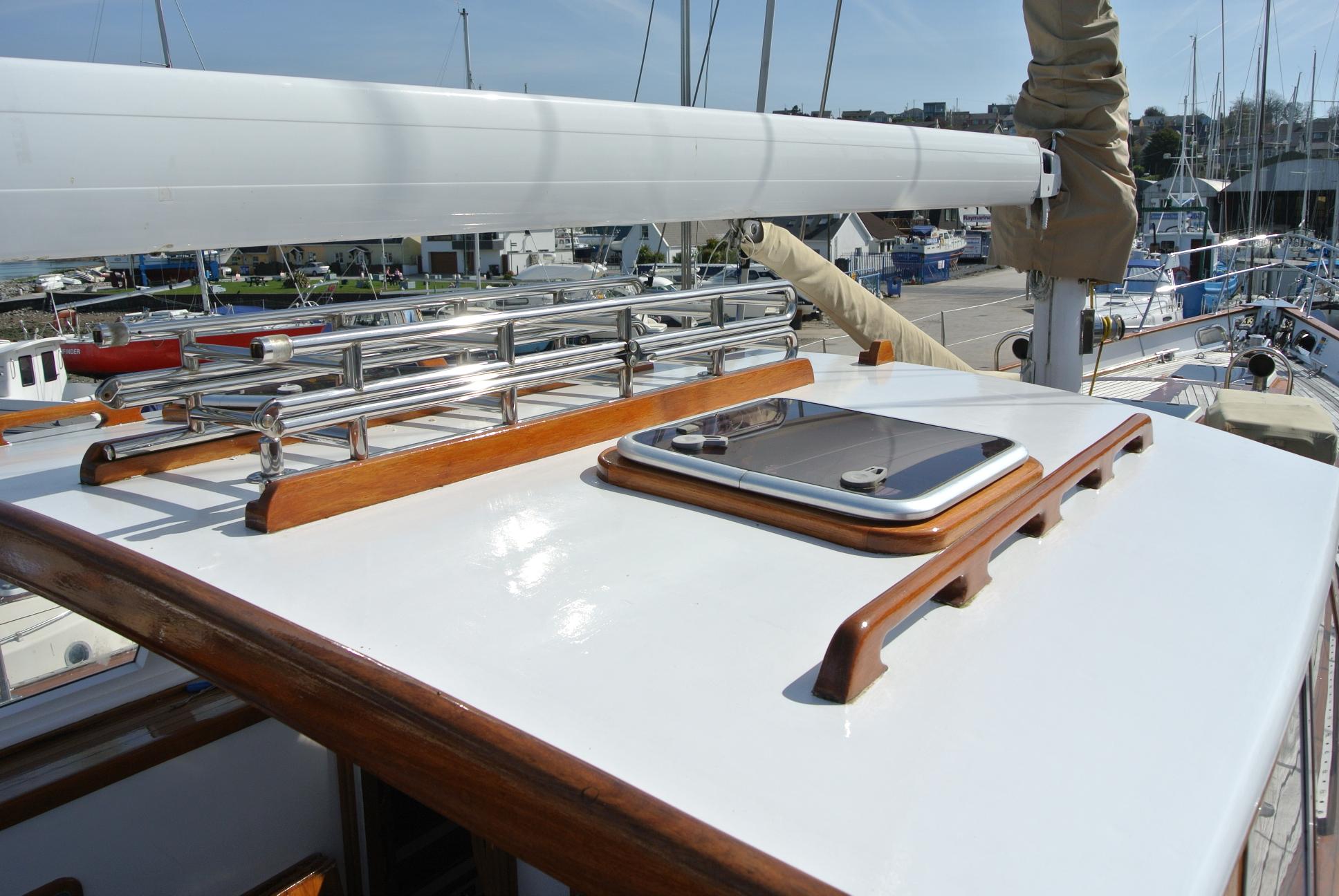

    The coachroof and superstructure are mahogany

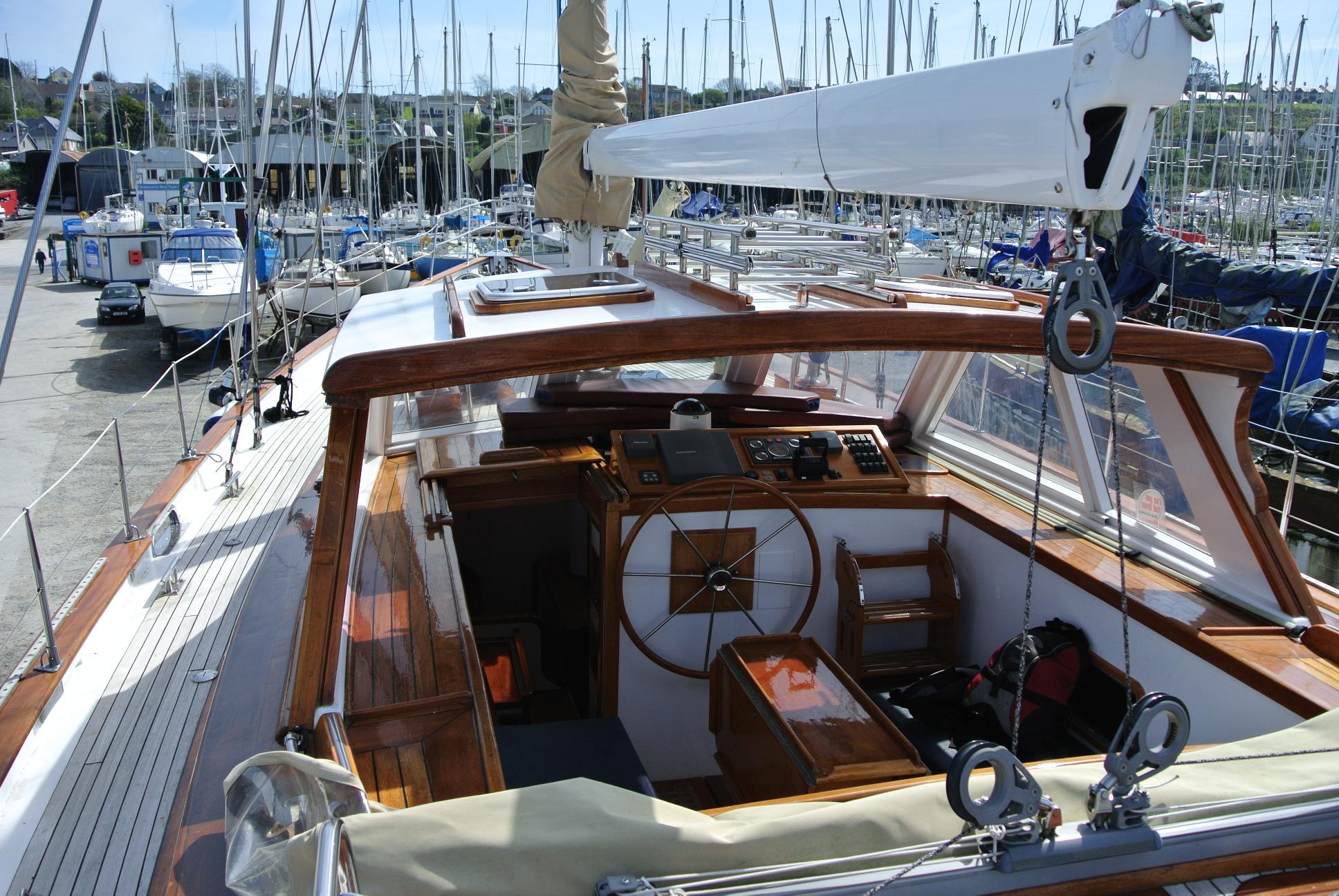

    The semi-encosed wheelhouse is iroko on mahogany
    All the brightwork has been maintained to a very high standard

    Accommodations

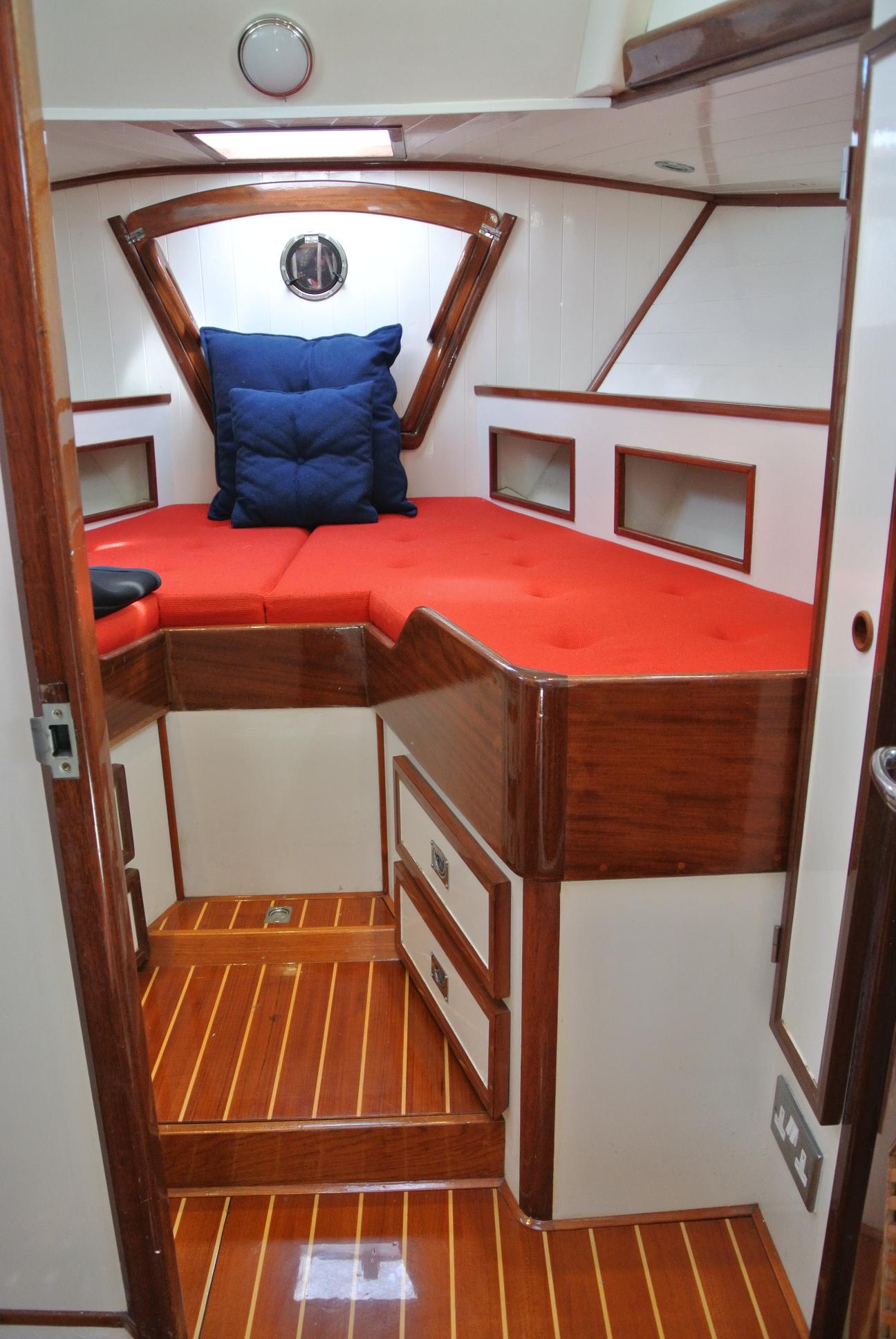

    2 x Single berths in foreward cabin
    Lattice battens under the berths for ventilation
    Hot Air Heating Outlet

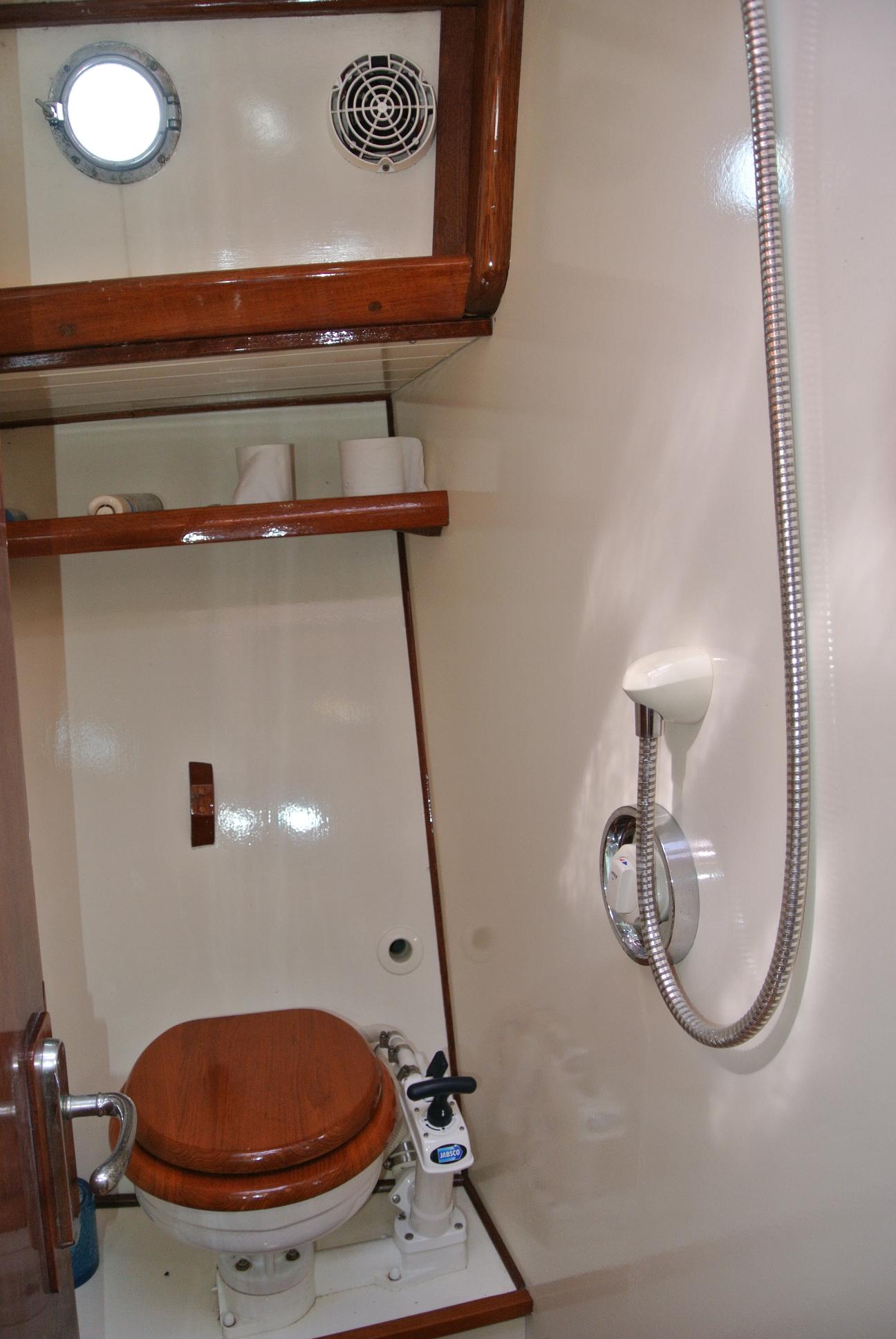

    Head & shower to port with sink and hanging locker opposite
    Shower and sink drain into grey water holding tank
    Marine toilet

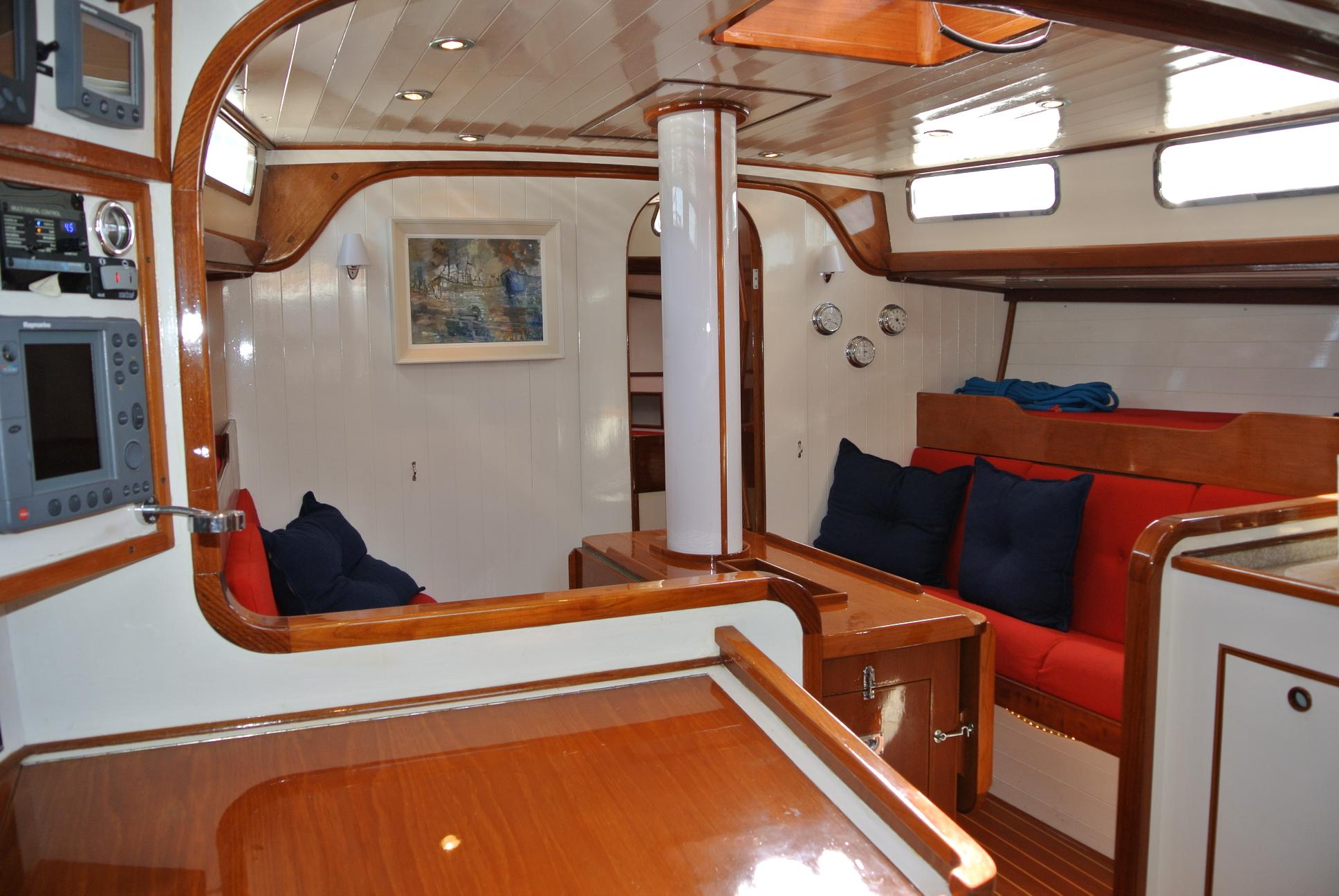

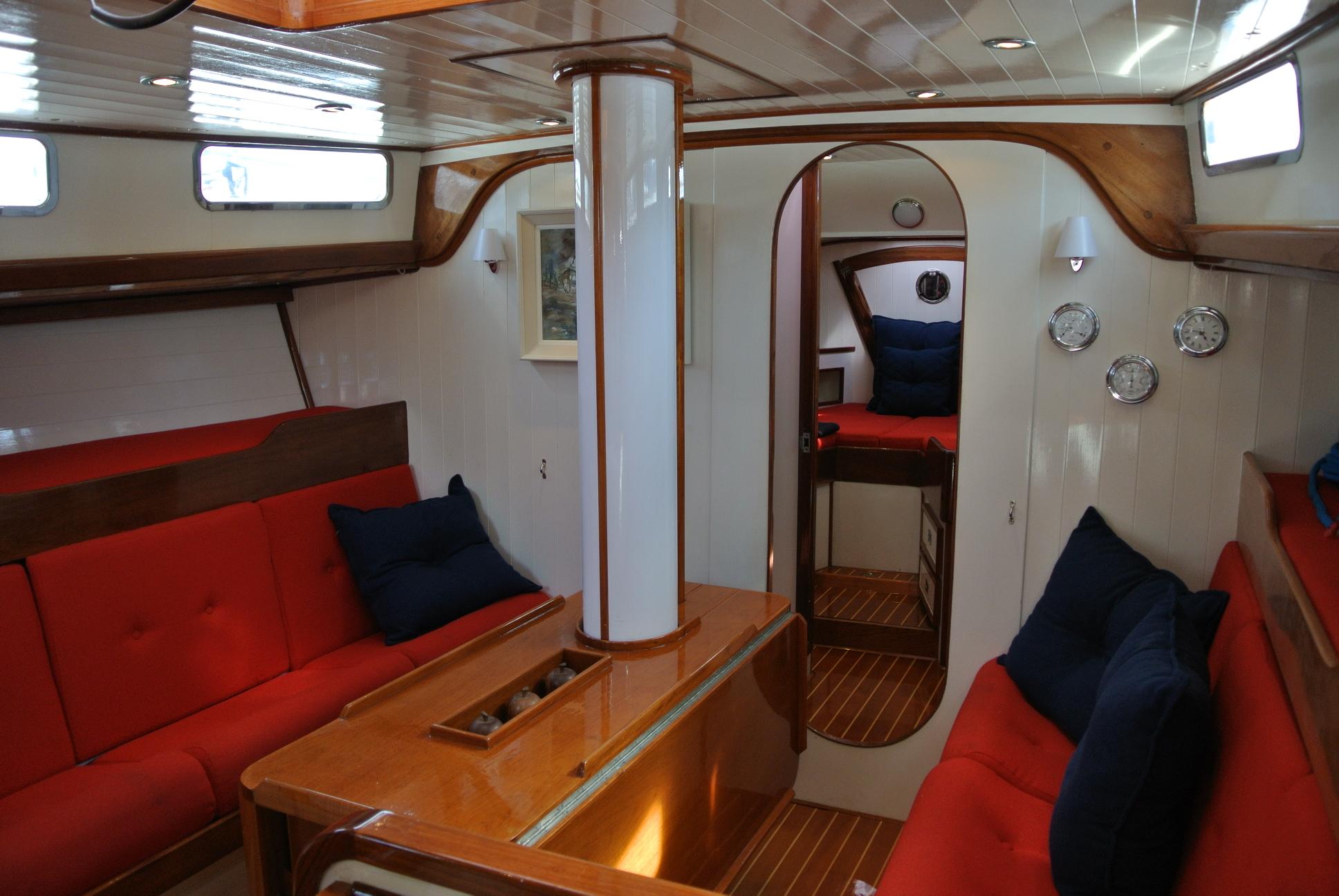

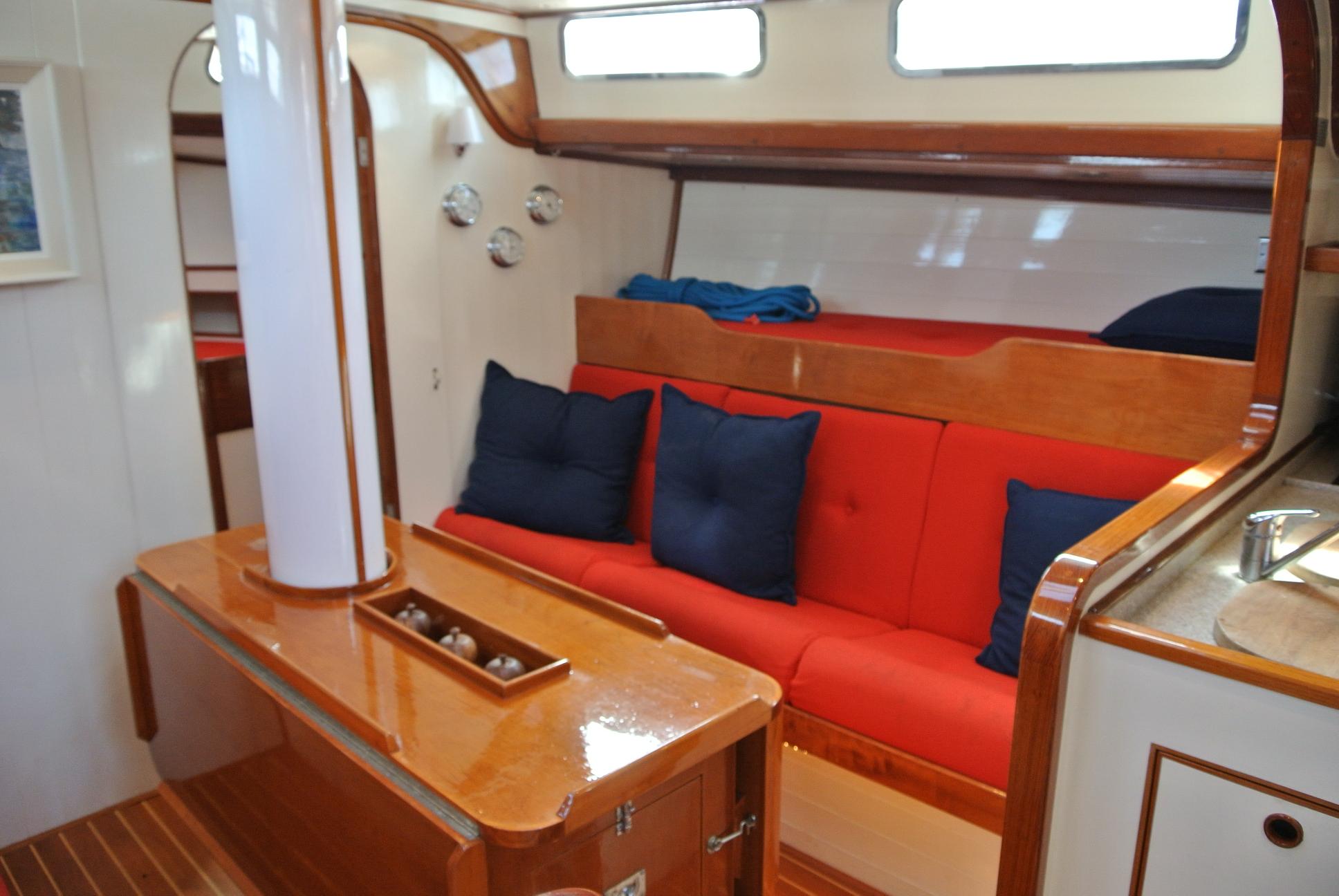

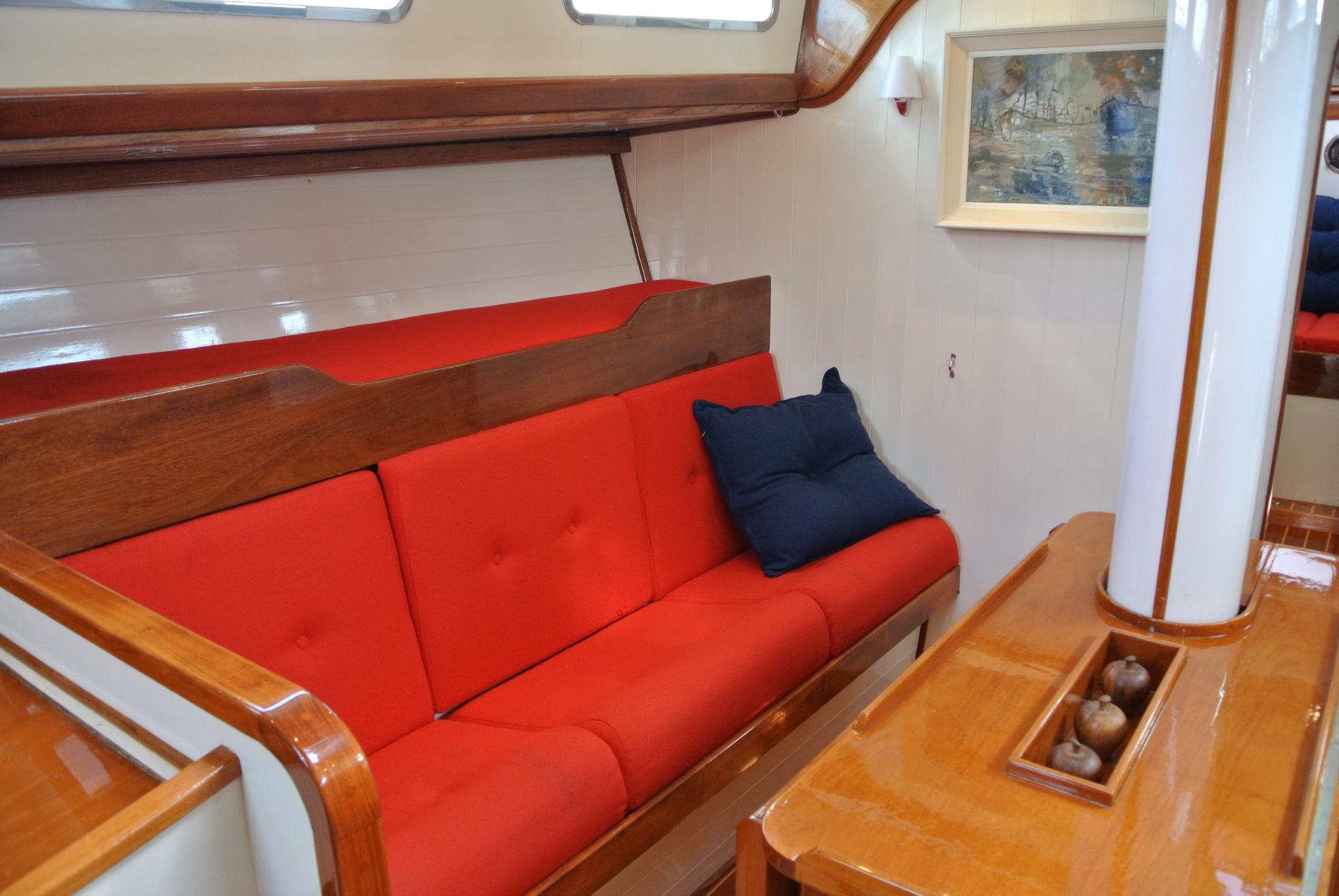

    Main saloon

    2 x Settee berths and 2 x Pilot berths
    Hot Air Heating Outlet
    Ample storage under and behind berths
    Large drop leaf saloon table

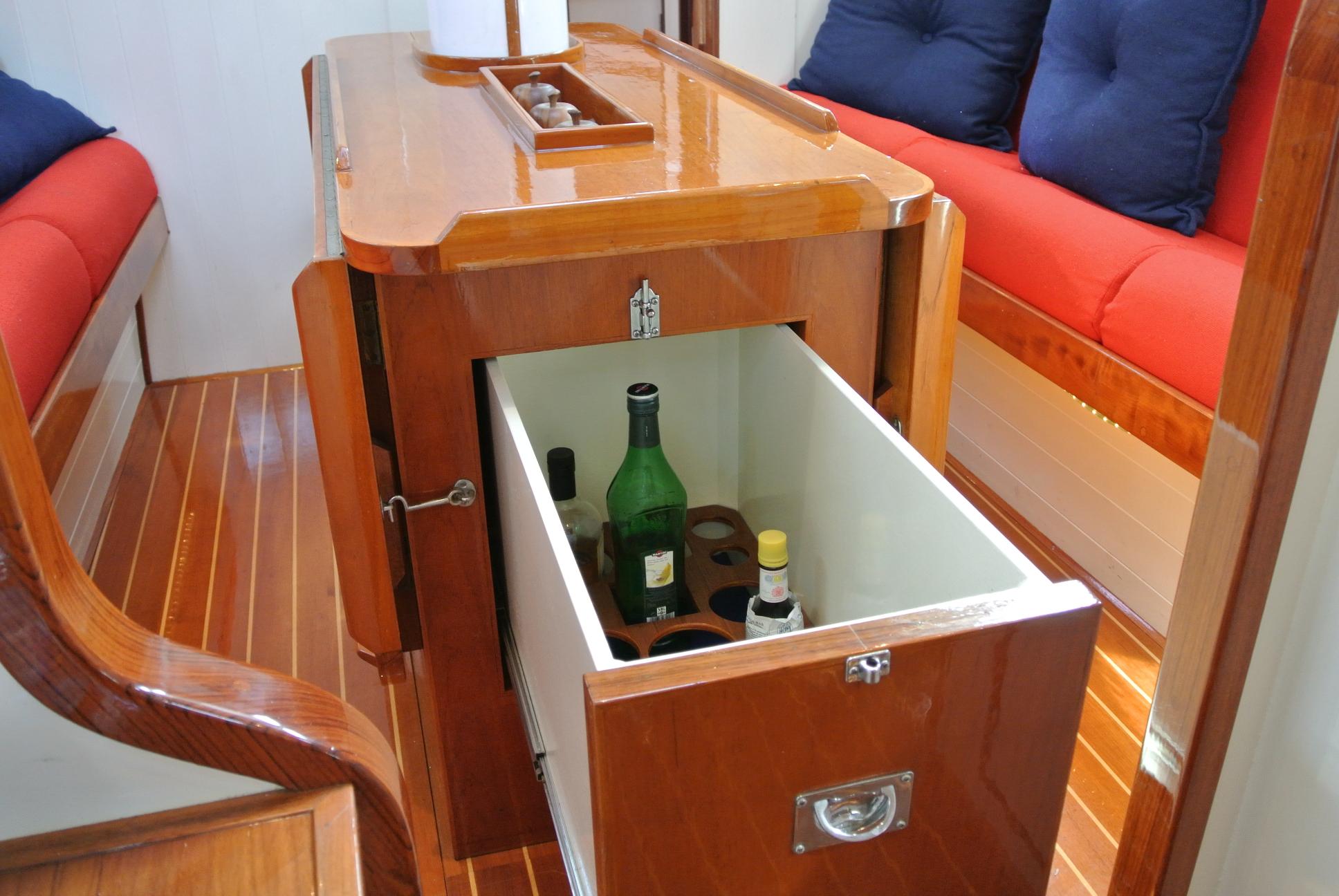

    Large drinks locker under the table (drawer)
    Excellent lighting throughout including night lights (2003)

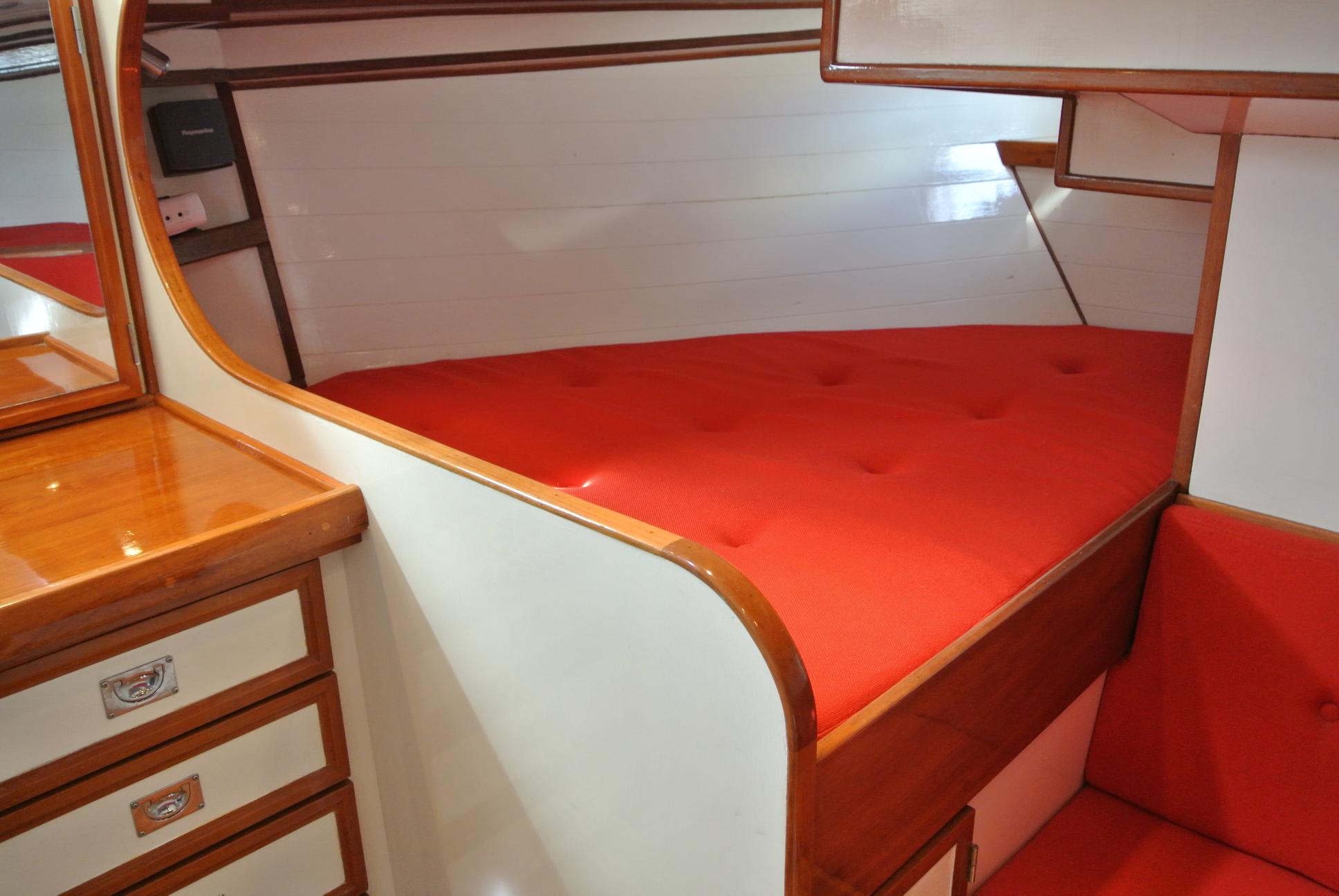

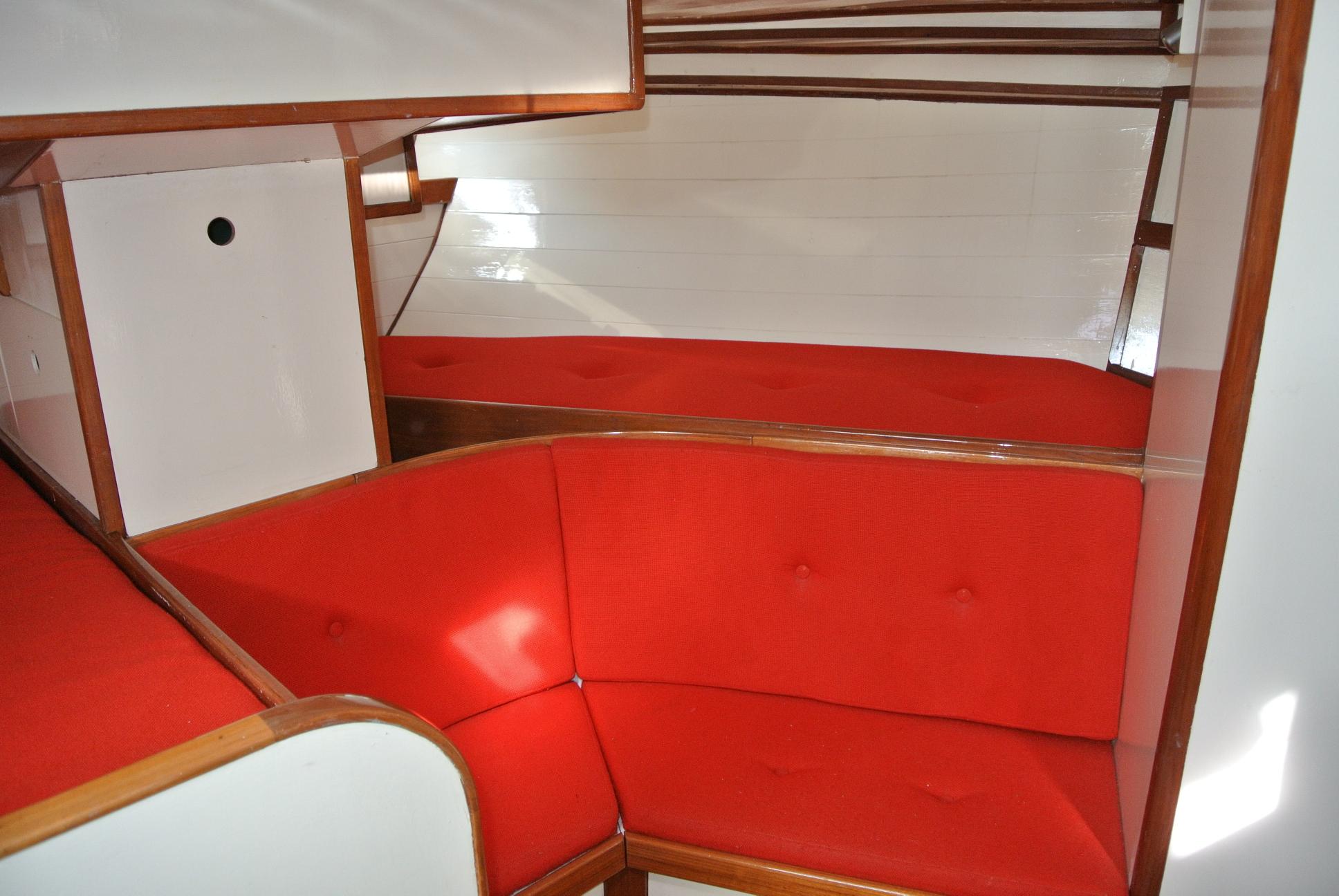

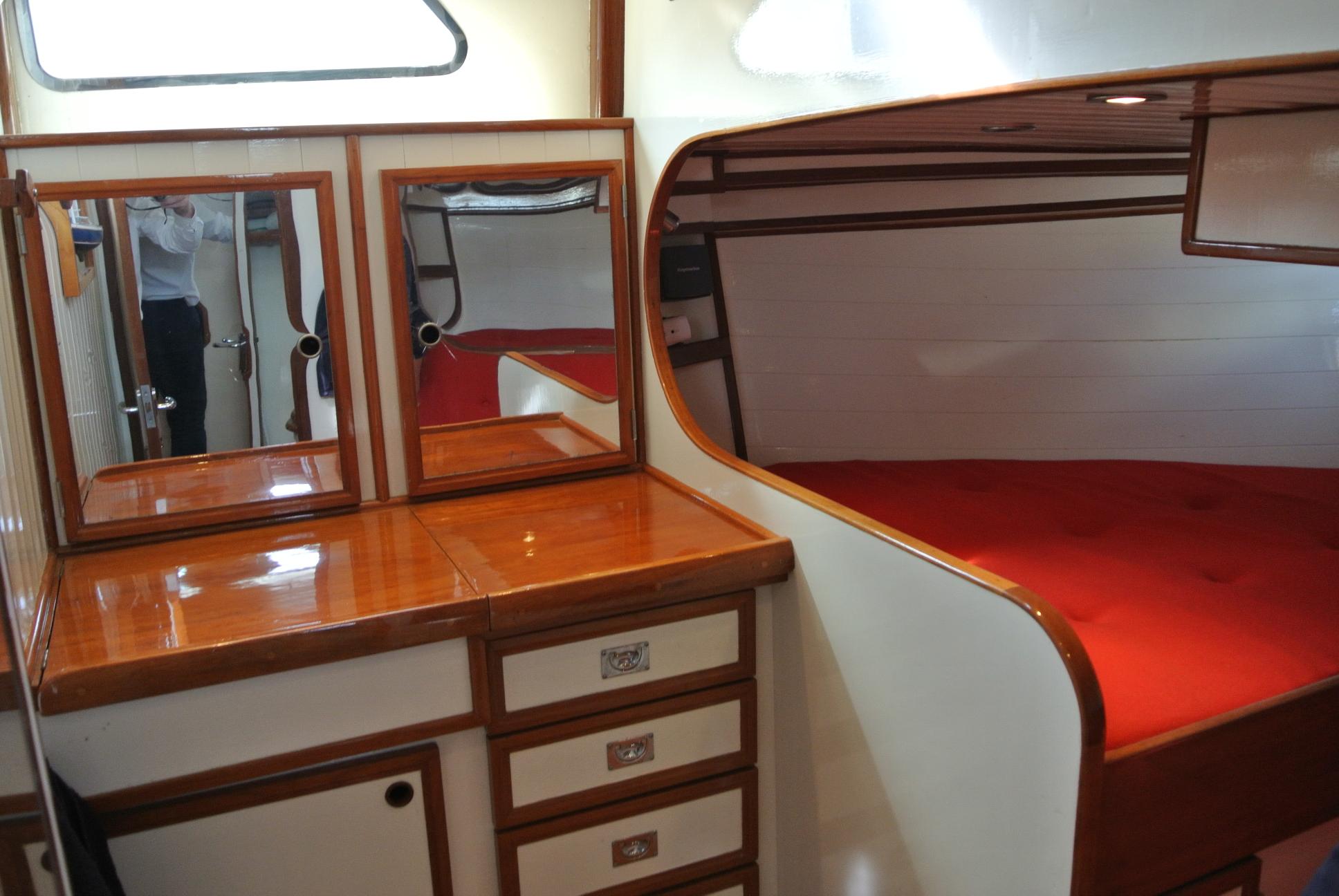

    Aft cabin

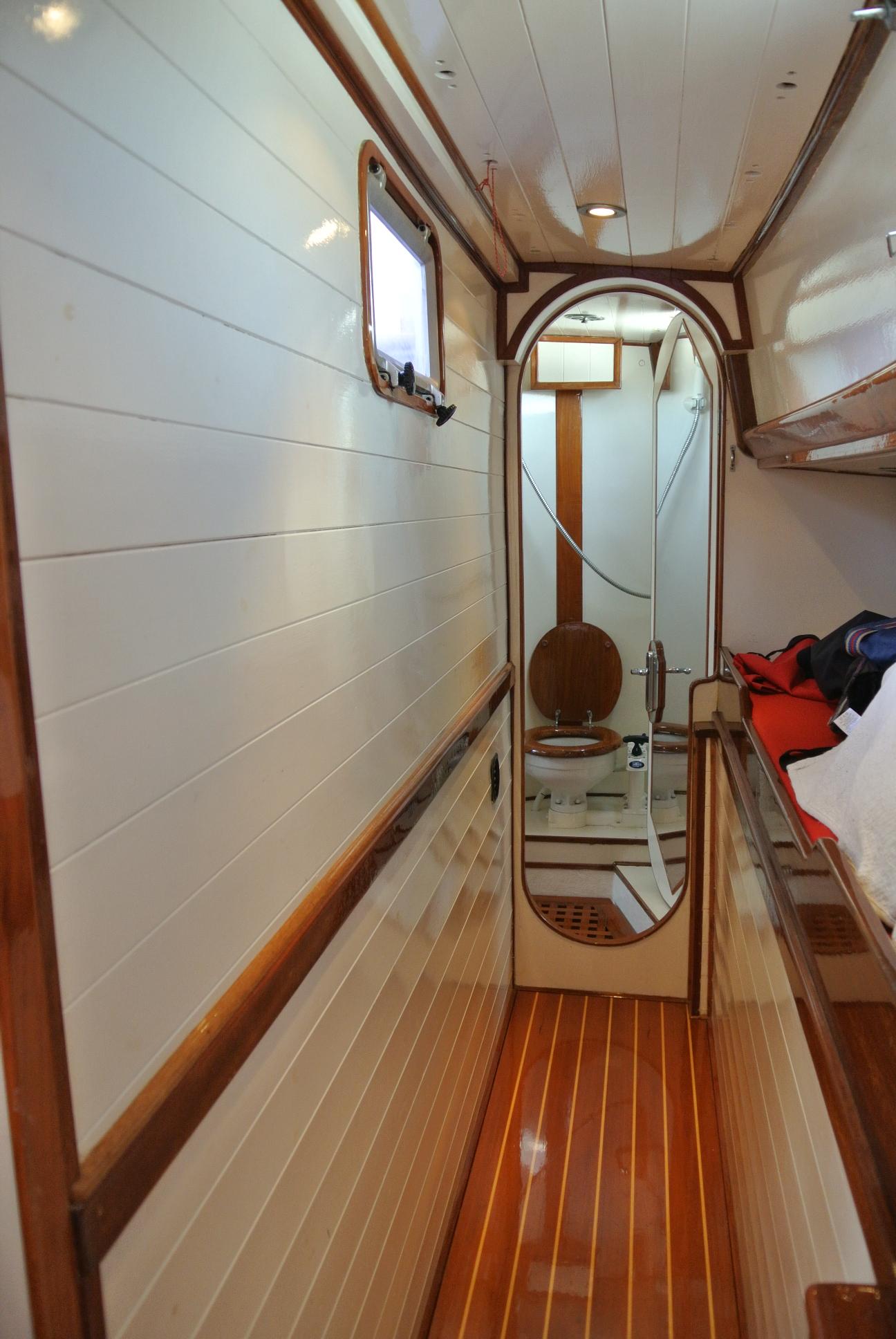

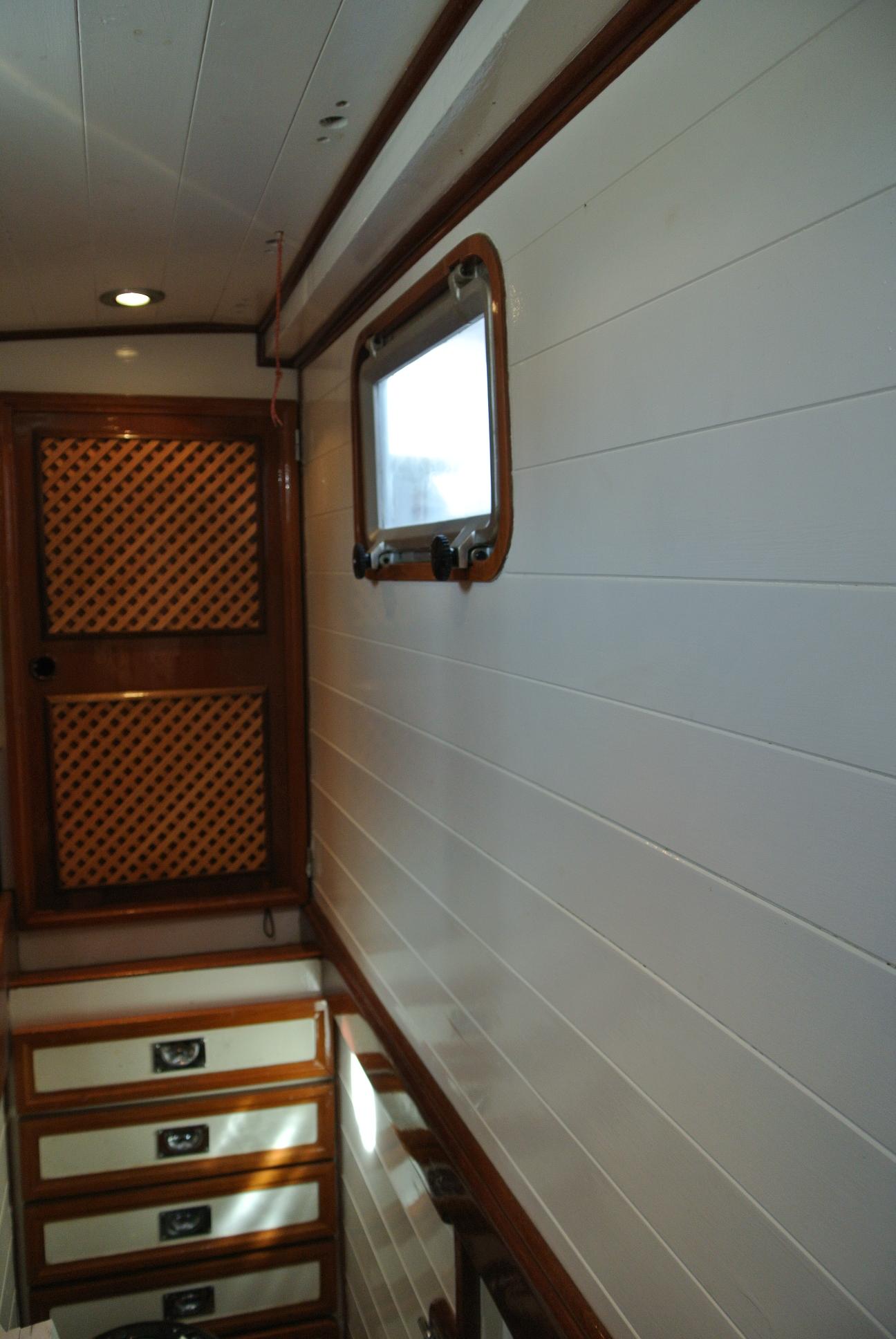

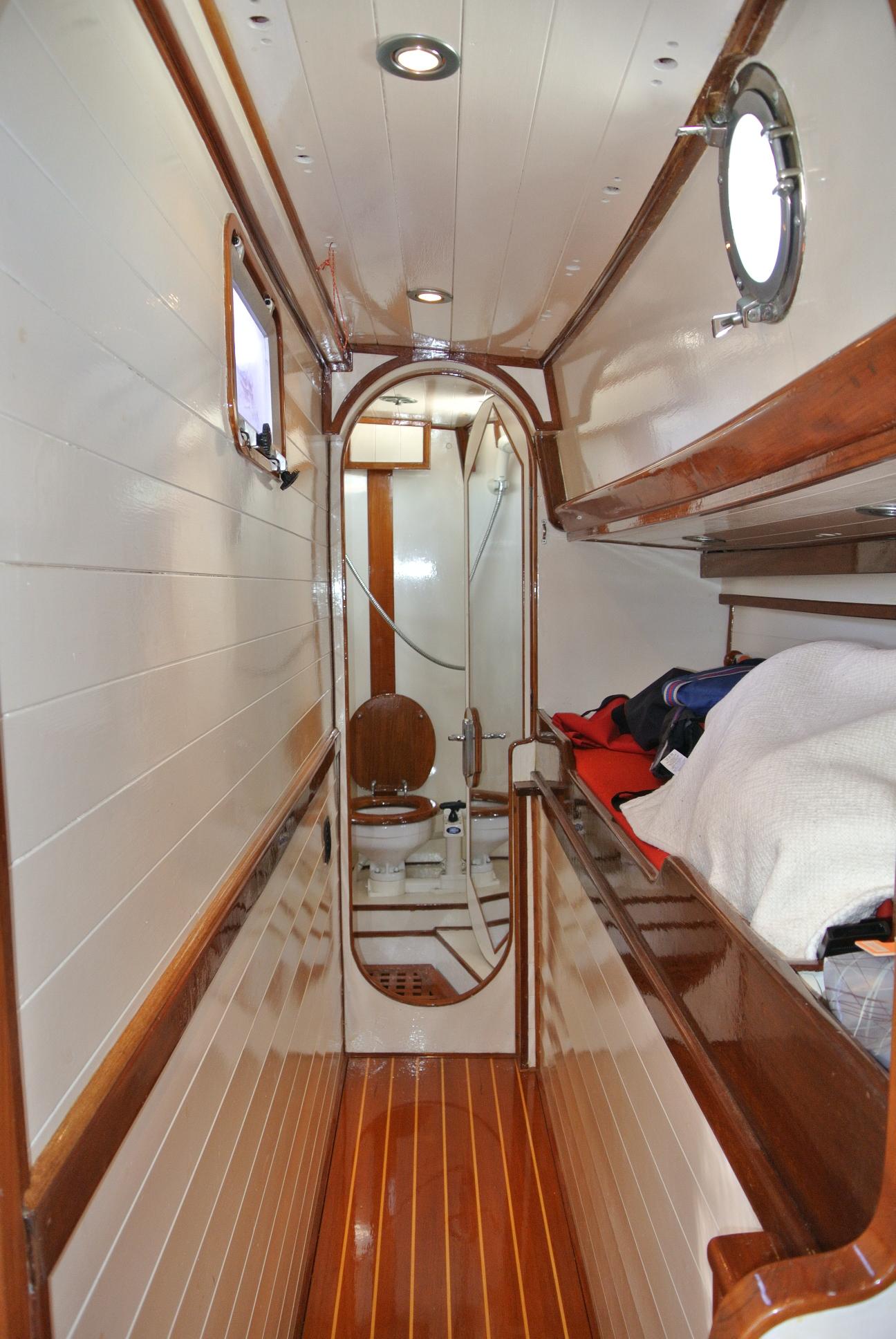

    Access to the aft cabin via a passage way to port. This passage way has a pilot berth.
    The aft cabin has a double berth to starboard and a single berth to port.
    Hot Air Heating Outlet
    Lattice battens under berths for ventilation

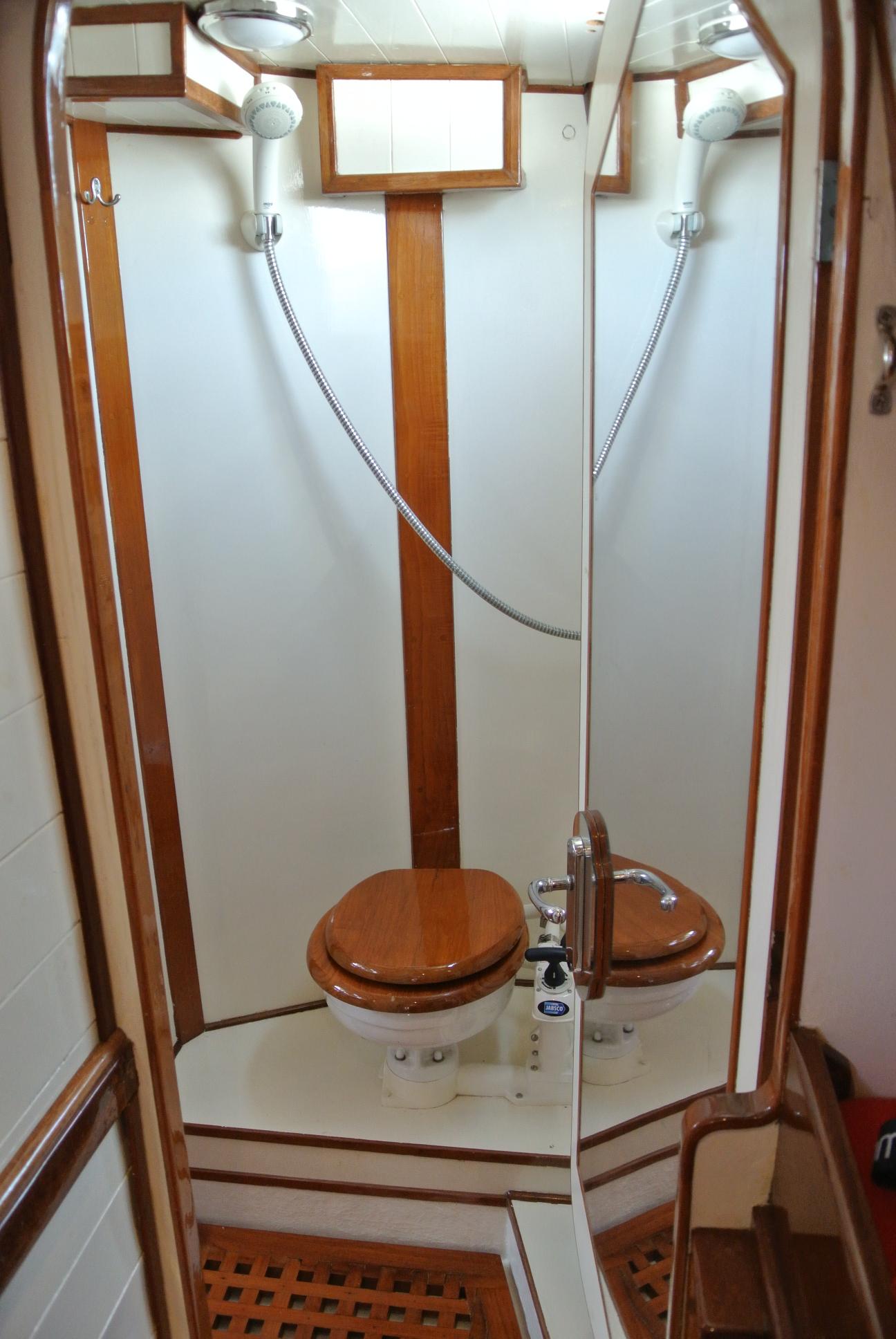

    Owners shower and head.
    Marine toilet

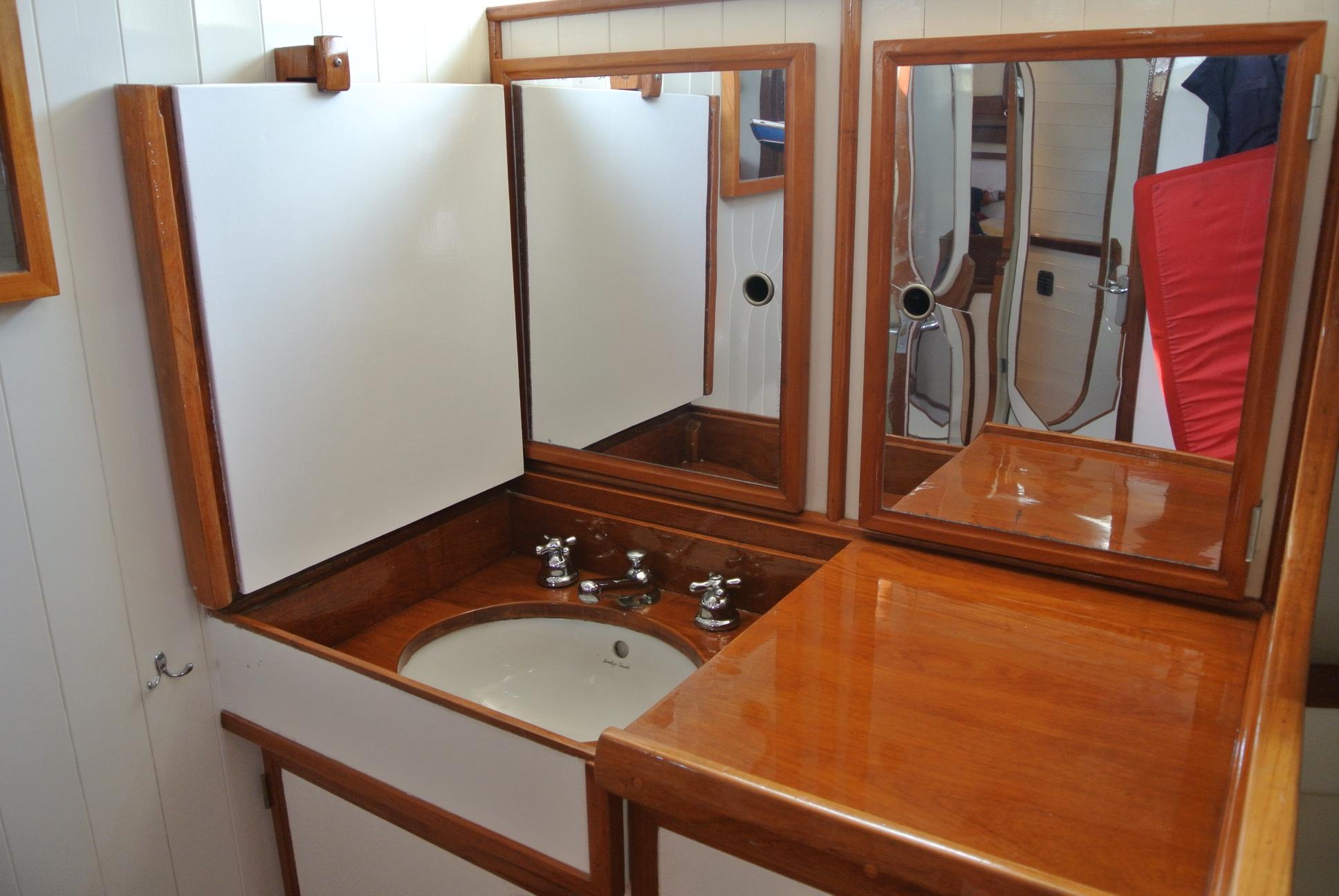

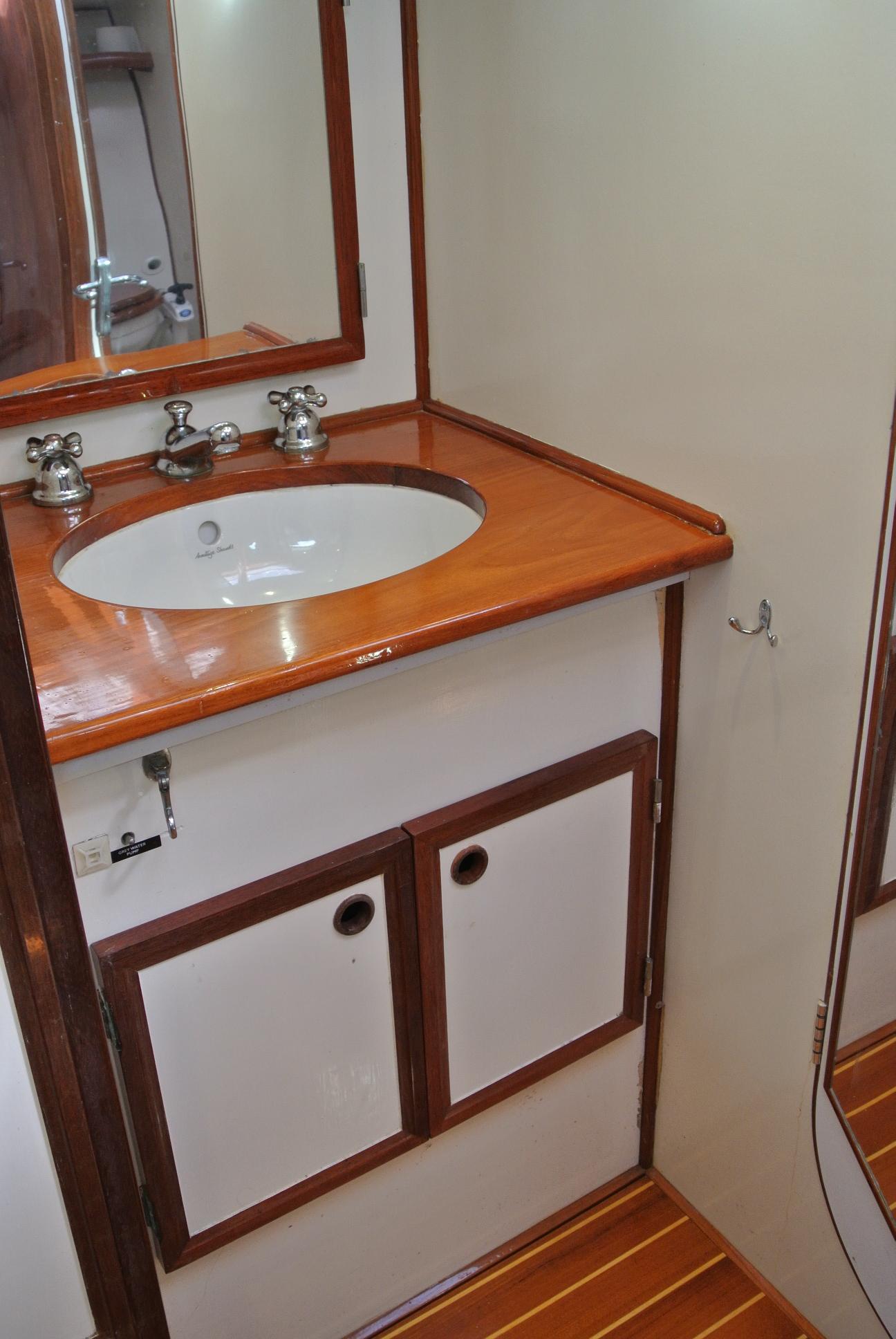

    Vanity unit with sink in the aft cabin.
    Hanging locker and drawers

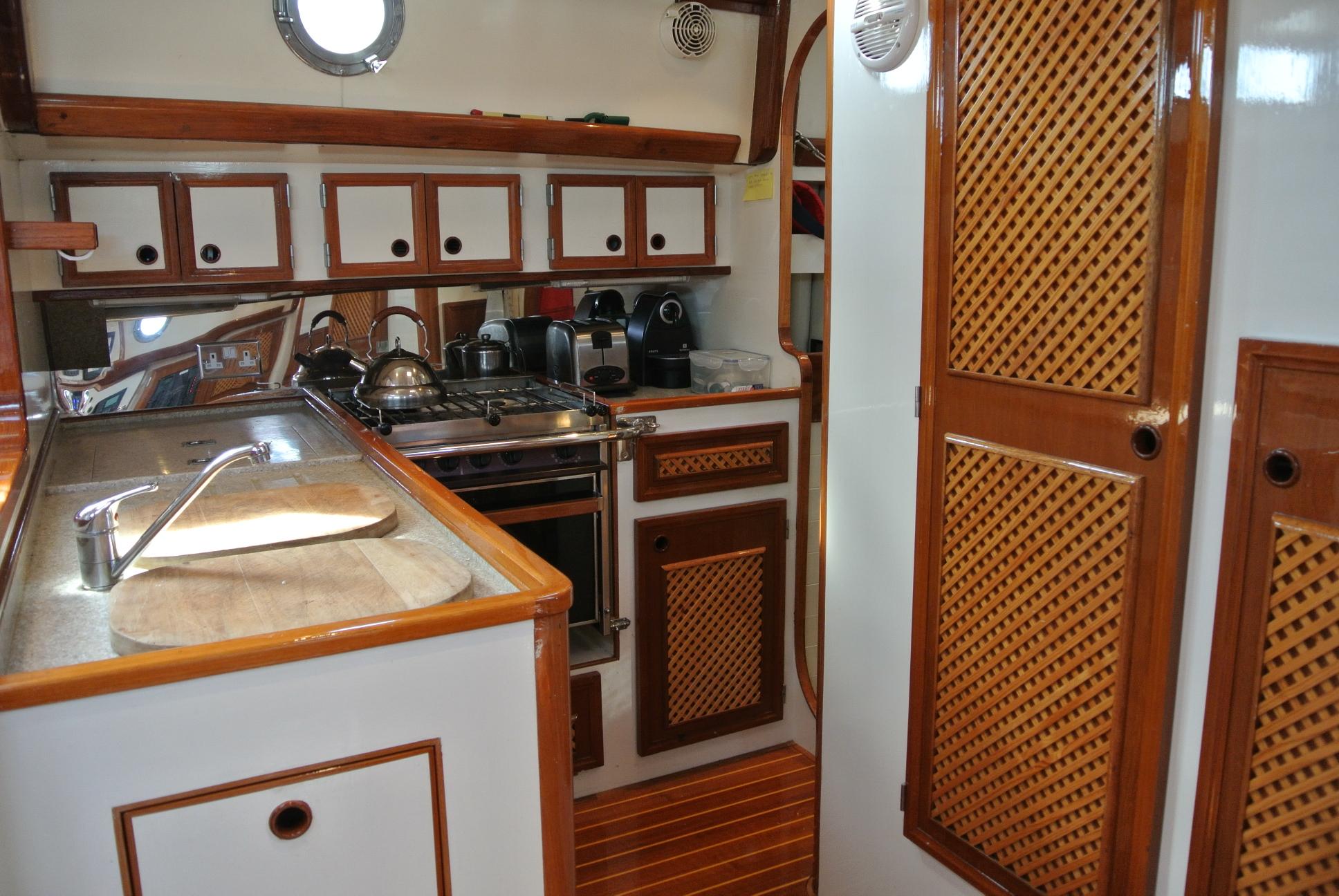

    Galley

    L- shaped Galley to starboard (next to companionway steps)
     Force 10 4 burner gas cooker with grill & oven
    Fridge Freezer
    2 x Stainless steel sinks
    Hot water from the engine and shorepower

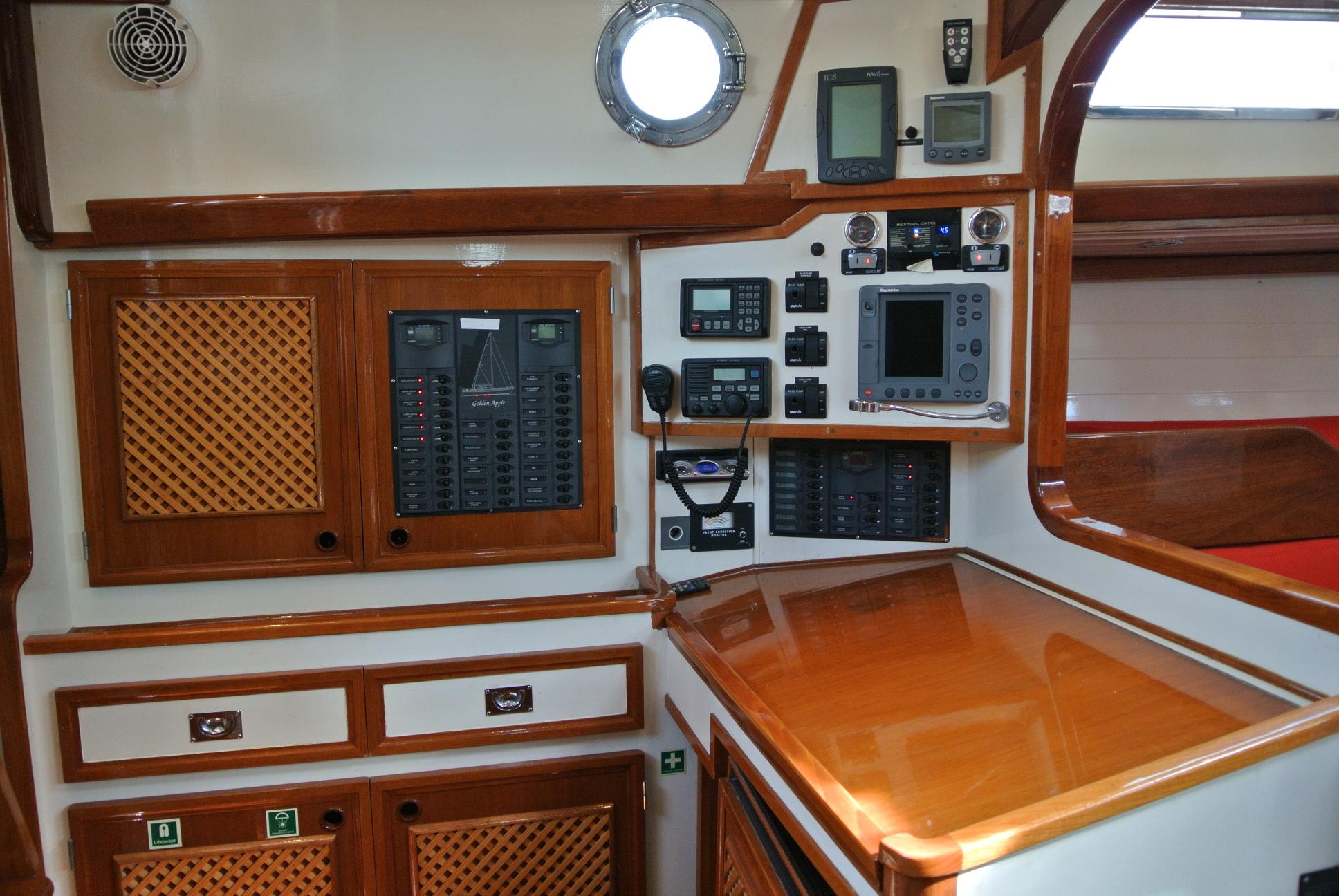

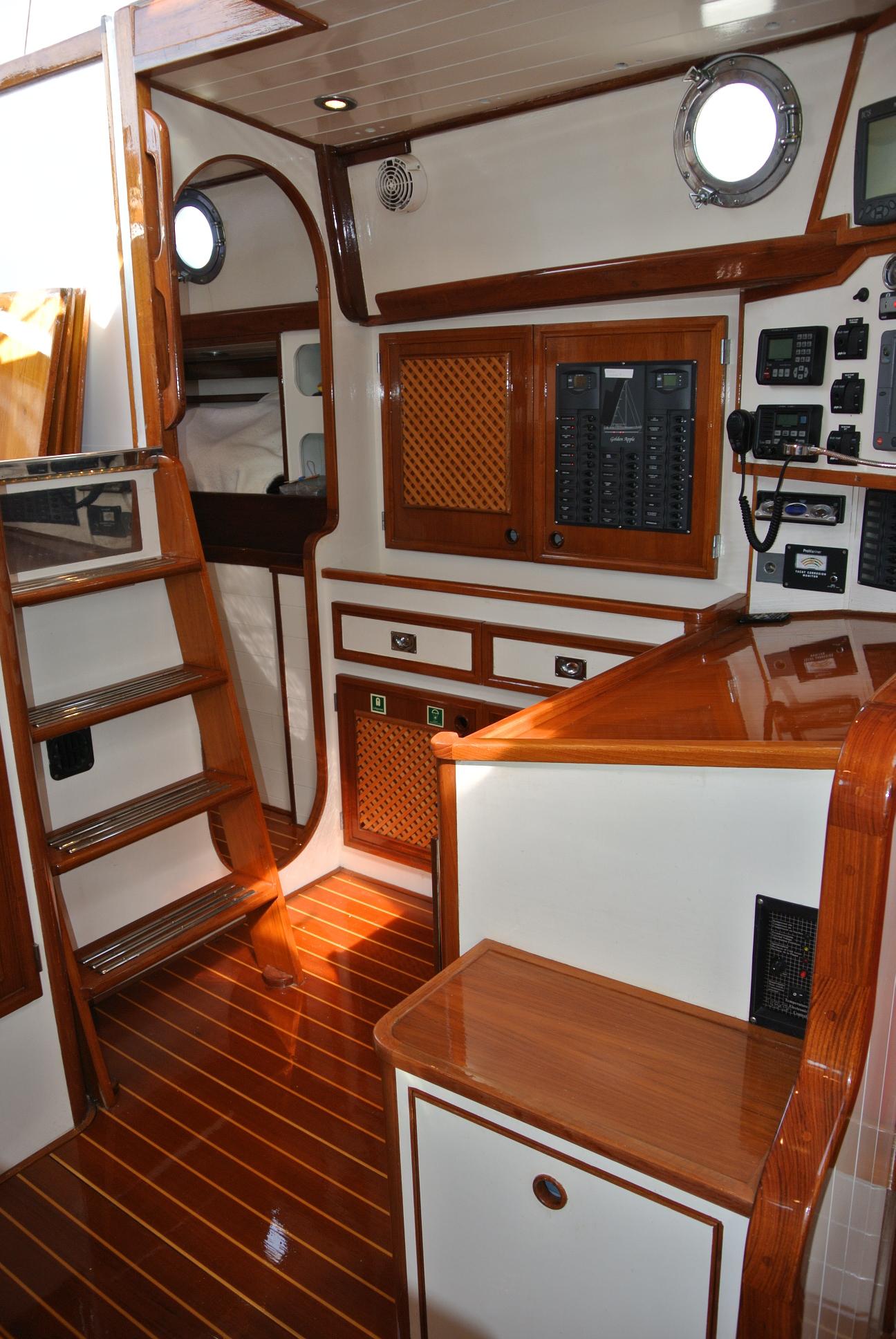

    Nav table equipment

    Icom M503 VHF
    Icom DSC Controller DS-100
    Raymarine Chart Plotter RC 530
    ICS Nav 6 Navtex
    Raymarine ST60 Multi
    Sony Radio/CD player

    Switch Panel
    Switches for 3 electric bilge pumps
    Victron Control Multi Digital unit for Battery Charger/Inverter
    Handheld bow thruster control unit
    Handheld Davit control unit
    12 V. Socket
    Pro Mariner Yacht Corrosion monitor
    LED Nav light





    Electrics

    Completely rewired  including custom made control panel at the chart table
    12 Volt Engine Battery
    24 Volt Services Batteries
    Fischer Panda 800-230Volt-50Hertz
    Shore Power Cable with various adapters
    Balmar Max Charger Multi-stage regulator
    Sterling Digital 4 Step charge alternator to batteries
    Zinc saver-galvanic isolator

    Safety equipment

    1 x Large capacity manual bilge pump
    3 x Large capacity electric bilge pumps
    2 x 6 Person Life Rafts (canister type)

    Horseshoe Buoy
    Jon Buoy
    Fire blanket
    3 x Fire extinguishers
    Flare Pack
    Jack-stays (webbing)
    10 x Auto-inflate life jackets (may need servicing)

    8 x harnesses

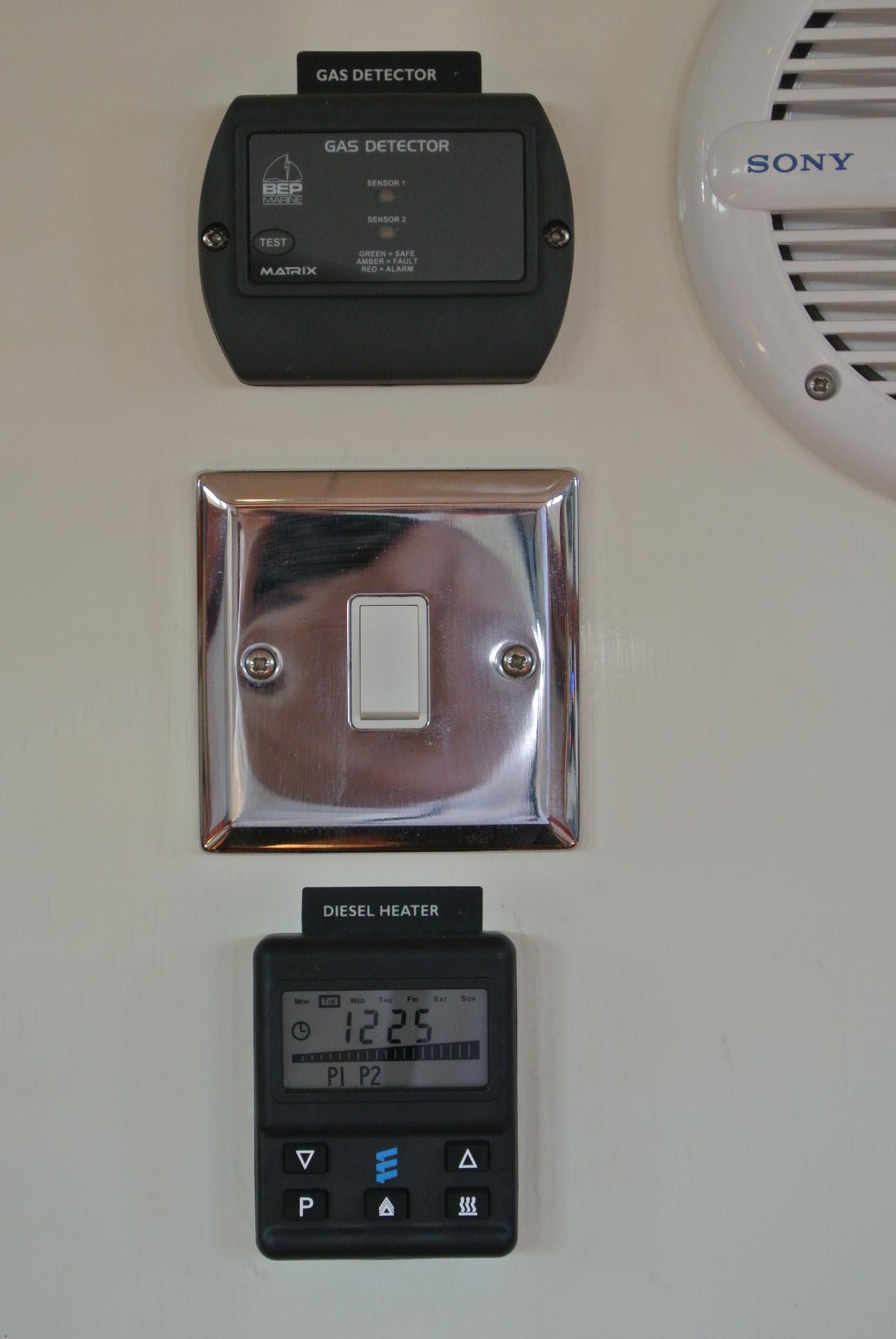

    Gas detector & alarm

    Other items

    10.7hp sidepower bowthruster

    Wagner Hydraulic manual steering system with emergency bypass and raymarine 3 autopilot

    Fresh water deck wash

    Force 10 Marine gas BBQ

    Four gas bottels in ventilated locker

    Tankage

    1300 litres fresh water

    1200 litres diesel

    Features

    • Radar detector
    • Radar
    • Spinnaker
    • Shore power inlet
    • Plotter
    • Cockpit cover
    • Refrigerator
    • Teak sidedecks
    • Liferaft
    • Lazy bag
    • Outboard engine brackets
    • Cd player
    • Swimming ladder
    • Davits
    • Cockpit table
    • Battery charger
    • Vhf
    • Electric bilge pump
    • Battened mainsail
    • Log speedometer
    • Compass
    • Radio
    • Navigation center
    • Cockpit speakers
    • Wind speed and direction
    • Tender
    • Furling genoa
    • Autopilot
    • Inverter
    • Gennaker cruising spinnaker
    • Teak cockpit
    • Lazyjacks
    • Mainsail cover
    • Bow thruster
    • Marine head
    • Depthsounder
    • Heating
    • Gps
    • Generator
    • Manual bilge pump
    • Steering wheel
    • Spinnaker pole
    • Oven
    • Genoa
