Description
Boat Description
Royal Navy Clovelly Class Fleet Tender built by Charles D Holmes Shipyard in Hull. Converted to an ocean cruising expedition style yacht with extensive renovations.
General Info:
Built 1970
Steel Construction with rubber fendering
9600 Litre fuel capacity and economy of 5 litres per mile giving a 1920 mile range at cruising speed.
Machinery:

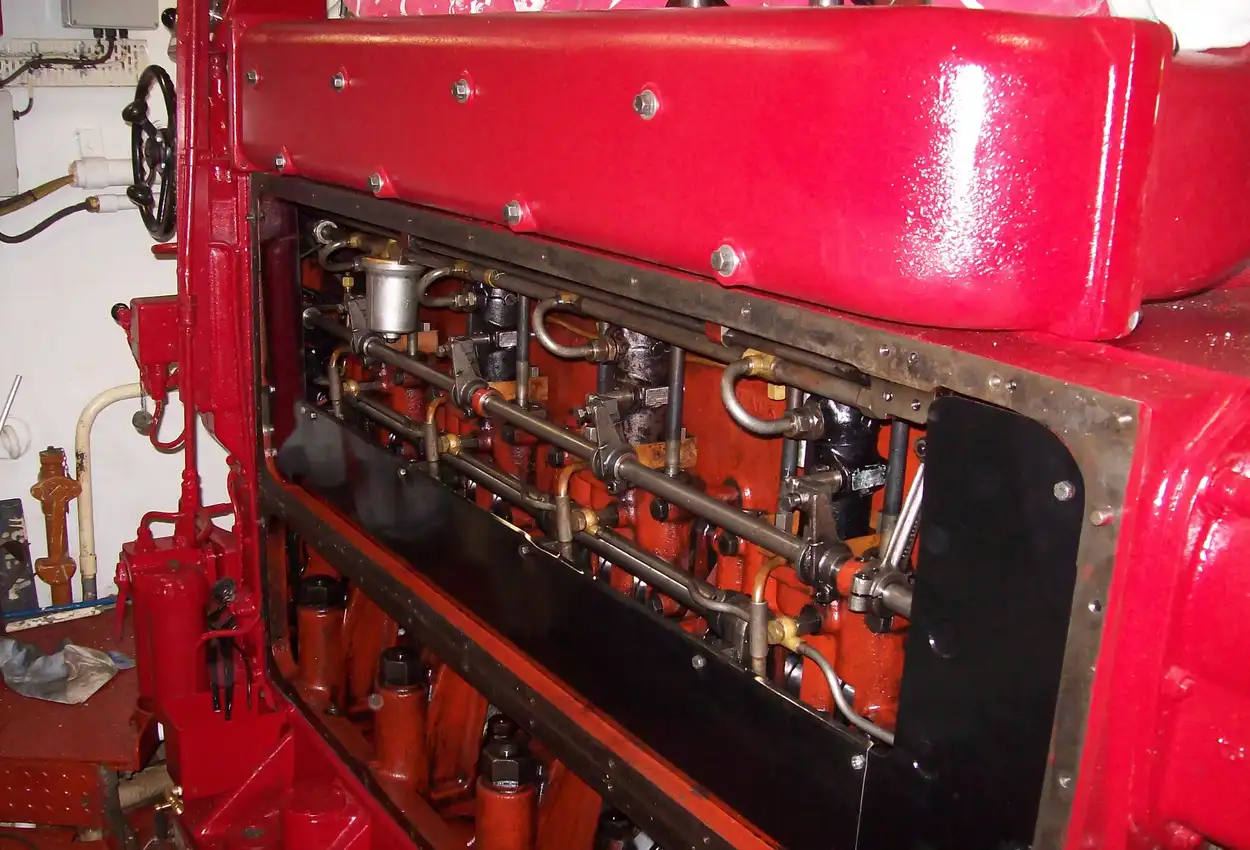

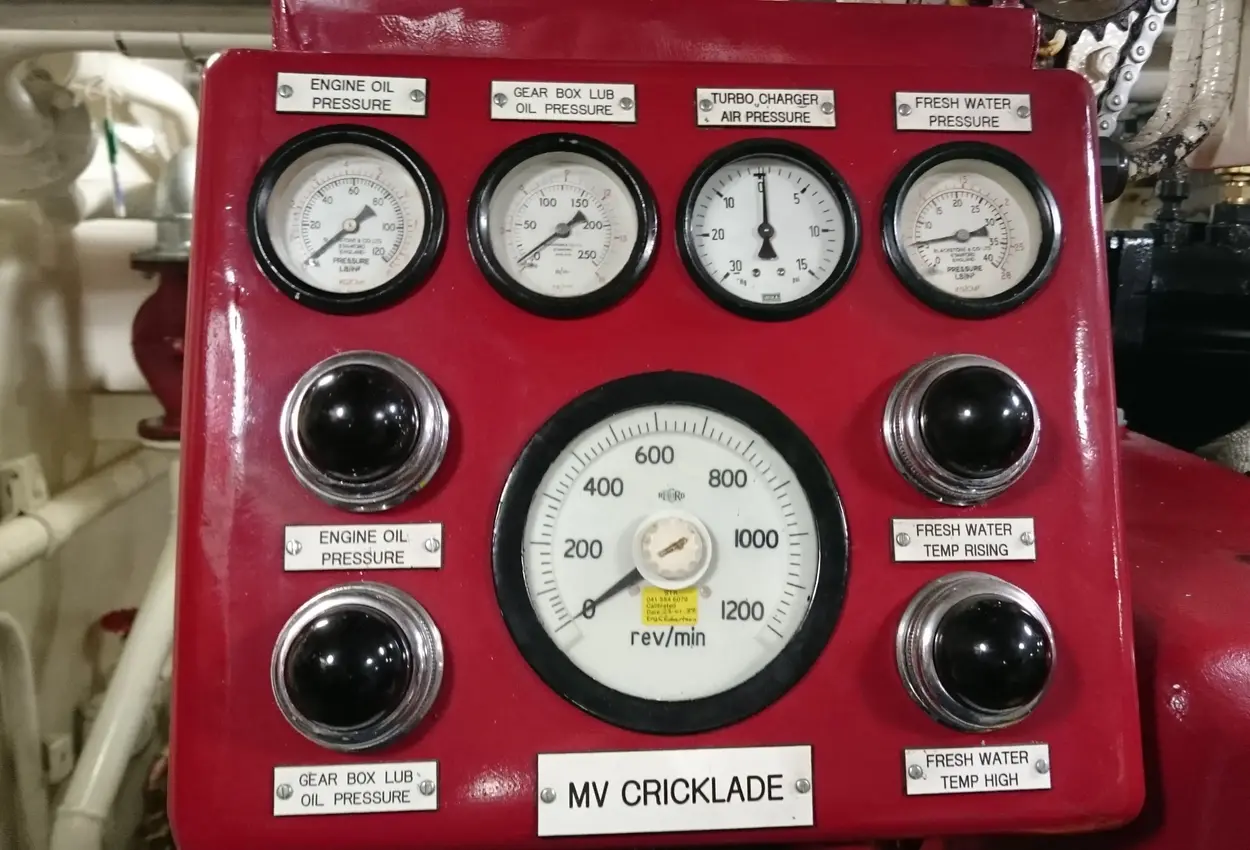

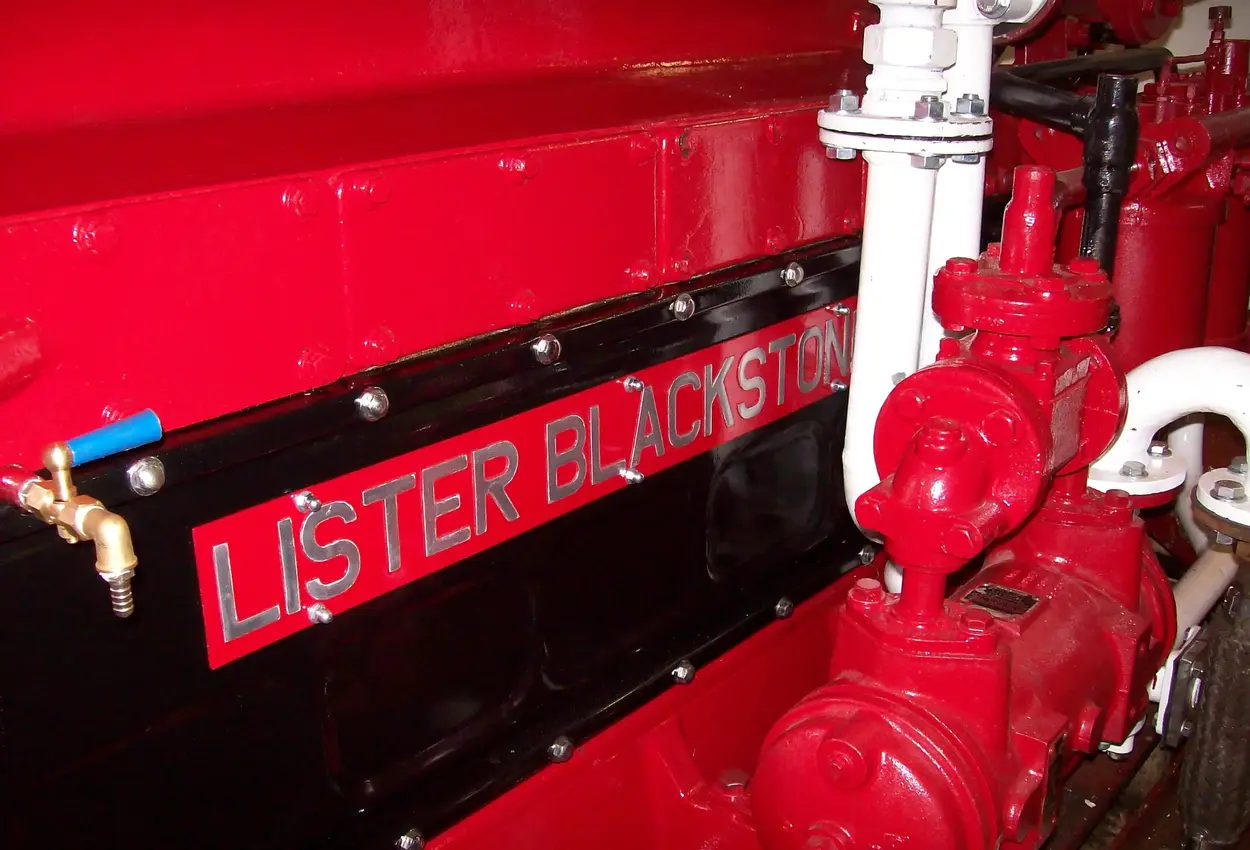

- Lister Blackstone ERS4 MGR 4-cylinder turbo 750rpm 330HP
- Blackstone gearbox IM2 2:1 ratio attached to Nodal Damper flywheel
- Harper Philips 3 blade propellor 59 inch diameter 39.2 inch pitch
- Donkin manual and powered hydraulic system
- Main generator Perkins 6354 70kw 3 phase alternator
- Auxiliary generator Kubota 1903 25kw 3 phase alternator
- Shore power 220v and 415v circuit

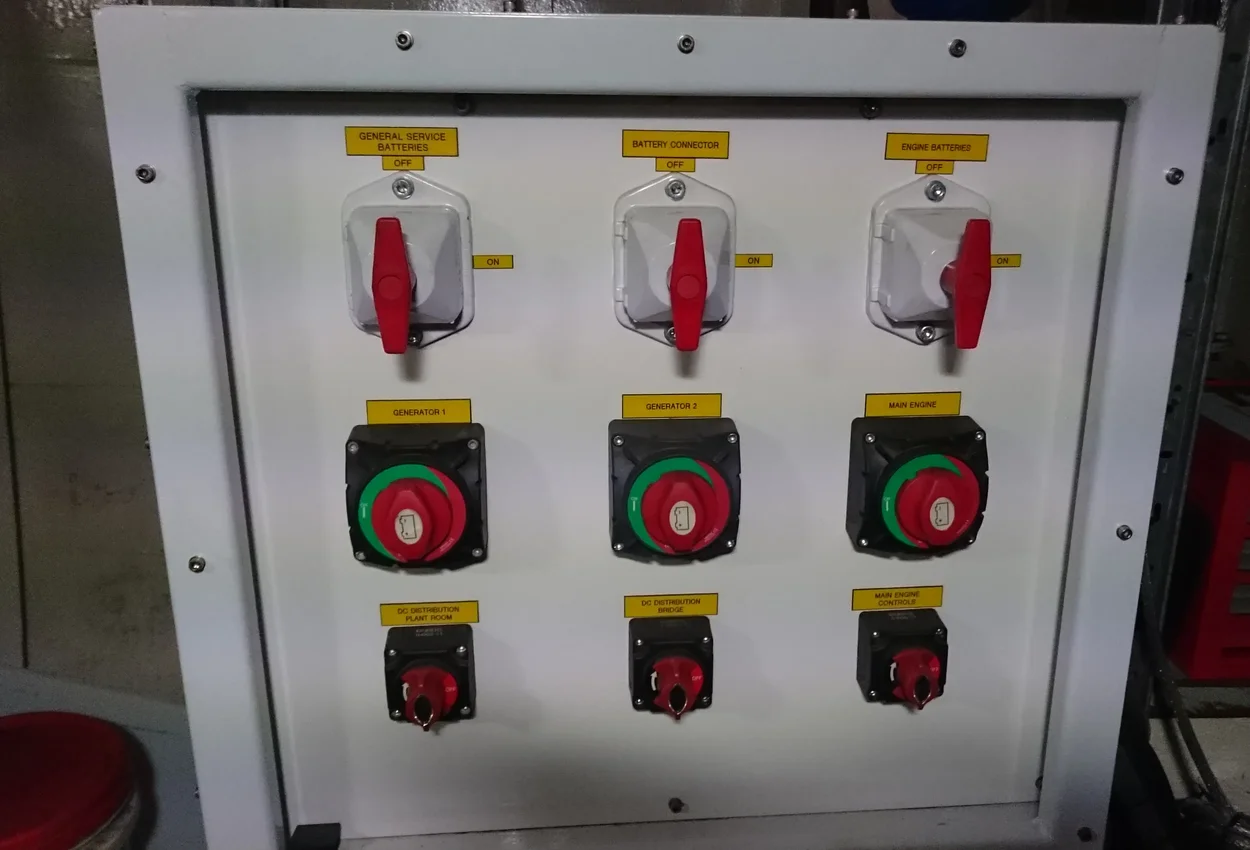

- Inverter Victron Quatro 5kva with 6 x 220ah gel batteries
- Atlas 3 ton hydraulic deck crane

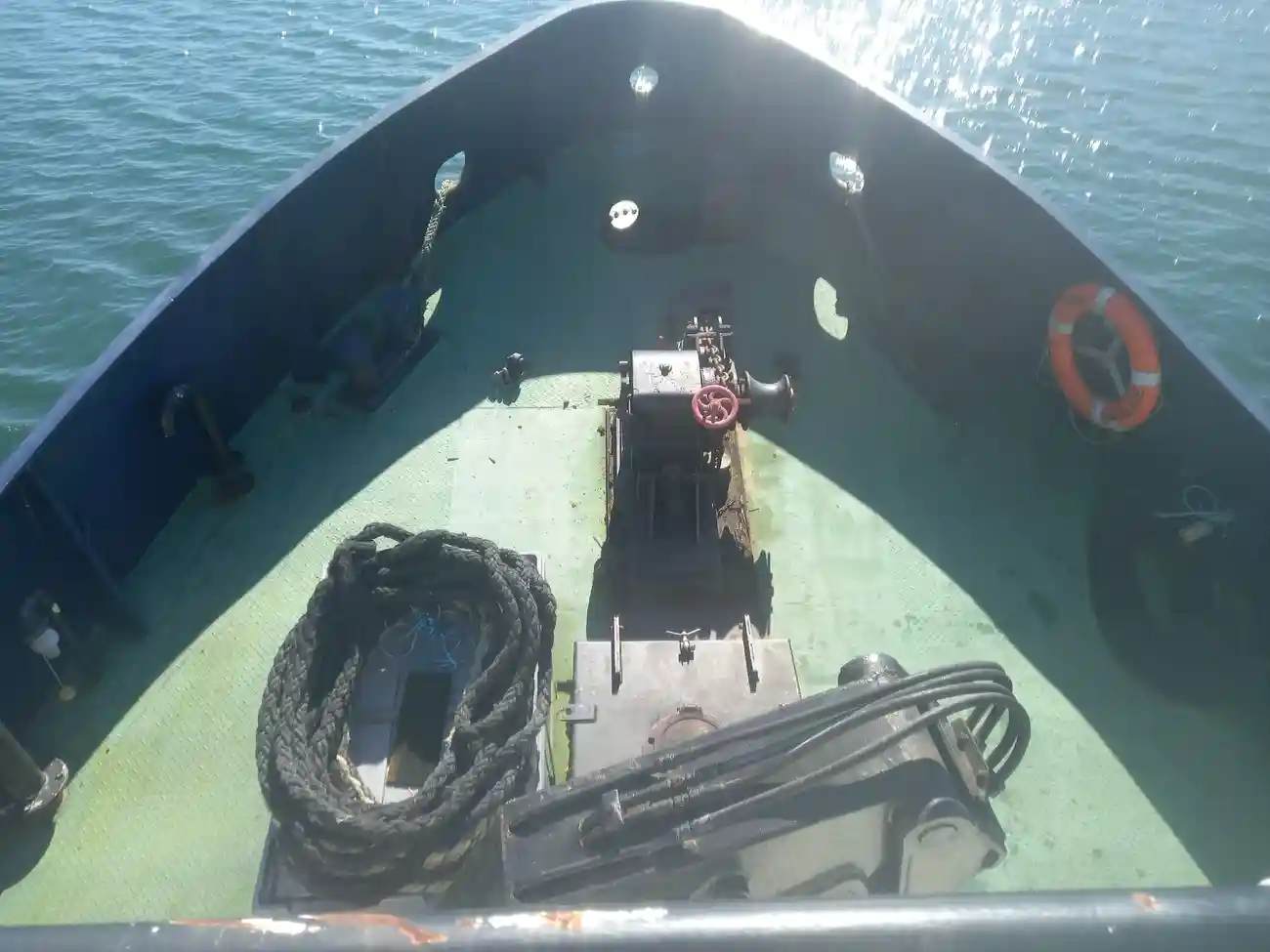

- Hydraulic anchor windlass
- Atlas hydraulic deck winch aft
- Vetus bowtruster BOW550HM 45hp hydraulic thruster
- Hydraulic chain drive for main propellor shaft
- Vetus HT1022SD 75cc load sensing hydraulic pump (powered by main generator)
- Vetus HT1010 tank and solenoid manifold
- Fike 8 zone fire alarm
- E/R supply fans 2 off Woods 15 inch 3 phase
- E/R extract 1 off Woods 8 inch 3 phase
- Hydraulic lift from bosun's locker to deck level.
- Bauer Poseidon PE250TE 300 bar dive compressor
- Pressurised fresh water system
- Central Heating Boiler Kabola HR500 20kw
- Low pressure compressor
- Water Maker Selmar Pacific CS 90L/hour reverse osmosis
Tankage:
- Port main fuel tank: 2,800L
- Stbd main fuel tank: 2,800L
- Extended cruising fuel tanks: 4 x 1000L
- Main fresh water tank: 3,000L
- Extended cruising water tank: 1,200L
- Ballast portside stern: 12,500L
- Ballast stbd side stern: 12,500L
- Ballast forward: 8,000L
Accommodation:

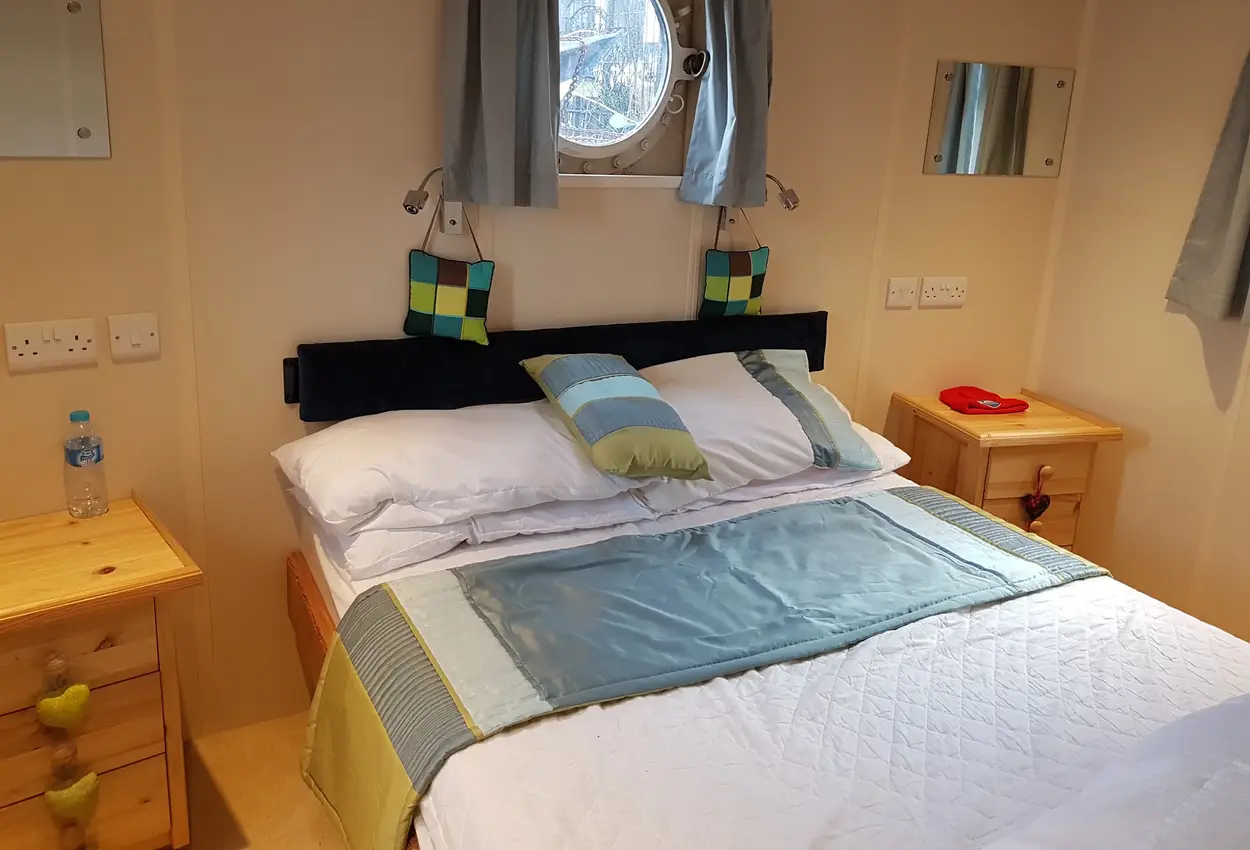

- Master cabin with double bed and en-suite bathroom
- Guest cabin with double bed and en-suite bathroom
- Guest cabin with 2 single beds and en-suite bathroom

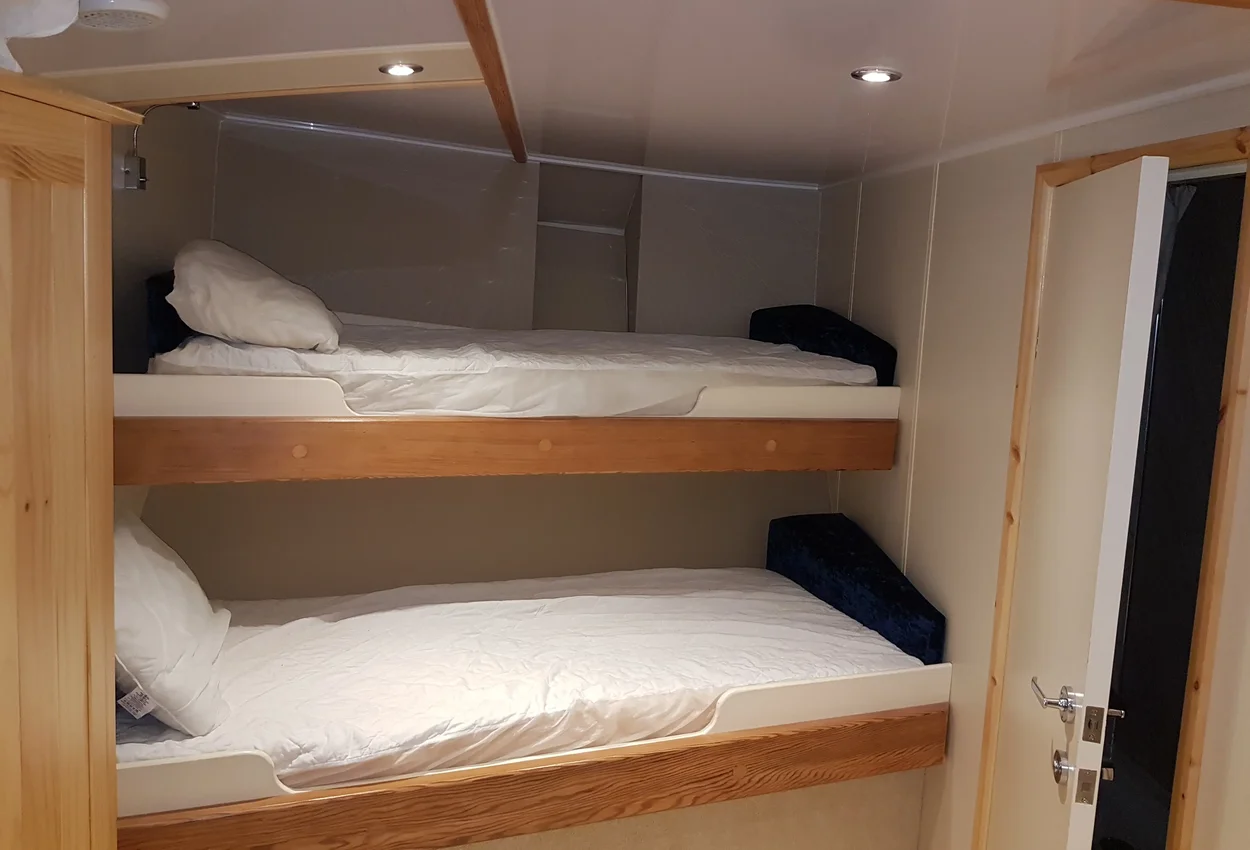

- Guest cabin with 4 single beds and en-suite bathroom
- Fold out sofa bed in main saloon.
- Total berths: 12

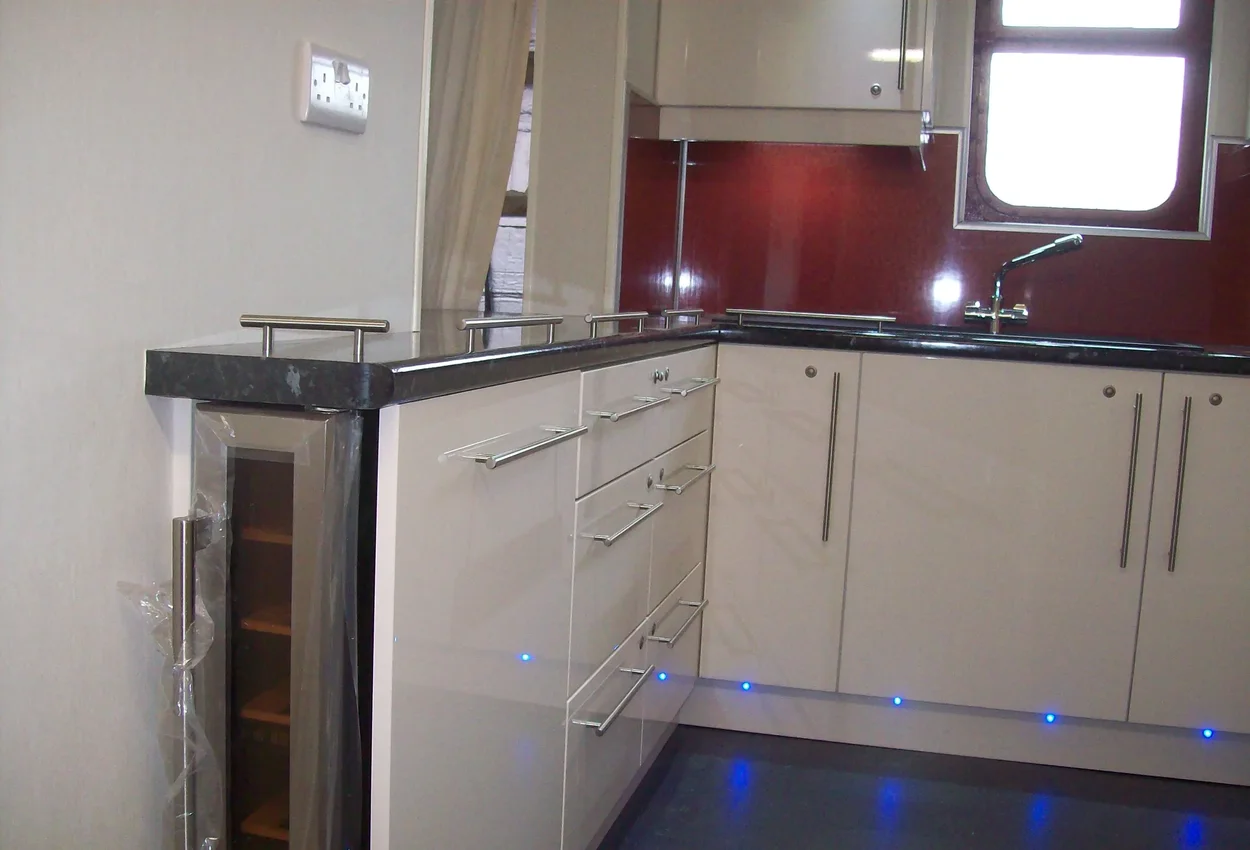

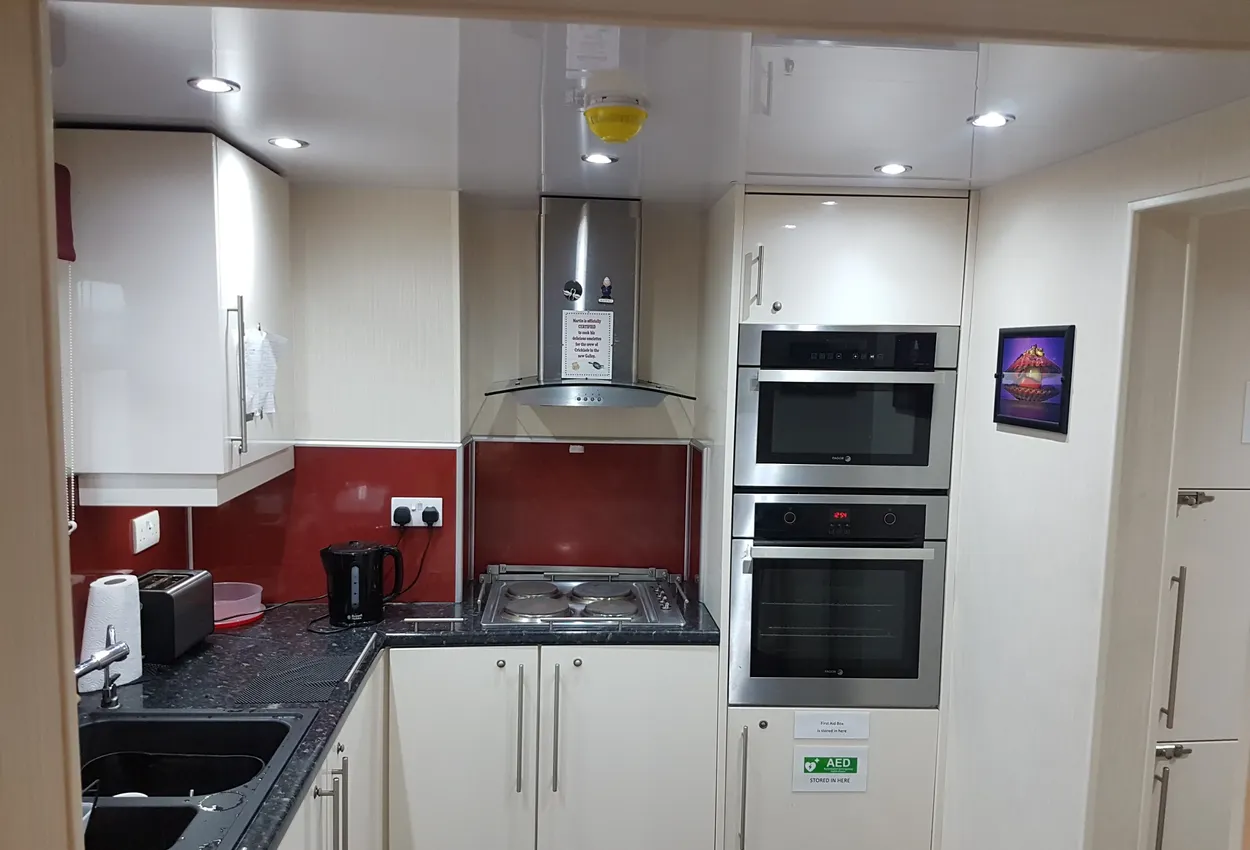

- Modern kitchen with all appliances including wine cooler

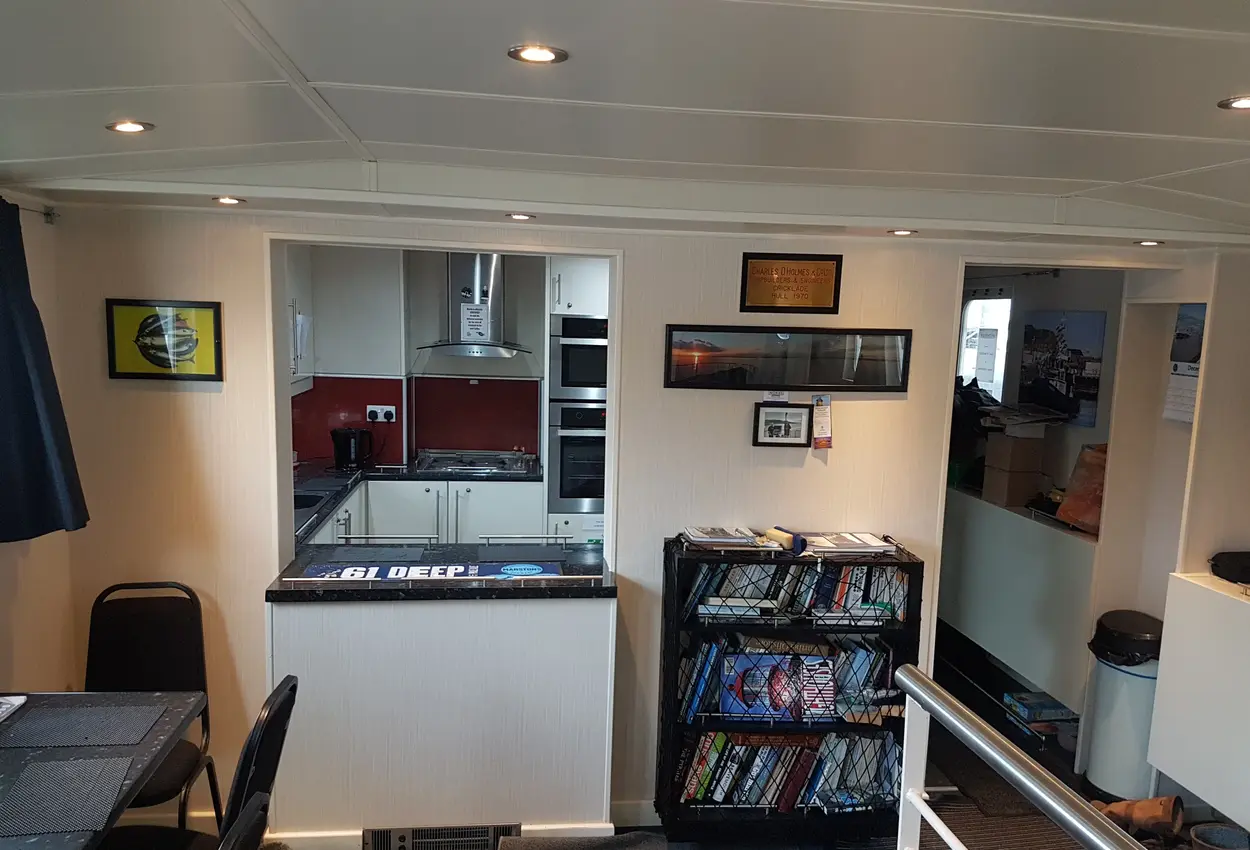

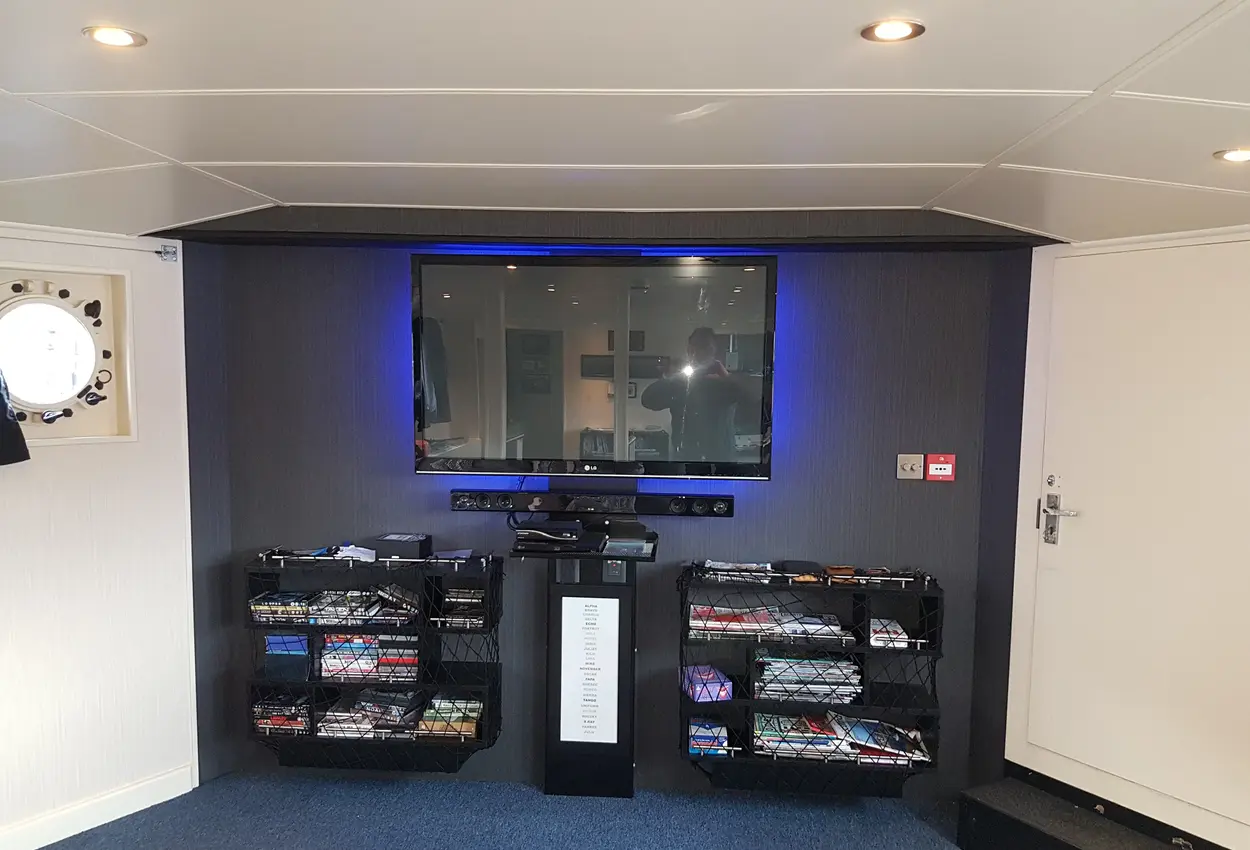

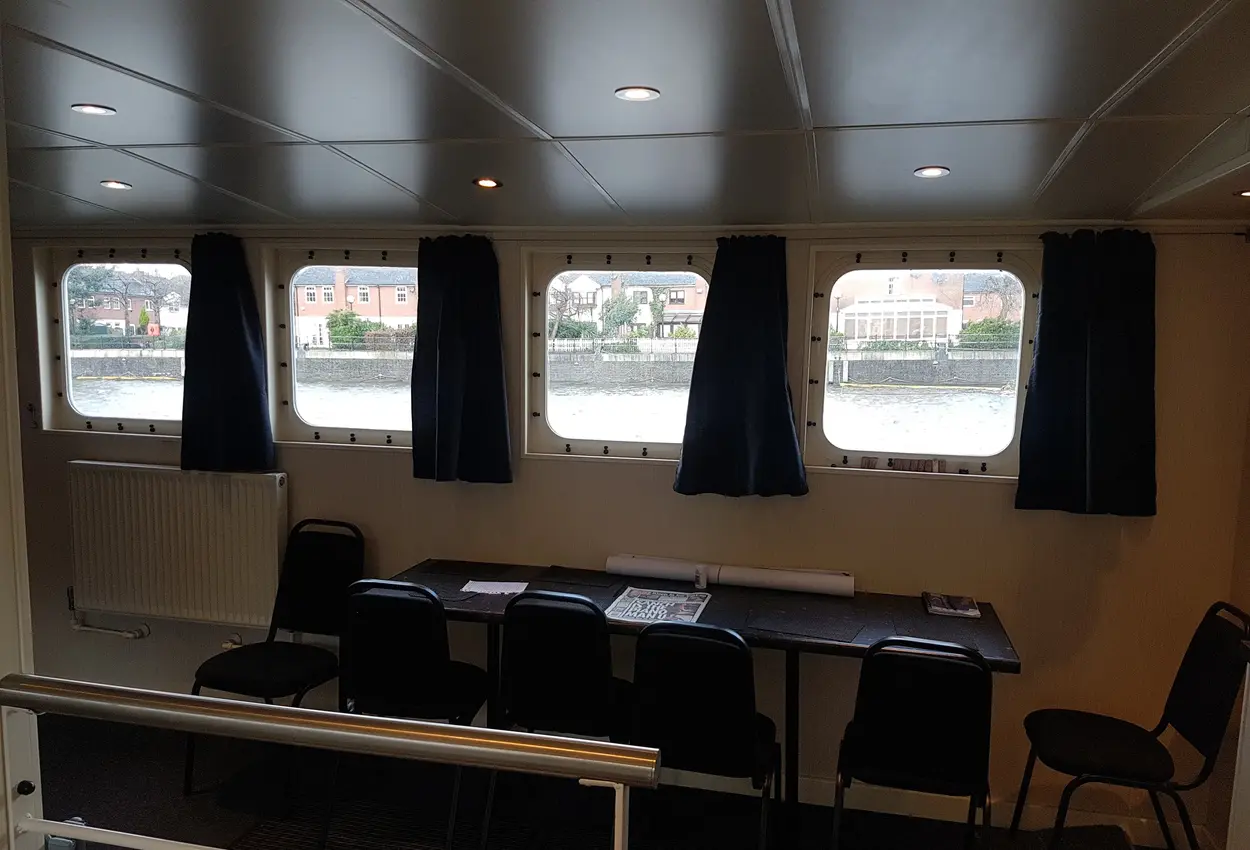

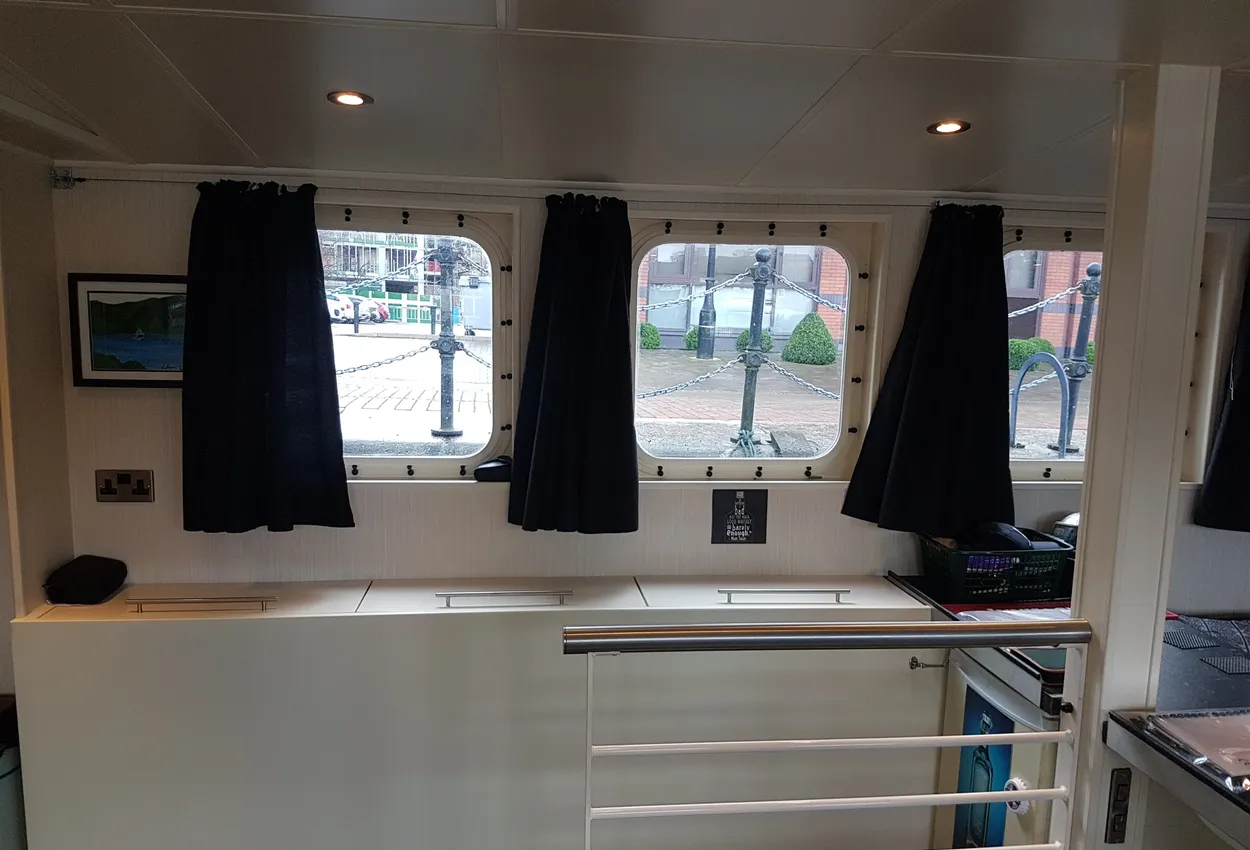

- Large saloon lounge area with seating, bar, entertainment.

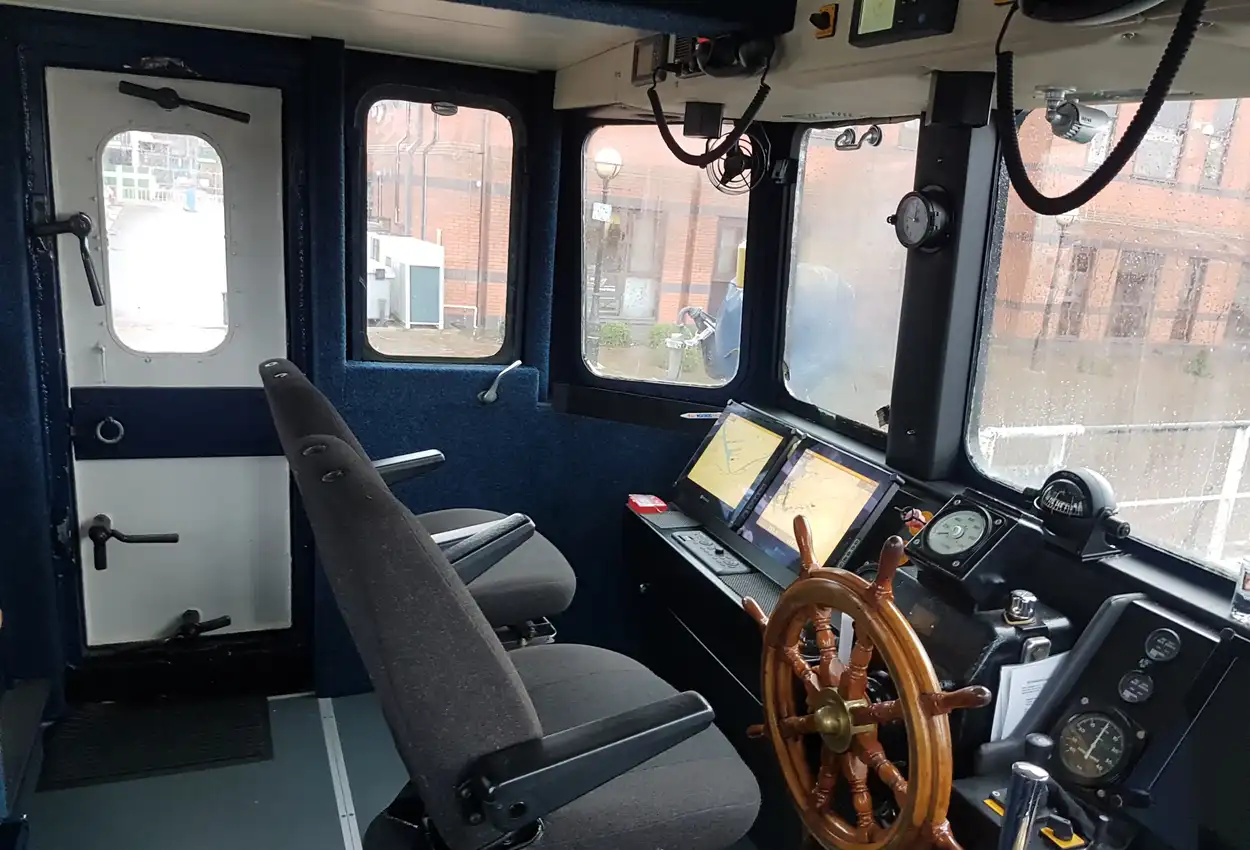

Electronics:
- Navnet 3D radar
- Navnet plotter system
- MFDBB processor and keyboard, DRS6A open array scanner, HUB101 Ethernet, 2 Neovo flat screens
- Satellite Gyro compass
- SC30 additional satellite gyro compass
- Autopilot Navpilot 700, FAP7001 control, FAP7002 processor, FAP6112 rudder sender
- Depth sounder DFF1 digital echo, 50/200 khz digital transducer
- AIS class B FA50 transceiver AV7M antenna
- VHF with DSC 2 x Sailer 6125 handsets 2 x antenna & emergency power back-up
- Wind Speed WS200 weather station, RD33 remote display, Neovo screen
- Engine room CCTV
Website:
mvcricklade.wordpress.com
