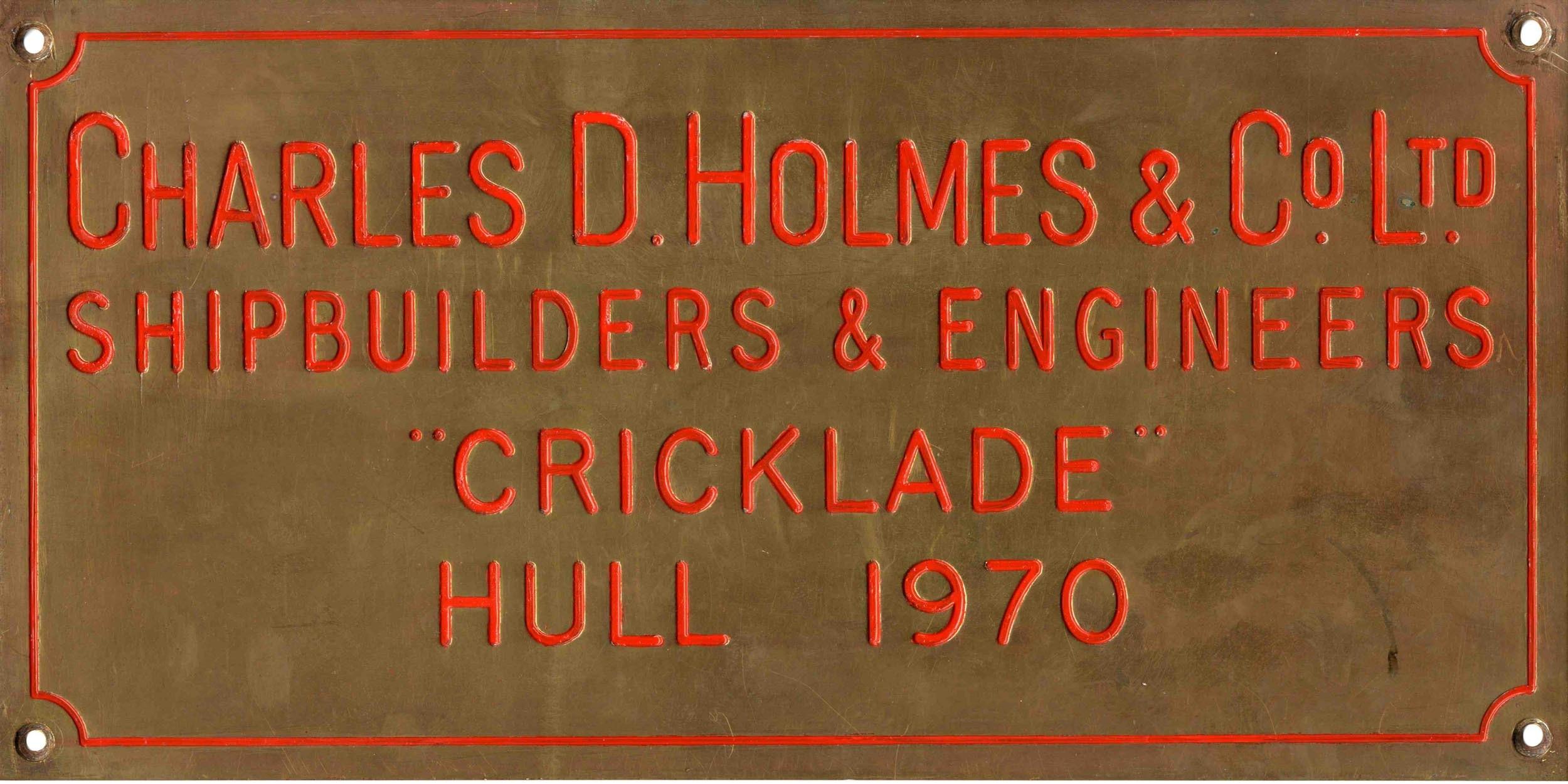

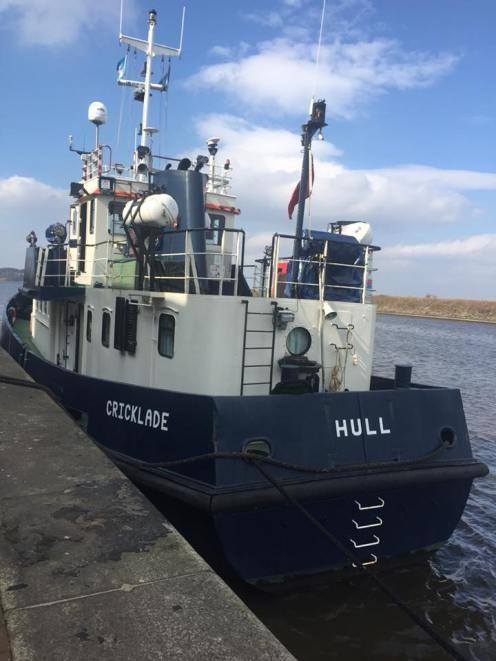

Built Charles D Holmes of Hull 1970
Steel construction. Rubber fendering fitted
Single screw, Single rudder

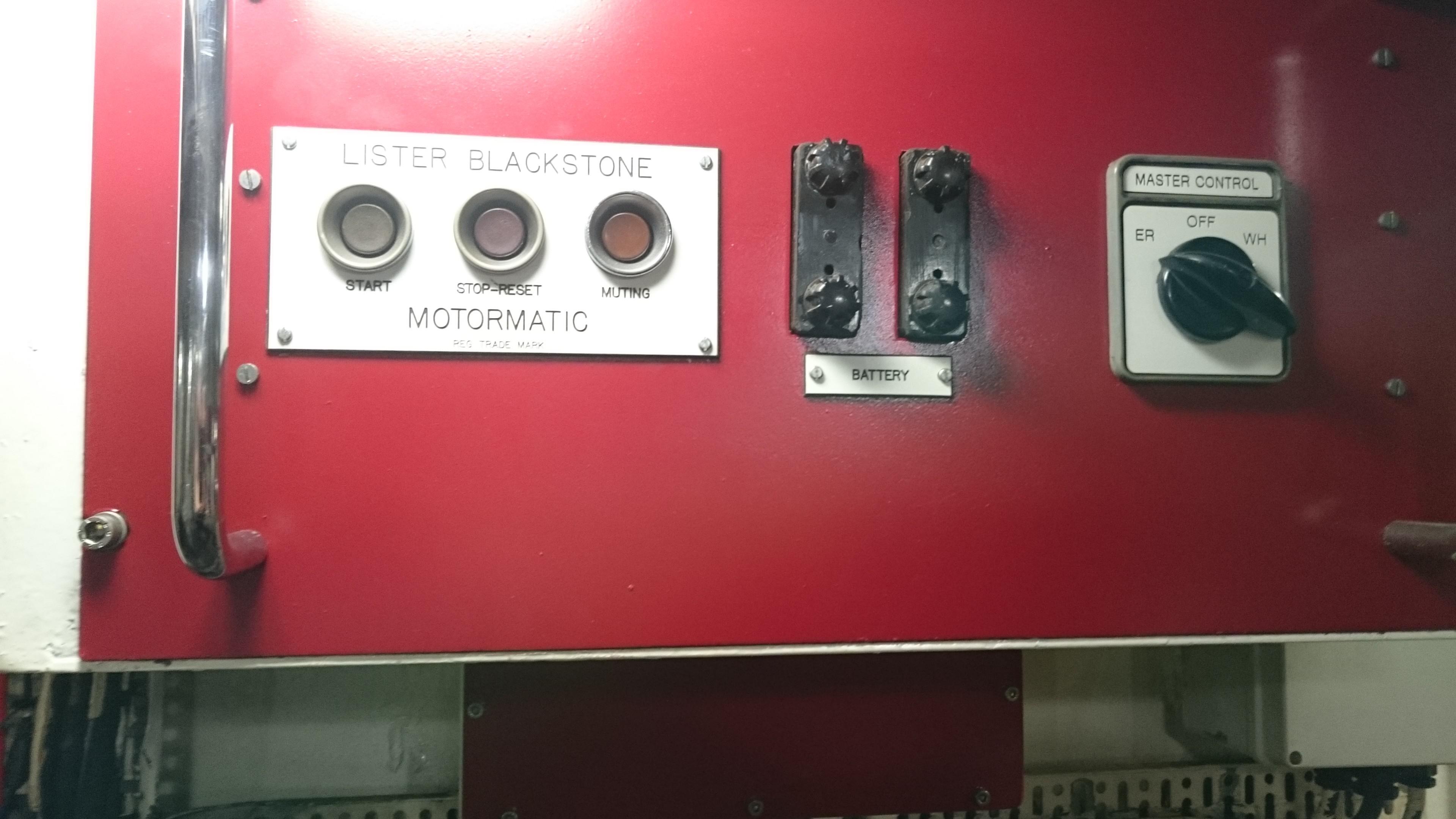

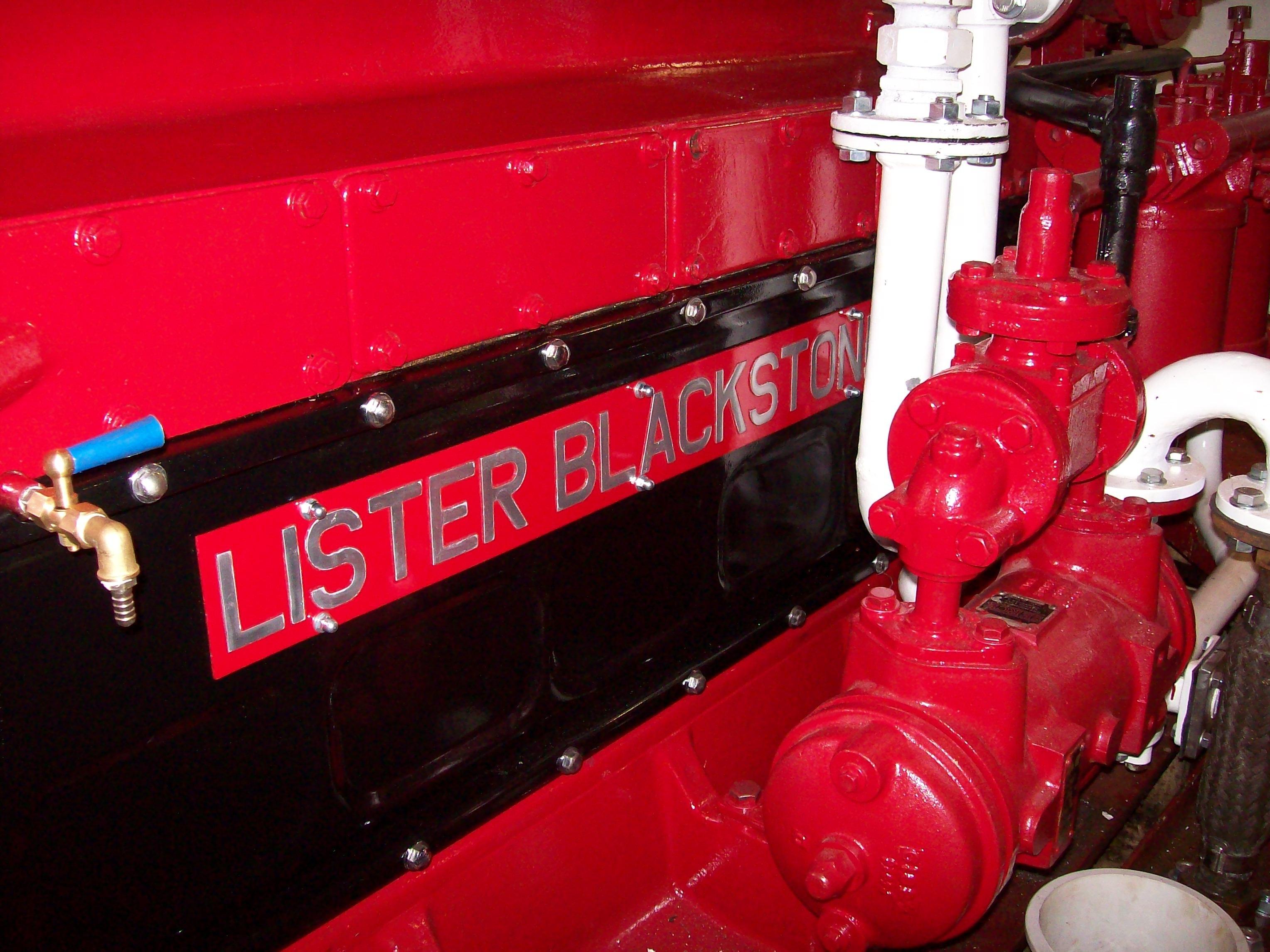

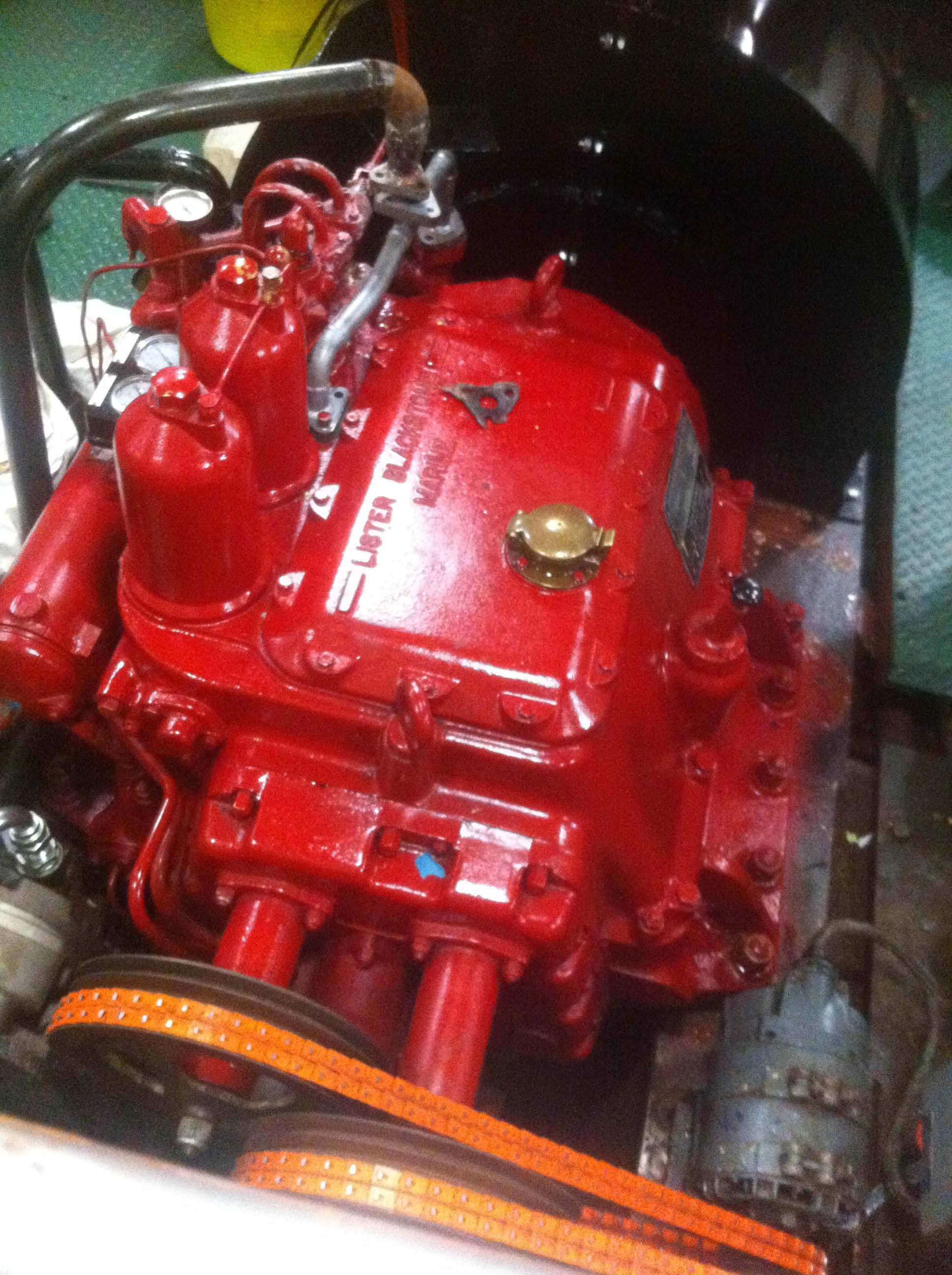

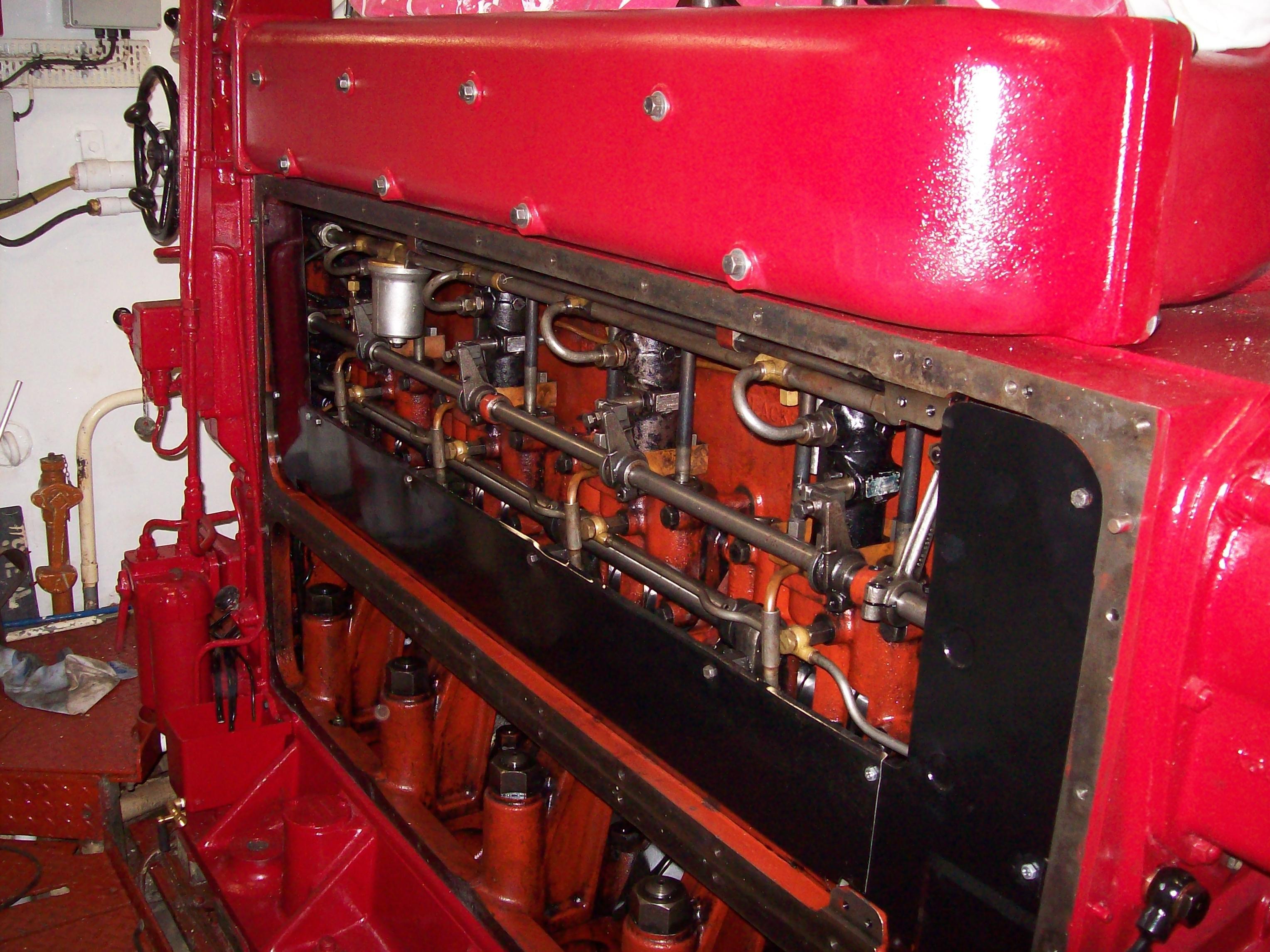

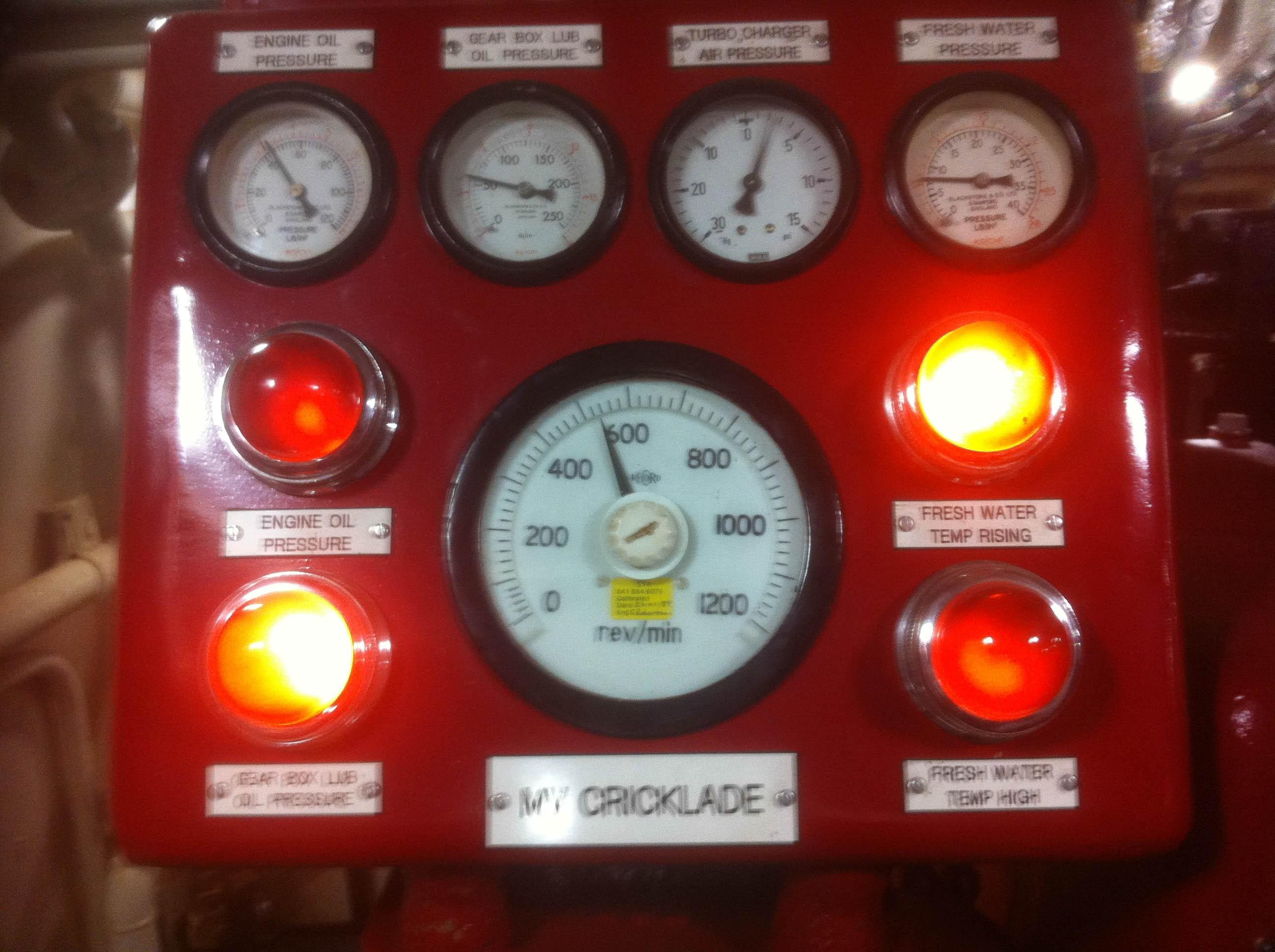

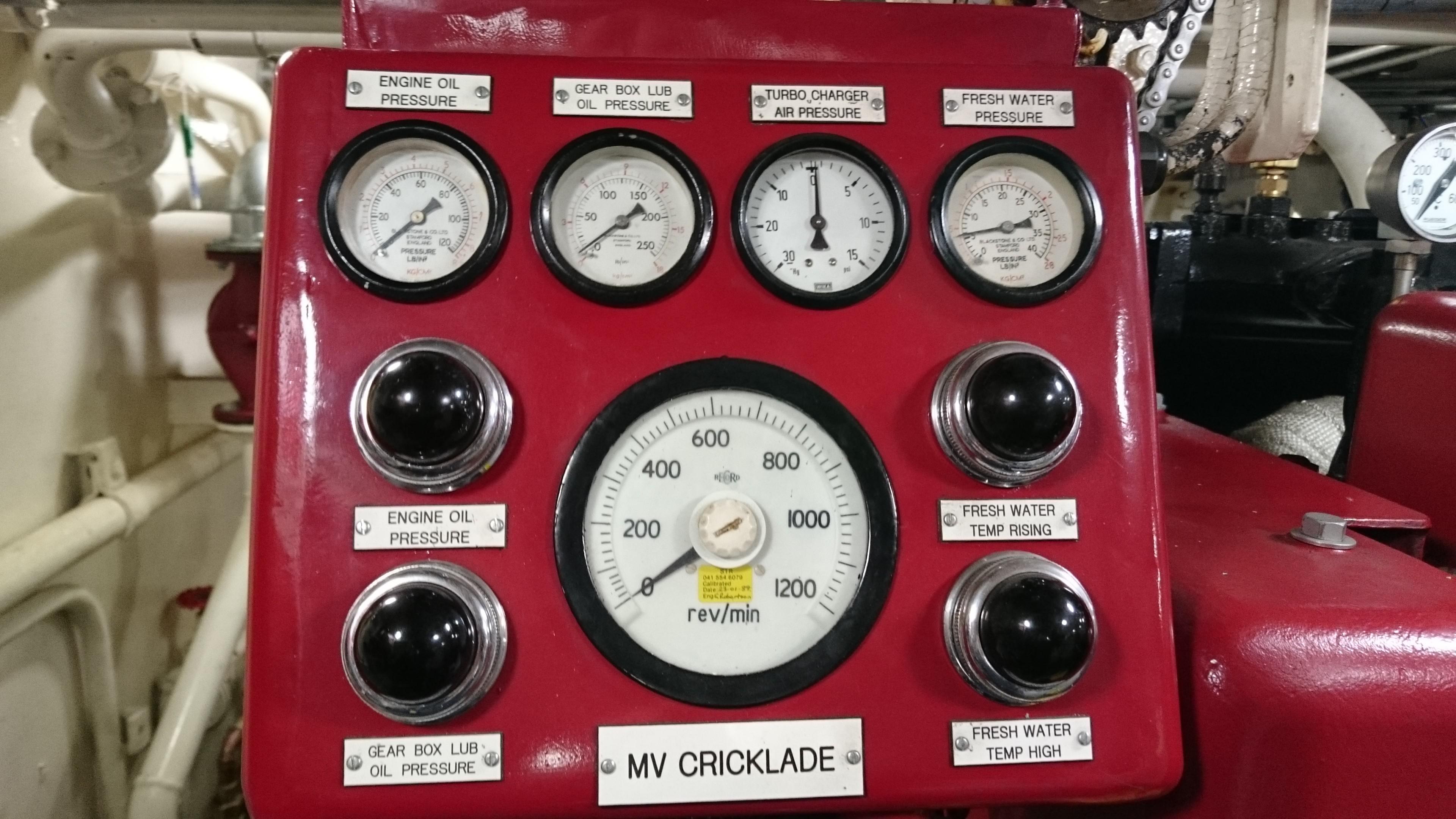

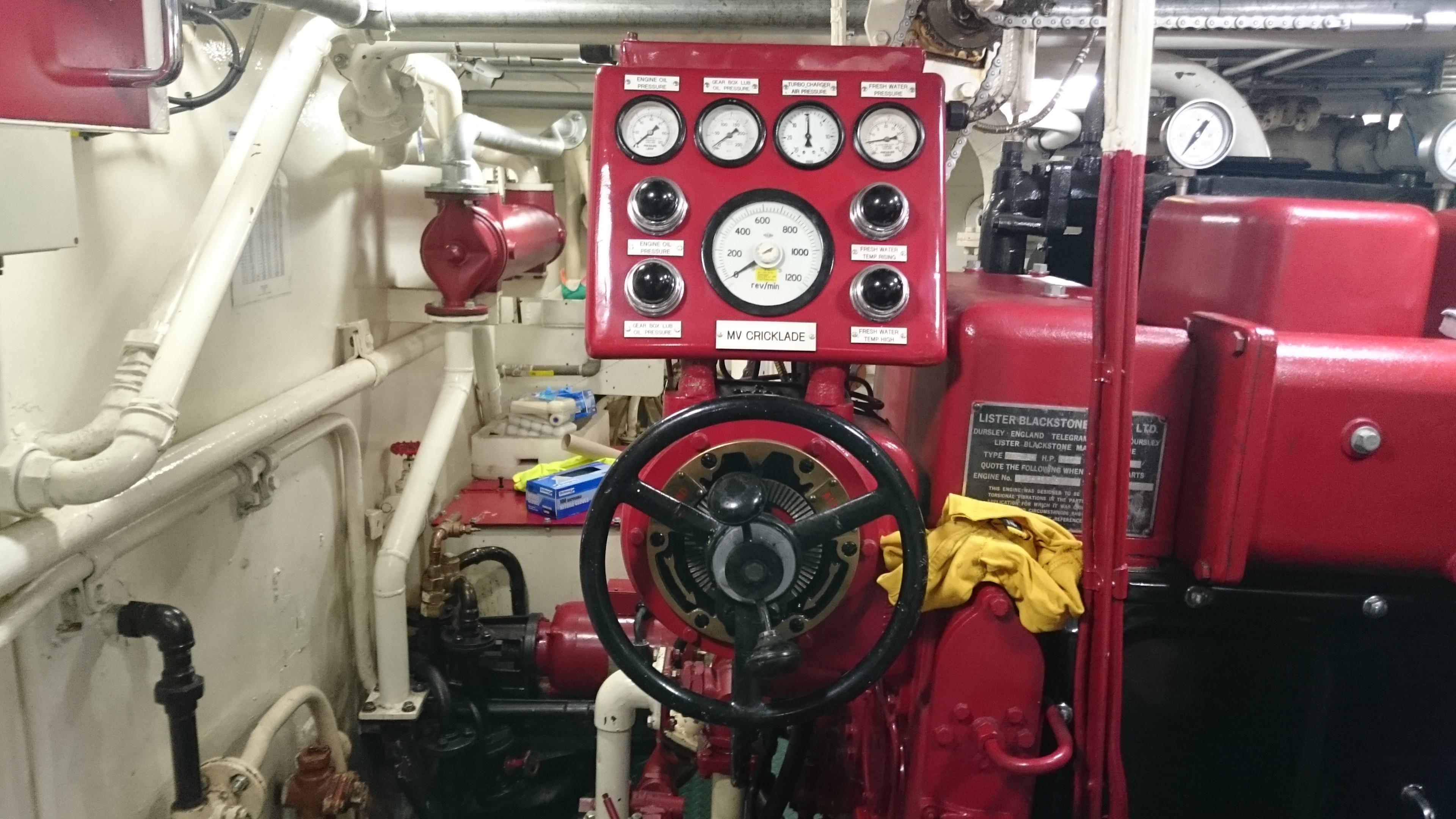

Main propulsion machinery Lister Blackstone ERS4 MGR 4 cyl turbo 750 rpm

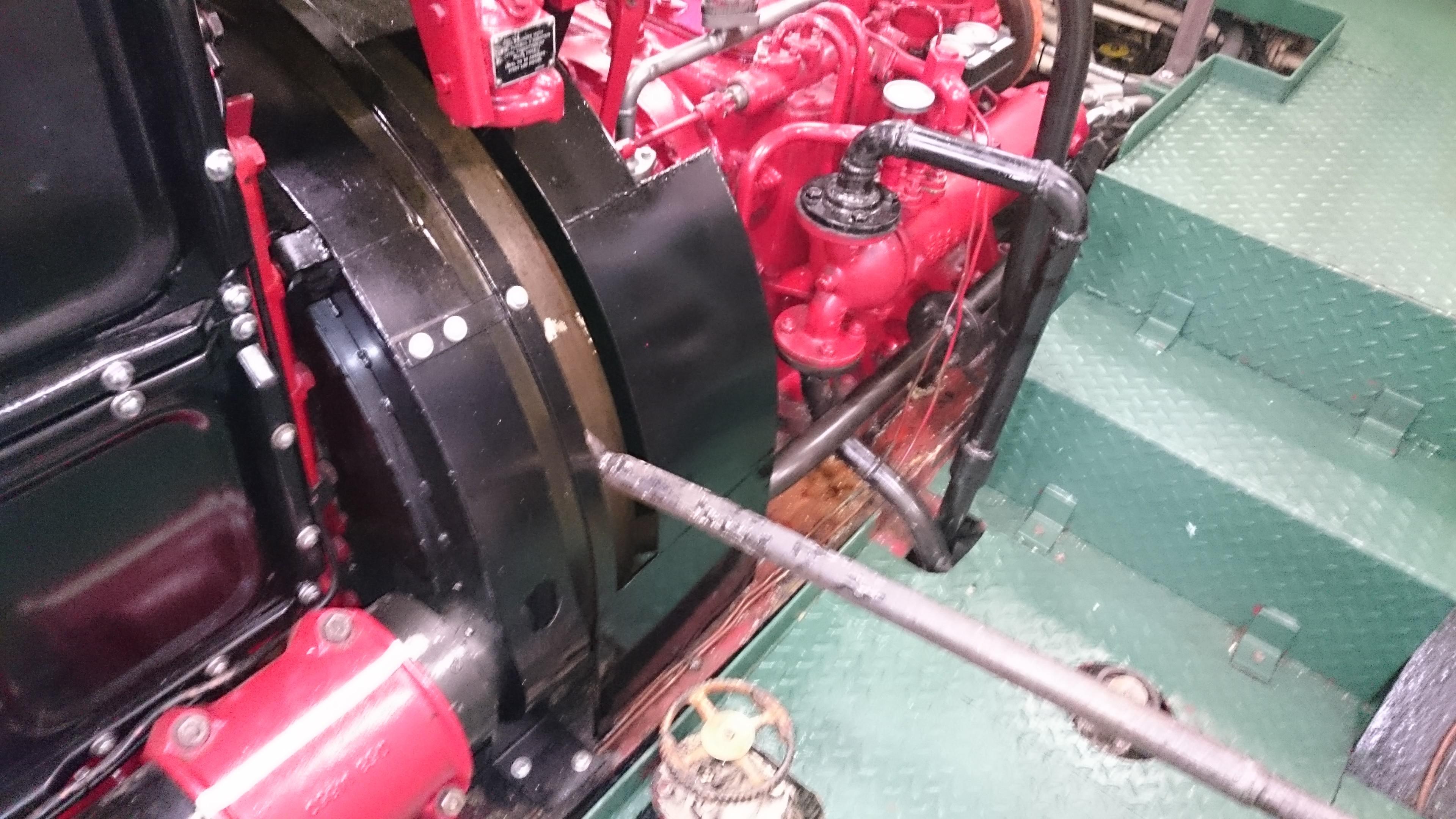

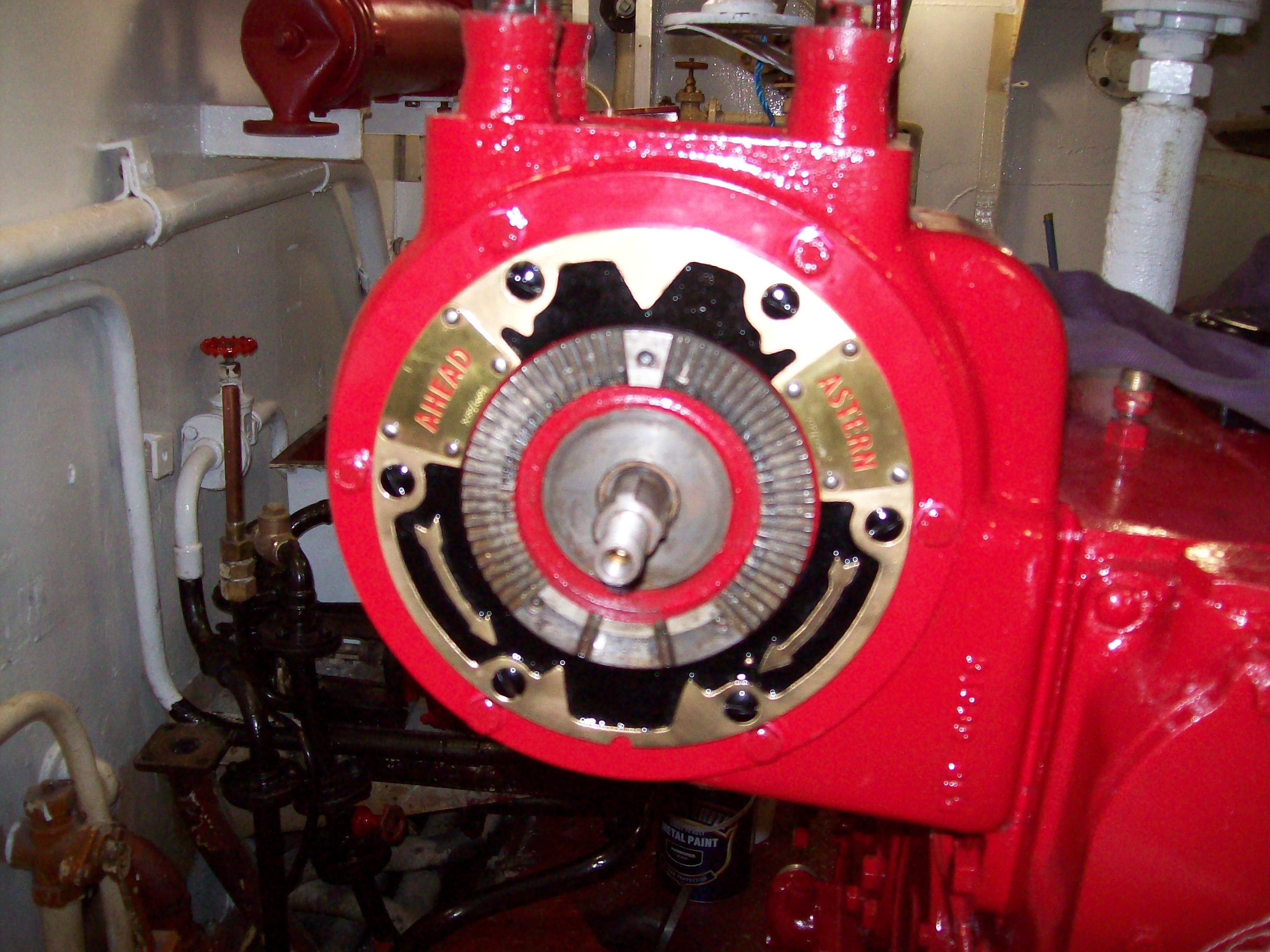

Gearbox Blackstone IM2 2/1 reduction attached to Nodal Damper flywheel
Propeller Harper Phillips 3 blade 59ins, 39.2ins pitch
Donkin hand and powered hydraulic steering system

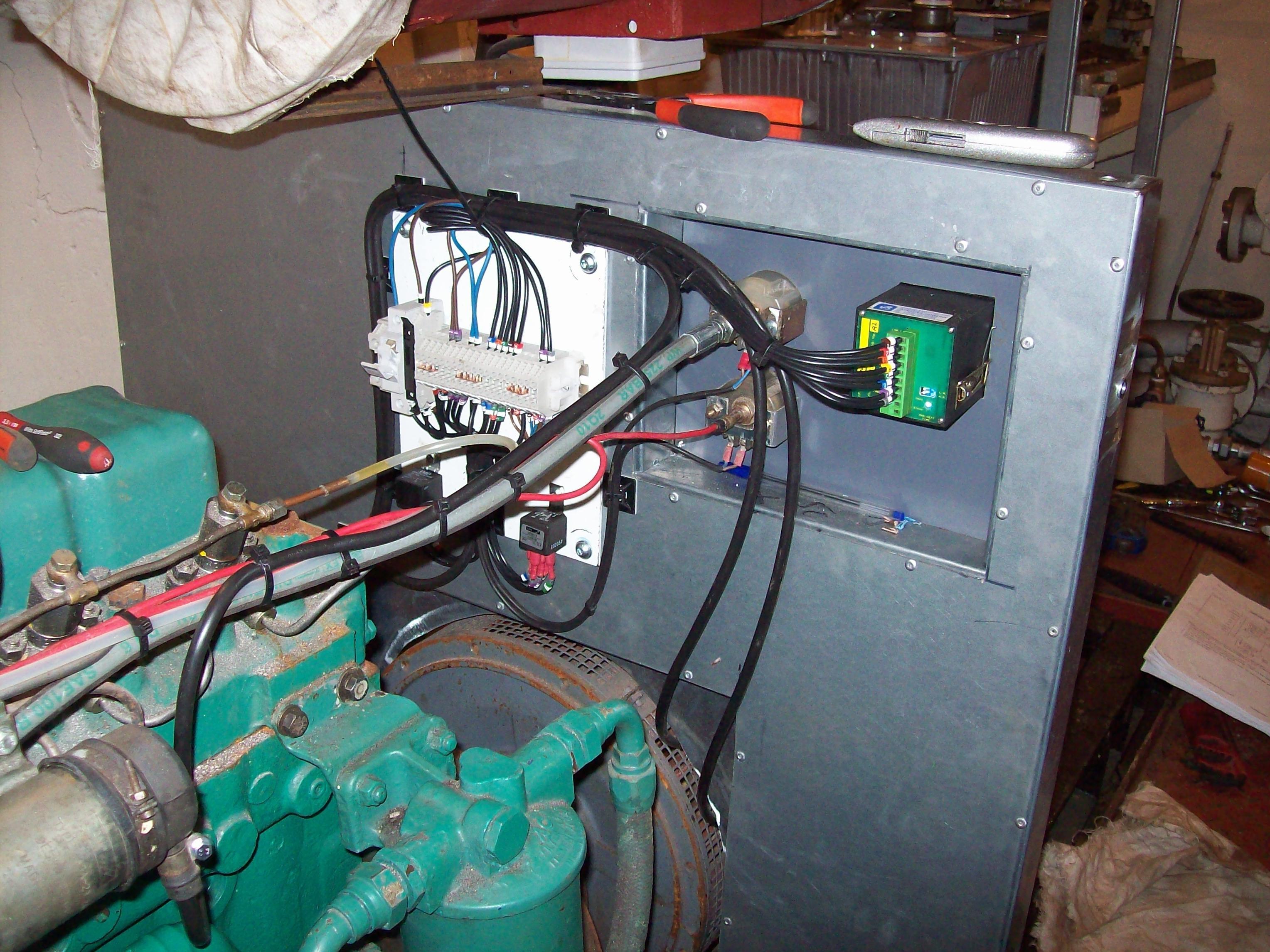

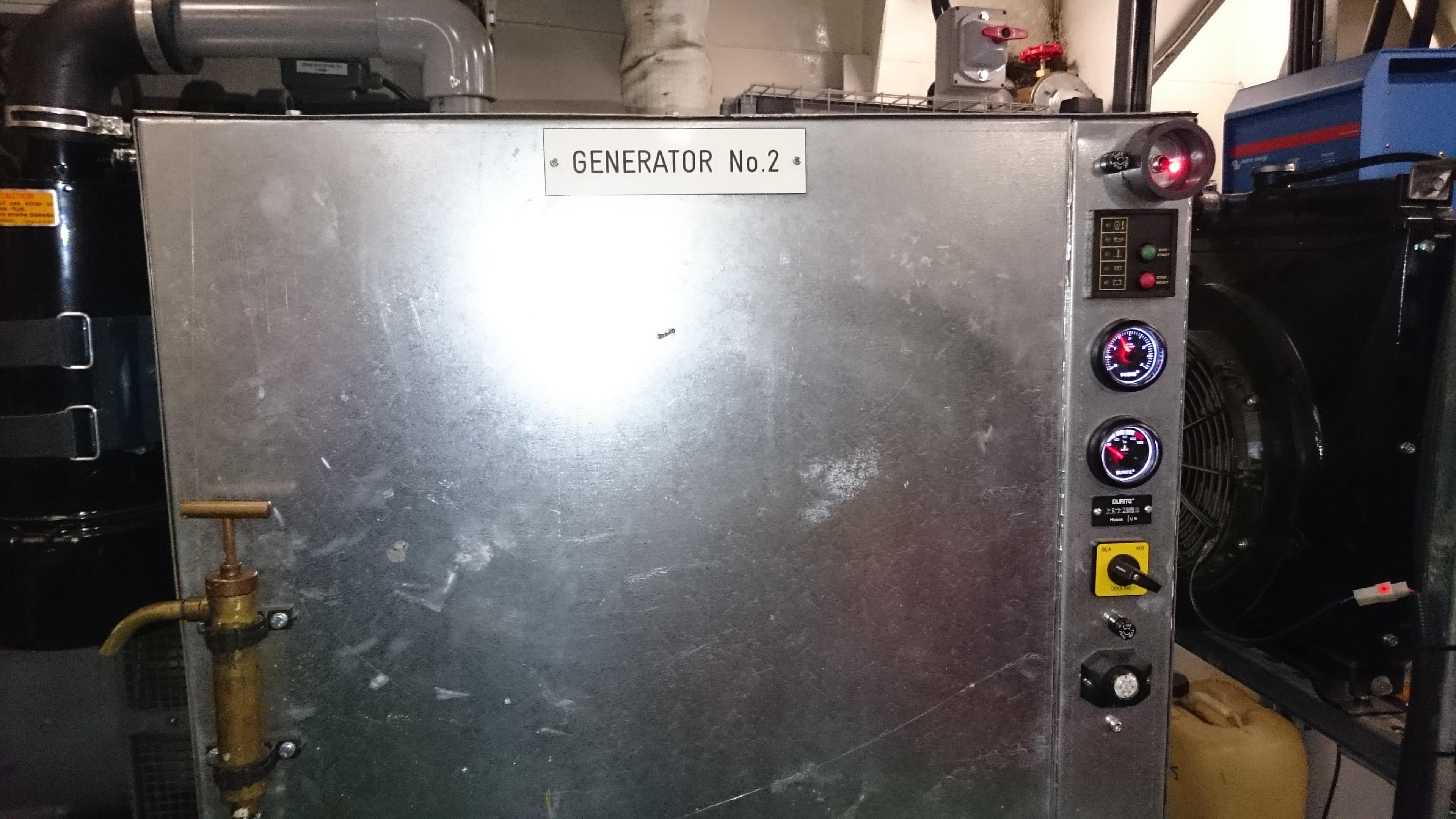

Main generator Perkins 6354 with 70kw 3phase alternator

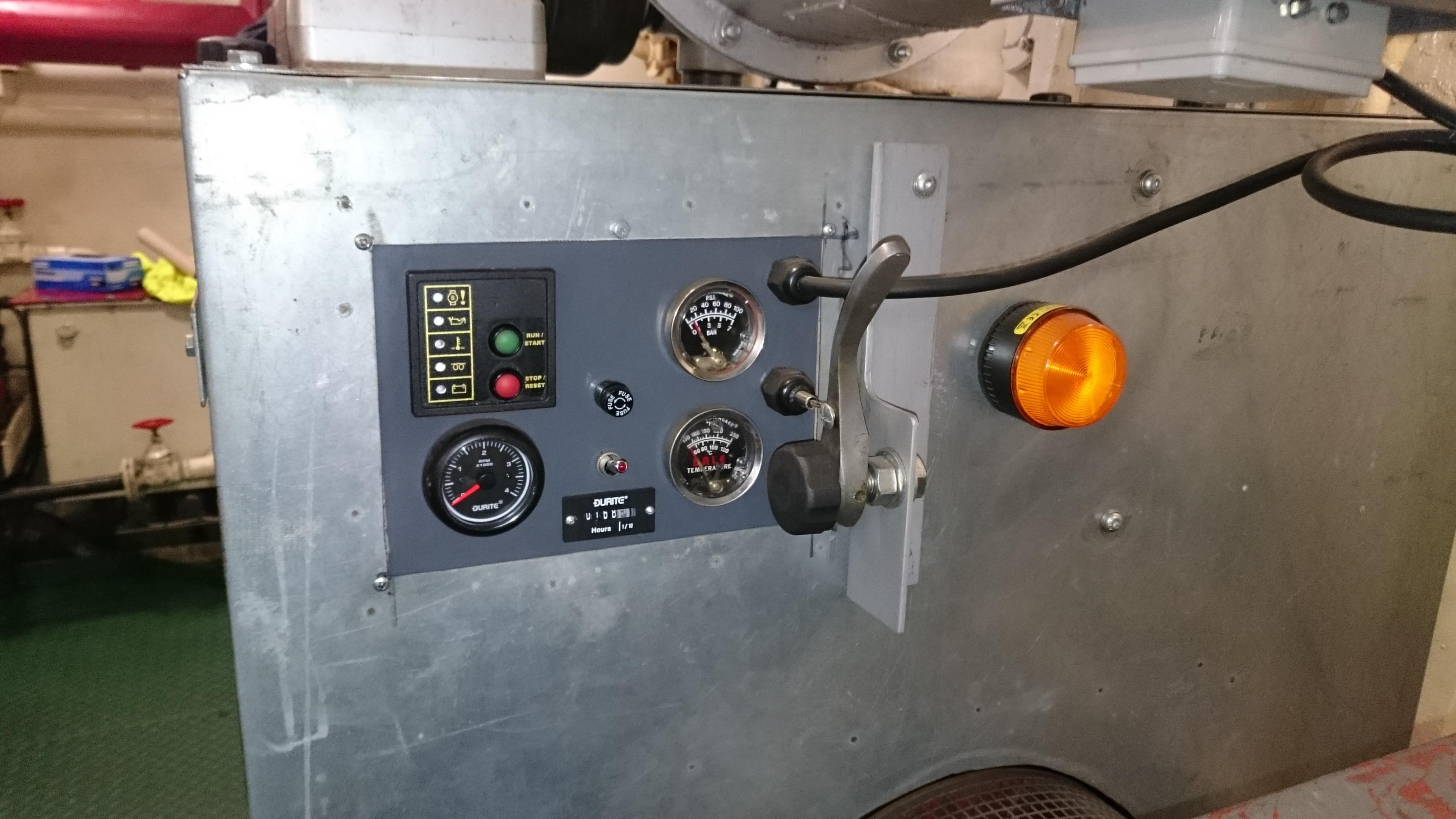

Harbour generator Kubota 1903 with 25kw 3 phase alternator

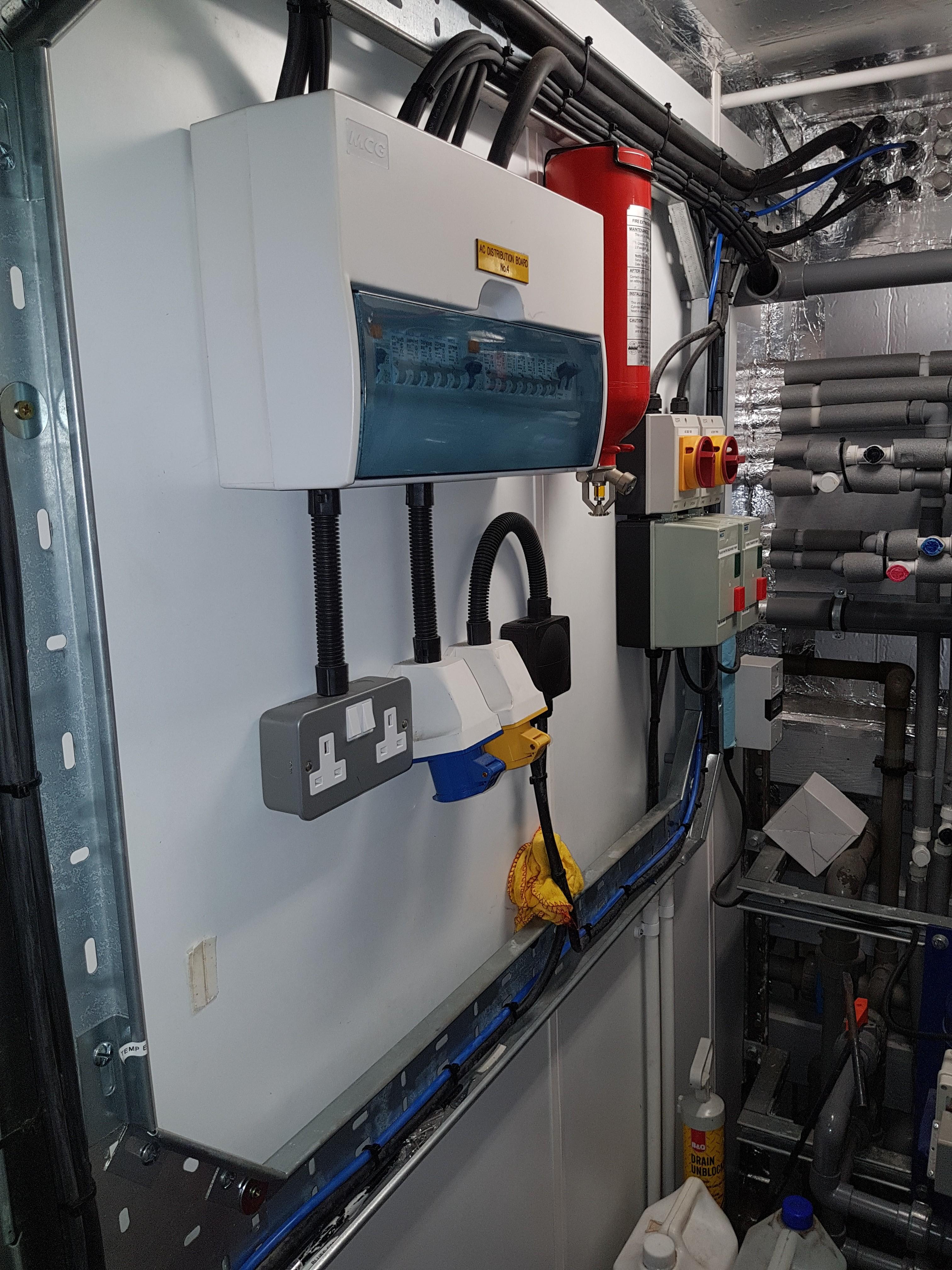

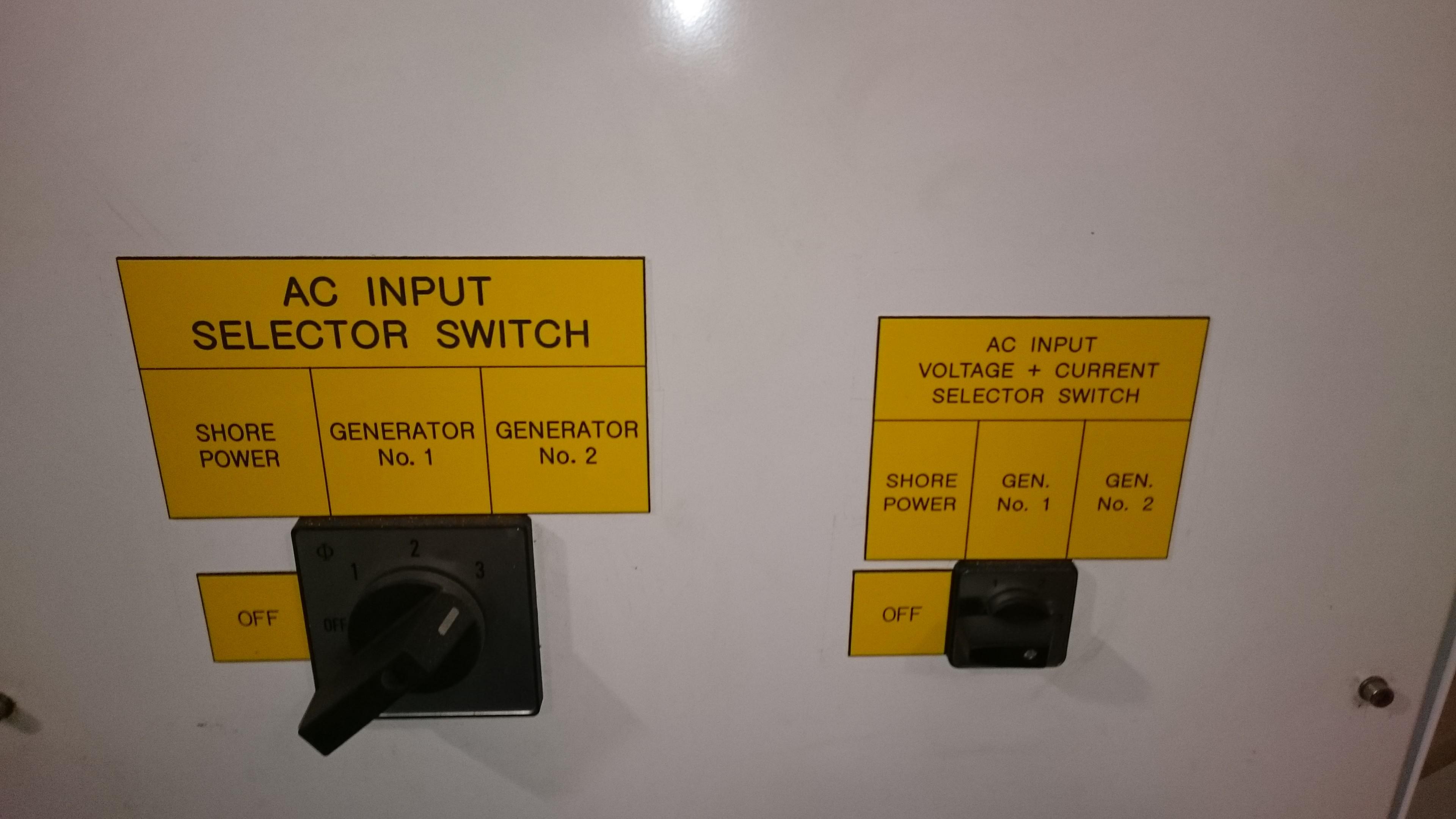

Shore supply 240volt and 415volt

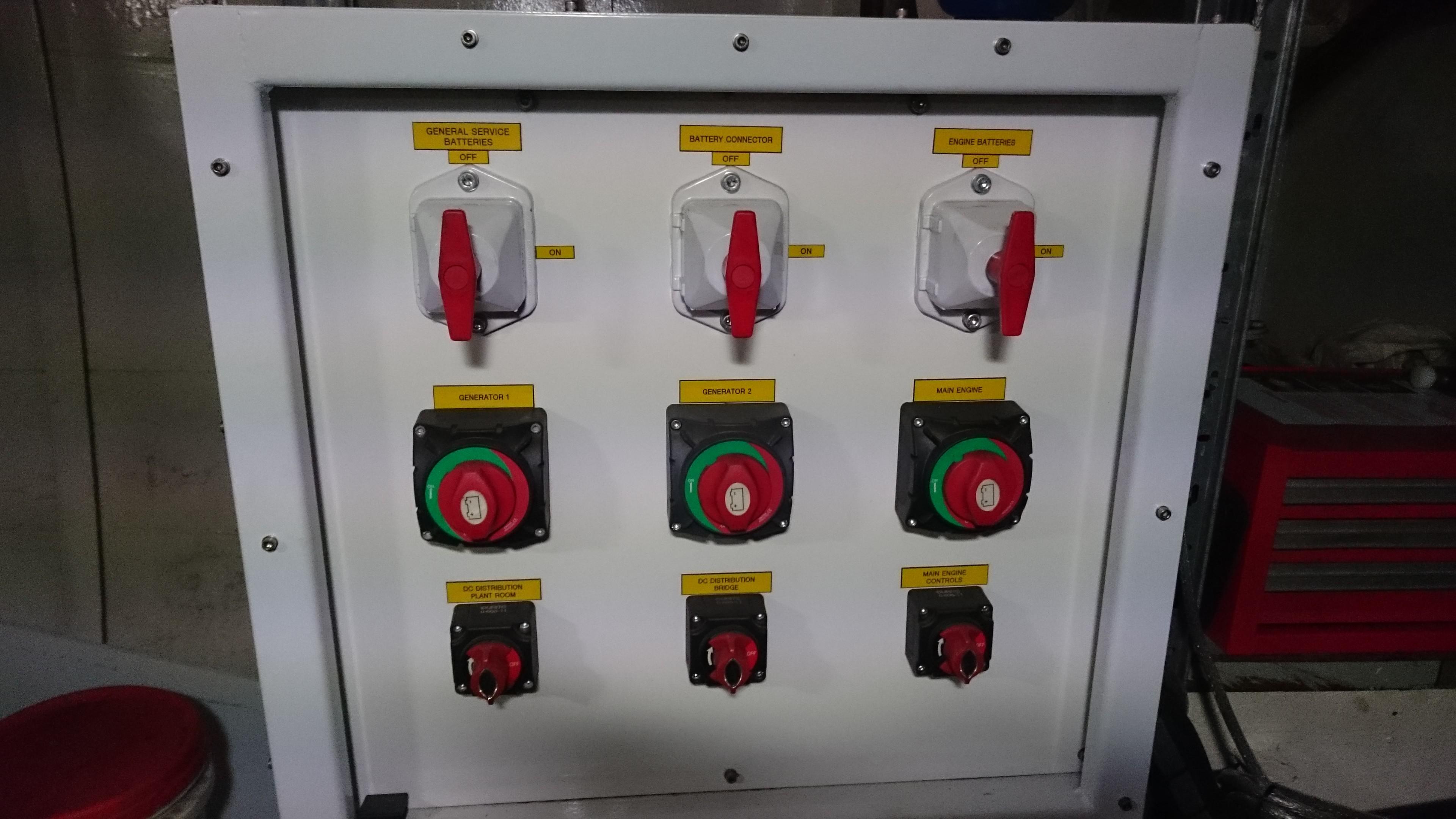

240 volt system through Victron Quatro 5kva inverter and six 220ah dc gel batteries
Length OA 79 ft 11 ins
Length BP 75 ft
Breadth (moulded) 22 ft
Draft FWD 6 ft 6 ins
Draft AFT 7 ft 2 ins
Atlas 3 ton hydraulic deck crane

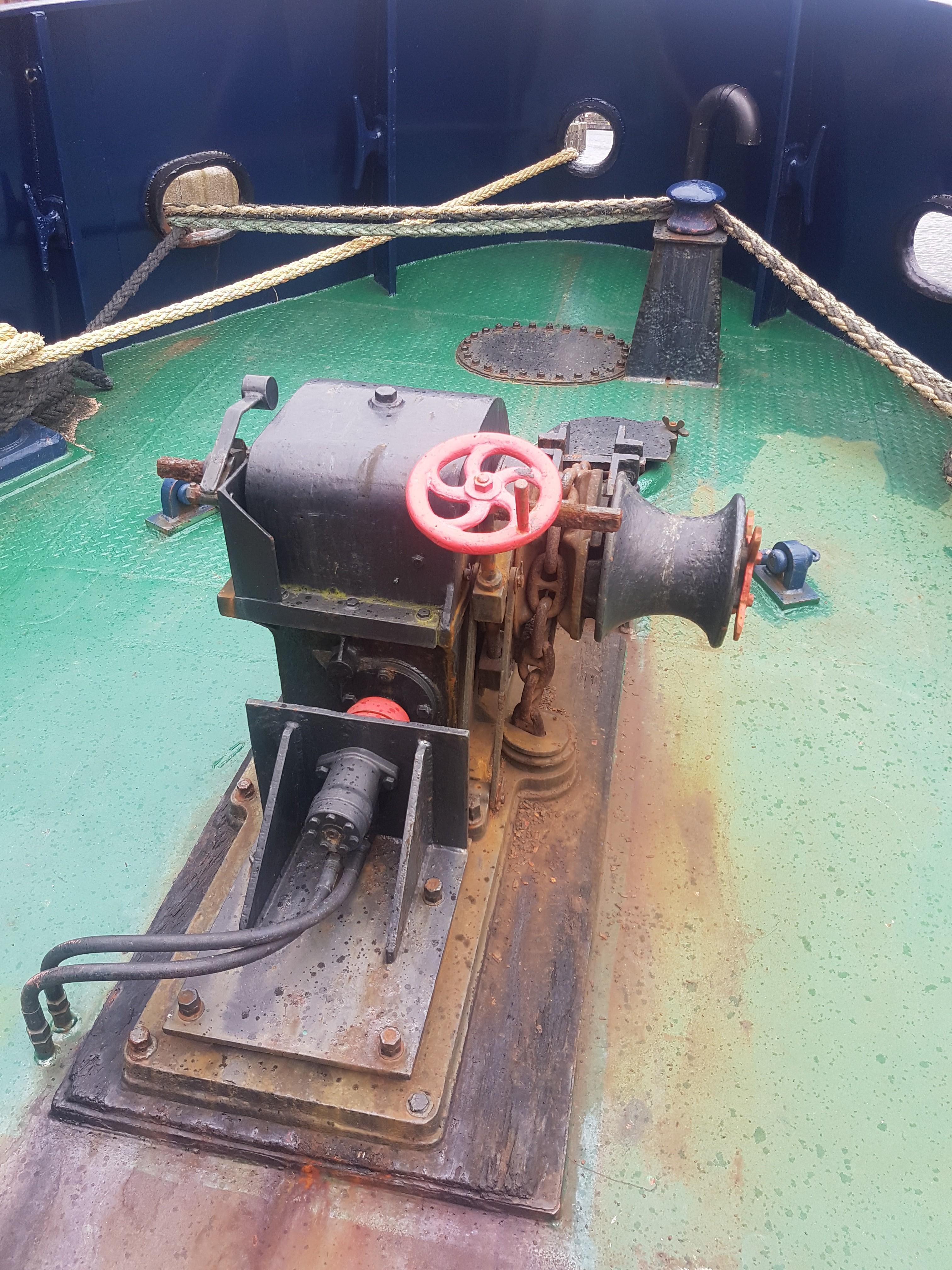

Hydraulic anchor windlass

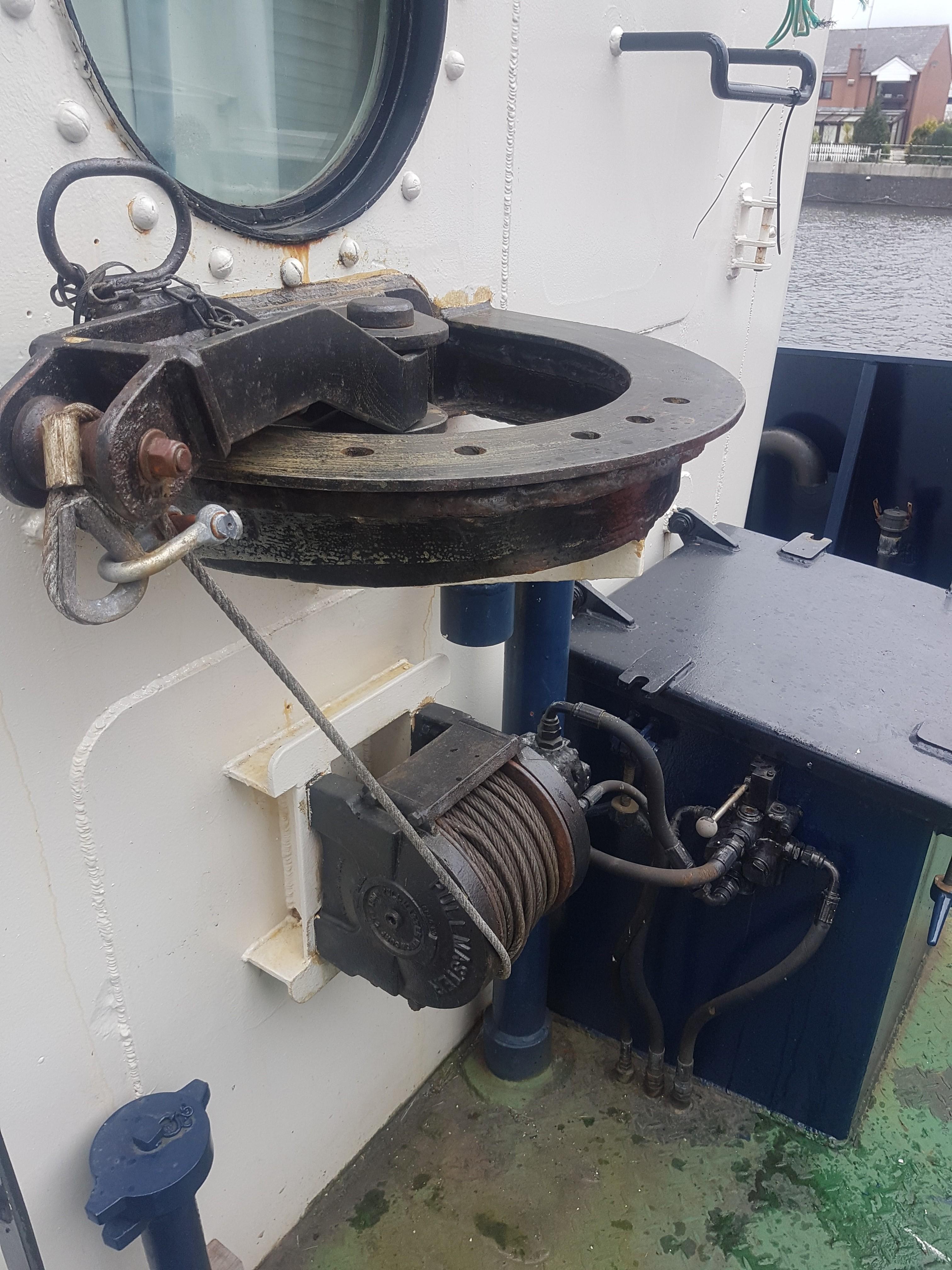

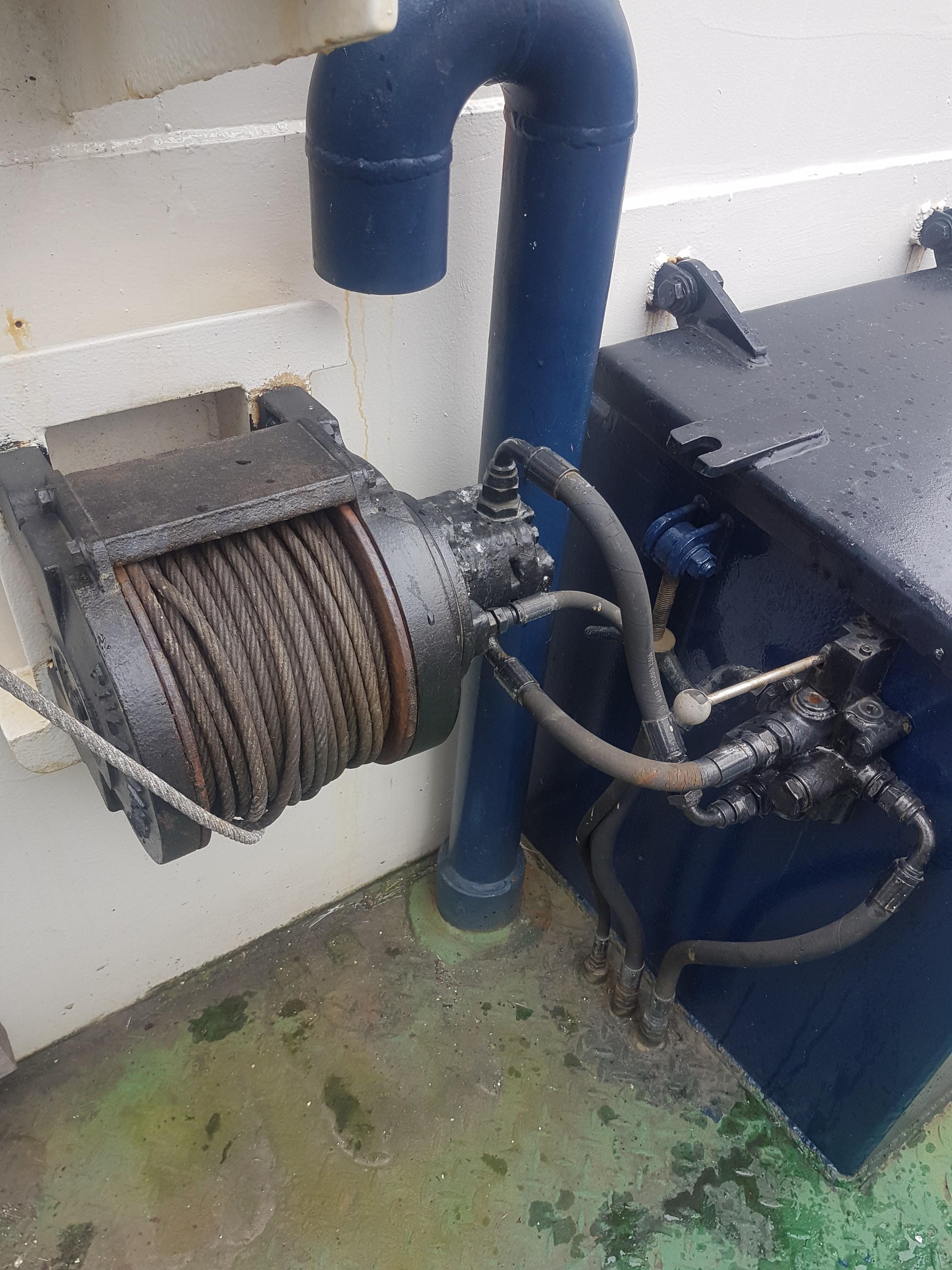

Atlas hydraulic deck winch (fitted aft for docking and stern anchor)
Vetus BOW550HM 45 hp hydraulic bow thruster
Hydraulic chain drive to prop shaft for emergency get you home system
Vetus HT1022SD 75 cc load sensing hydraulic pump (fitted to Perkins)
Vetus HT1010 hydraulic tank and solenoid manifold for controlling the above

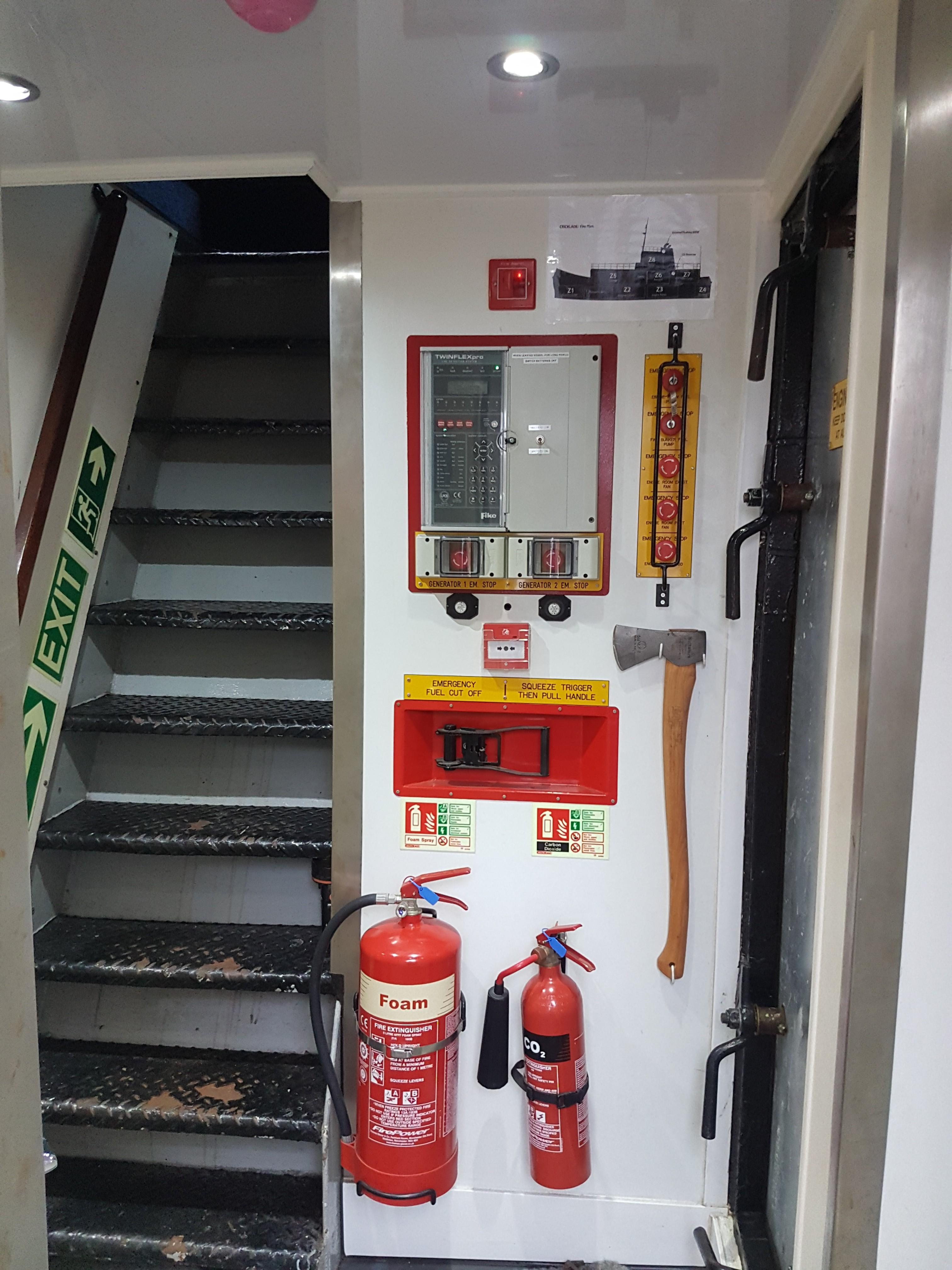

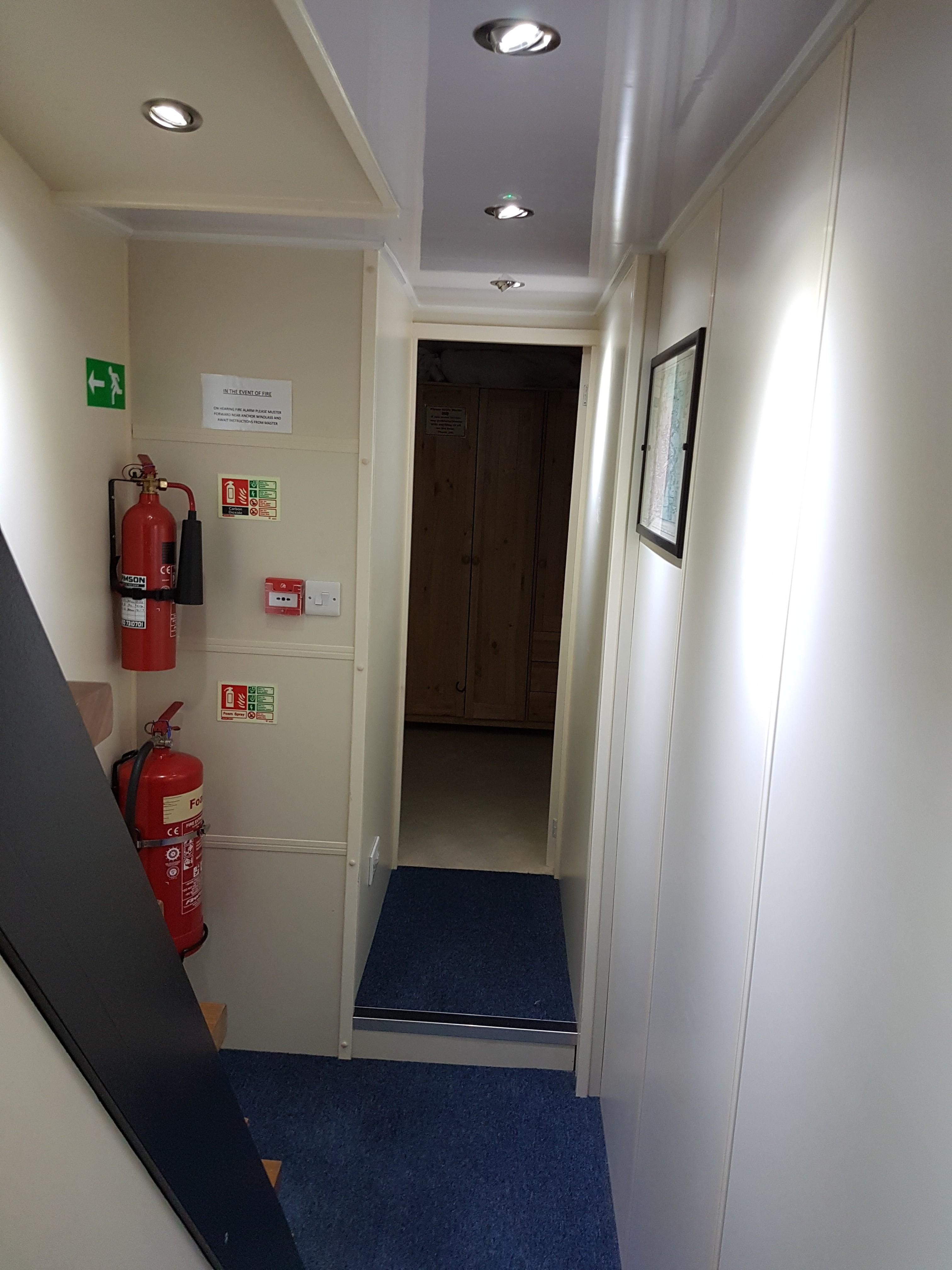

Fike 8 zone self-monitoring fire alarm system
E/R supply fans 2 off Woods 15in 3 phase
E/R extract 1 off Woods 8in 3 phase

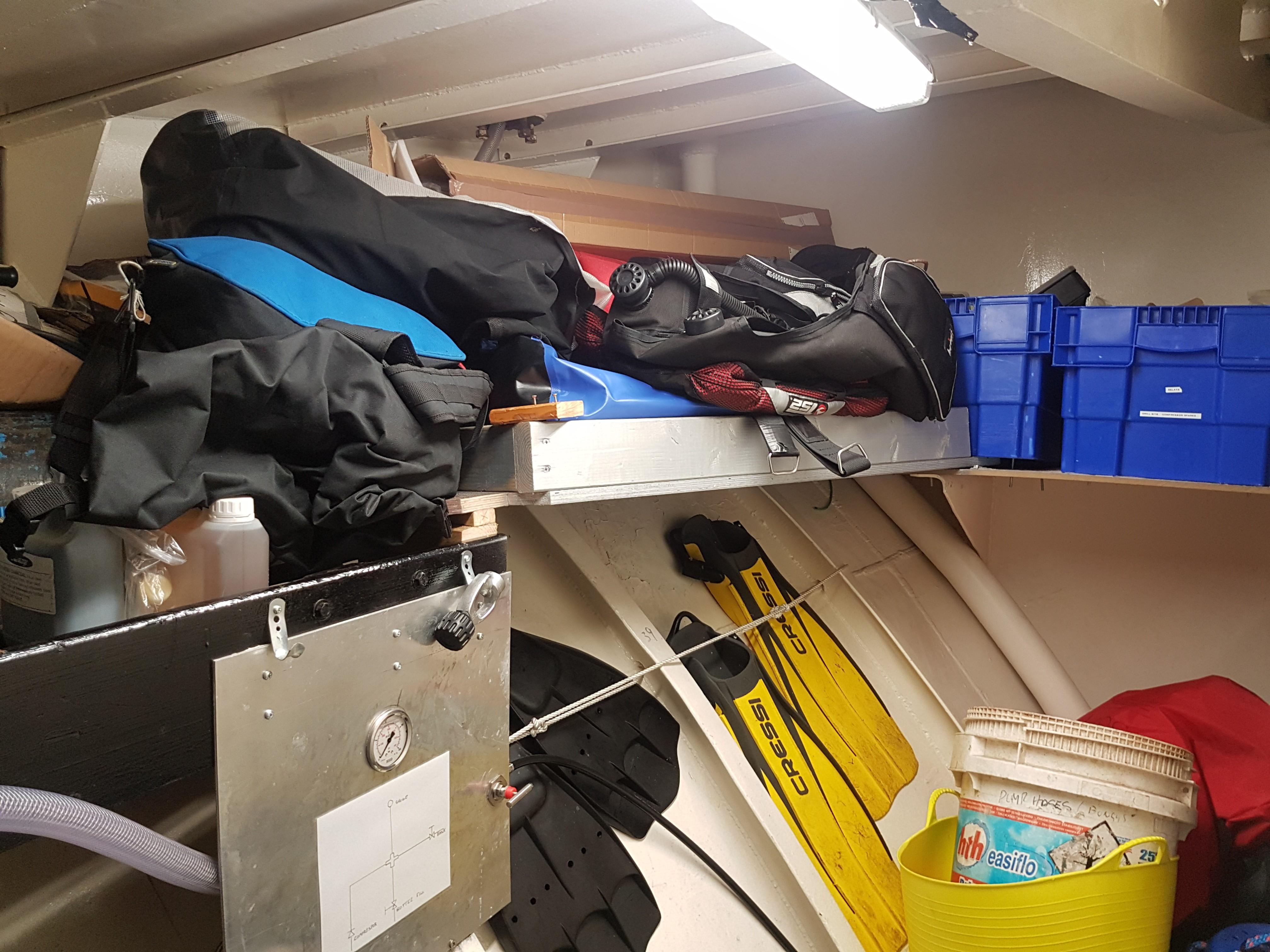

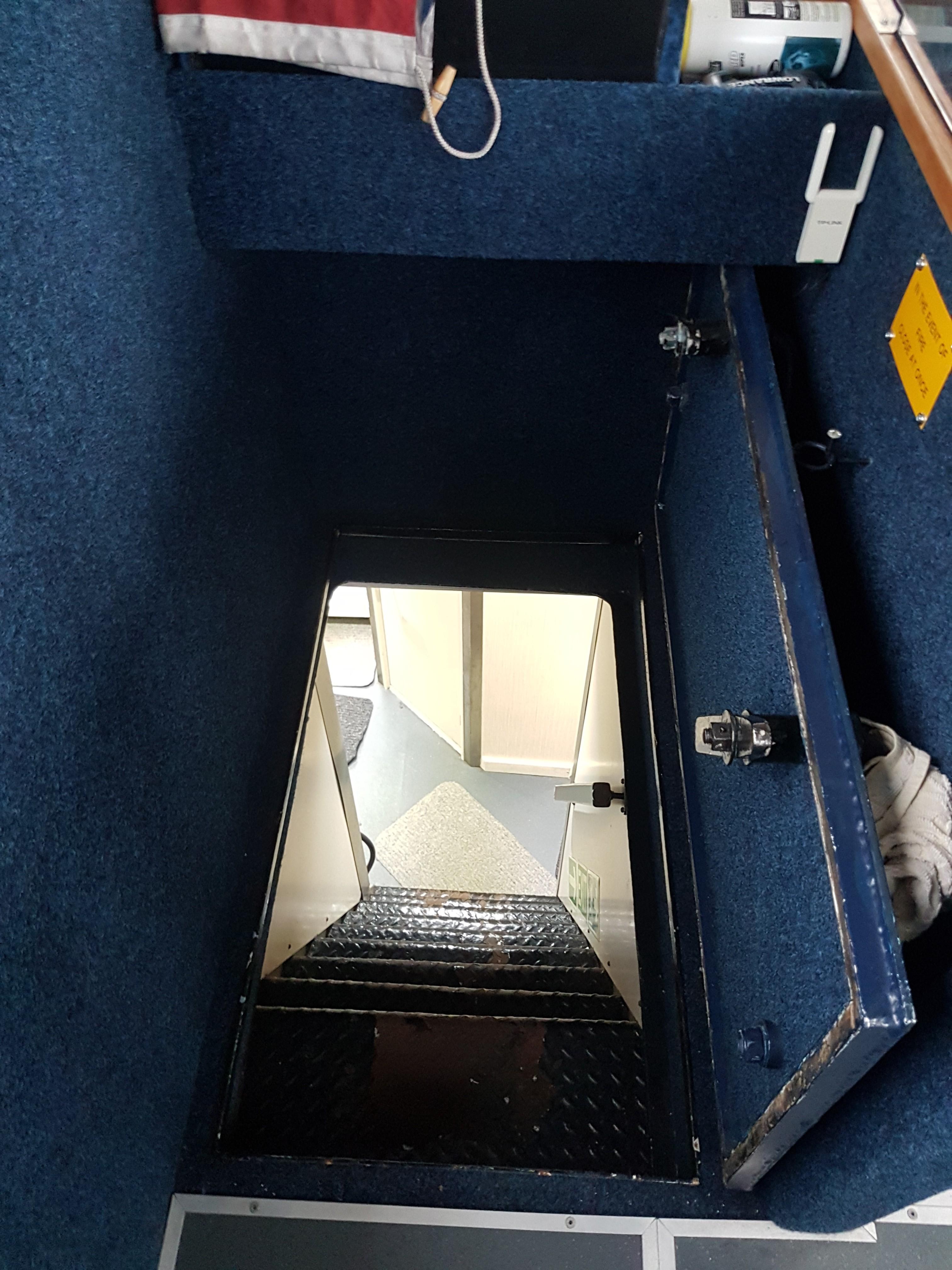

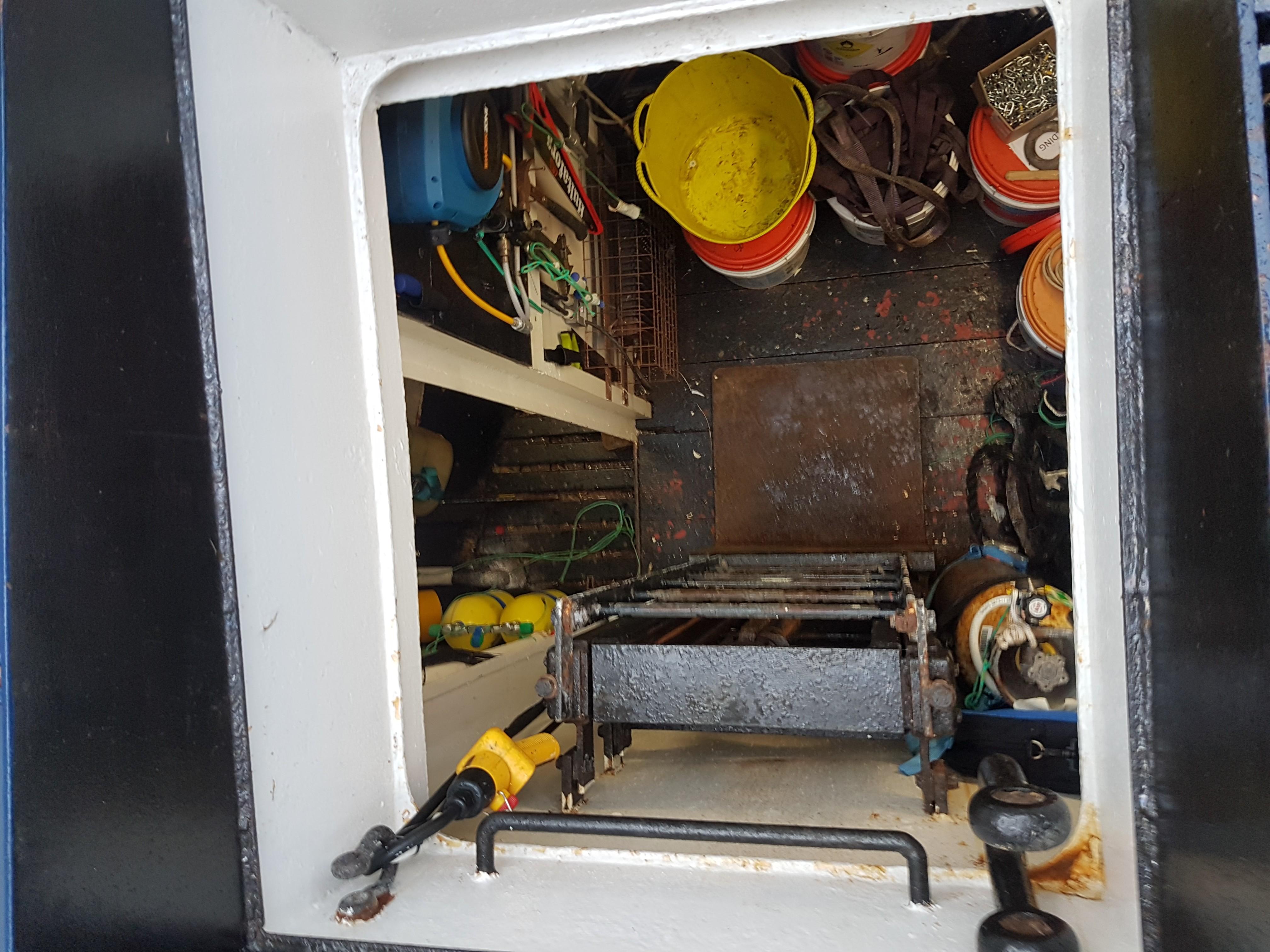

Hydraulic lift down to bosons locker for lifting heavy equipment/diving bottles

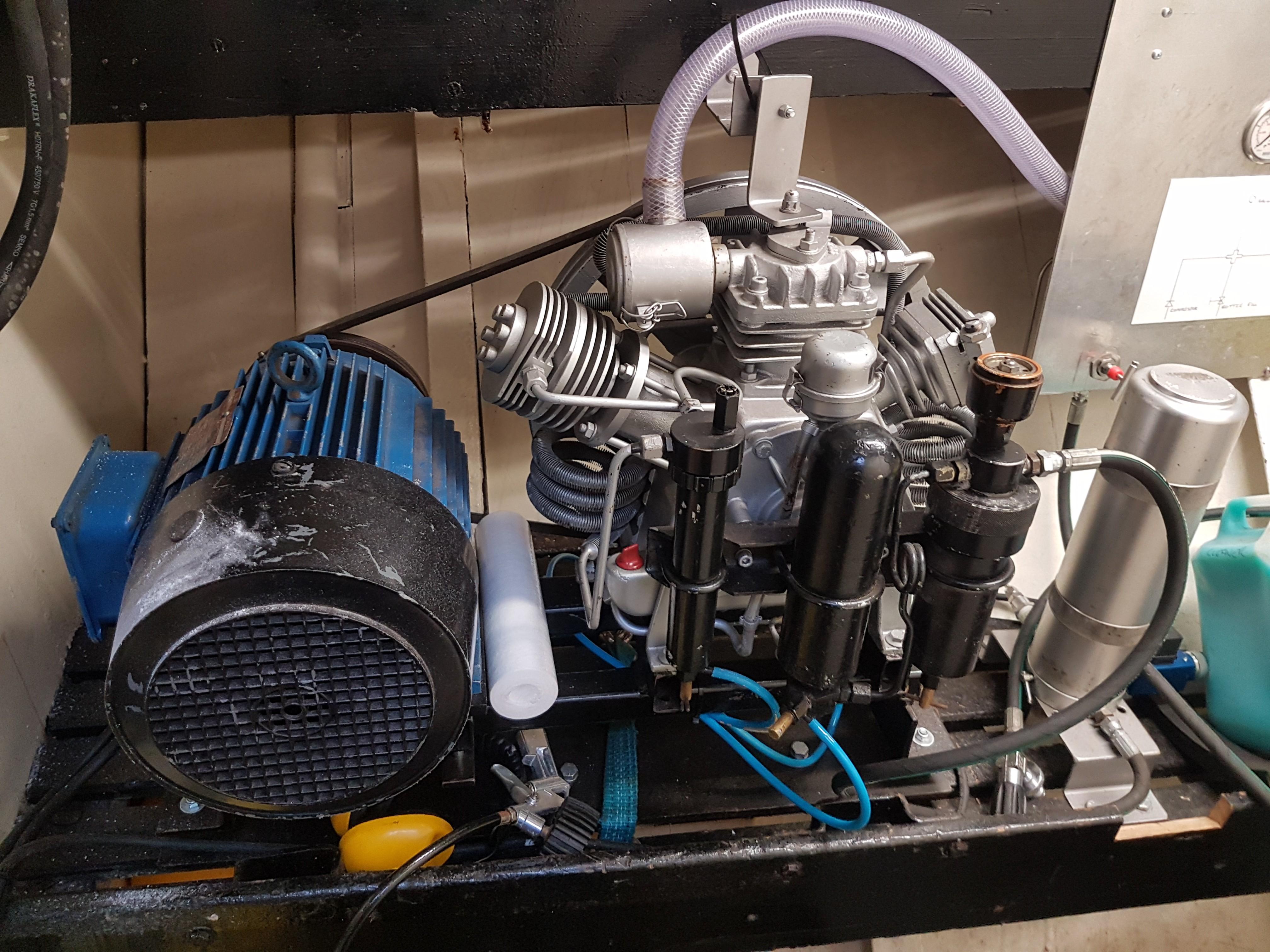

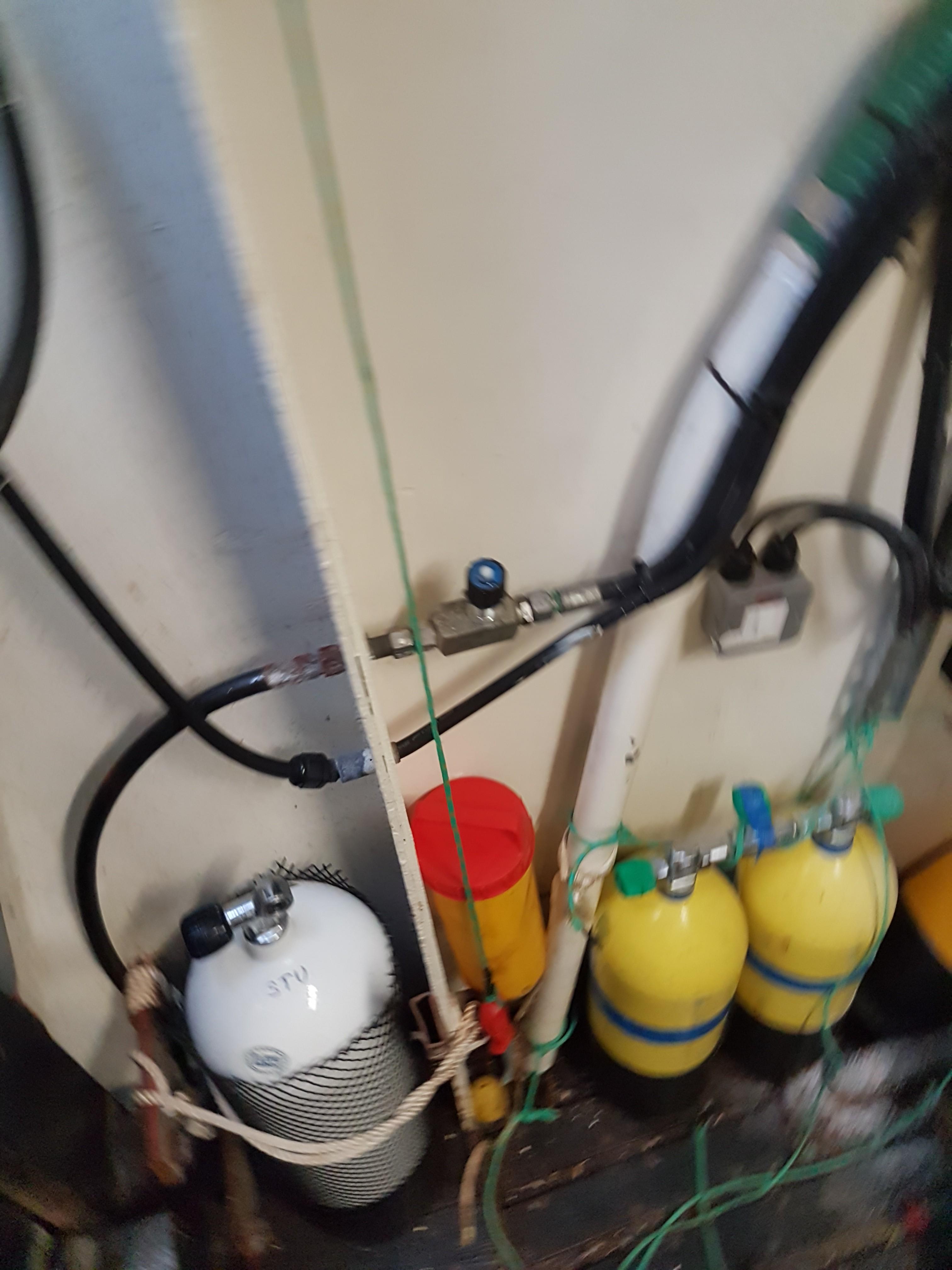

Bauer Poseidon PE250TE 300 bar dive compressor (3 phase), bank and manifold

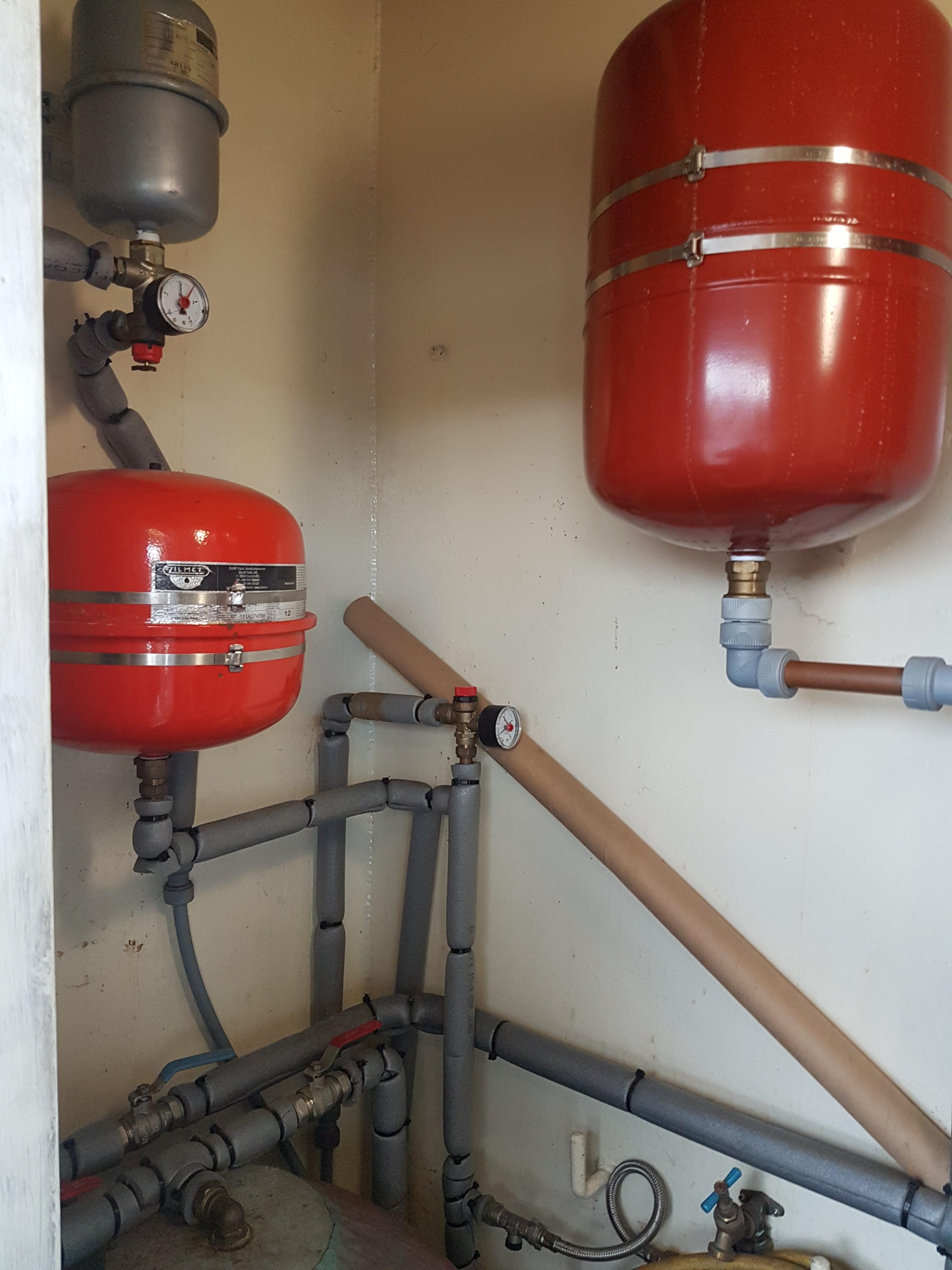

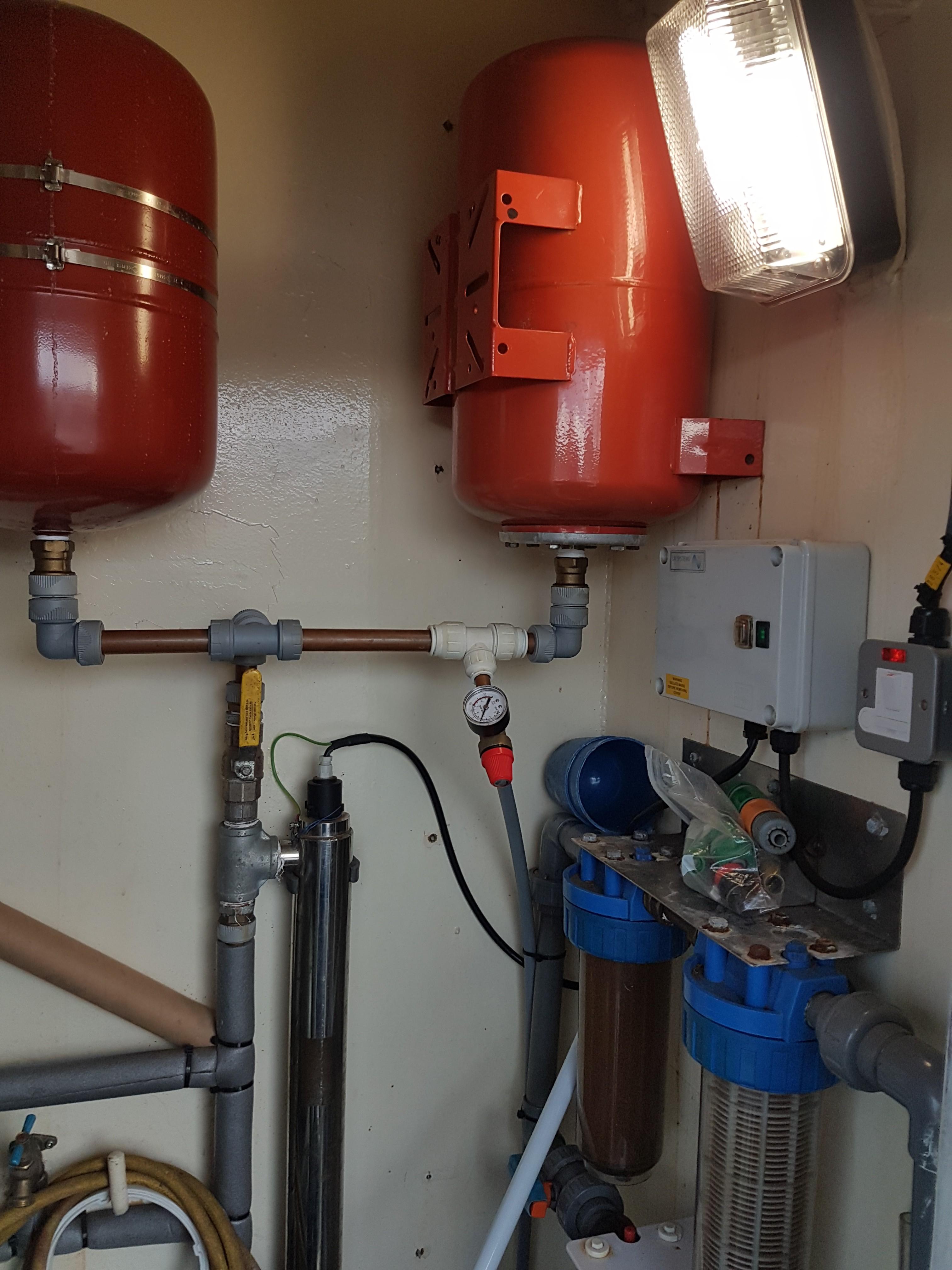

Pressurised fresh water system with filters and UV purifier
Kabola HR500 20kw diesel central heating boiler
Low pressure compressor

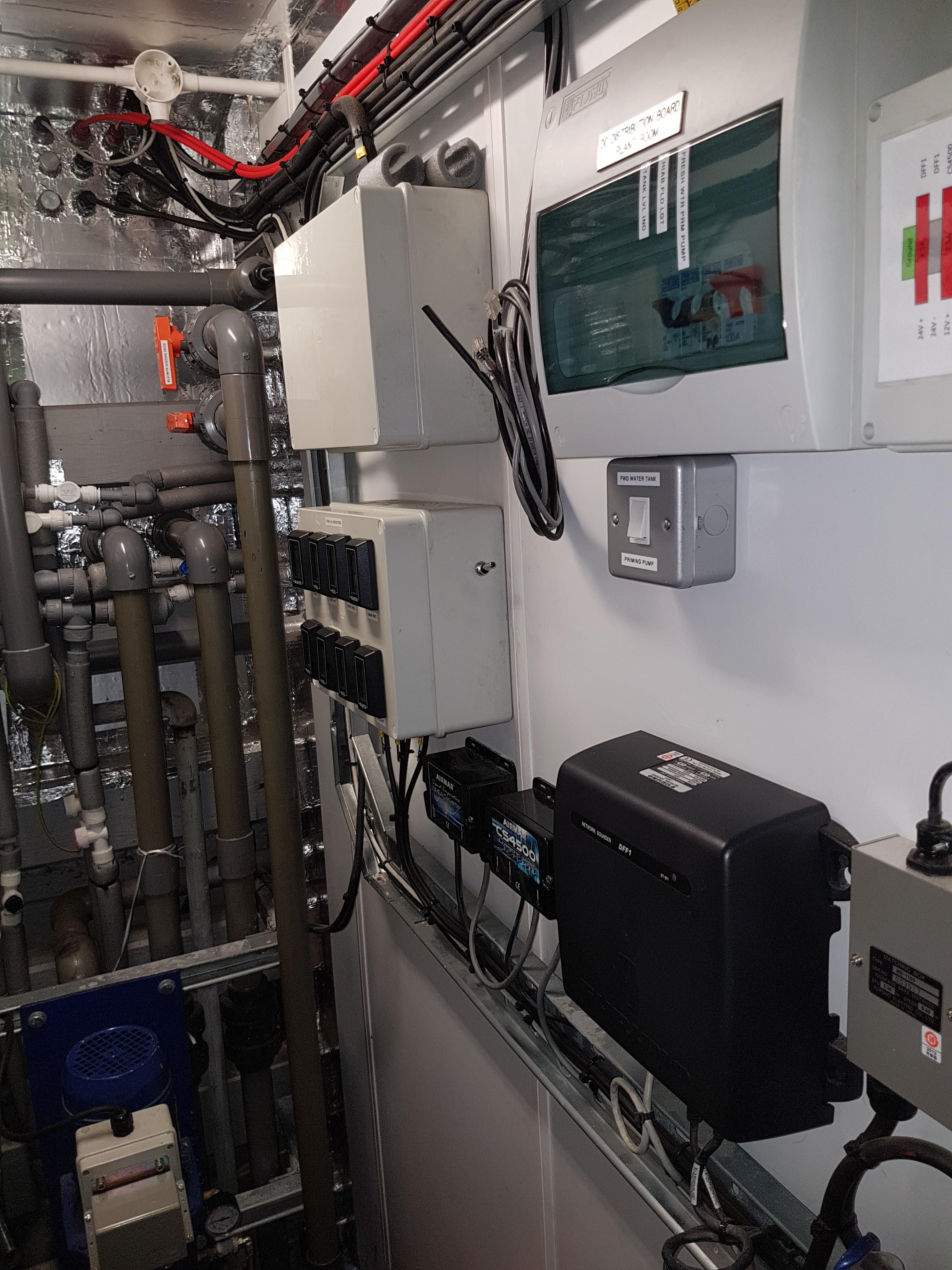

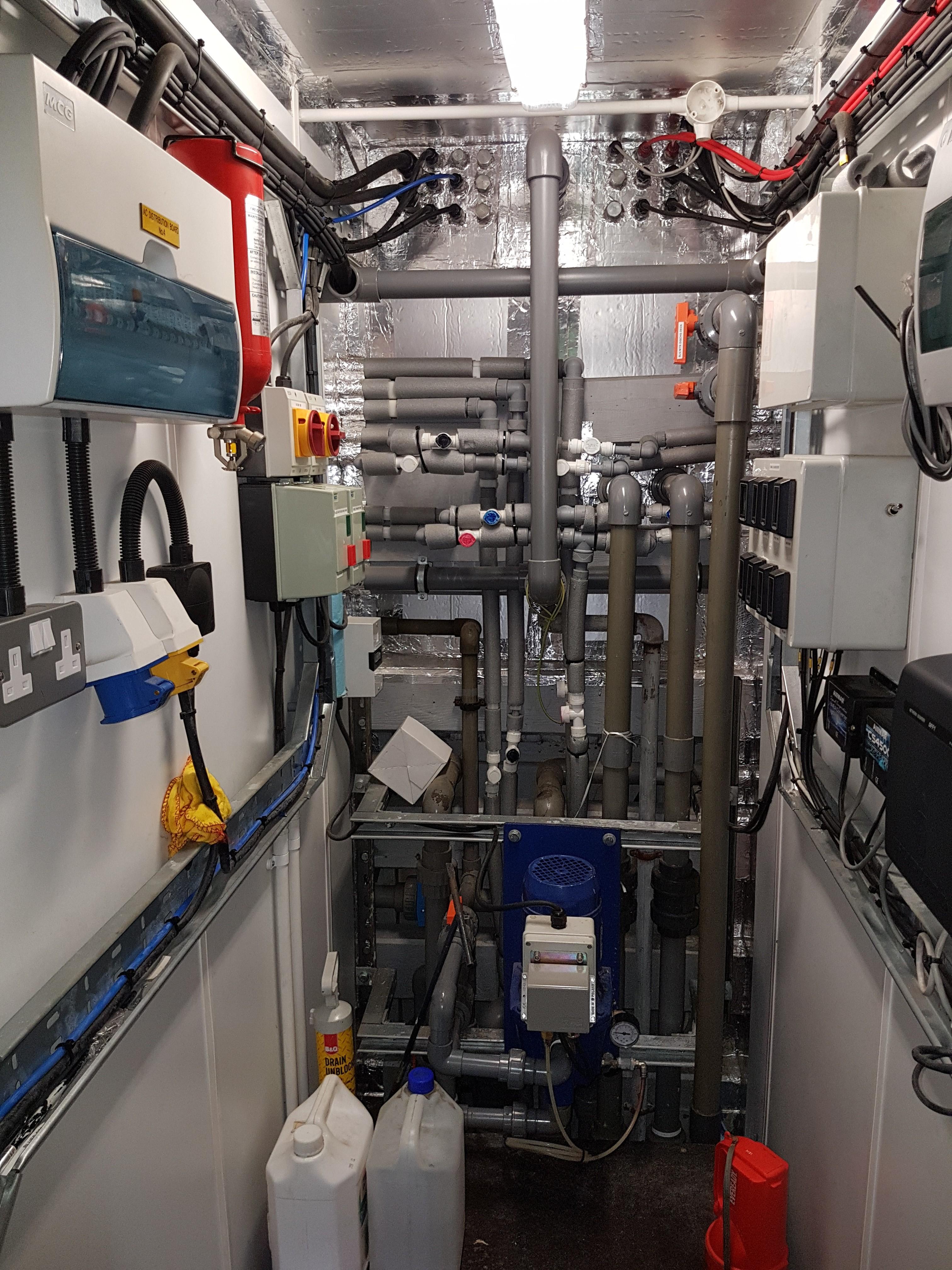

90 litre an hour reverse osmosis water maker Selmar Pacific CS

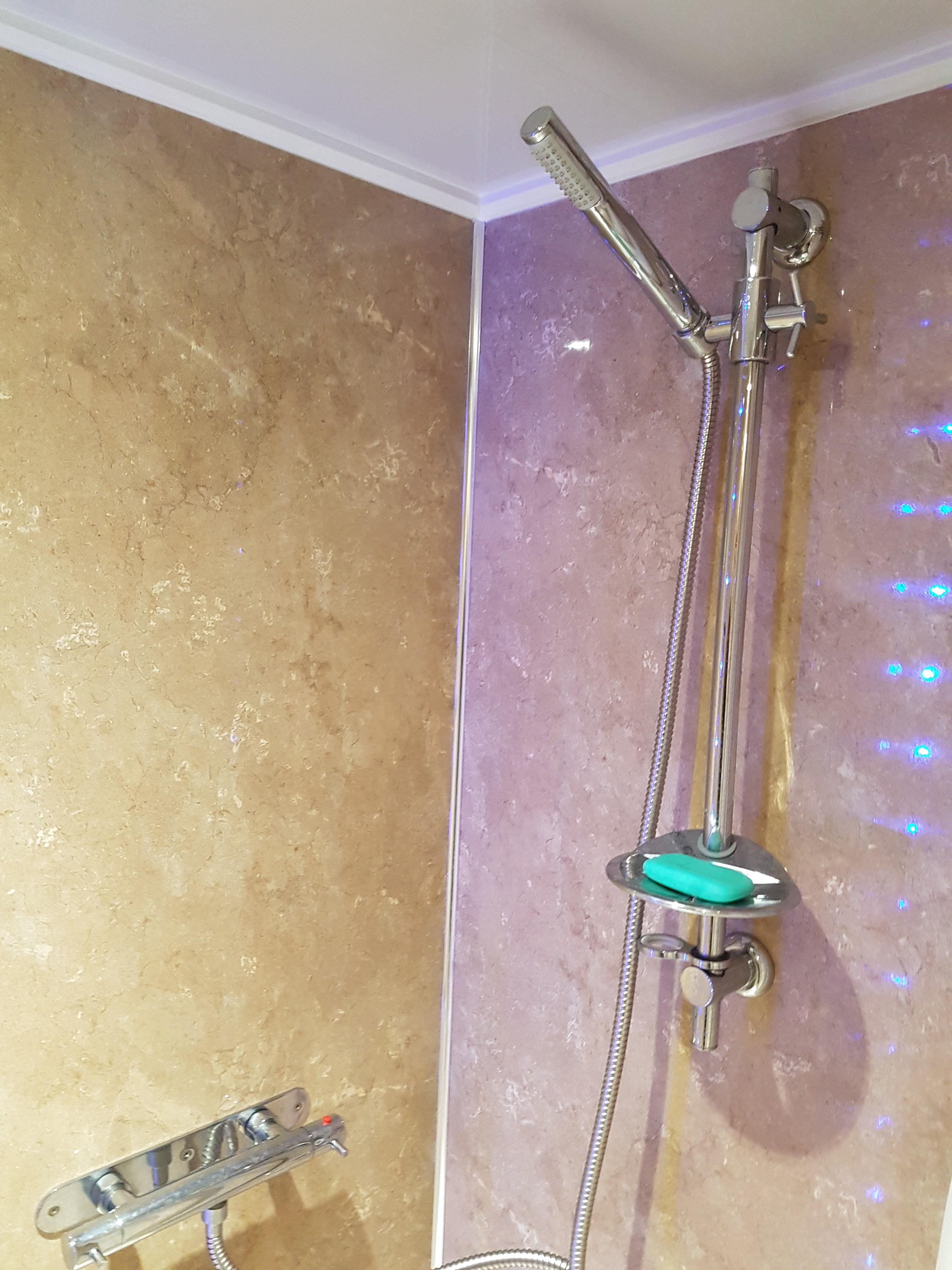

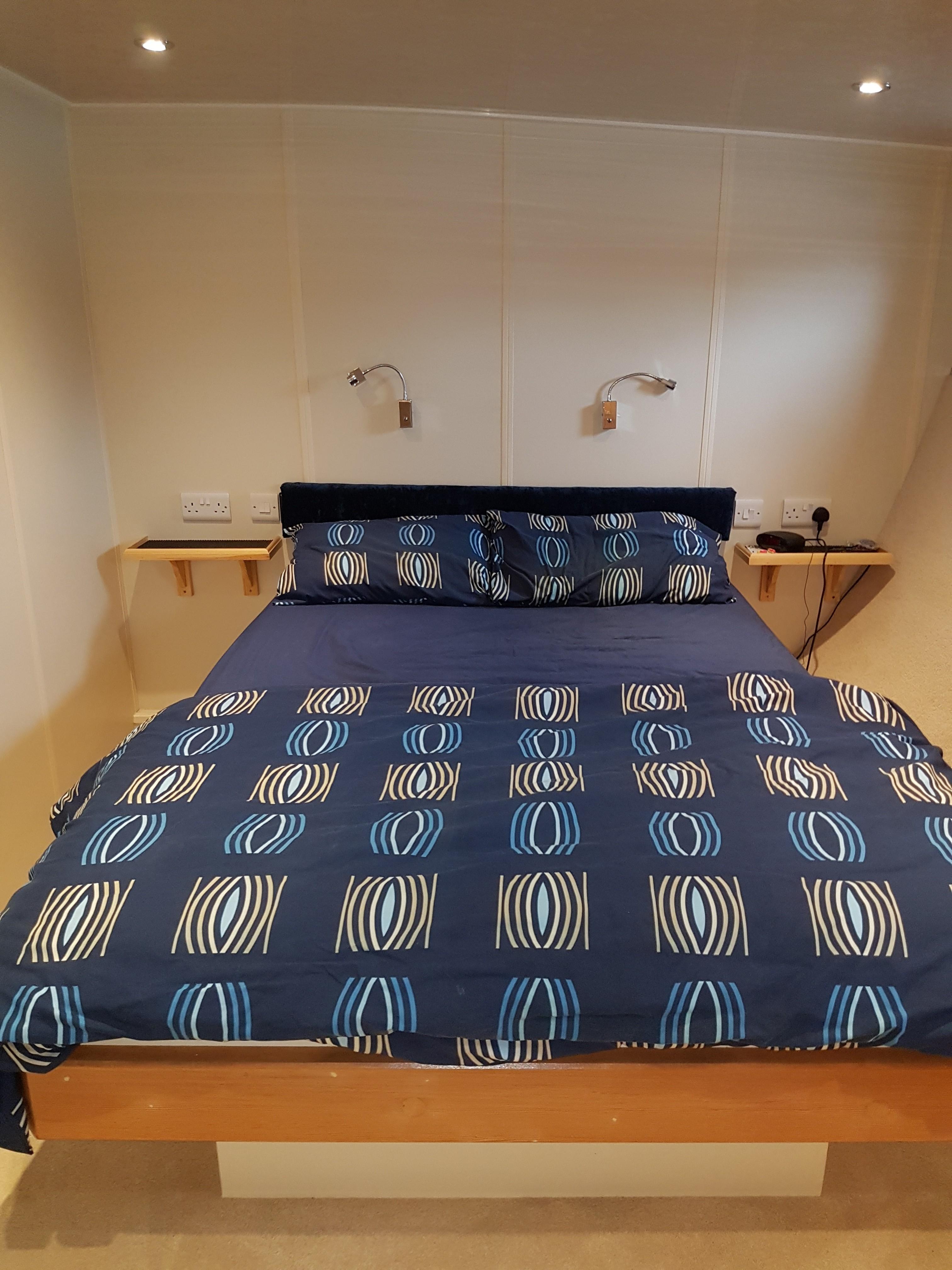

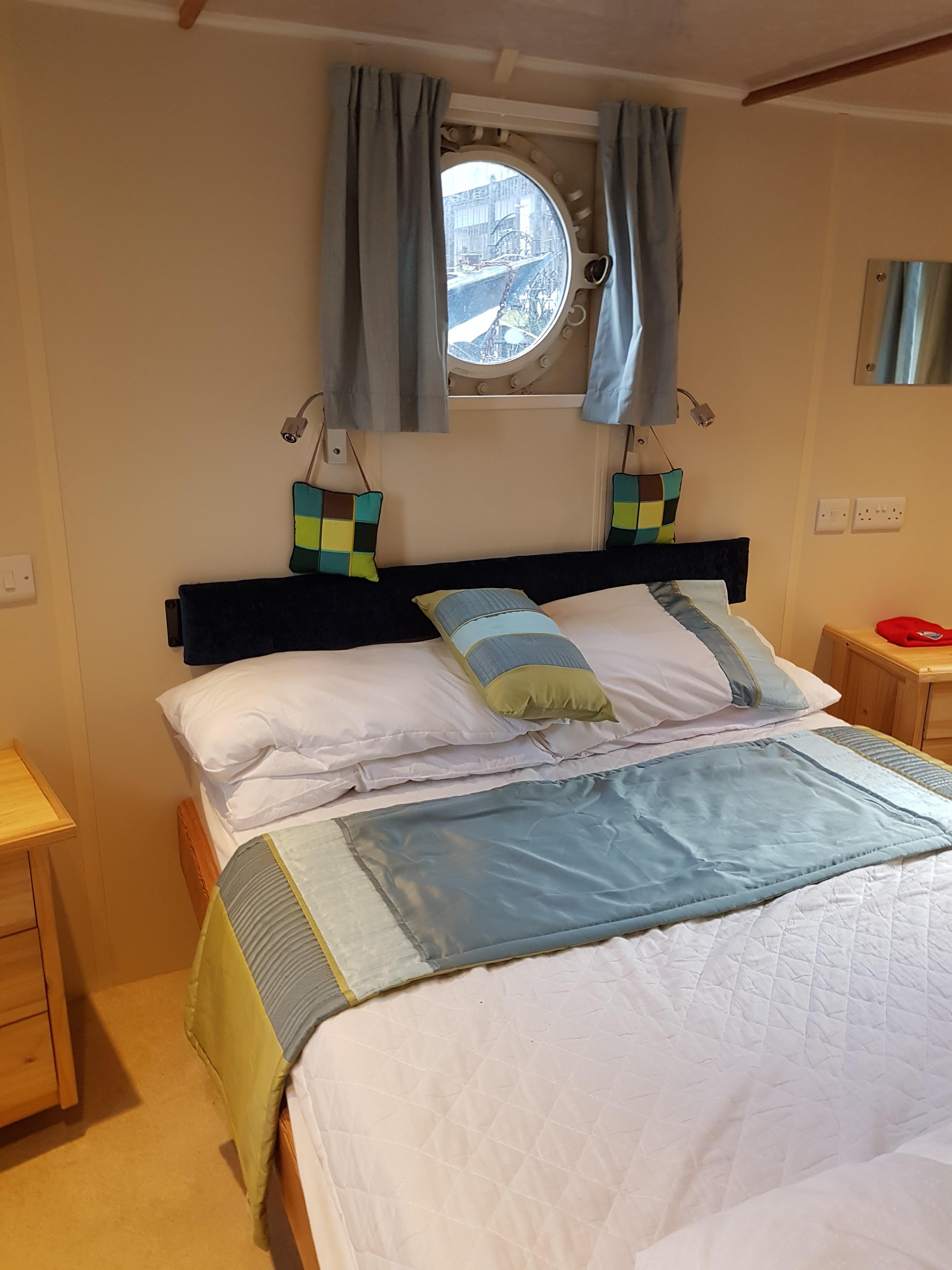

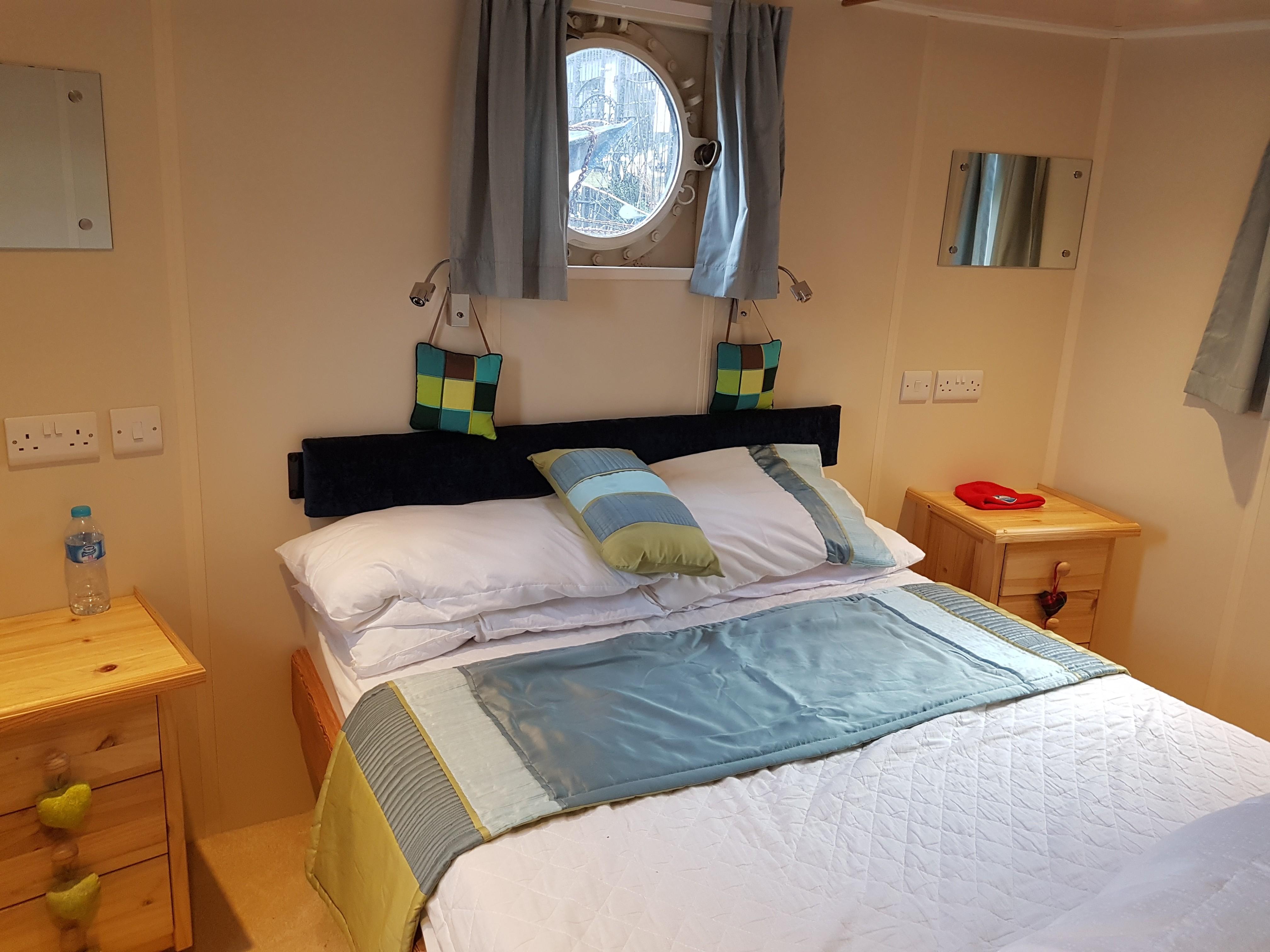

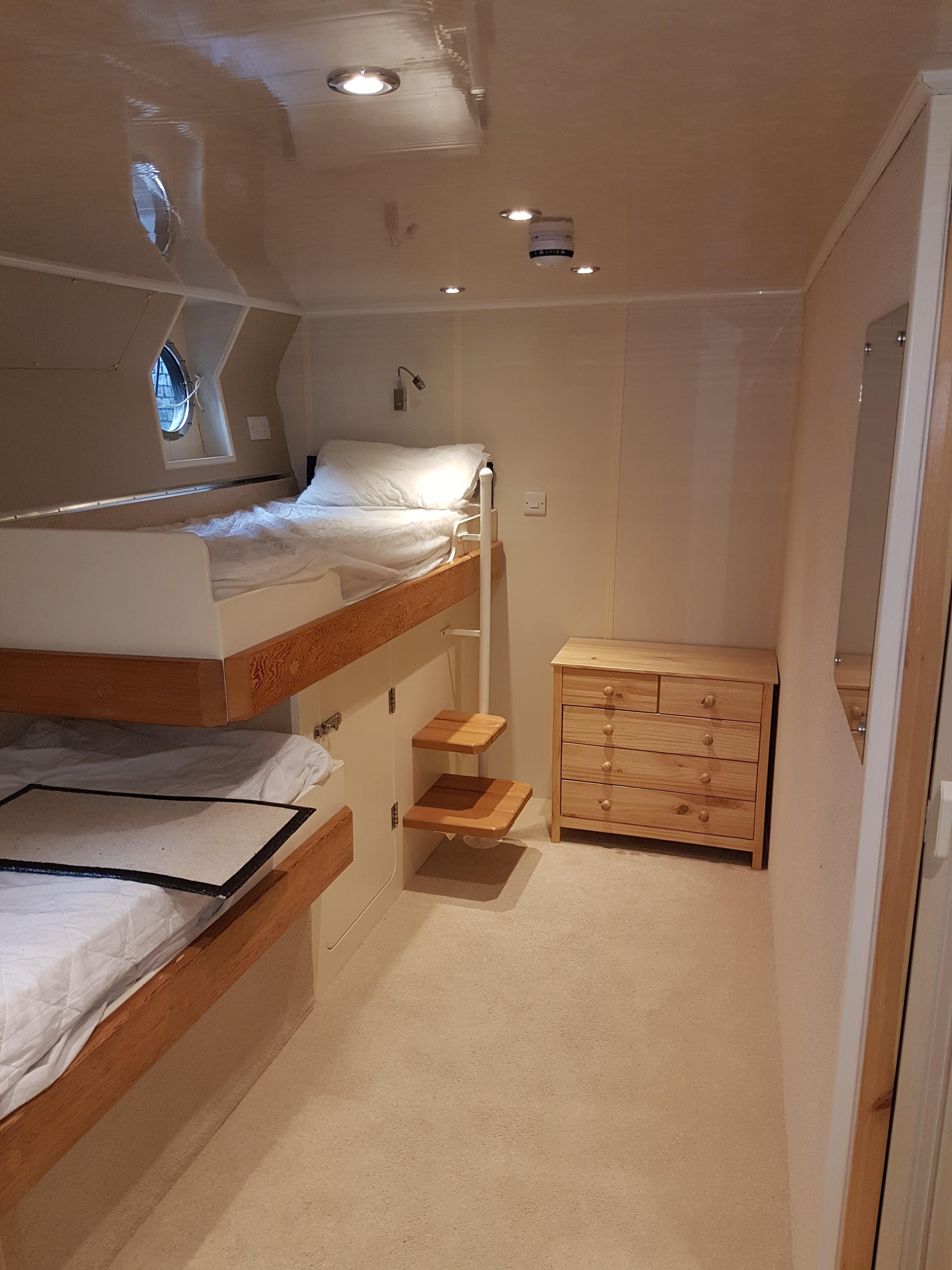

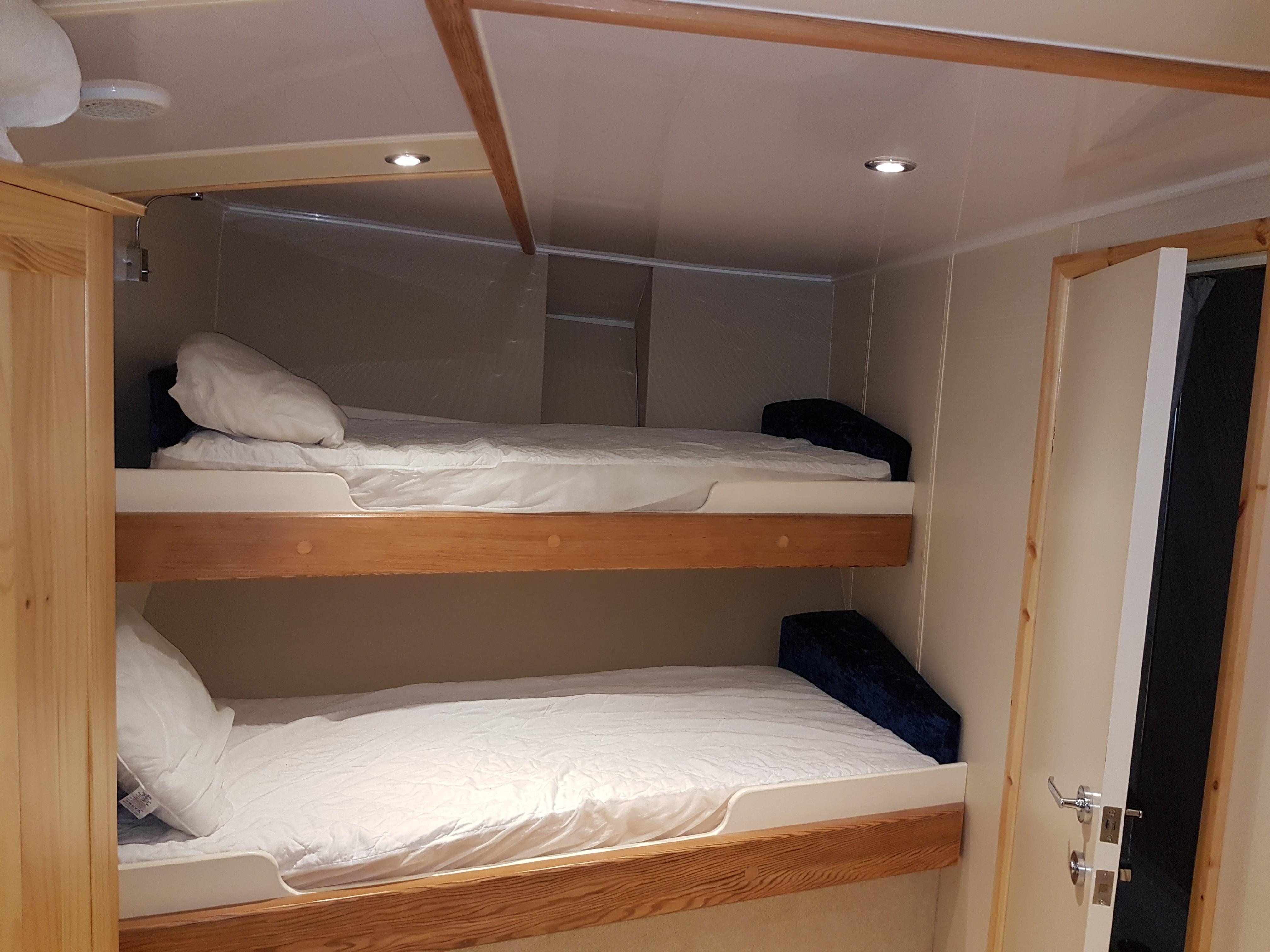

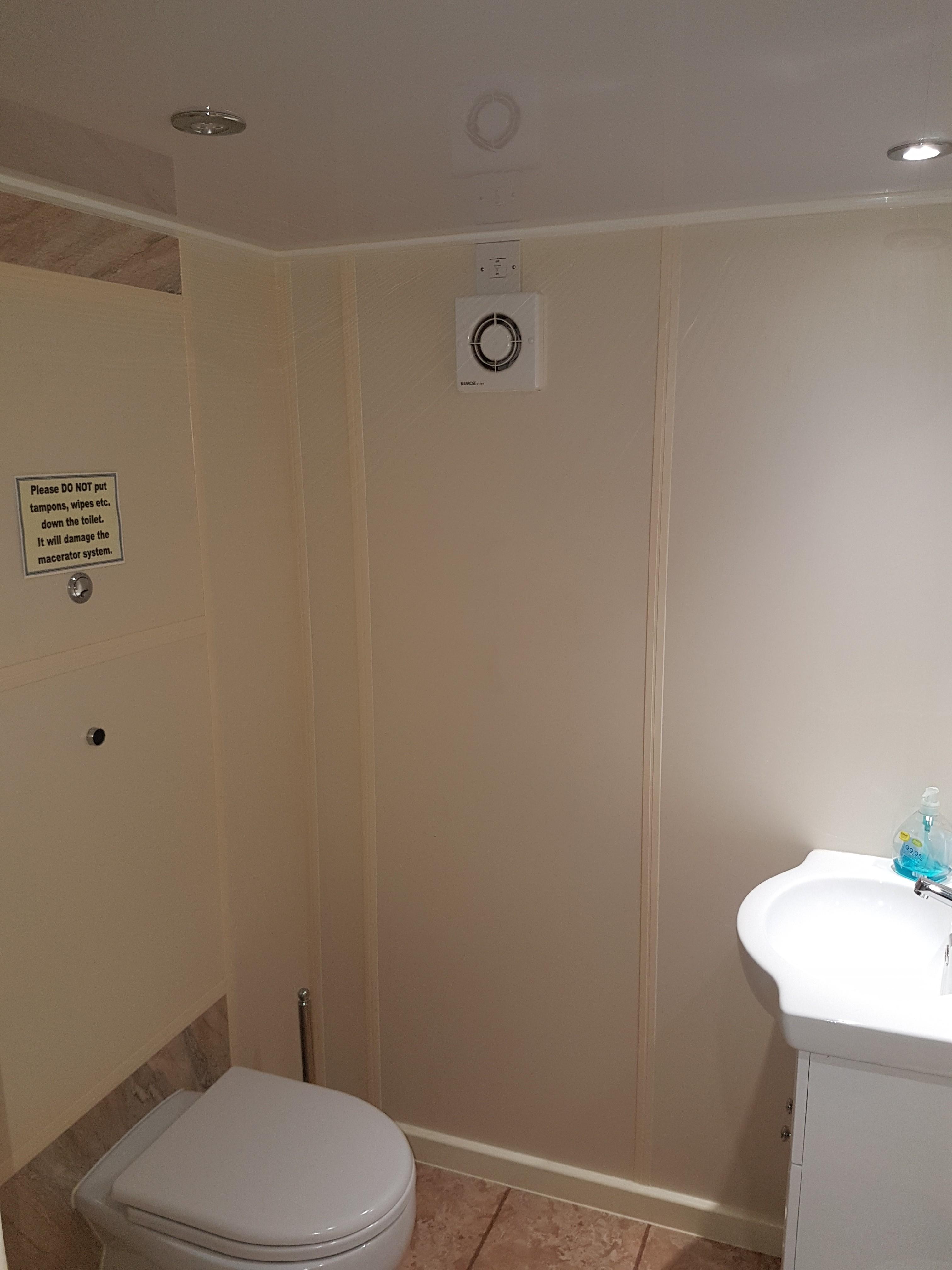

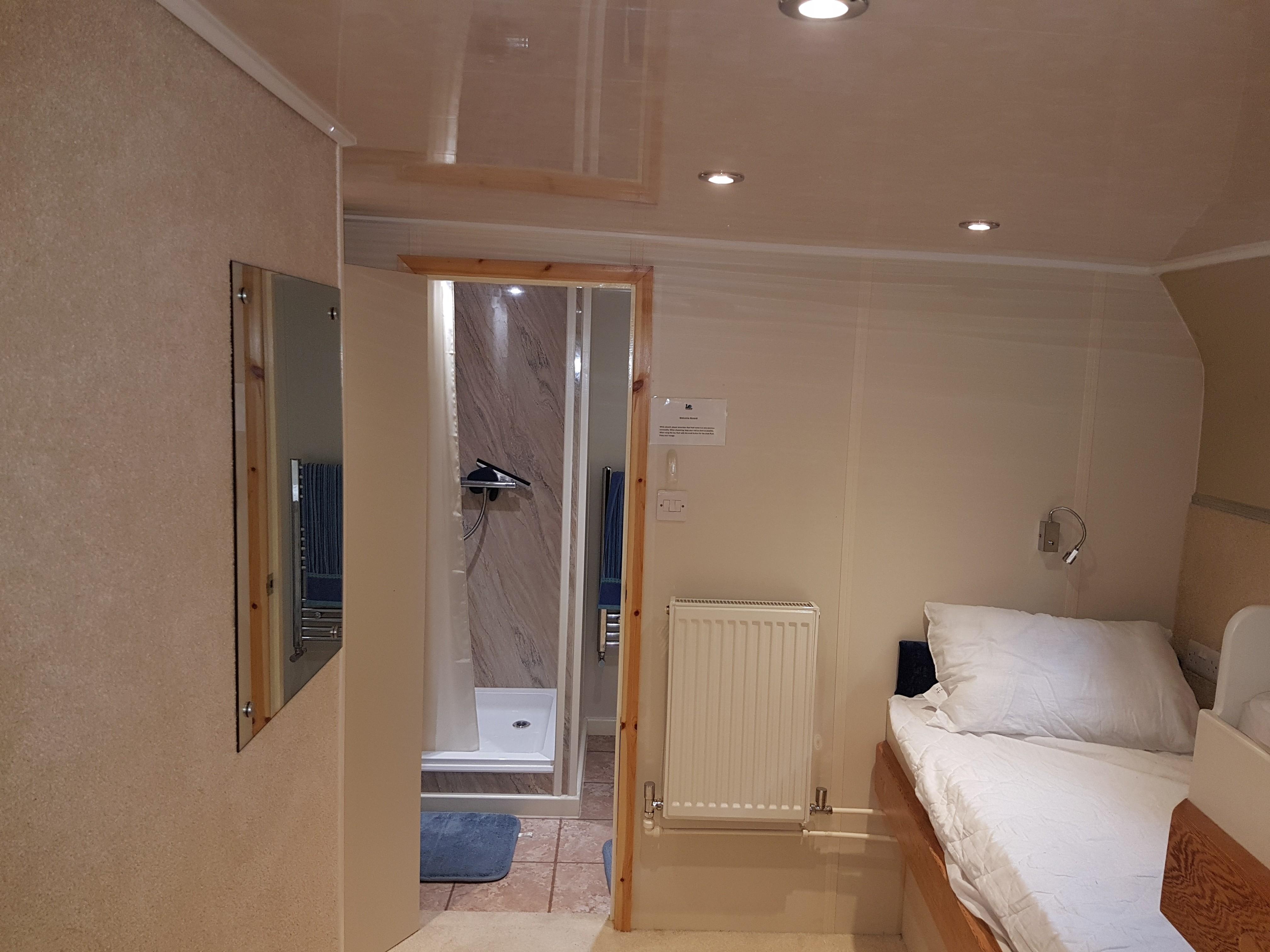

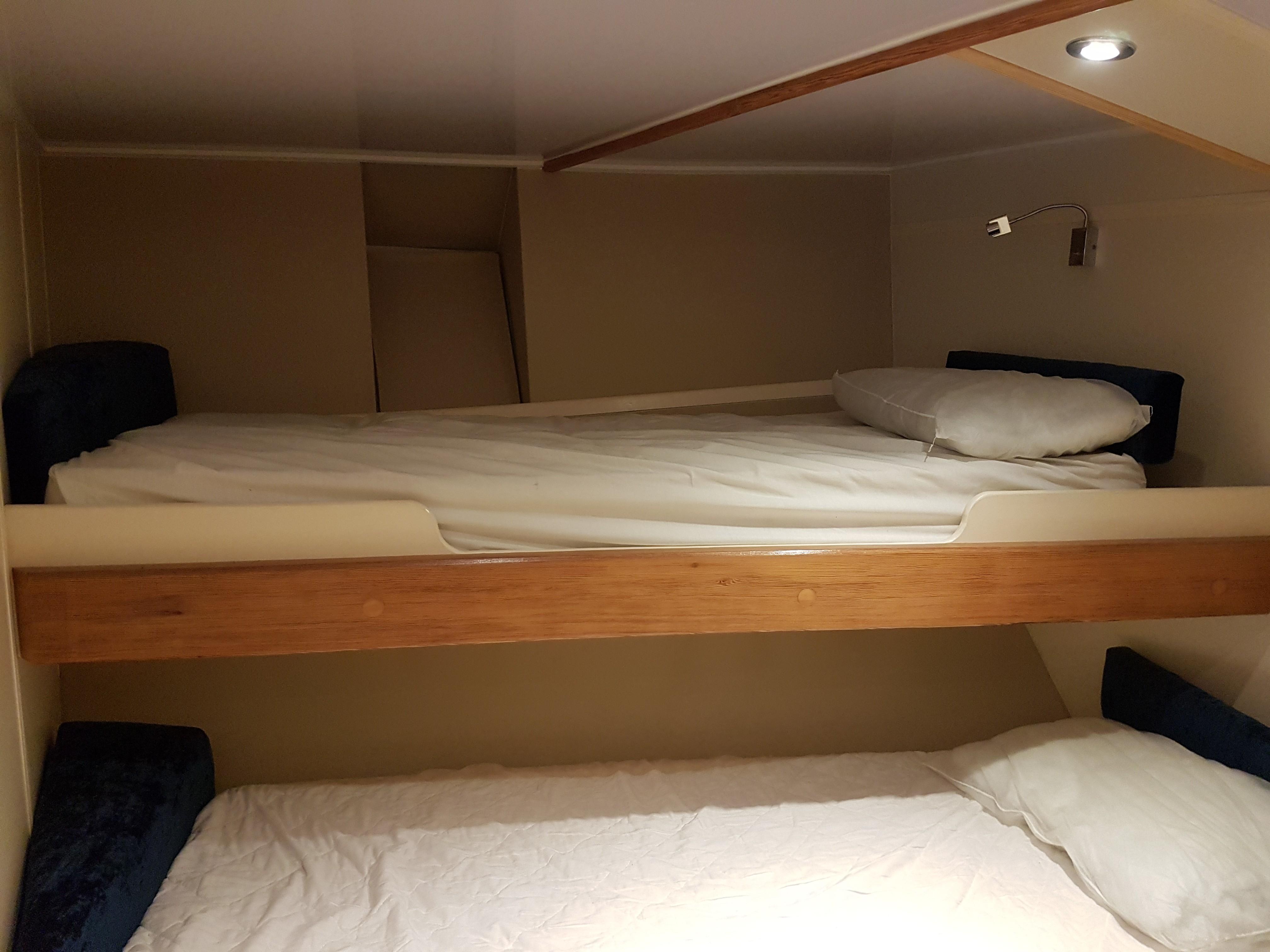

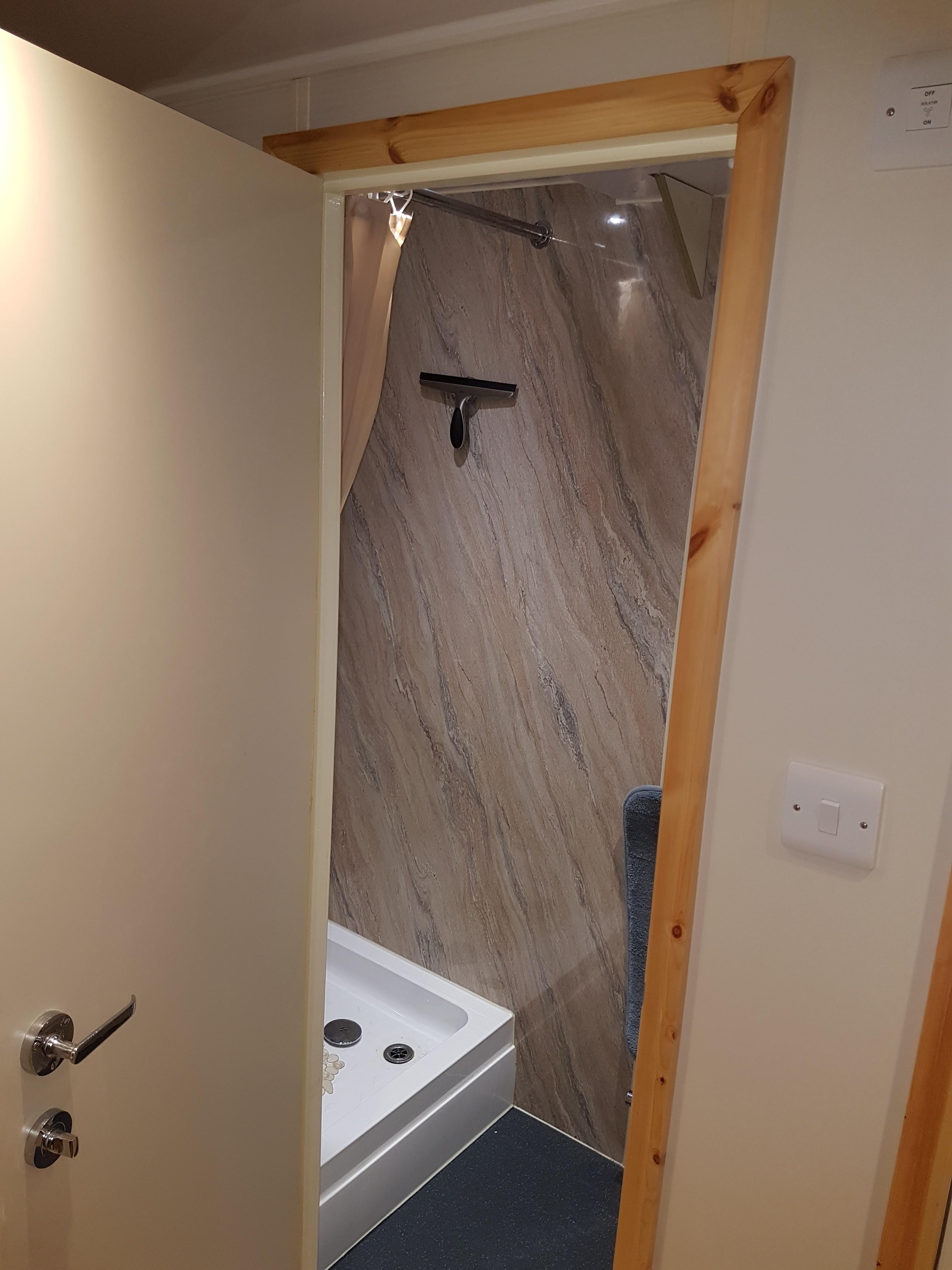

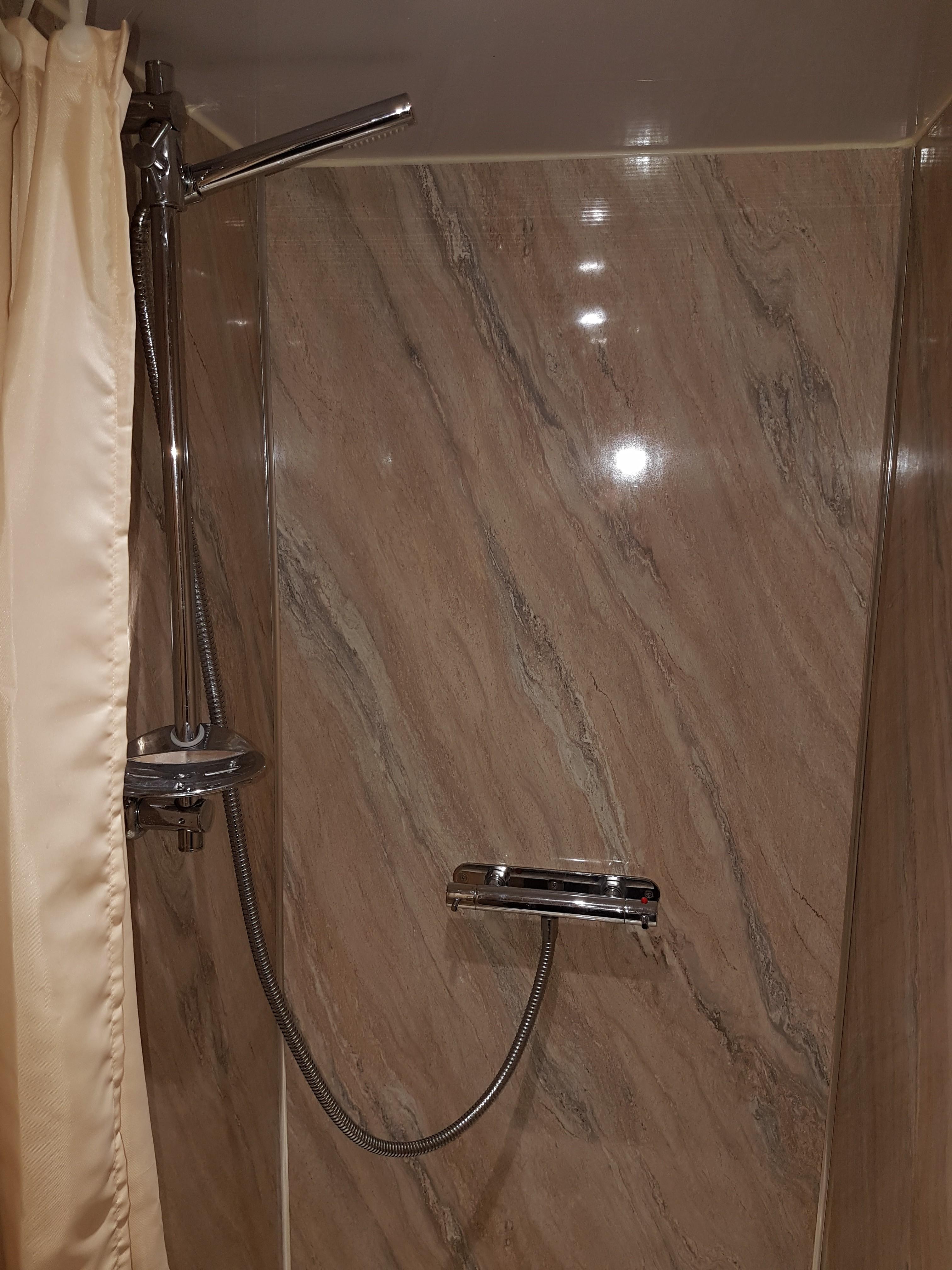

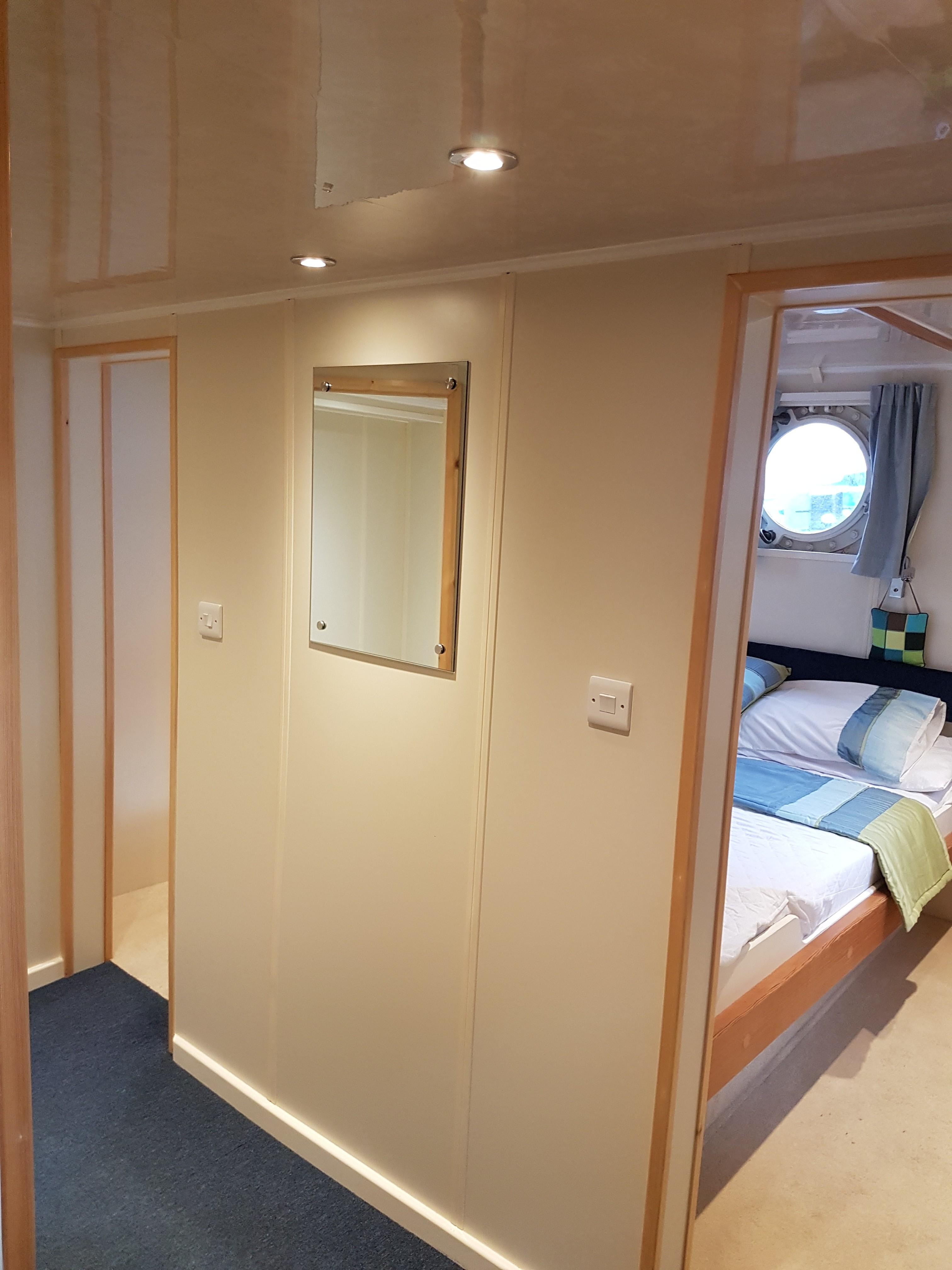

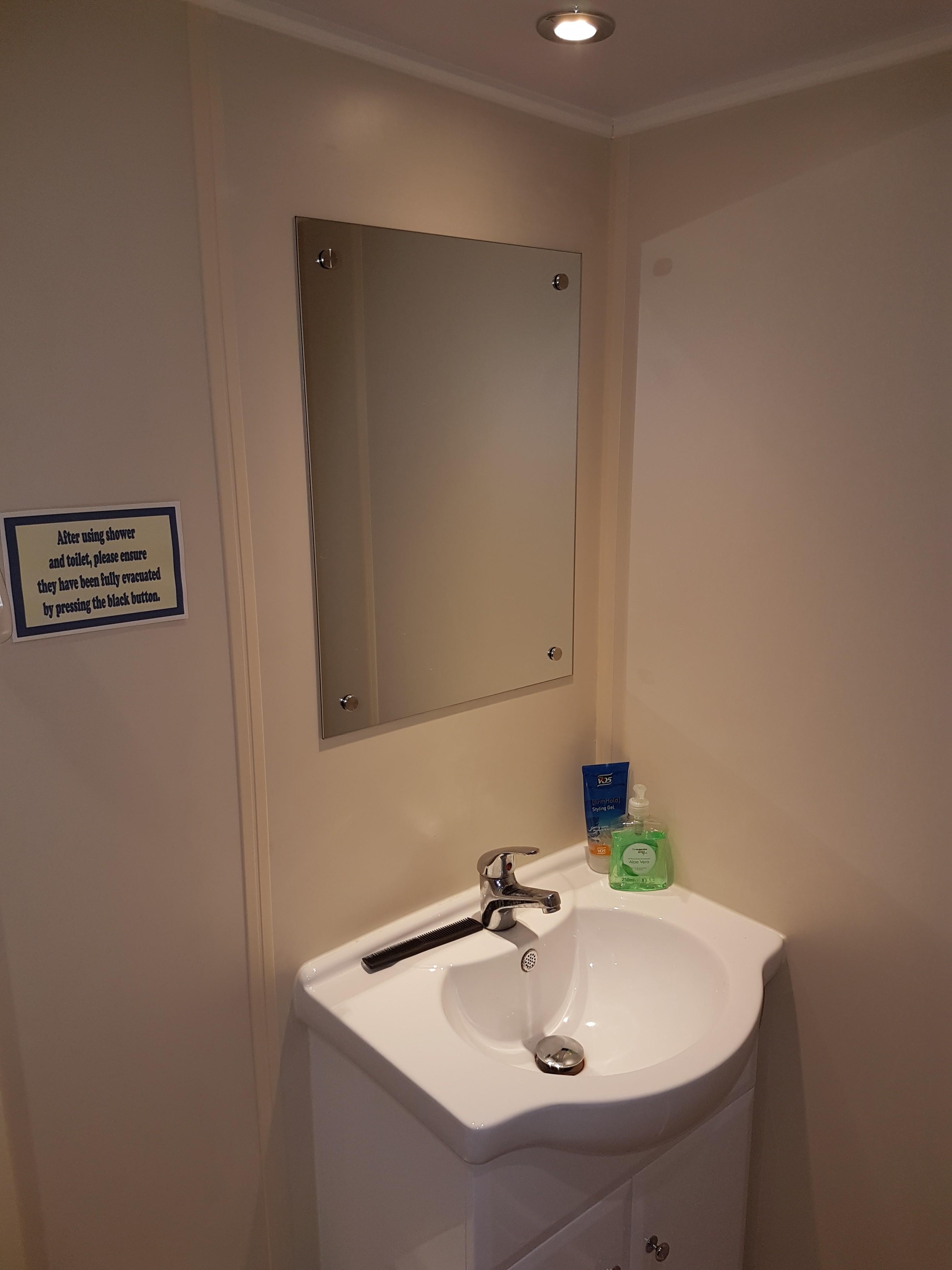

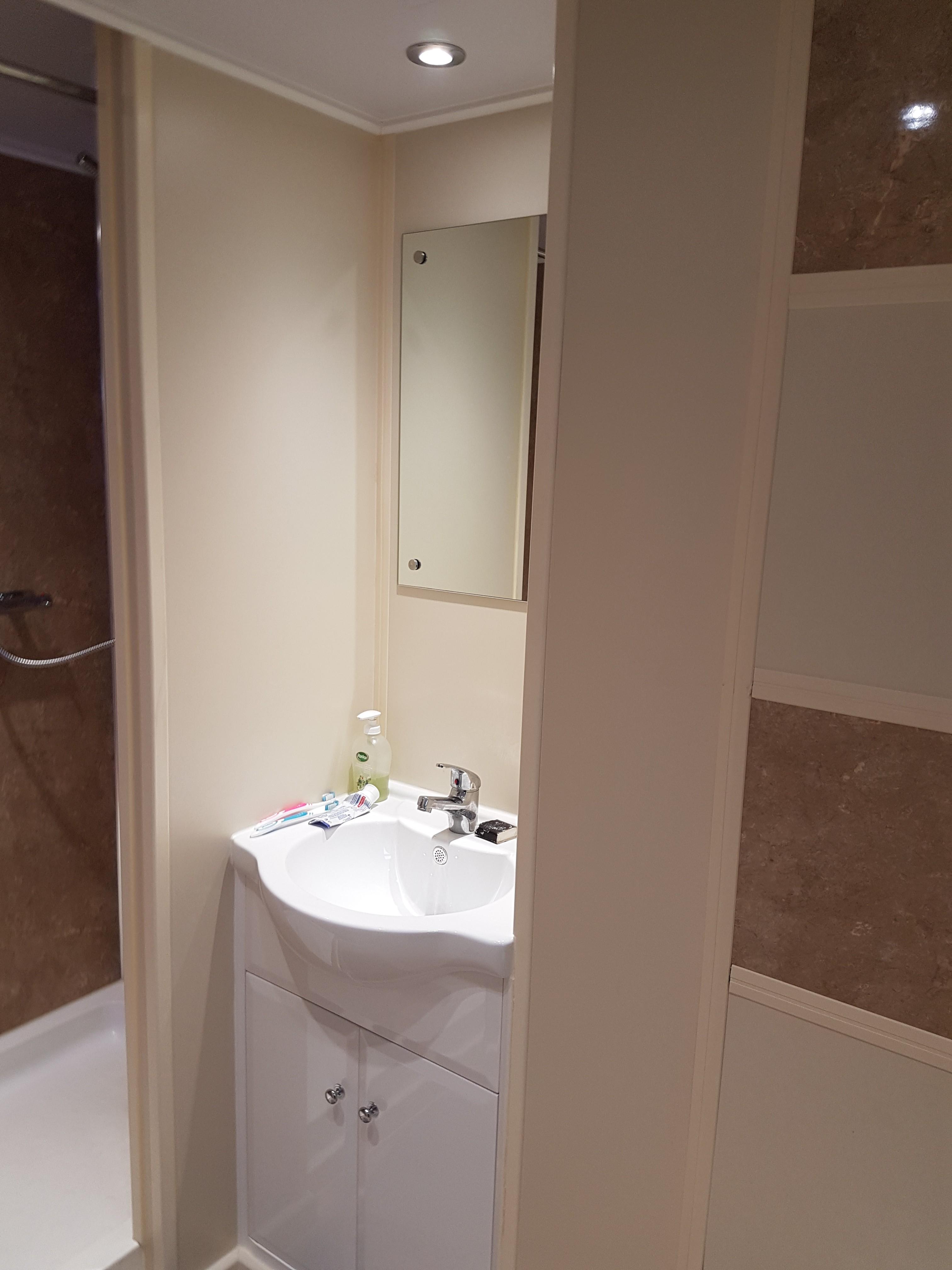

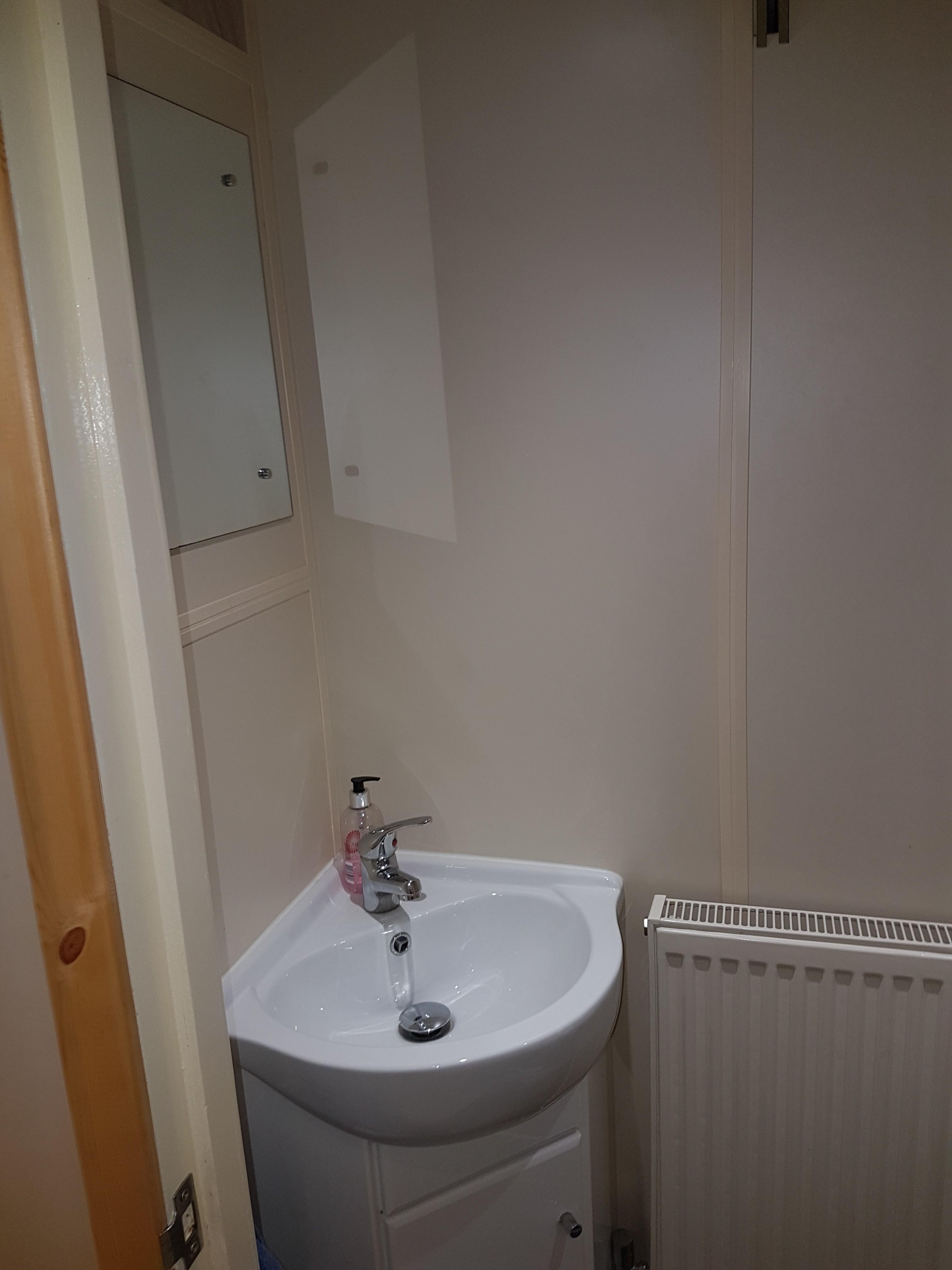

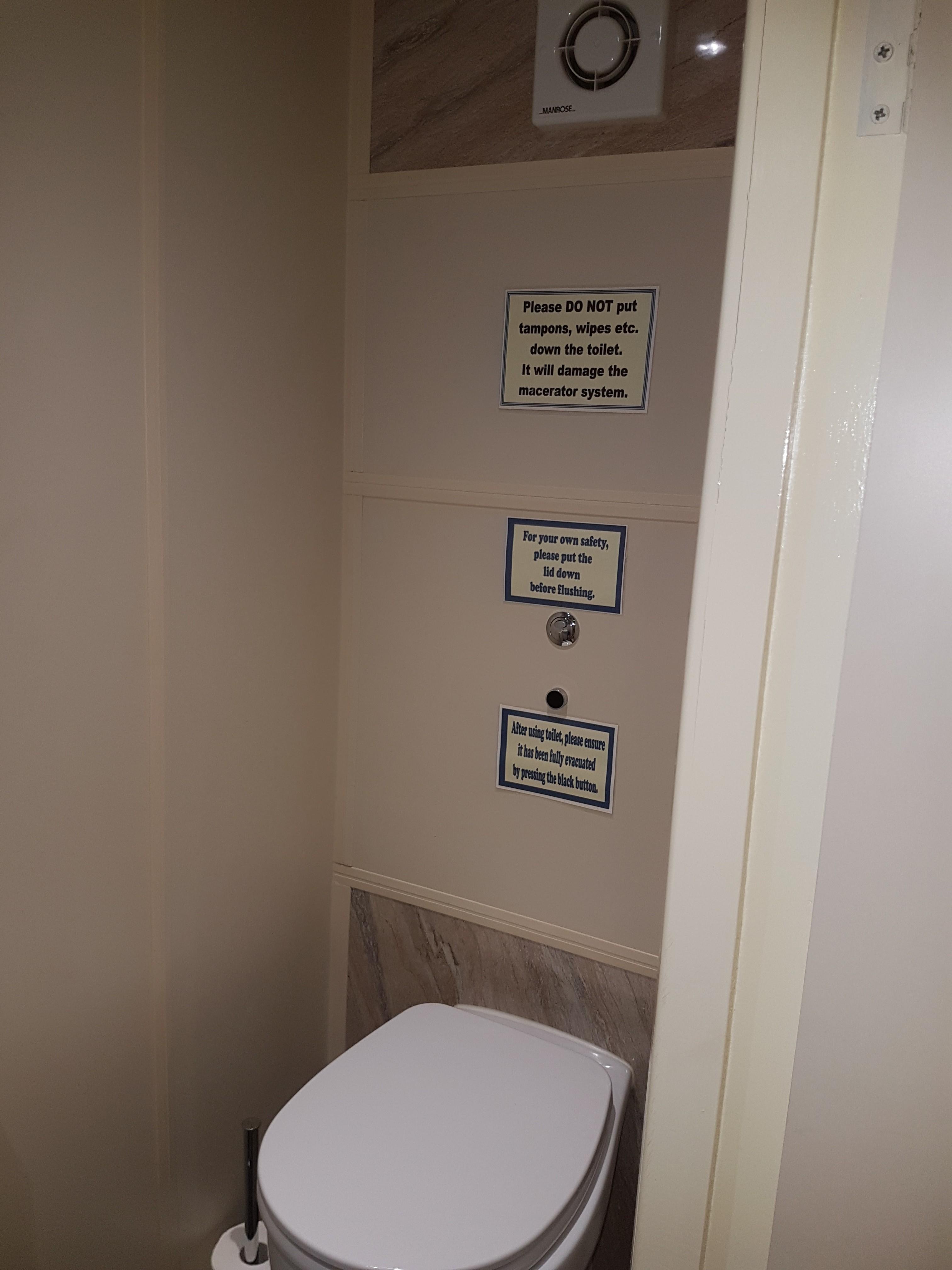

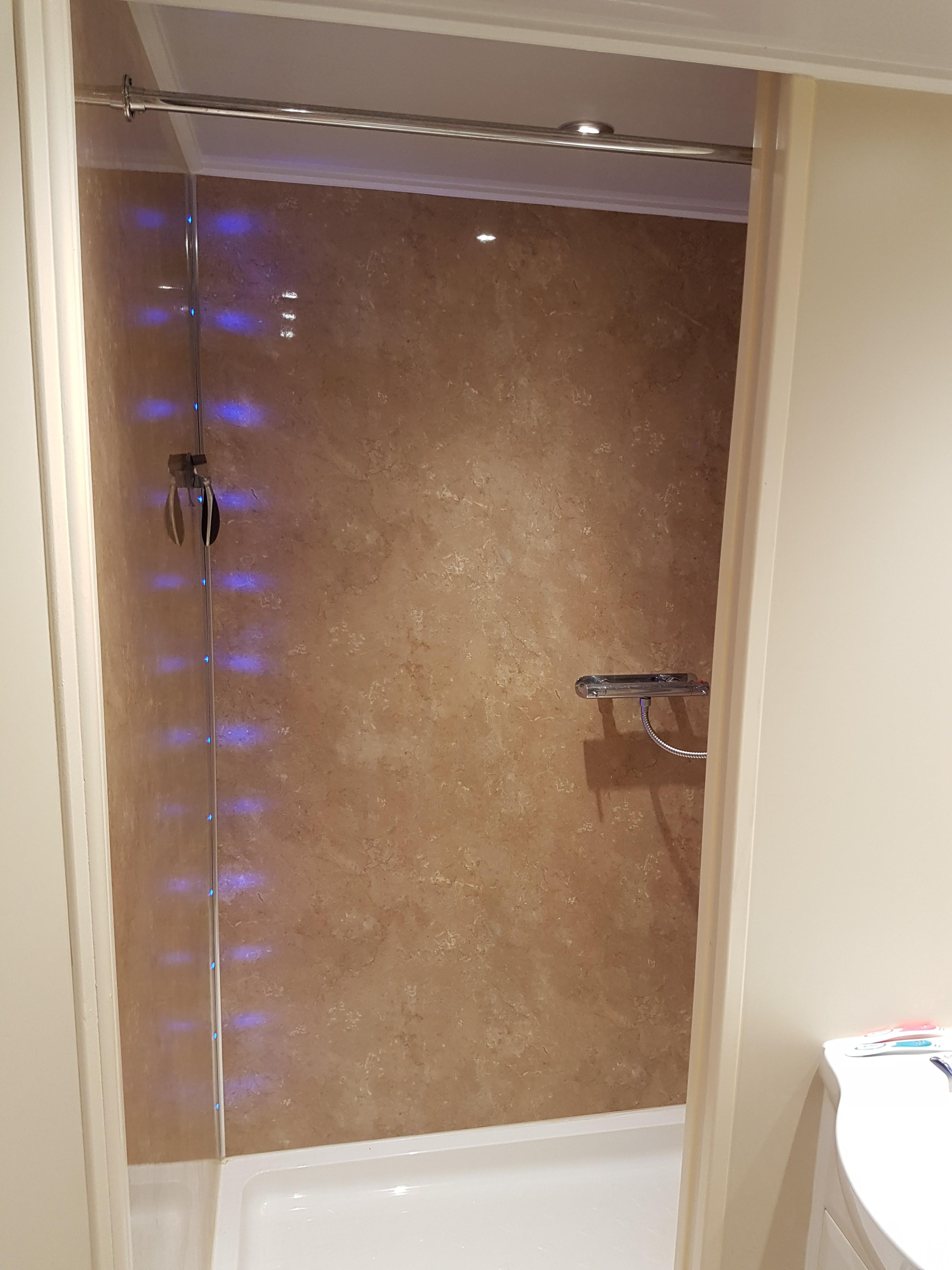

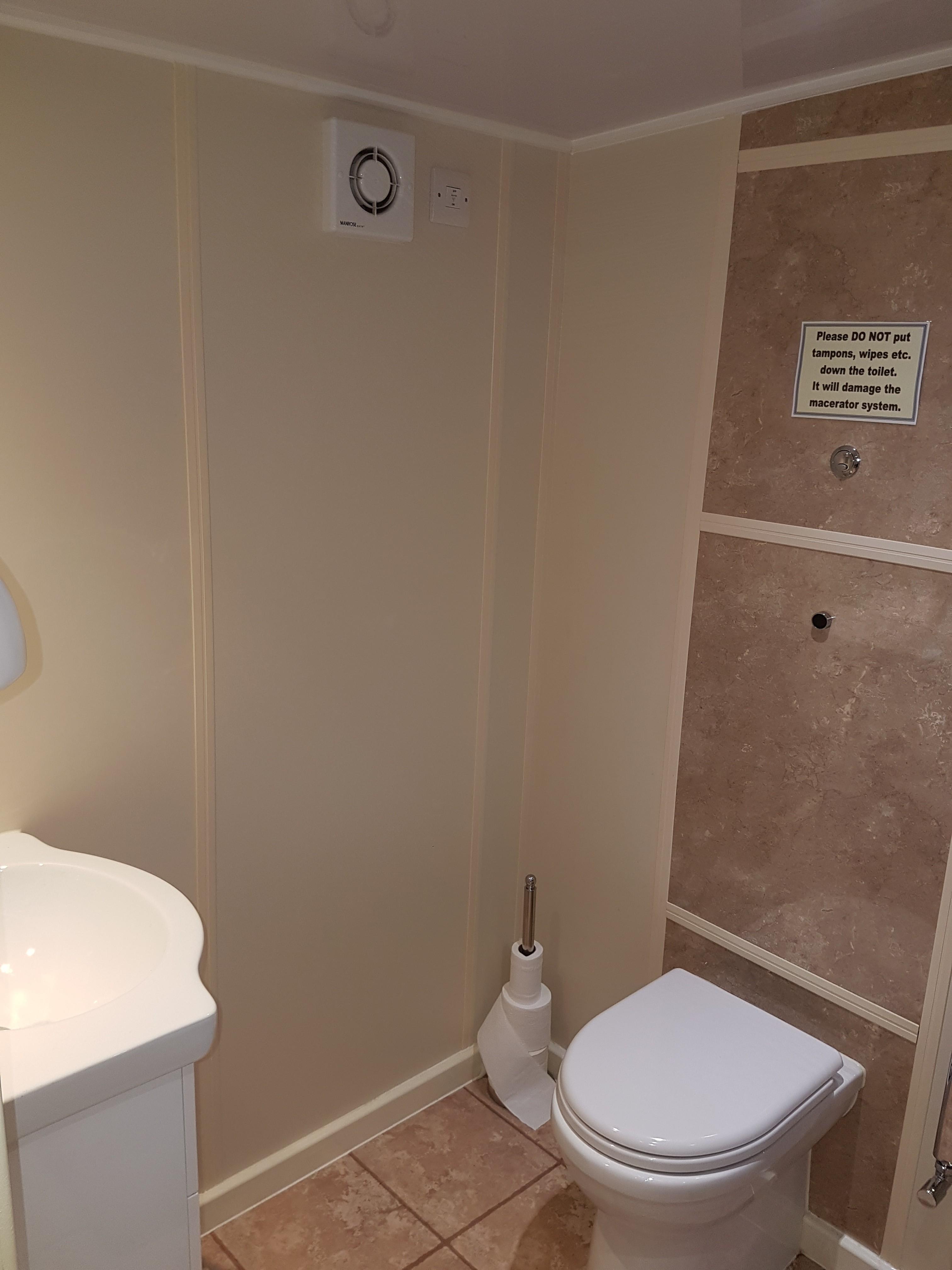

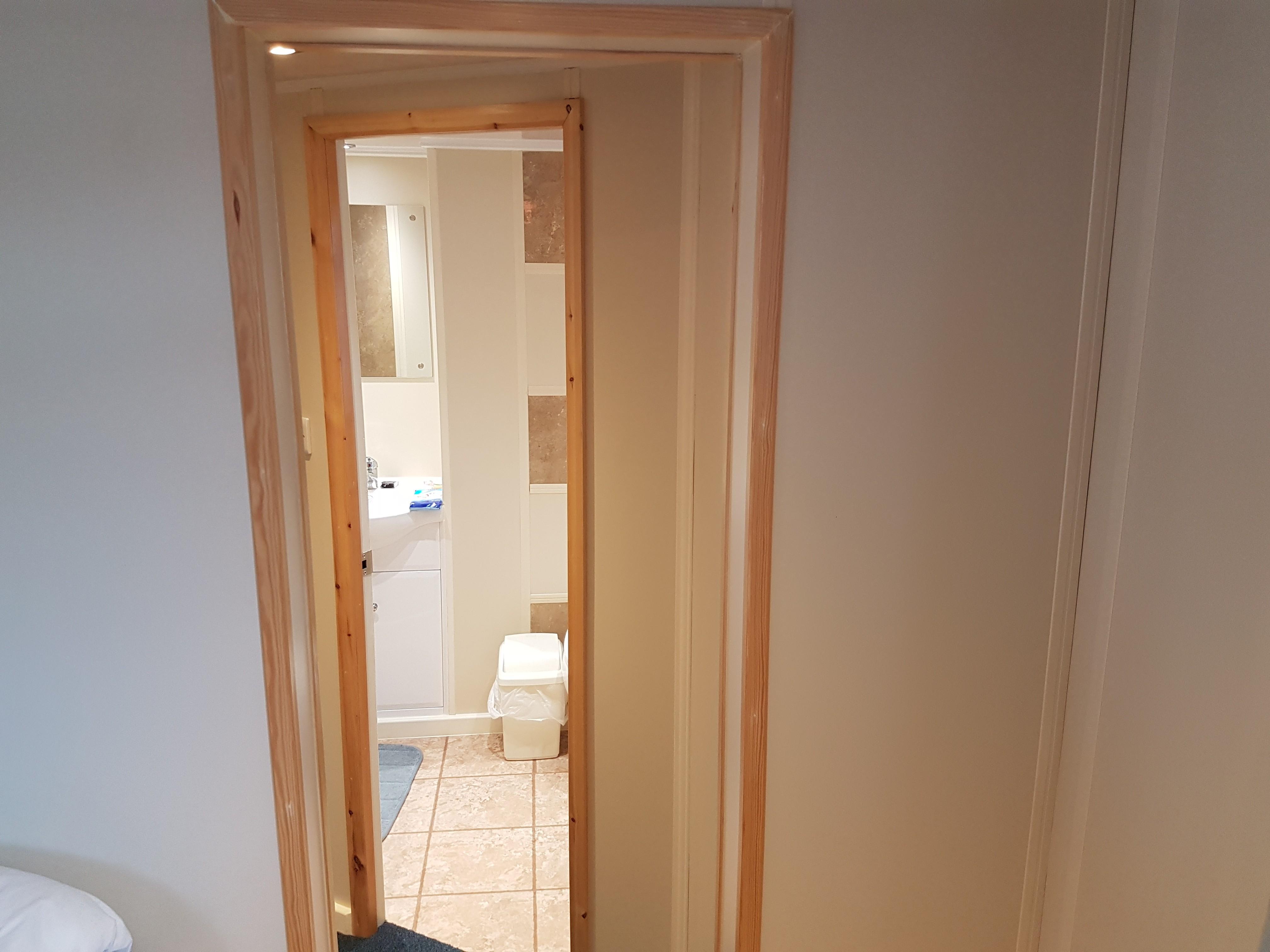

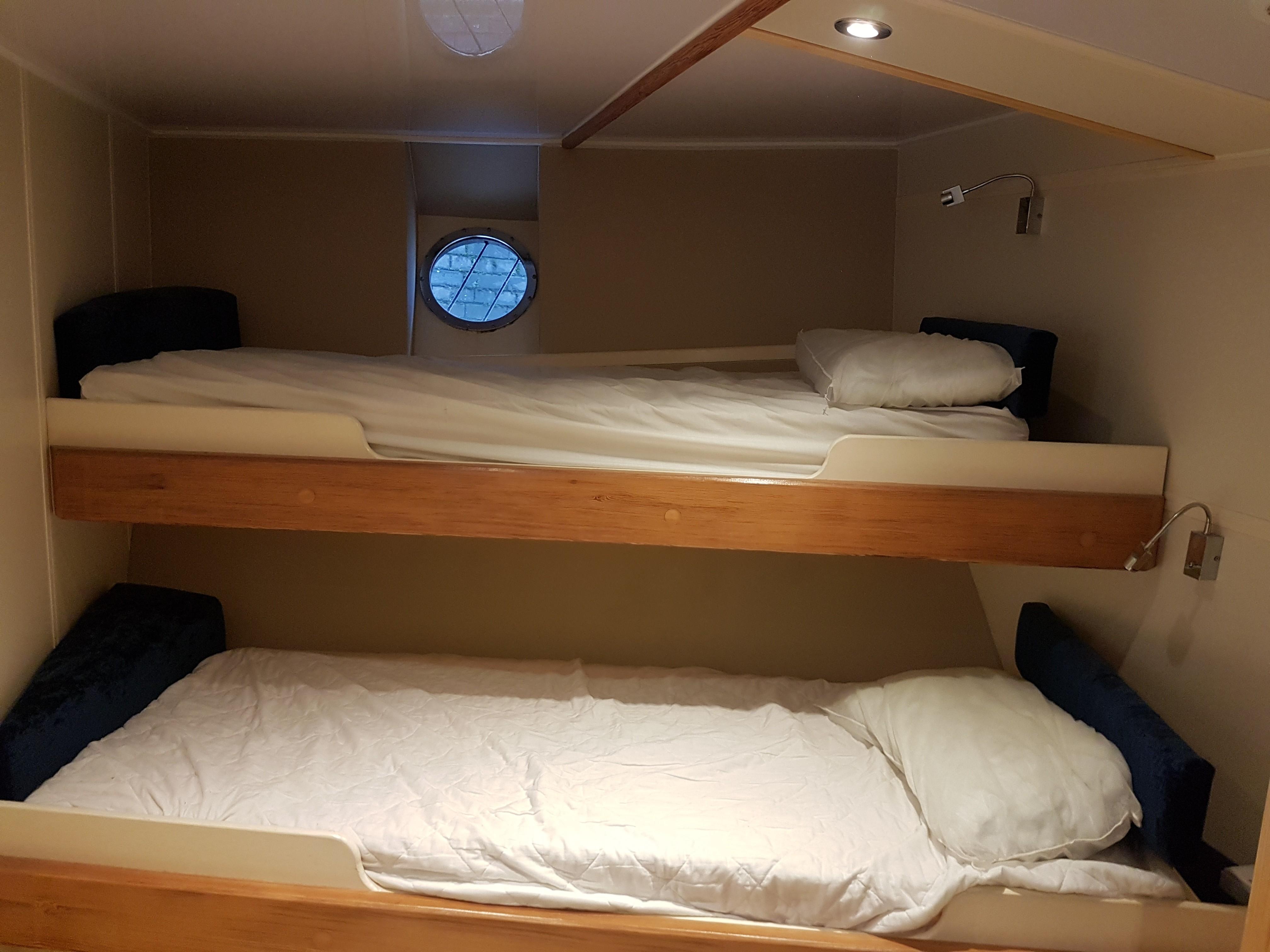

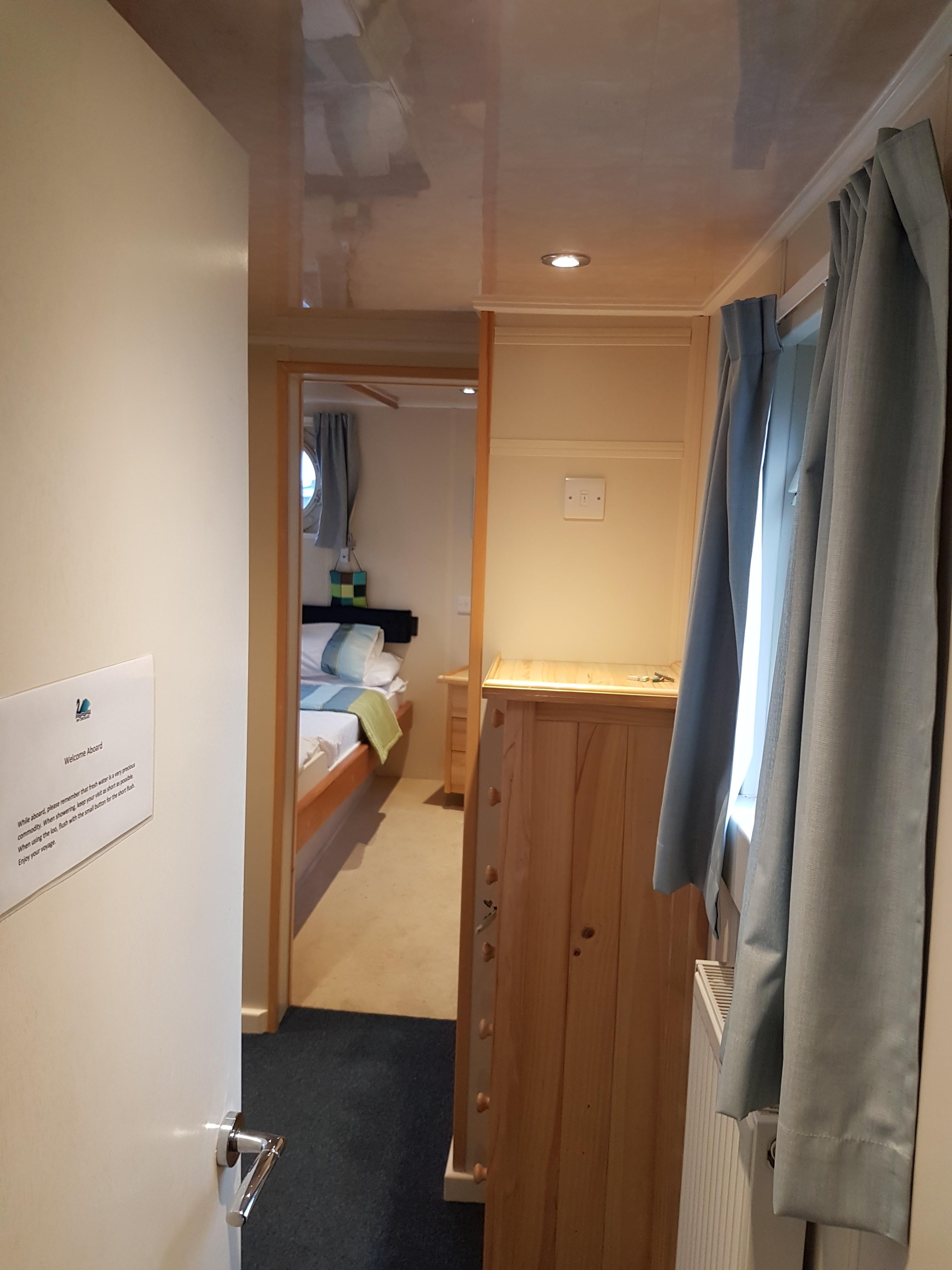

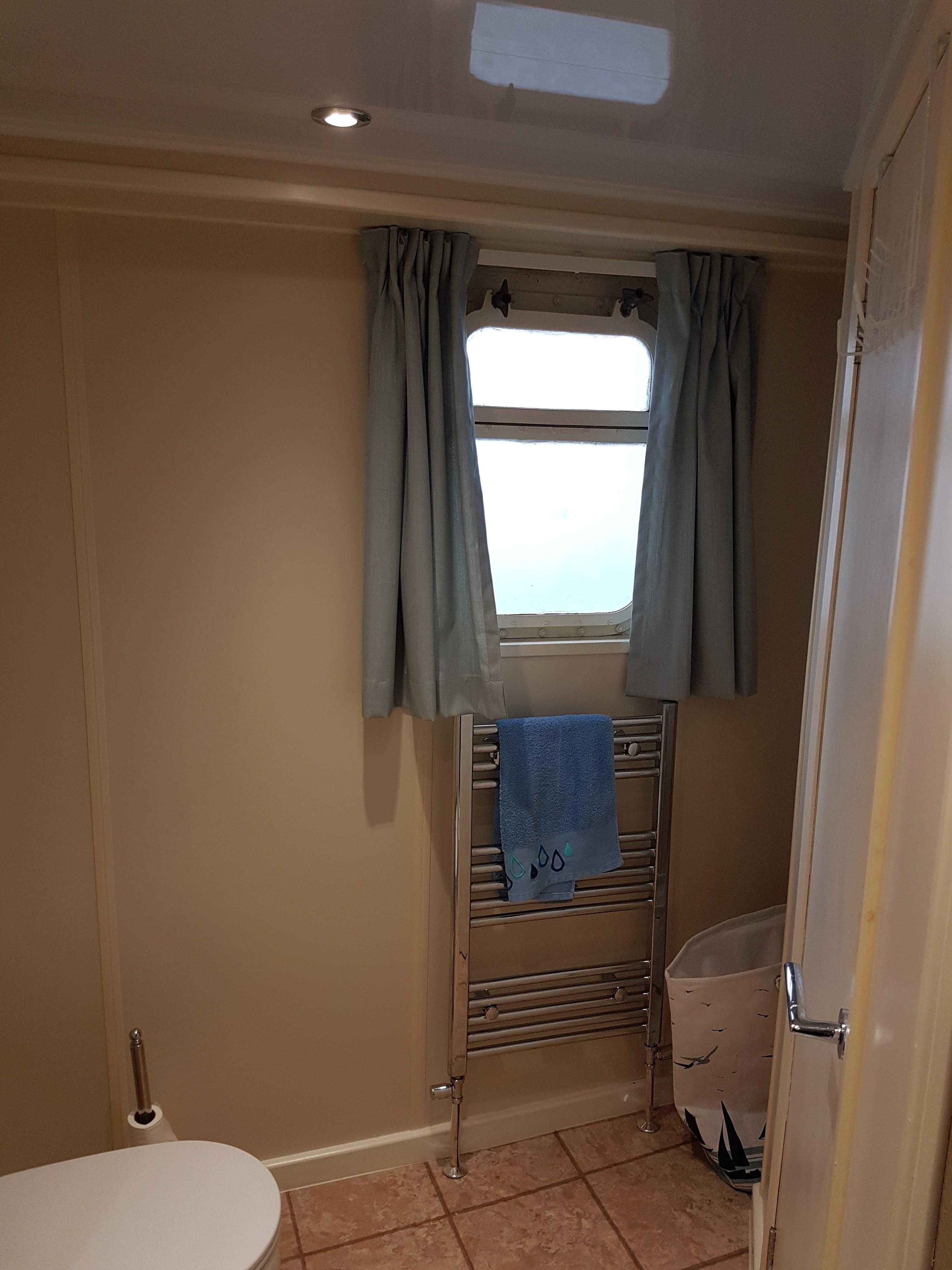

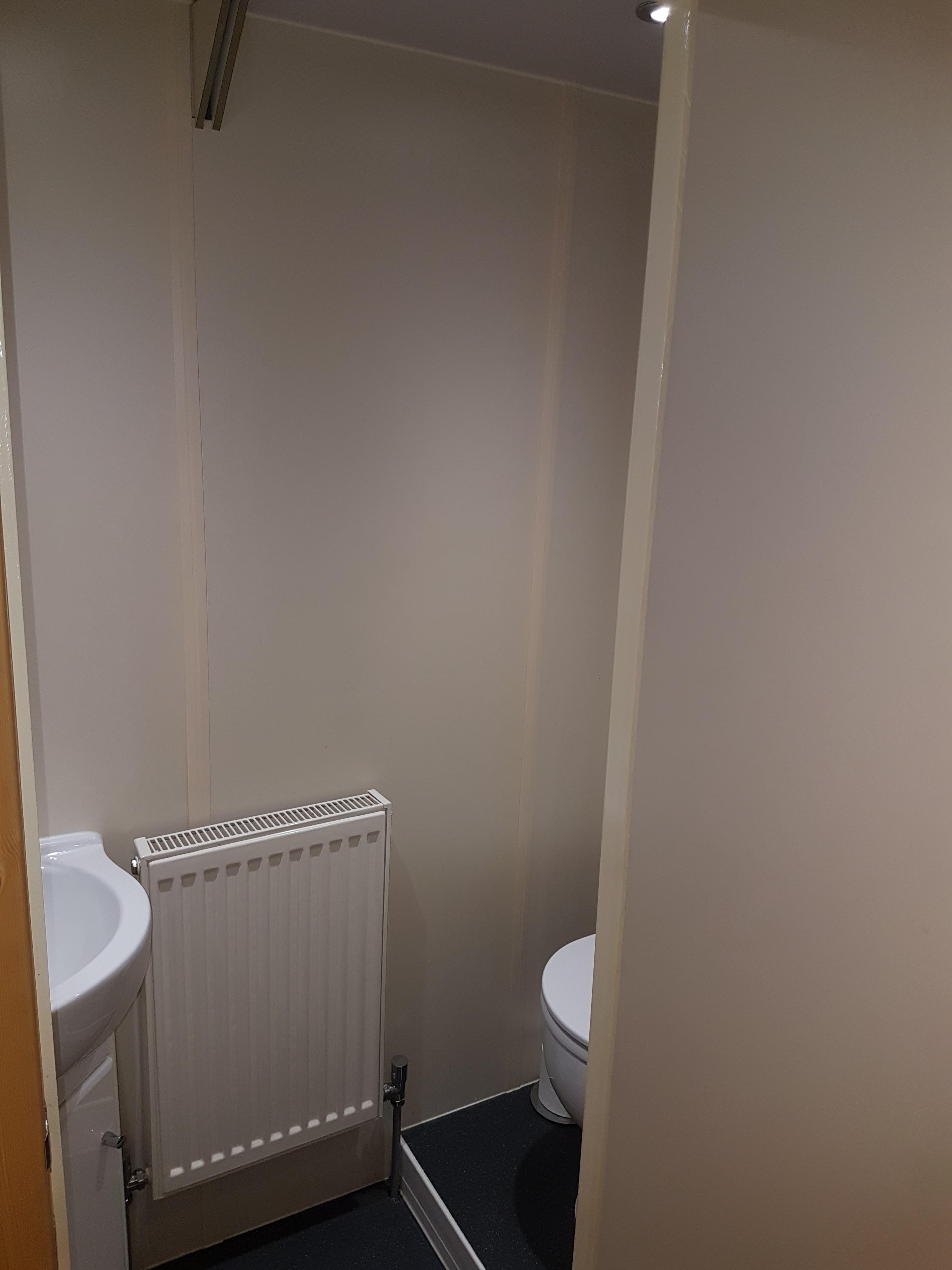

2 x double en suite master suites with double showers and wc, 1 x twin en suite cabin with shower and wc, 1 x quad en suite cabin with shower and wc

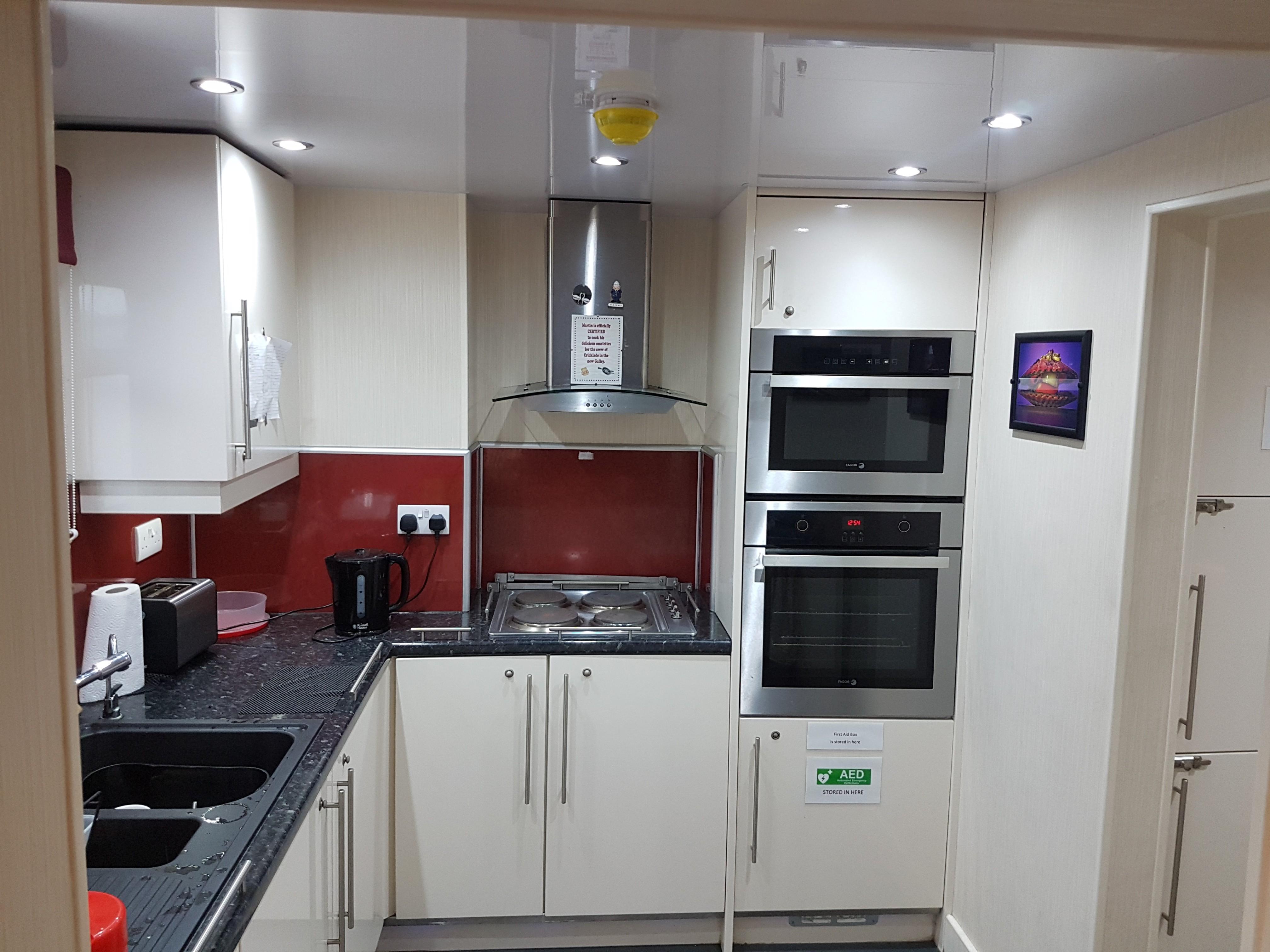

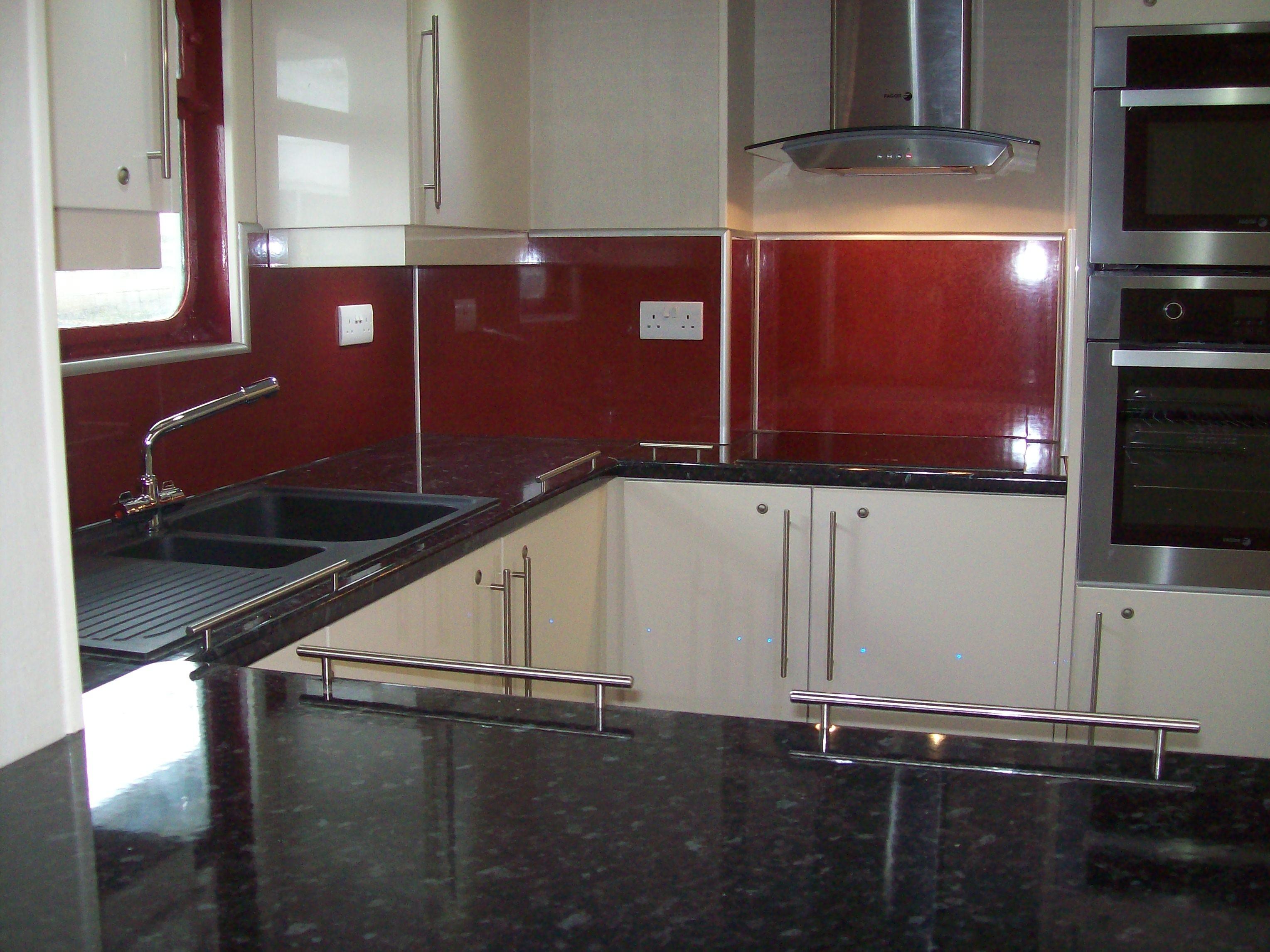

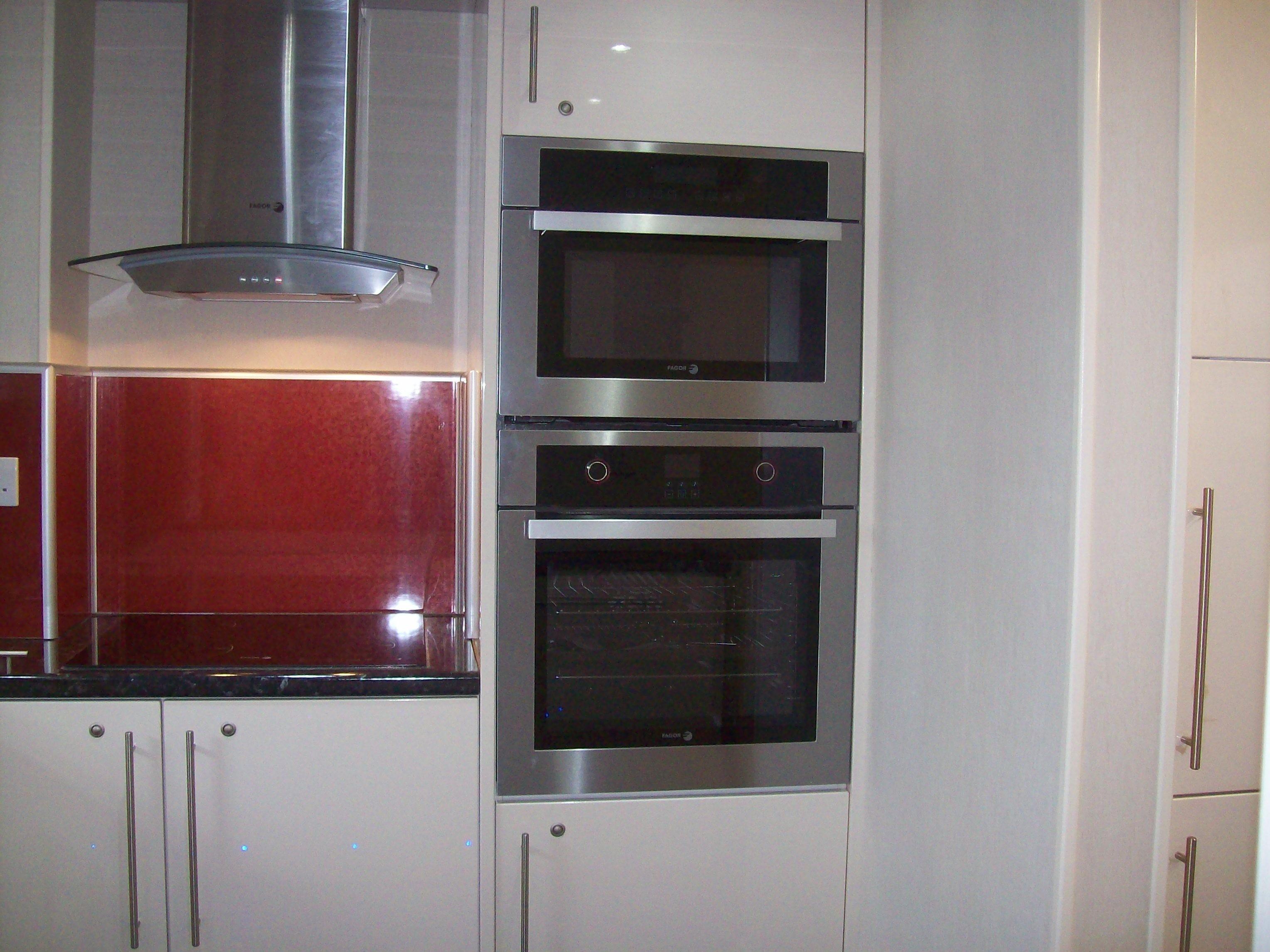

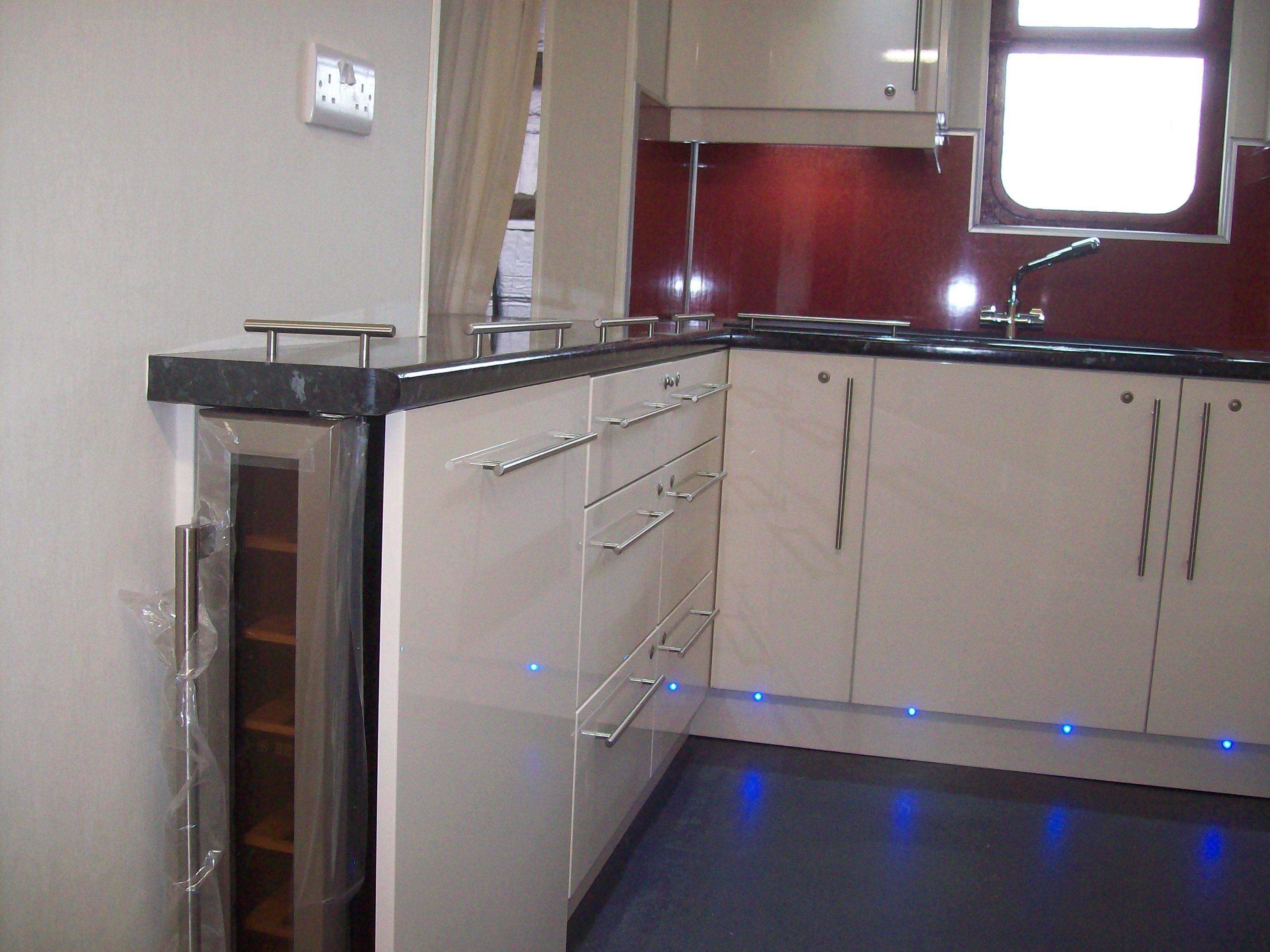

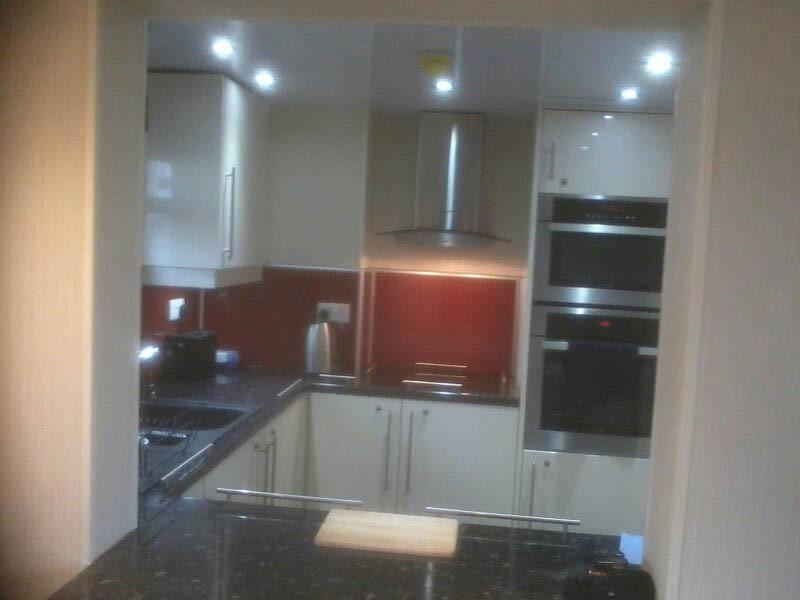

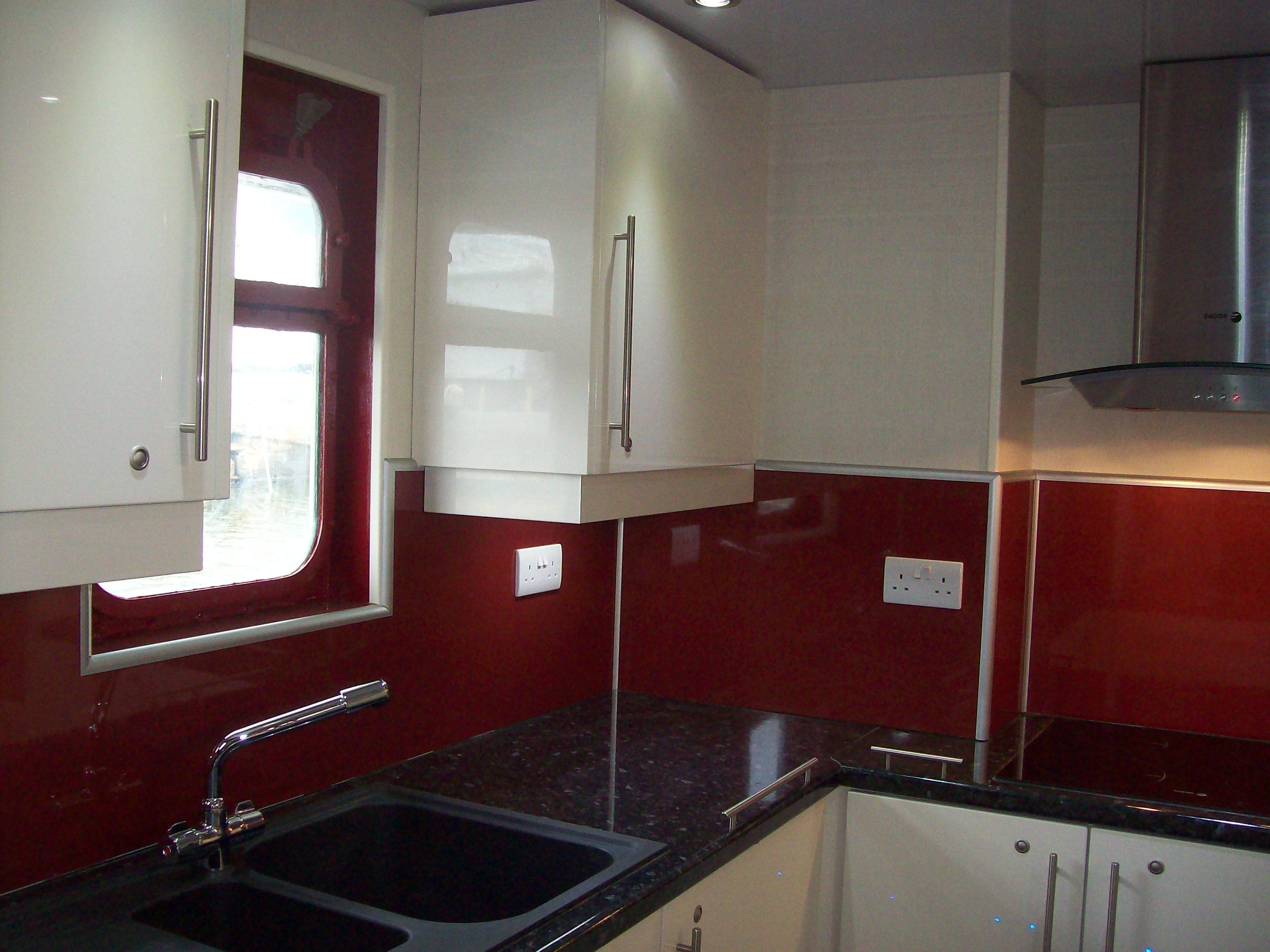

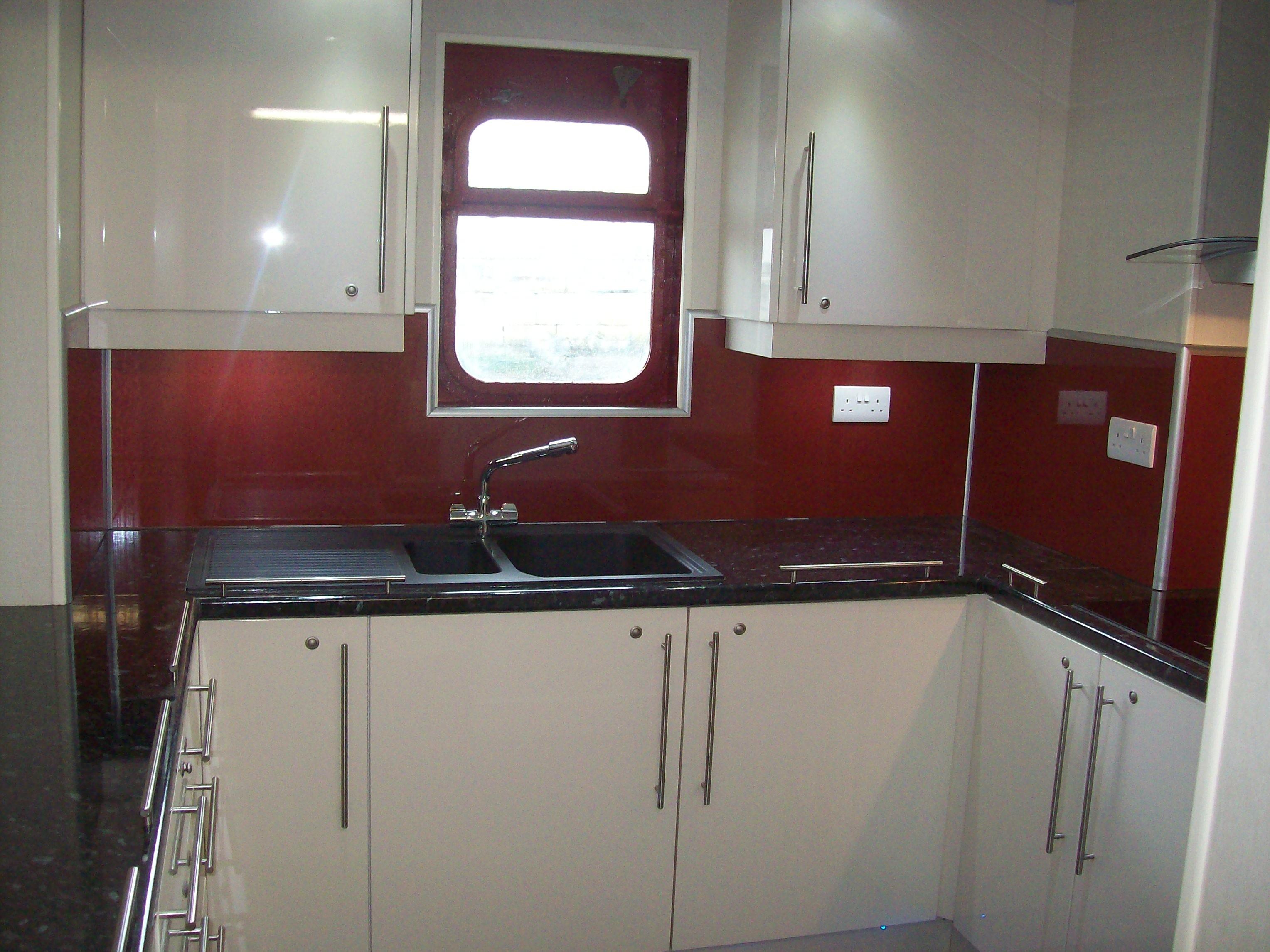

Modern fitted Galley c/w cooker, combi microwave, 4 ring hob, fridge freezer, drinking water filter and cooler, wine cooler

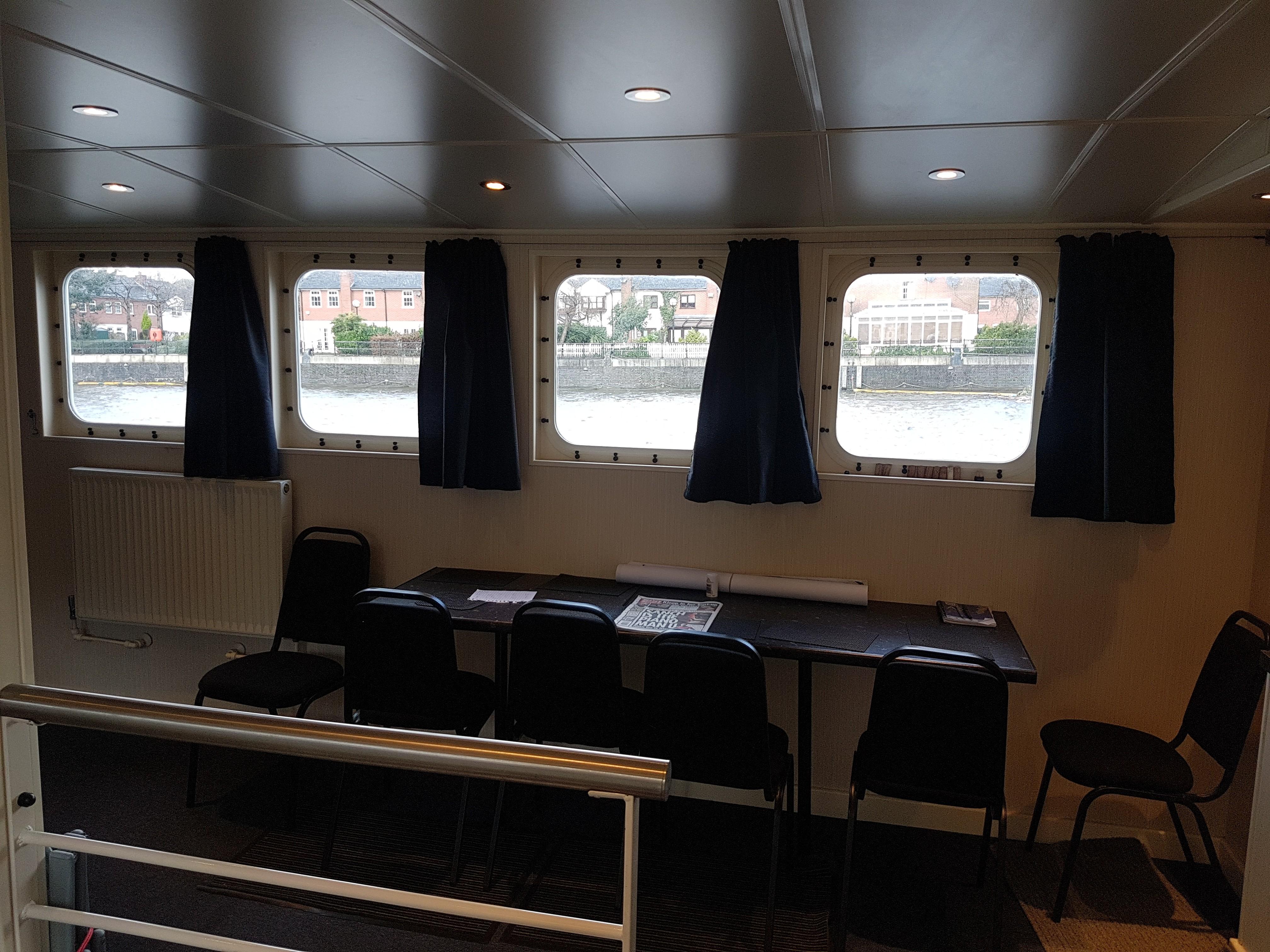

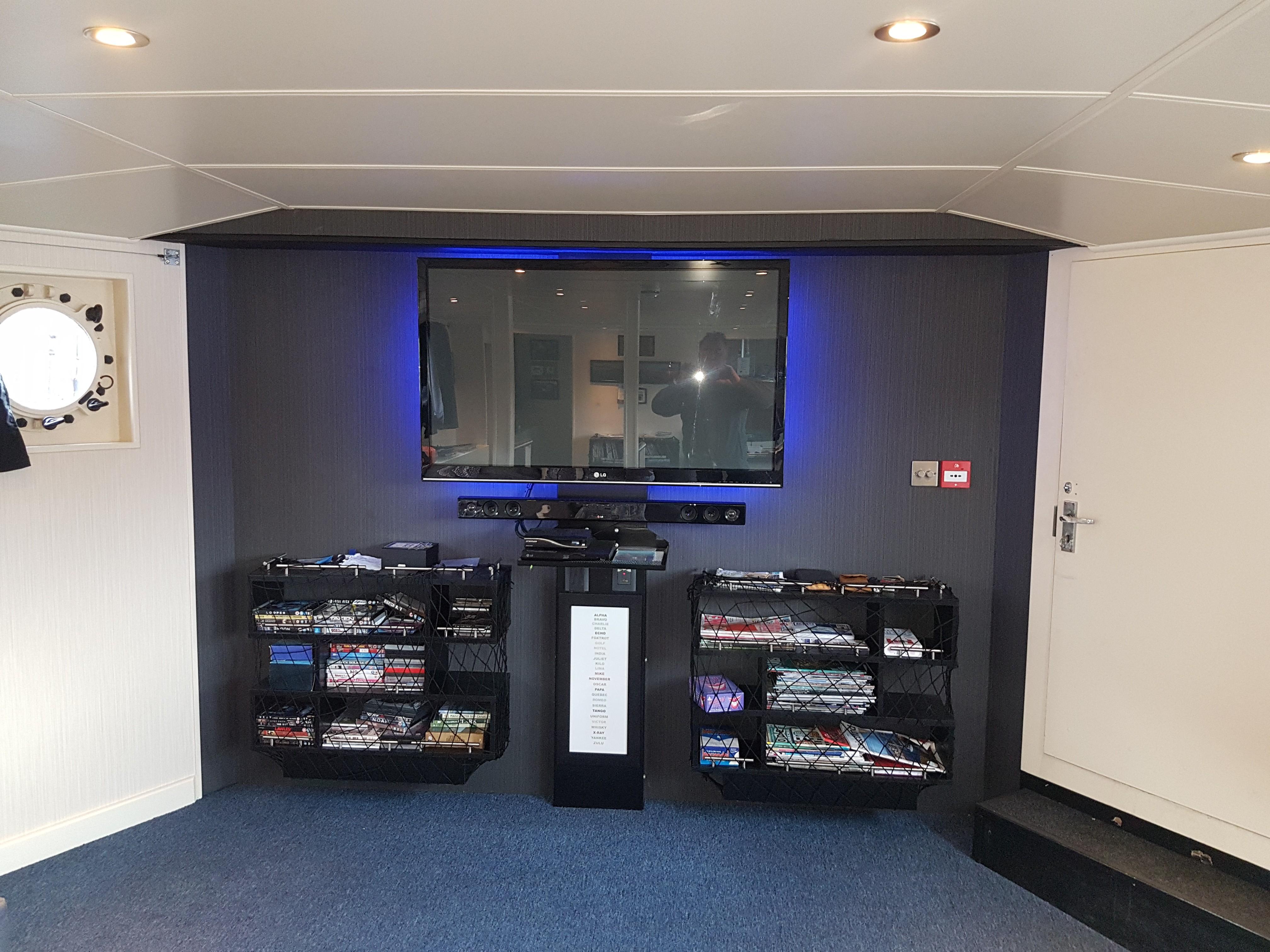

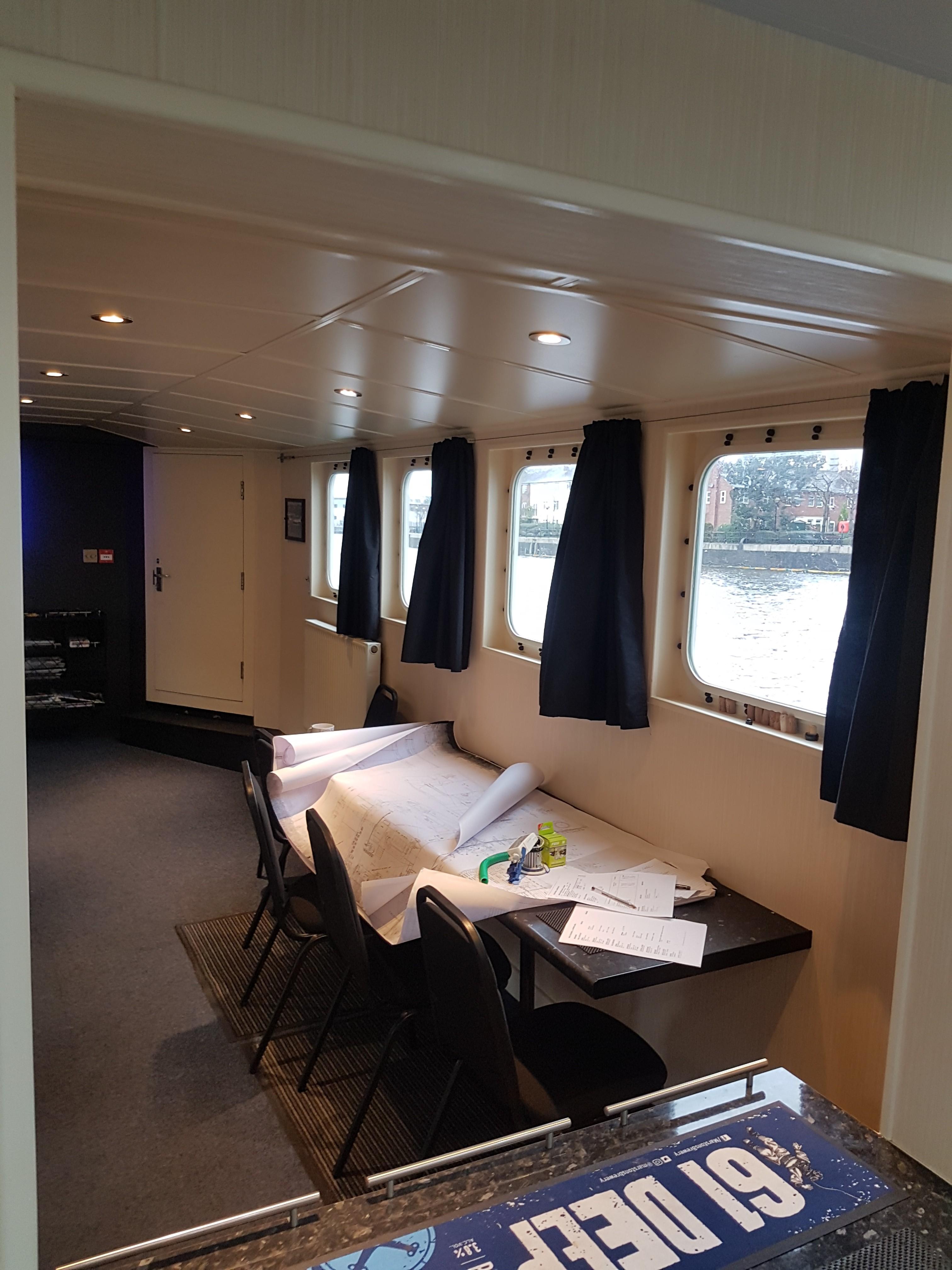

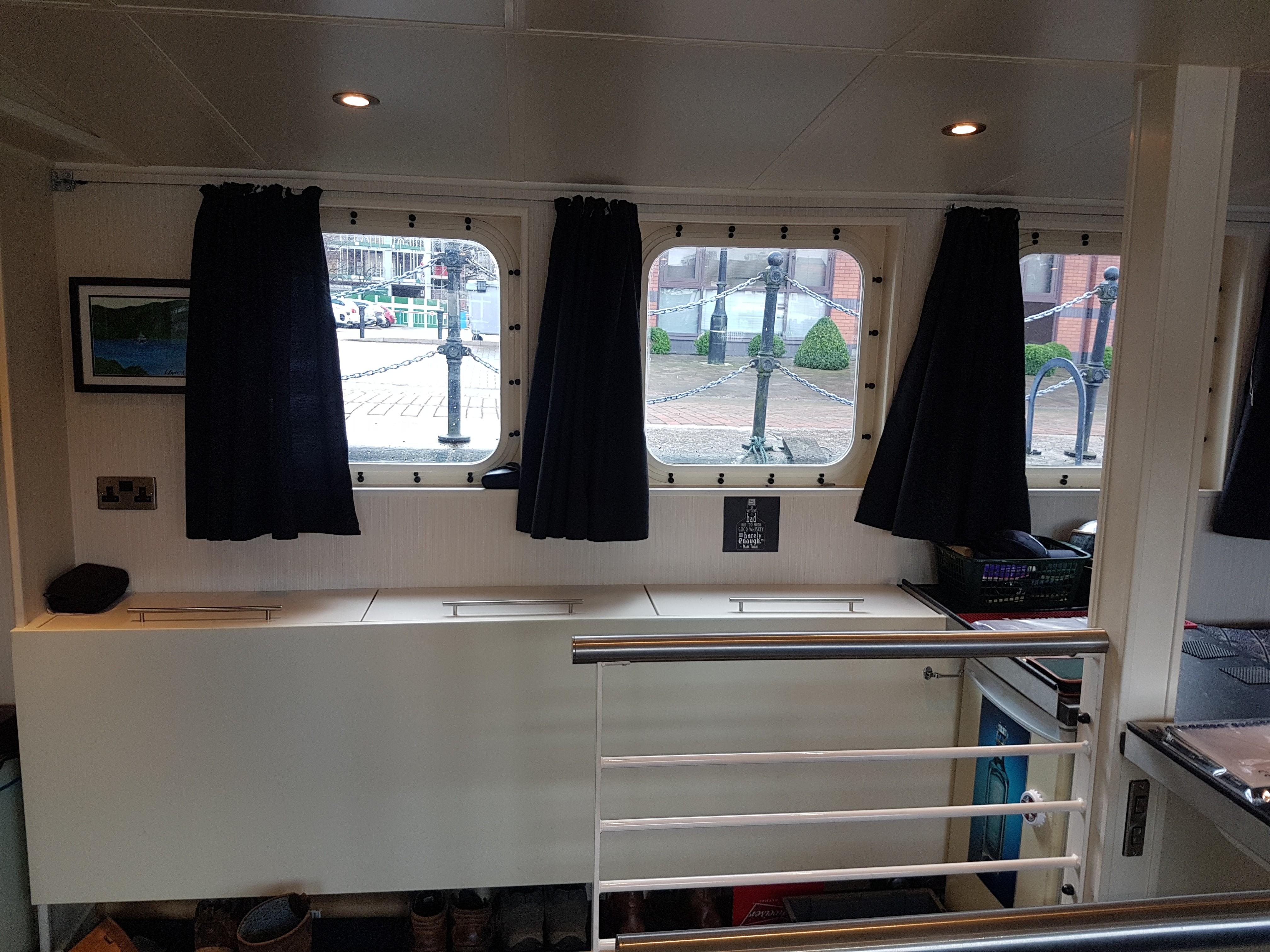

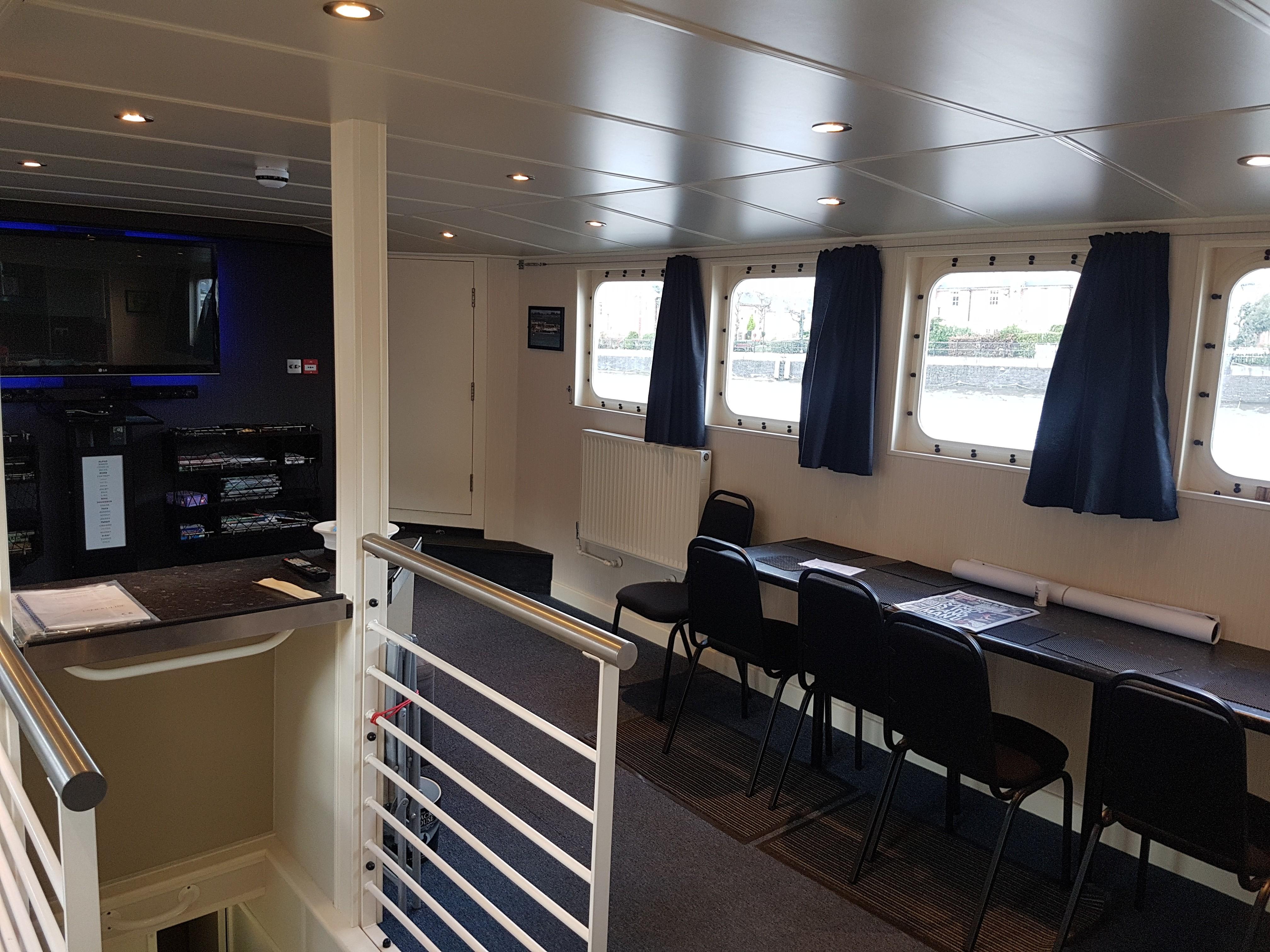

Large saloon lounge with dining area and settees, 40 inch flat screen tv with digital and satellite antenna, drinks cooler and bar

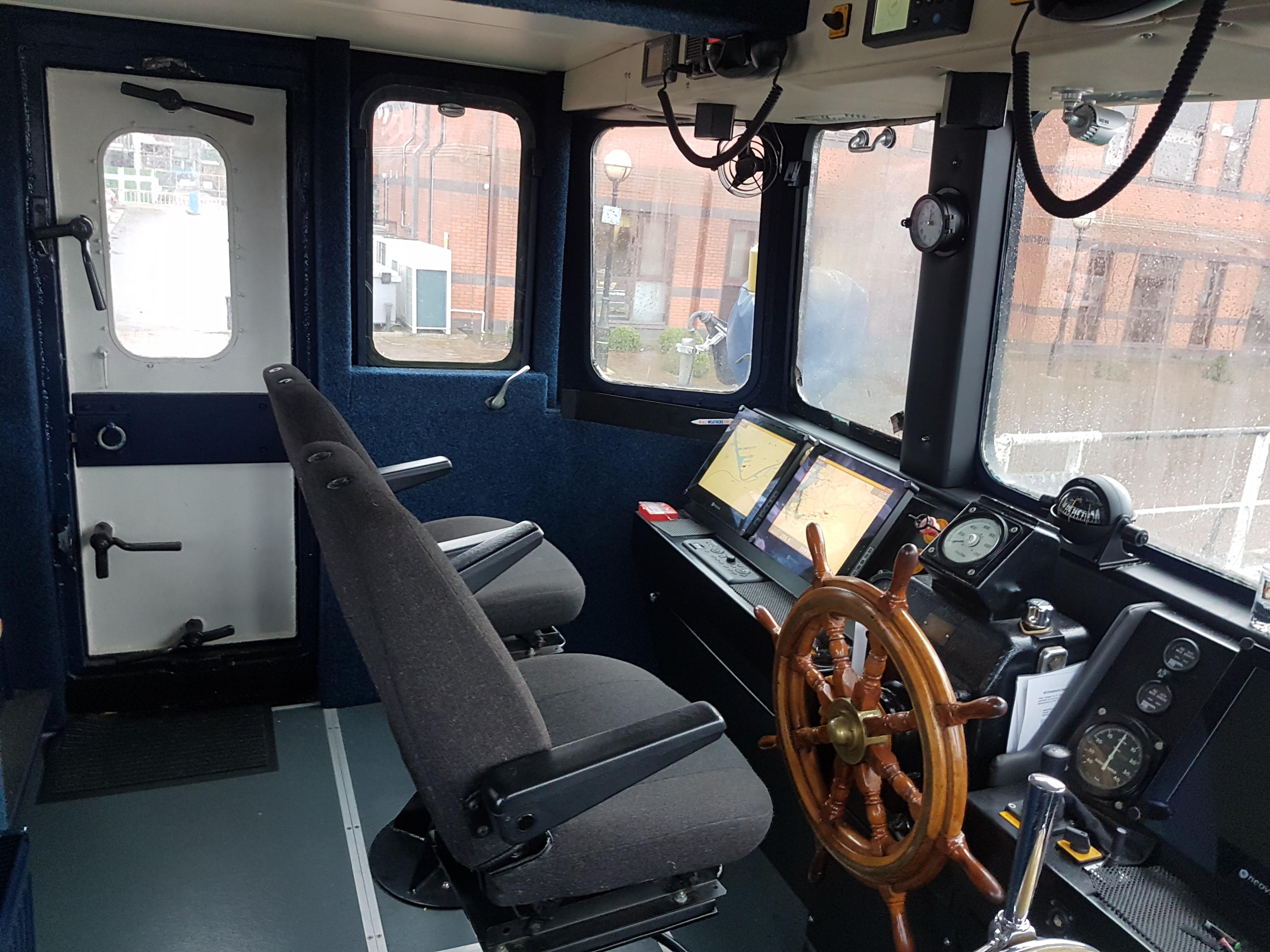

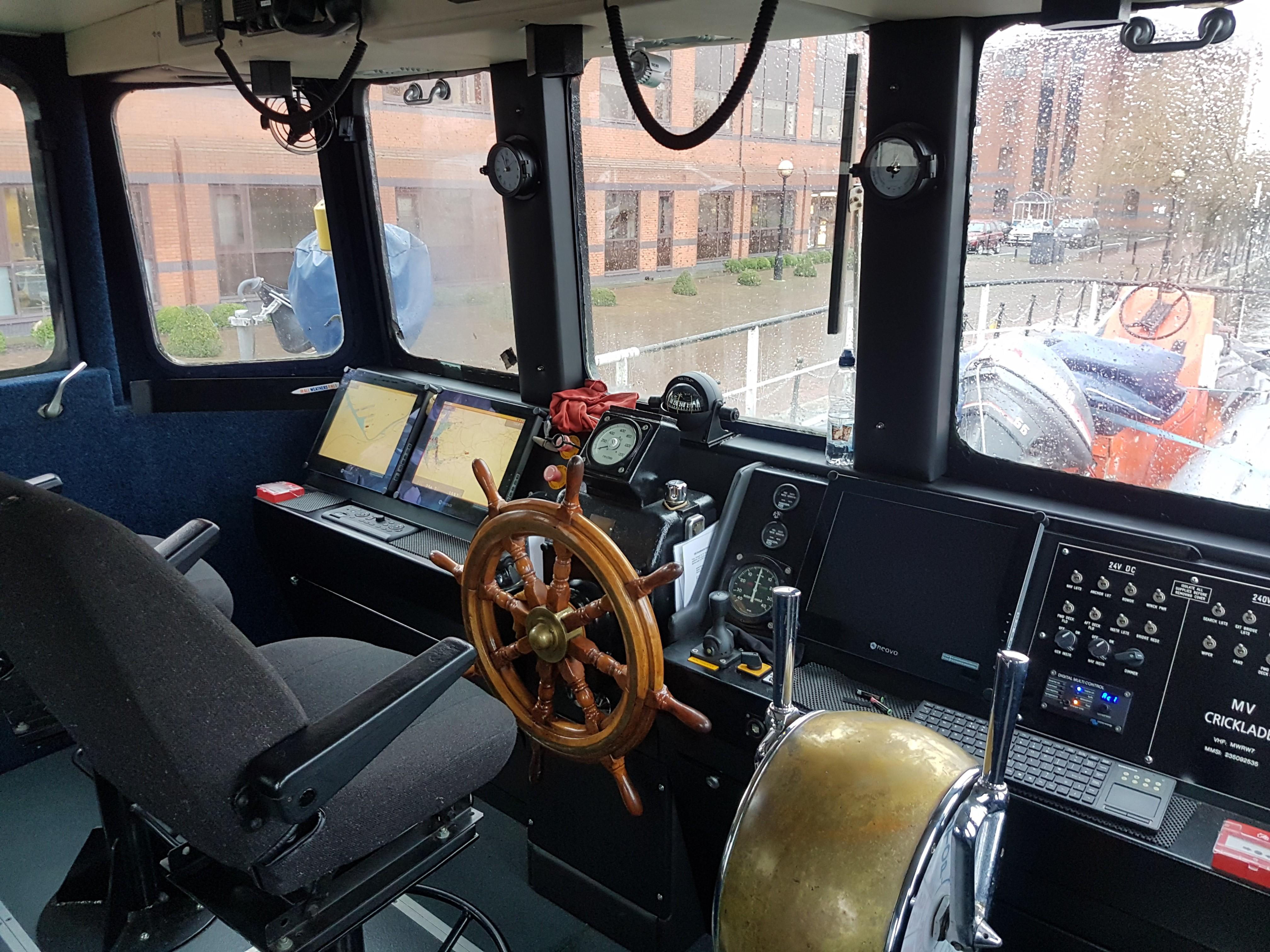

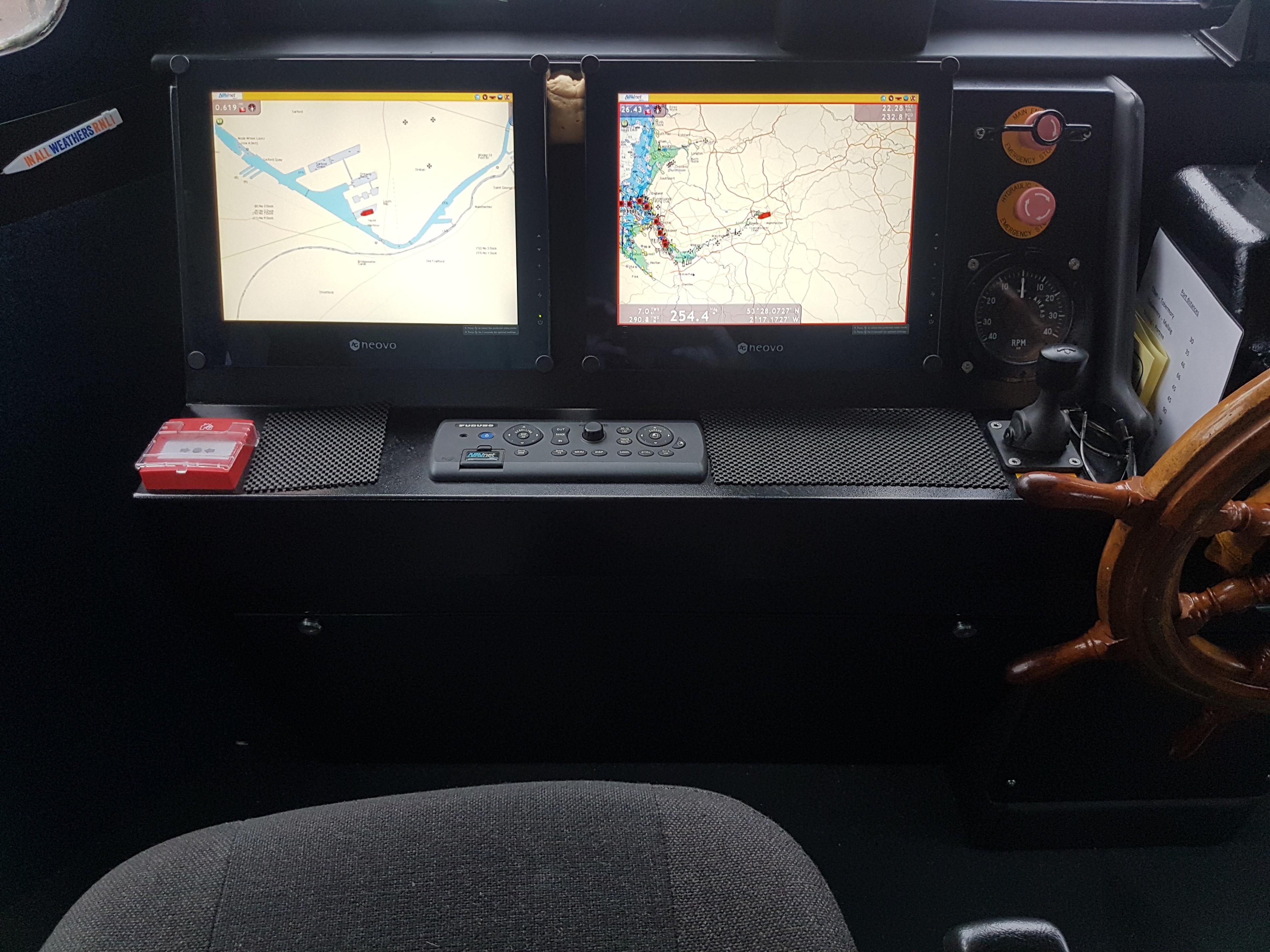

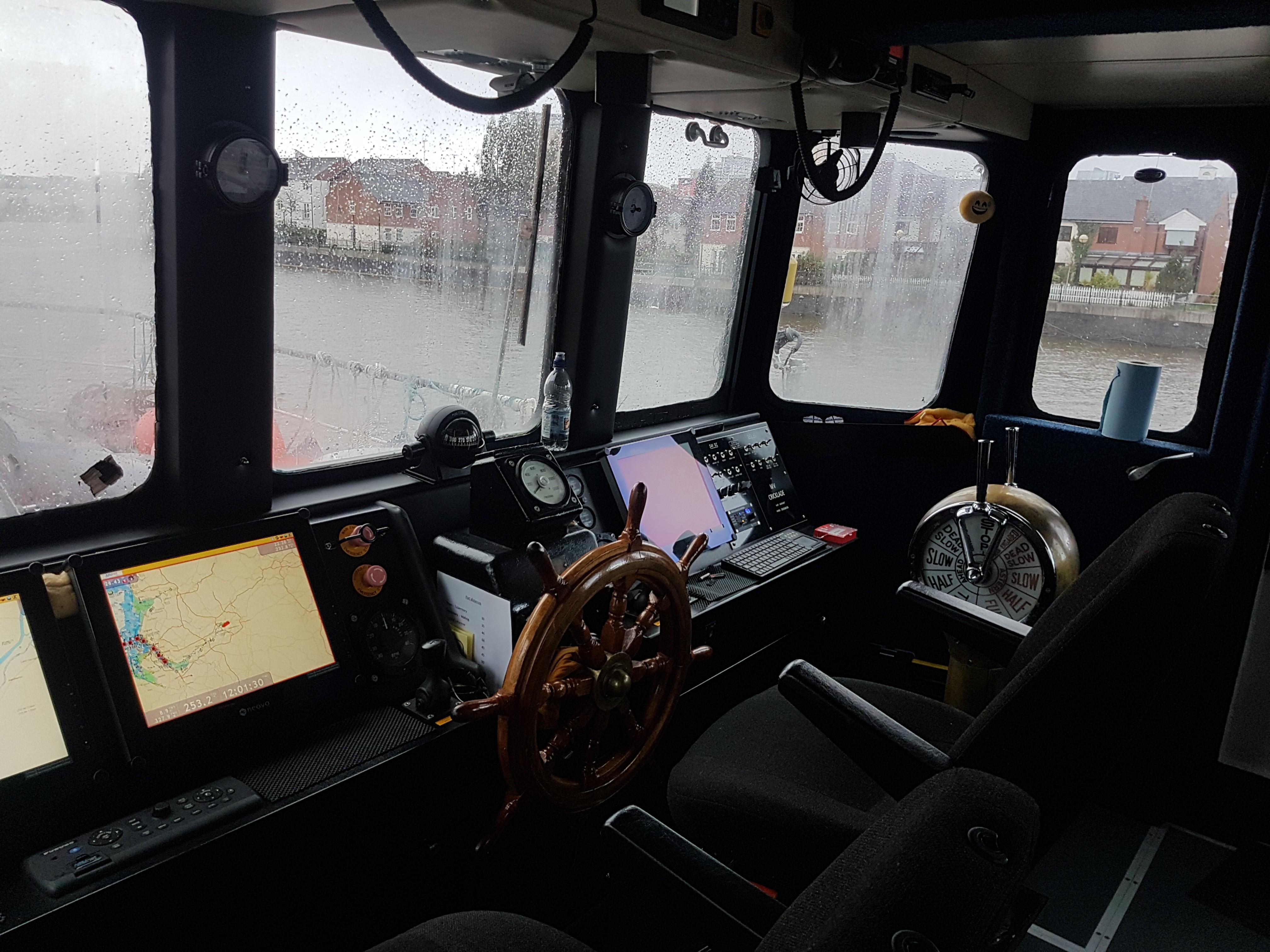

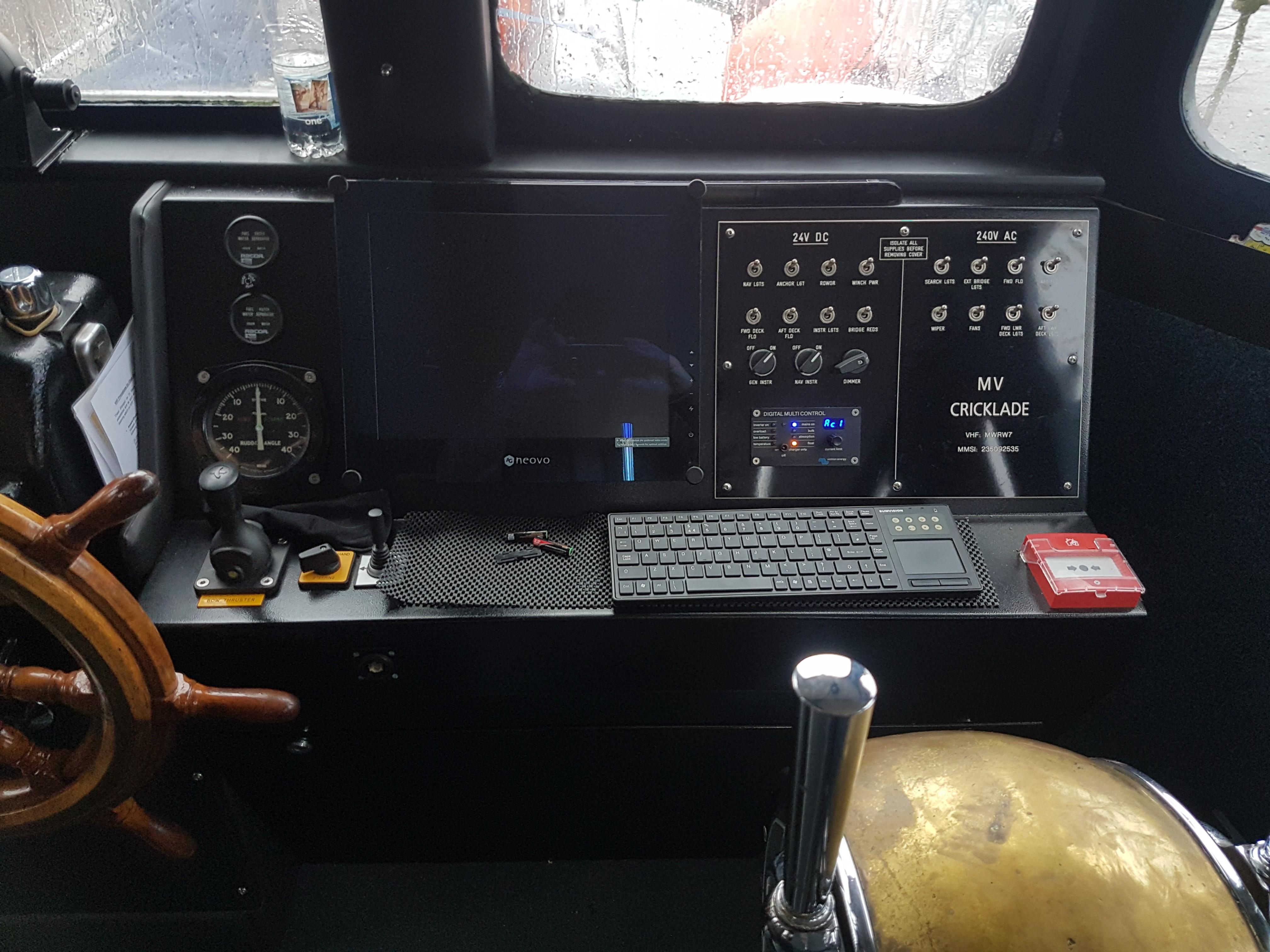

Navnet 3D Radar & Plotter System
MFDBB Processor and Keyboard, DRS6A 4 Open Array Scanner, HUB101 Ethernet Hub, 2 Neovo 15 inch anti-reflective flat screens
Satellite Giro Compass
SC30 Satellite Giro Compass

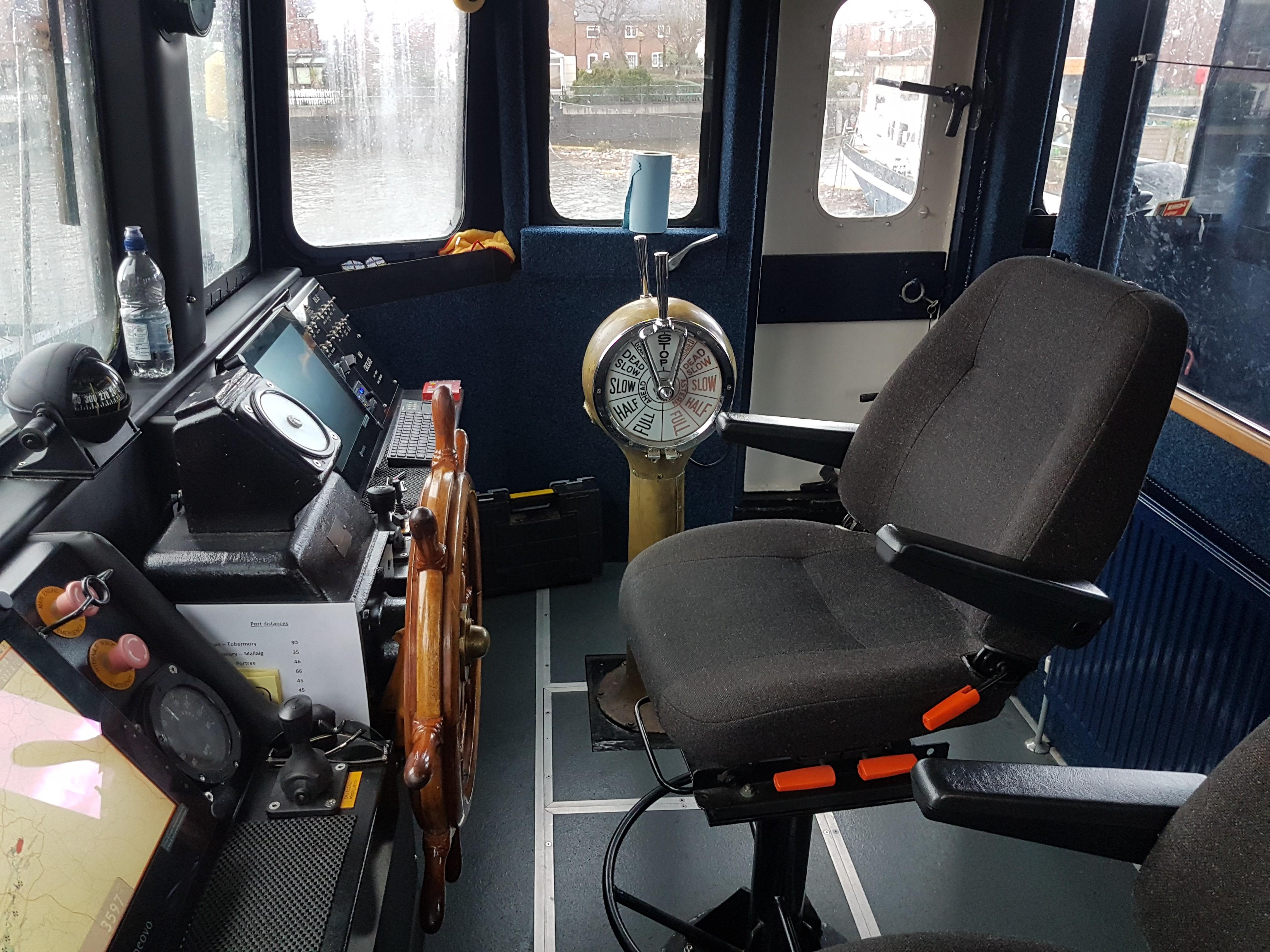

Autopilot System
Navpilot 700, FAP7001 Control Head, FAP 7002 Processor, FAP6112 Rudder Ref unit
Echo Sounder System
DFF1 Digital Echo Sounder, 50/200 khz Digital Transducer
AIS System Class B
FA50 AIS Transceiver, AV7M Antenna

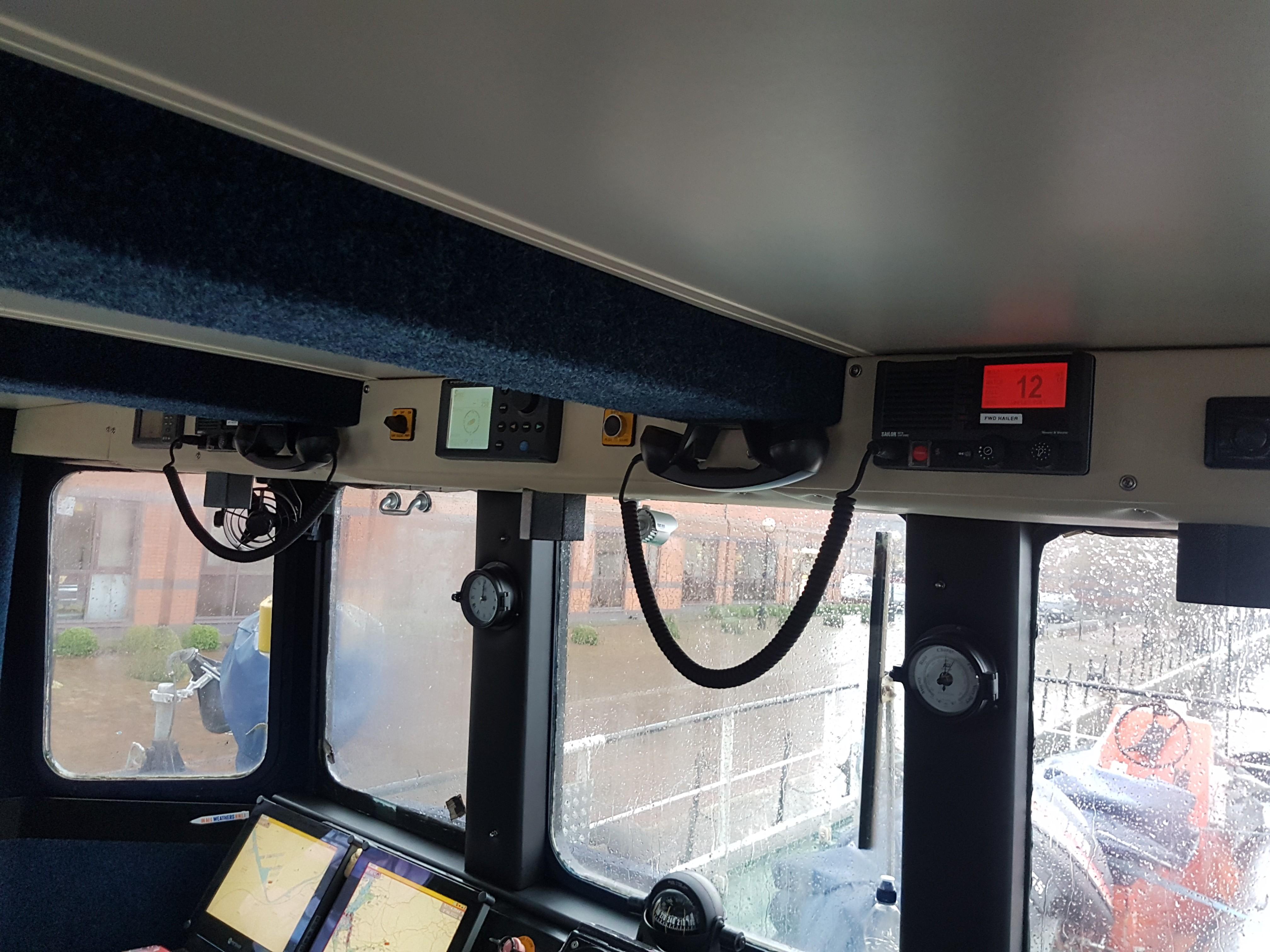

VHF with DSC Systems
2 x Sailor 6125 c/w Telephone handsets, 2 x AV7M Antenna, Emergency Power c/o system
Win Speed and Direction System
WS200 Weather Station, RD33 remote Display Link, Neovo 15 inch non-reflective Flat Screen Display
CCTV system for engine room
